The BK-EXB330UIR-K HDMI™ 2.1 HDBaseT extender is designed to transmit ultra-high-definition video, audio, USB 2.0, and control signals over long distances with exceptional reliability. Supporting resolutions up to 8K@60Hz and 4K@144Hz, it delivers next-generation AV performance for demanding professional and home entertainment environments. Utilizing advanced HDBaseT technology, the extender converts HDMI™ signals into standard HDBaseT signals and transmits them up to 100 meters (328 feet) over a single CAT5e/6/7 cable. It supports the latest HDMI™ 2.1 features, including VRR, ALLM, QMS, QFT, and SBTM, ensuring smooth visuals, reduced latency, and optimized performance for gaming and high-frame-rate content.

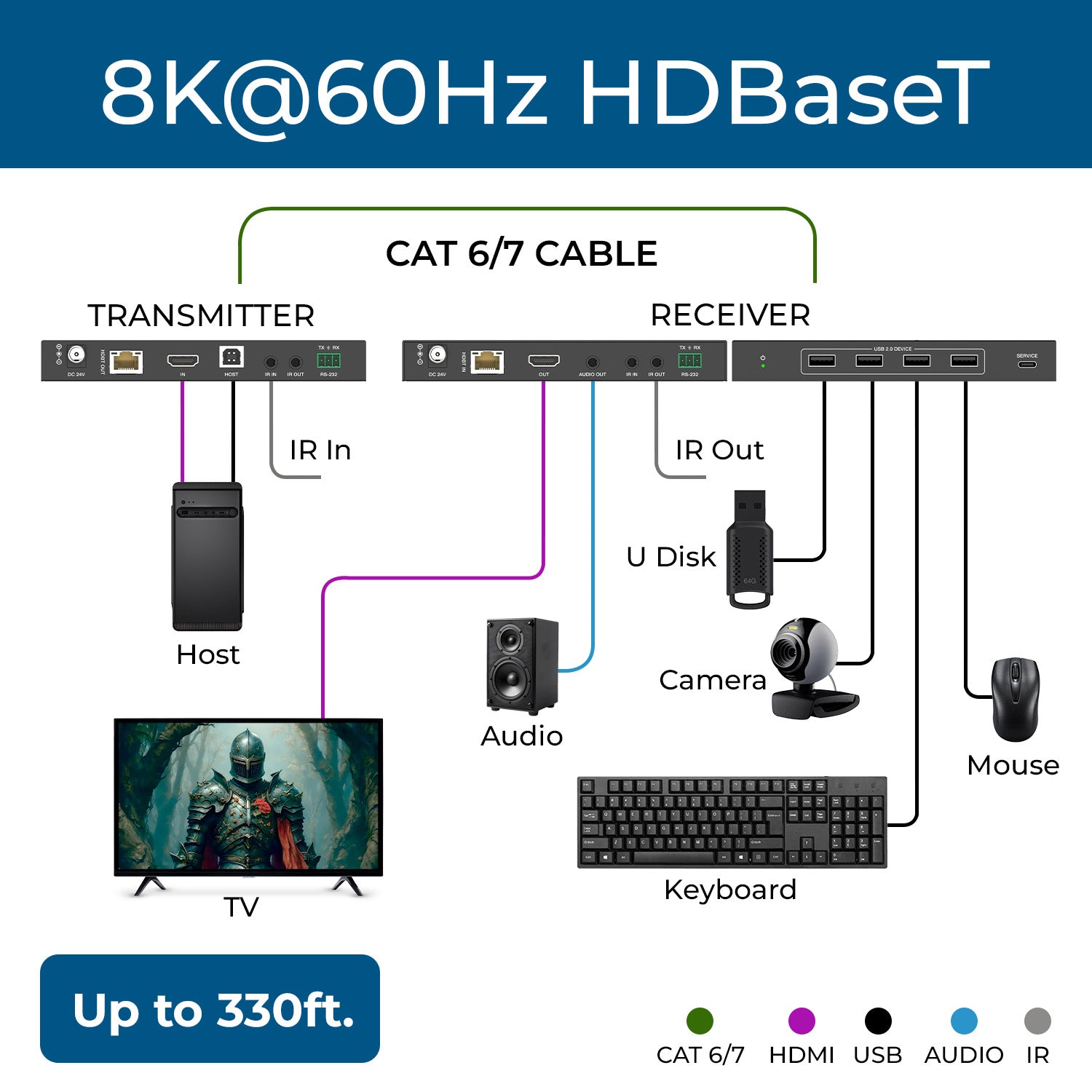

The system also supports HDR10, HDR10+, Dolby Vision, and HLG, along with a full range of advanced audio formats such as Dolby Atmos and DTS:X (through HDMI), delivering immersive audio-visual experiences. USB 2.0 KVM functionality allows remote control of a PC from the Receiver end using a keyboard, mouse and other peripherals such as webcam or touch panels. With audio de-embedding at the receiver, bi-directional IR, RS-232, CEC control, EDID management, and bi-directional PoC, this extender provides a powerful and flexible solution for video conferencing systems, multimedia broadcasting, control rooms, digital signage, and HDMI™ signal extension applications.
Key Features:
- HDMI™ 2.1 & HDCP 2.3 Compliant – Ensures full compatibility with next-generation HDMI™ sources and protected content, supporting the latest AV standards.
- Ultra-High Video Bandwidth – Supports up to 48Gbps FRL and 18Gbps TMDS, delivering uncompressed, high-frame-rate video performance.
- 8K & High-Refresh 4K Video Support – Handles resolutions up to 8K@60Hz (4:2:0, 12-bit) and 4K@144Hz (4:4:4).
- Long-Distance HDBaseT Transmission – Extends HDMI™ signals up to 100m / 328ft over a single CAT5e/6/7 cable with no signal degradation.
- Advanced HDMI™ 2.1 Gaming Features – Supports VRR, ALLM, QMS, QFT, and SBTM for smooth motion, reduced latency, and enhanced gaming performance.
- HDR Pass-Through Support – Compatible with HDR10, HDR10+, Dolby Vision, and HLG for superior contrast and color depth.
- USB 2.0 KVM Functionality – Enables transmission of USB 2.0 signals alongside HDMI™ over the same cable enabling remote control of a PC.
- Comprehensive Audio Format Support – Supports LPCM, Dolby Digital / Plus / EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-EX, DTS-HD Master Audio, DTS:X, and more through HDMI.
- Audio De-Embedding on Receiver – Allows audio extraction at the receiving end for flexible audio routing.
- Bi-Directional Control & CEC Pass-Through – Supports bi-directional IR, RS-232, and HDMI™ CEC for full remote device control.
- Advanced EDID Management – Includes two EDID modes (TV / STD) for optimized source-to-display compatibility.

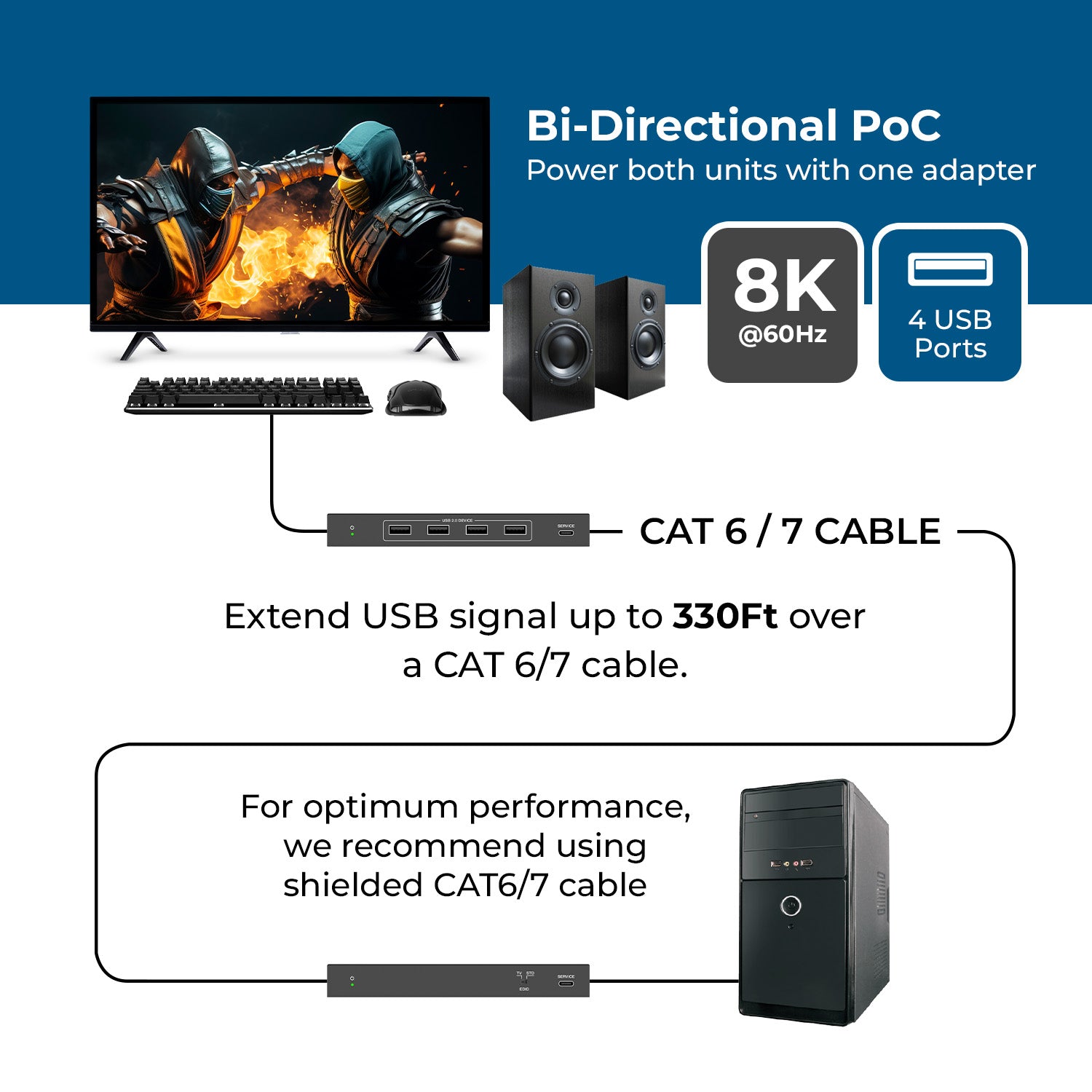

- Bi-Directional PoC (Power over Cable) – Requires a single power adapter on either side to power both units.
- Compact & Installation-Friendly Design – Space-saving form factor ideal for professional and residential AV installations.

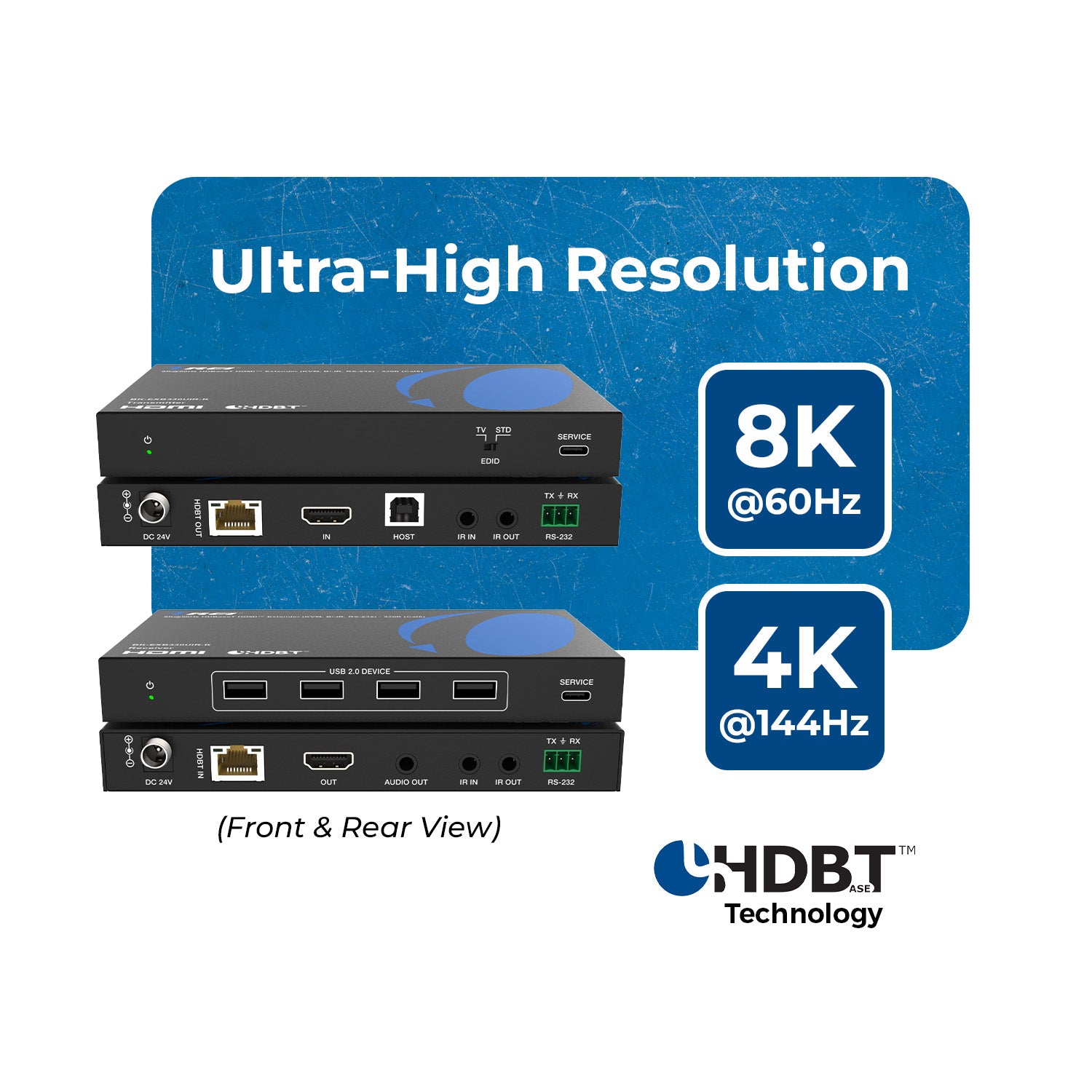

- CONNECTIVITY
- Transmitter: INPUT: 1× HDMI™ [Type A, 19-pin female]
- OUTPUT: 1× HDBaseT [RJ45]
- CONTROL: 1× HOST [USB-B, 4-pin female]
- 1× IR IN [3.5mm audio jack]
- 1× IR OUT [3.5mm audio jack]
- 1× RS-232 [3-pin 3.5mm phoenix connector]
- 1× SERVICE [USB-C]
- Receiver: INPUT: 1× HDBaseT [RJ45]
- OUTPUT: 1× HDMI™ [Type A, 19-pin female]
- 1× AUDIO [3.5mm audio jack]
- CONTROL: 4× USB 2.0 DEVICE [USB-A, 9-pin female]
- 1× IR IN [3.5mm audio jack]
- 1× IR OUT [3.5mm audio jack]
- 1× RS-232 [3-pin 3.5mm phoenix connector]
- 1× SERVICE [USB-C]

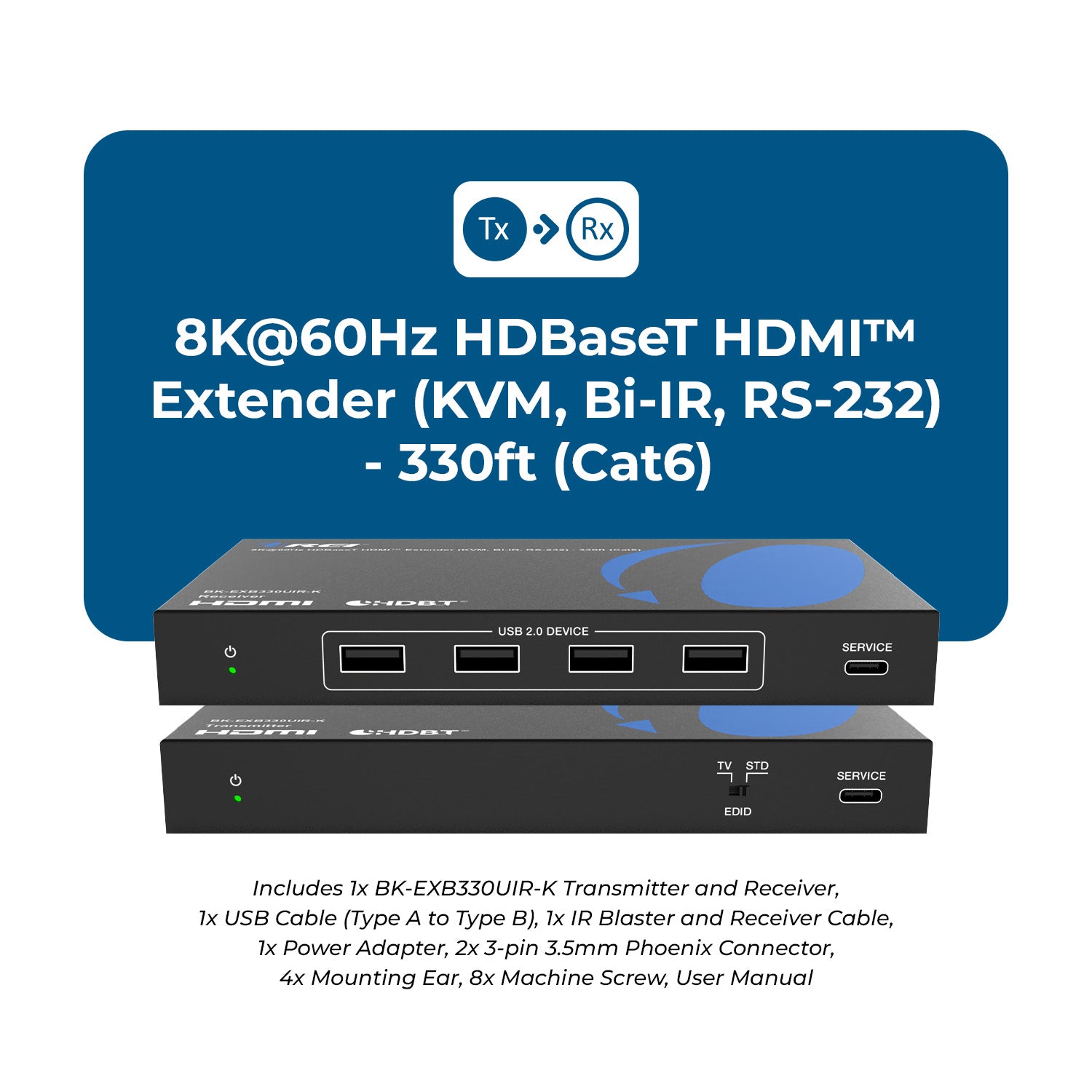

- PACKAGE CONTENTS

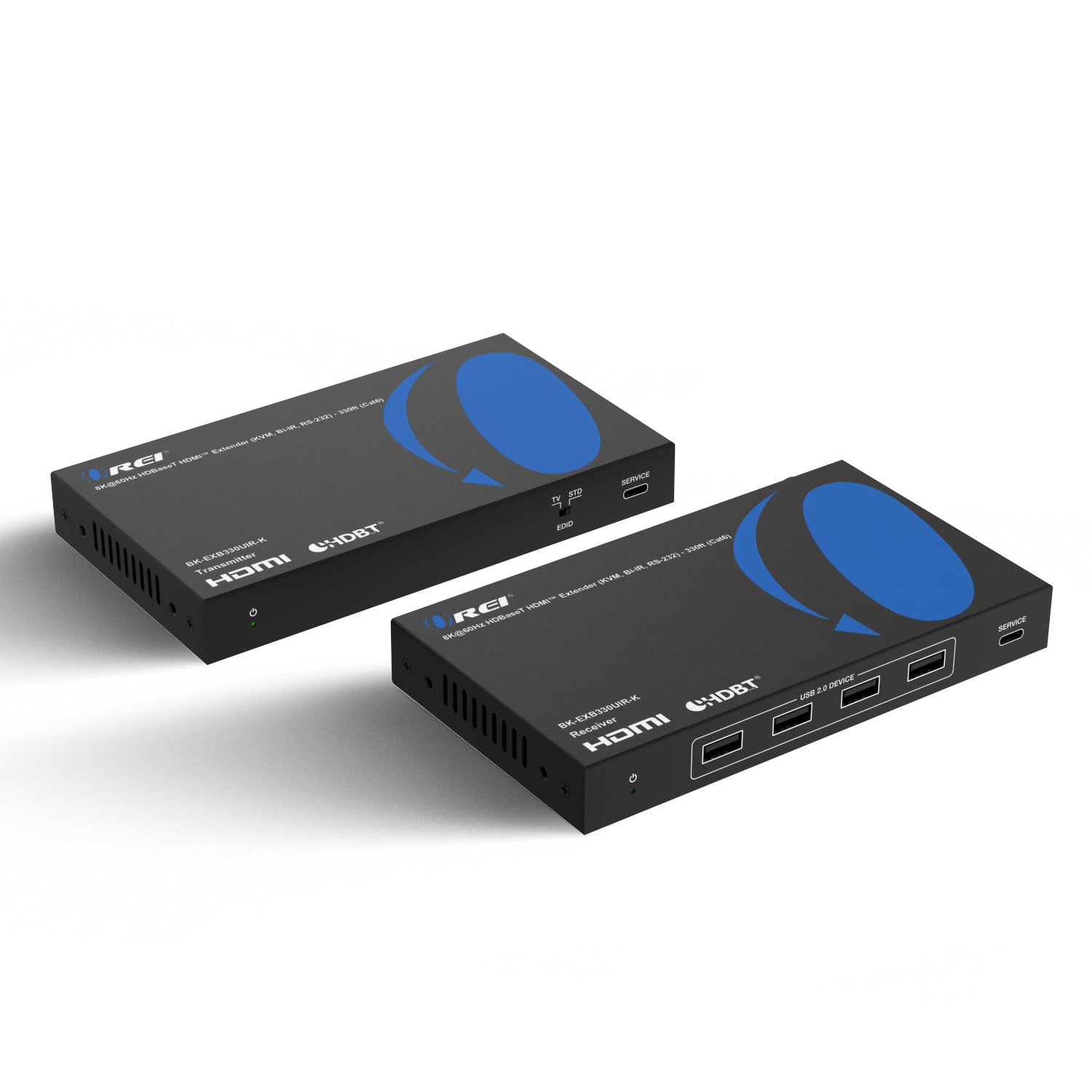

- 1x BK-EXB330UIR-K Transmitter
- 1x BK-EXB330UIR-K Receiver
- 4x Mounting Ears
- 8x Screws
- 1x IR Blaster Cable (1.5m)
- 1x IR Wideband Receiver Cable (1.5m)
- 2x 3-pin 3.5mm Phoenix Connector
- 1x USB Cable (USB-A to USB-B)
- 1x Power Adapter
- 1x User Manual
- SUPPORTED CAT CABLES
- CAT5e, CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
- ADDITIONAL FEATURES
- ARC/eARC: No
- CEC : Yes
- Transmission Technology : Yes
- IR Control: Yes, Bi-directional
- PoC (Power over Cable): Yes
- RS-232: Yes
- USB Standard: USB 2.0
- USB-C DP Alt Mode: No
- HDR10 / HDR10+ / Dolby Vision: Yes
- AUDIO SUPPORT
- Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- POWER
- Power Consumption: (PoC) 21.2W
- Power Supply: DC 24V/1A

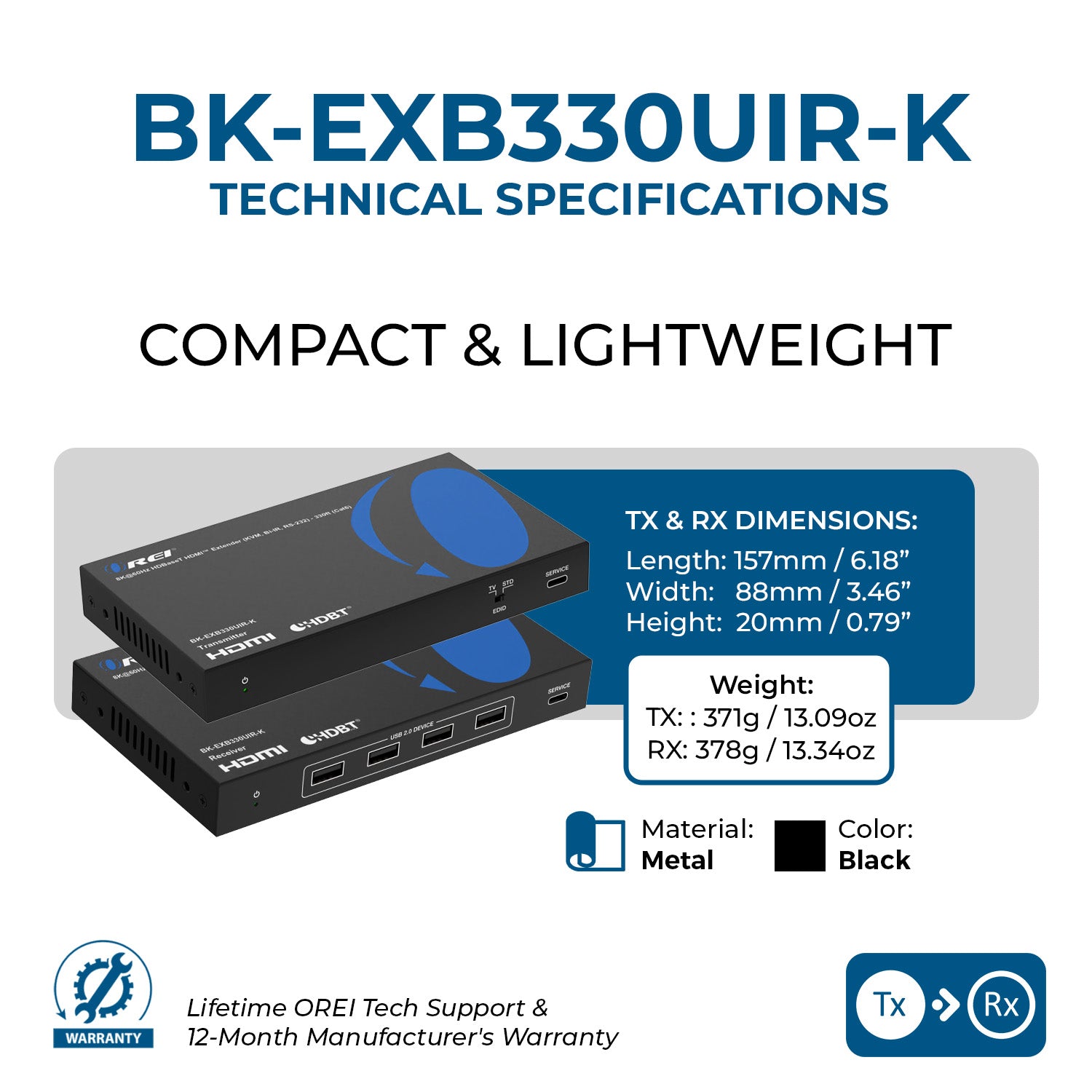

- DIMENSIONS & WEIGHT
- Length: 157mm / 6.18in
- Width: 88mm / 3.46in
- Height: 20mm / 0.79in
- Weight: Transmitter: 371g / 13.09oz; Receiver: 378g / 13.34oz
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing
- WARRANTY
- 1-Year Manufacturer's Warranty
Includes:
- 1x BK-EXB330UIR-K (Transmitter)
- 1x BK-EXB330UIR-K (Receiver)
- 4x Mounting Ears
- 8x Screws
- 1x IR Blaster Cable (1.5m)
- 1x IR Wideband Receiver Cable (1.5m)
- 2x 3-pin 3.5mm Phoenix Connector
- 1x USB Cable (USB-A to USB-B)
- 1x Power Adapter
- 1x User Manual
WARRANTY:
- 1-Year Manufacturer's Warranty
