$39.00

  |

In Stock Soon: Usually Ships in 3-5 Business Days.

  • 2 Inputs - 1 outputs HDMI switch
  • Video resolution up to 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz
  • Supports Dolby Vision, HDR 10+
  • Compliance: HDMI 2.1, HDCP 2.3
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

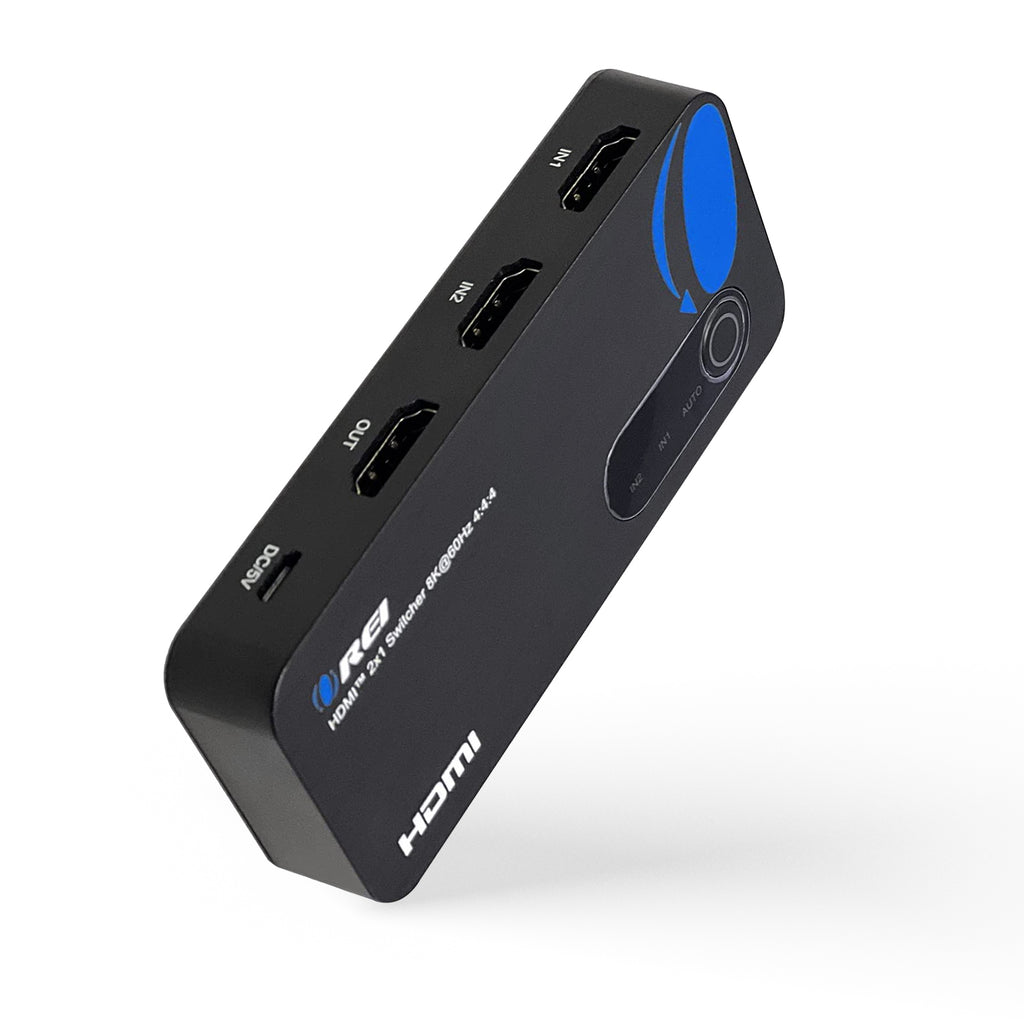

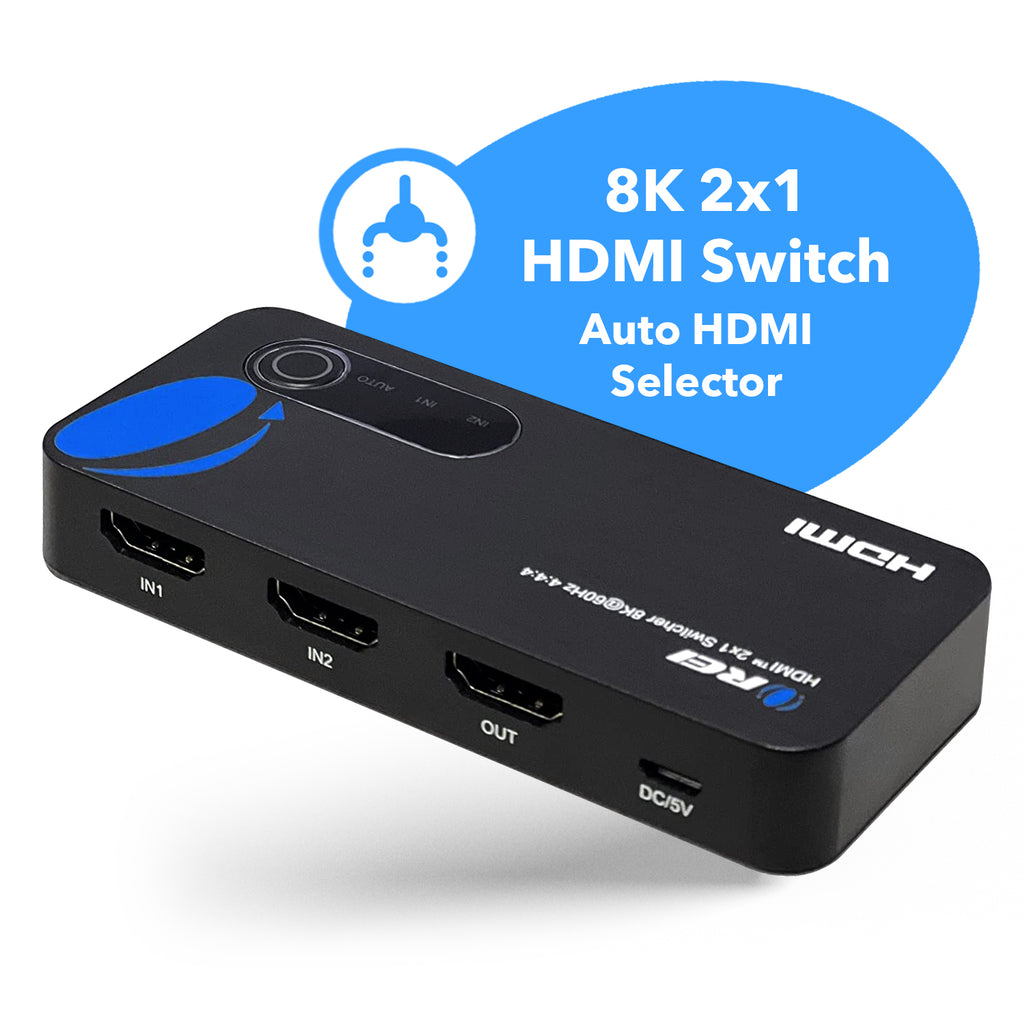

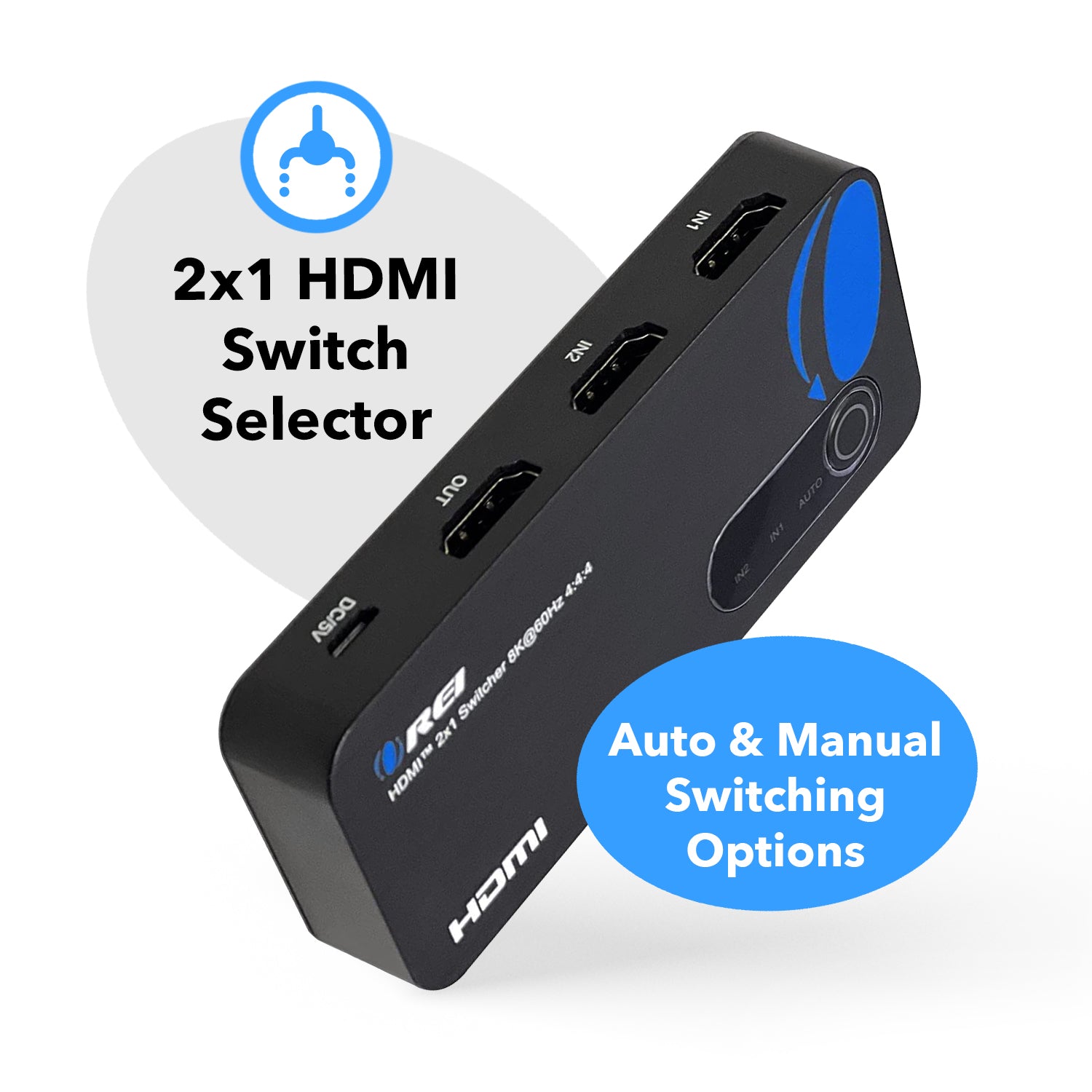

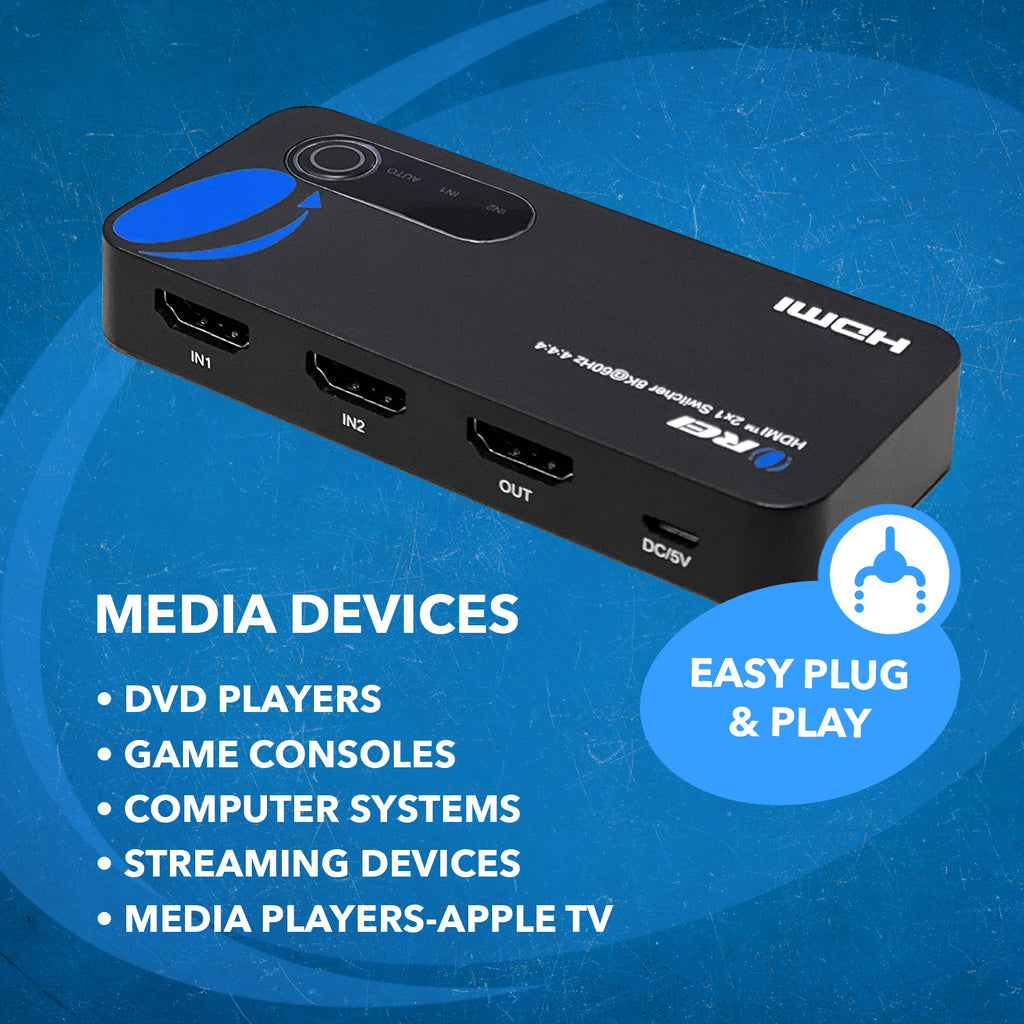

OREI BK-21S: 8K 2X1 HDMI SWITCH

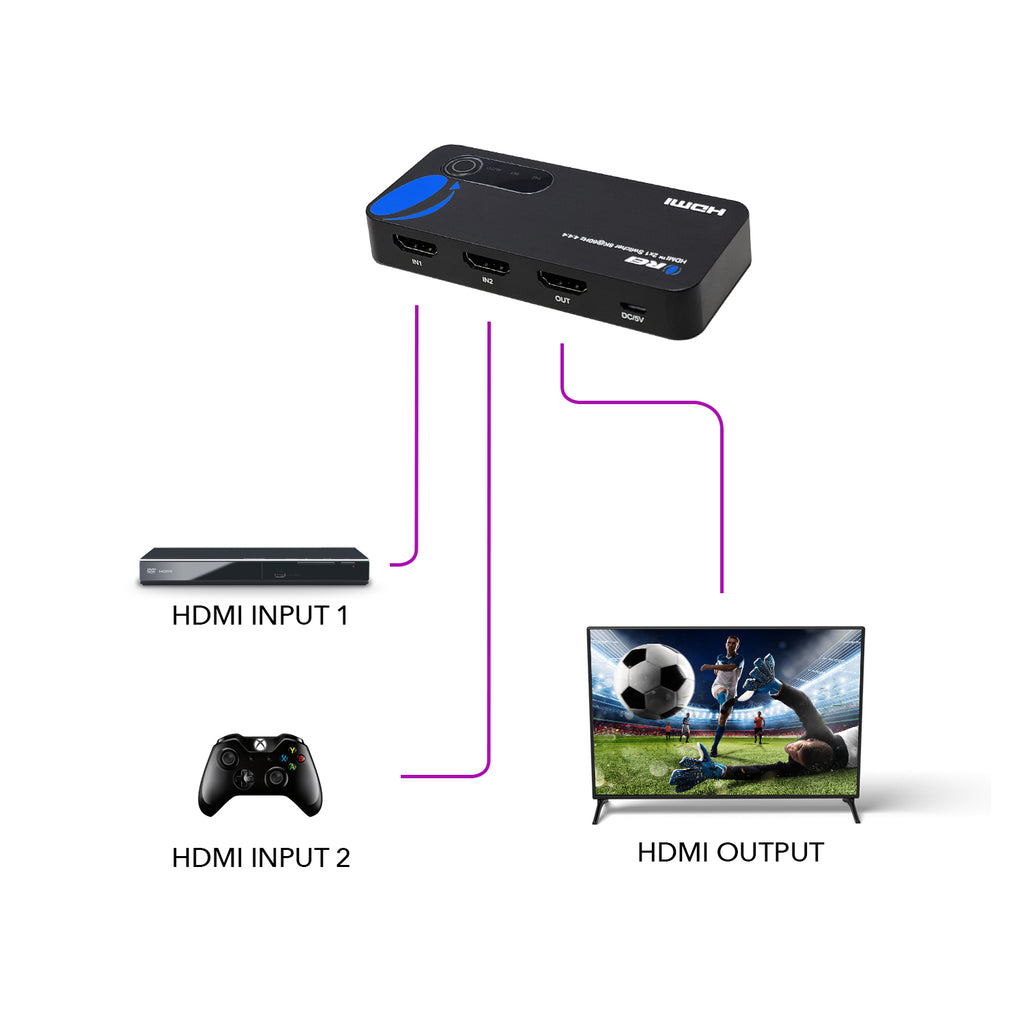

The OREI BK-21S 2 port HDMI Switch Supports 8K@60Hz (7680x4320p@60Hz). The switch features two independent inputs that each support 8K resolution and 7.1 surround sound audio.

8K is supported by the latest A/V devices and delivers four times the resolution of 4K. Plus, because the switch is backward compatible with Ultra HD 4K and high-definition 1080p, you can rest assured any video source will look great in your digital signage application. Enjoy hassle-free operation with two different switching modes:

1. Manual Port Switching: Enables you to manually select your HDMI Source with easy-to-use panel button

2. Automatic Port Switching: Enables your most recently activated video source to be displayed automatically

Note: Manual switching and automatic switching mode can be changed to another via long press the selector button for 3-5 seconds

Key Features:
  • HDMI 2 input to 1 output Switcher
  • HDMI Stylish switches with manual port switching/automatic port switching
  • Support high definition resolution 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz
  • Support 1200MHz/12Gbps per channel bandwidth (48Gbps all channels)
  • 12bit per channel (36bit all channels)
  • Support HDCP 2.3, and back compatible with the HDCP2.2 and HDCP1.4
  • High Dynamic Range (HDR) video pass-through, such as HDR10/HDR10+/Dolby vision
  • Support VRR (Variable Refresh Rate), ALLM (Auto Low-latency Mode), and QFT (Quick Frame Transport) function
  • Built-in Equalizer, Retiming and Driver
  • Support Consumer Electronics Control
  • Automatic switching (smart function) or manual switching
  • Support uncompressed audio such as LPCM
  • AUDIO AND VIDEO
    • Inputs: 2×HDMI Type A [19-pin female]
    • Output Ports: 1×HDMI Type A [19-pin female]
    • Video Bandwidth: 12Gbps/1200MHz per channel(48Gbps all channels)
    • Video Resolution: 8K@60Hz 4:4:4, 4K@120Hz and 1080P@240Hz
    • HDMI Audio Formats: LPCM, DTS, Dolby Digital(including DTS-HD Master AudioTM and Dolby TrueHD), HDR10, HDR10+, Dolby vision
  • COMMUNICATION AND CONTROL
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
  • POWER
    • Power Supply: USB Power Cable
    • Power Consumption: 5W
  • CONTROL
    • CEC: Pass through
  • ENVIRONMENTAL
    • Operating Temperature: 0C to 70C
    • Storage Temperature:
    • Relative Humidity:5% to 90% RH non-condensation

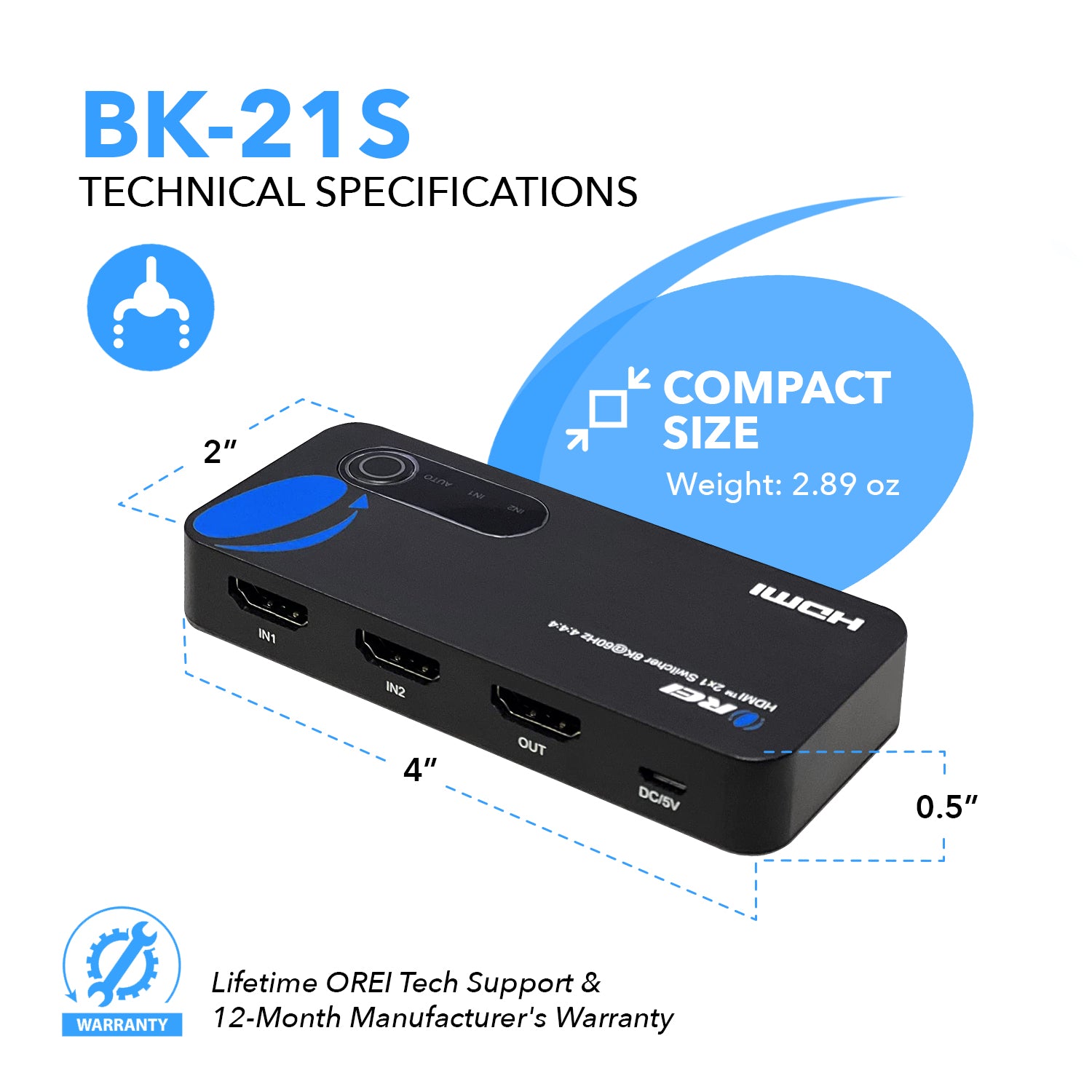

  • DIMENSIONS & WEIGHT
    • Height: 14.5mm
    • Width: 44.8mm
    • Depth: 97mm
    • Weight: 85g
  • REGULATORY
    • Safety and Emission:CE | FCC | RoHS
Includes:
  • 1 × BK-21S 2x1 HDMI switch
  • 1 × USB power cable
  • 1 × User Manual
Warranty:
  • 1 year manufacturer's warranty

Request a Quote


8K 2x1 HDMI Switch 4K @ 120hz - 48Gbps - Prefect For Gaming, PS5, Xbox - HDR10+, Dolby Vision
