The SplitXtend™ SX-UCH1 is a compact and high-performance solution designed to deliver secure and reliable video output from USB-C devices to HDMI™ displays. Supporting resolutions up to 4K@60Hz (4:4:4) with 18Gbps bandwidth, it ensures crystal-clear image quality for presentations, workstations, and multimedia applications. What makes this SplitXtend™ model unique is its one-click video mute feature, allowing users to instantly disable or enable HDMI™ output using a built-in physical switch. This provides an added layer of privacy and control, ideal for situations where sensitive information is displayed, such as entering passwords, switching screens, or presenting in public or professional environments.
With a plug-and-play design and broad compatibility with USB-C devices supporting DisplayPort Alt Mode or Thunderbolt technology, this adapter offers a simple, portable, and secure connectivity solution for business professionals, educators, and everyday users.

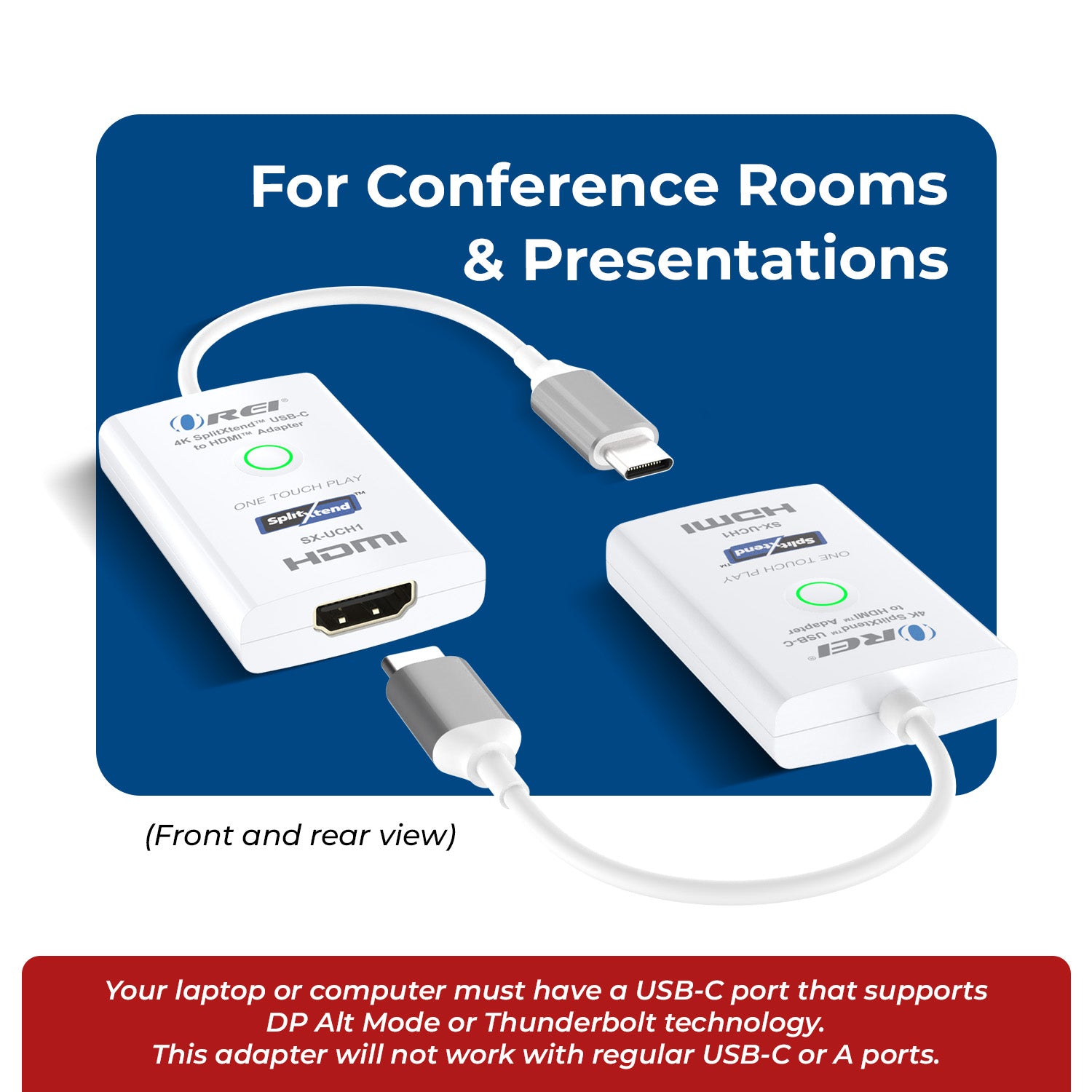

NOTE: Your laptop must support DP ALT Mode or have a Thunderbolt USB-C port.
Key Features:

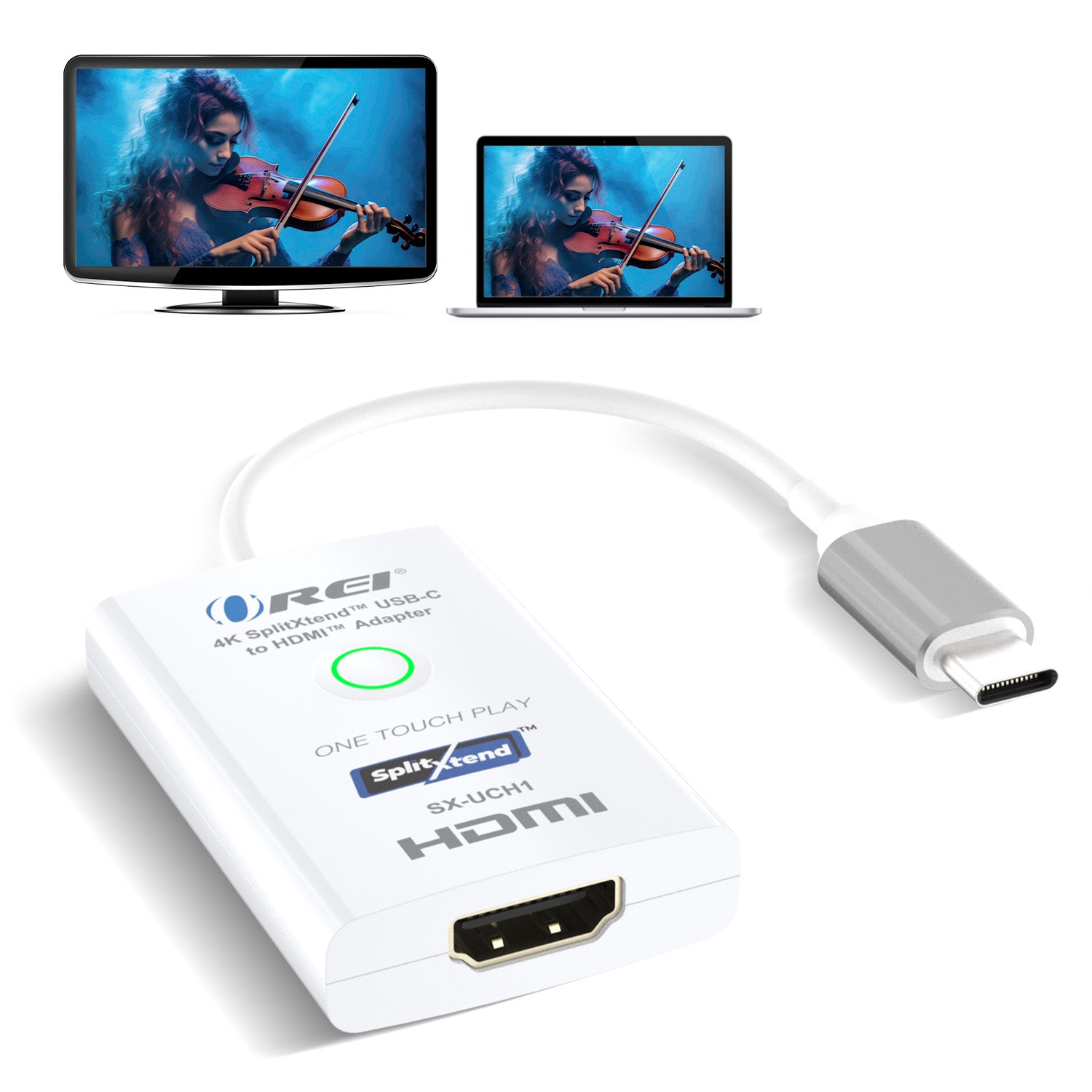

- SplitXtend™ USB-C to HDMI Adapter – Converts USB-C video signals to HDMI™ output for seamless display connectivity
- DP 1.2a Compliant – Ensures compatibility with USB-C devices supporting DisplayPort Alt Mode or Thunderbolt technology.
- 4K@60Hz Resolution Support – Delivers ultra-HD video quality with 4:4:4 chroma sampling for sharp visuals
- 18Gbps Video Bandwidth – Supports high-speed, uncompressed video transmission

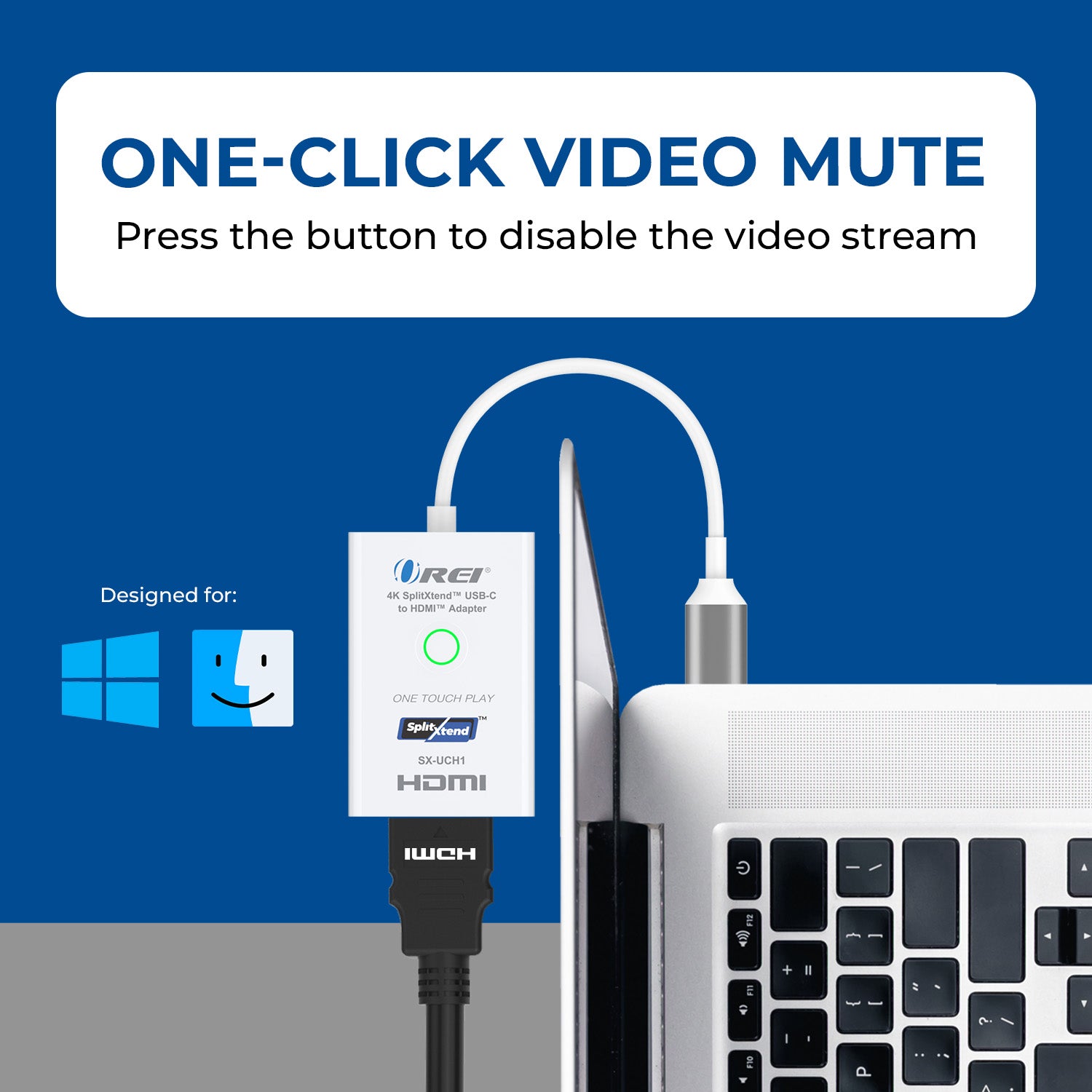

- One-Click Video Mute – Instantly turn HDMI™ output on/off using a physical switch for privacy protection
- Plug-and-Play Operation – No drivers or software required for quick and easy setup
- Compact & Portable Design – Lightweight form factor ideal for travel, office, and on-the-go use
- CONNECTIVITY
- INPUT: 1× USB Type-C
- OUTPUT: 1× HDMI™ [Type A, 19-pin female]

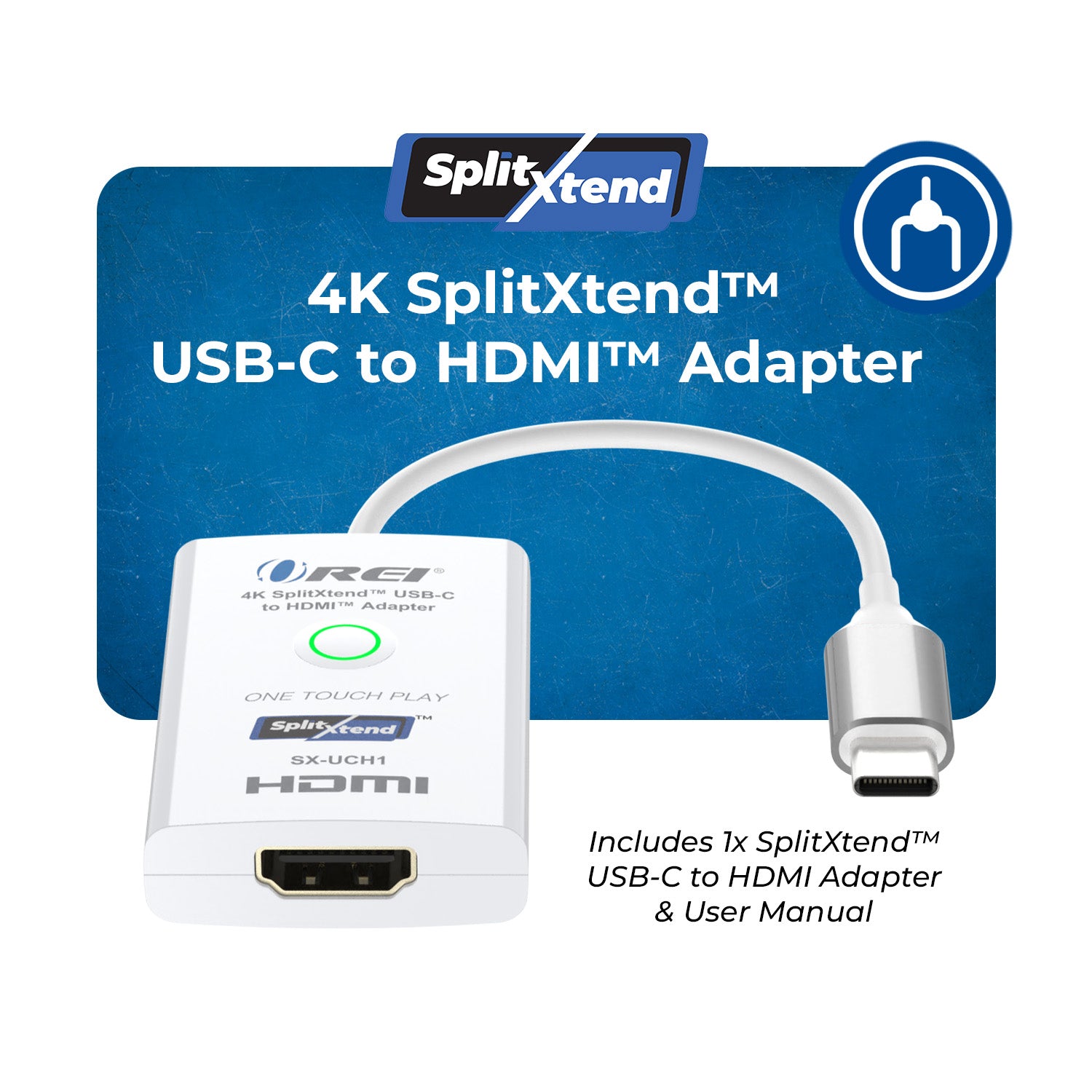

- PACKAGE CONTENTS
- 1x SX-UCH1
- 1x User Manual
- ADDITIONAL FEATURES

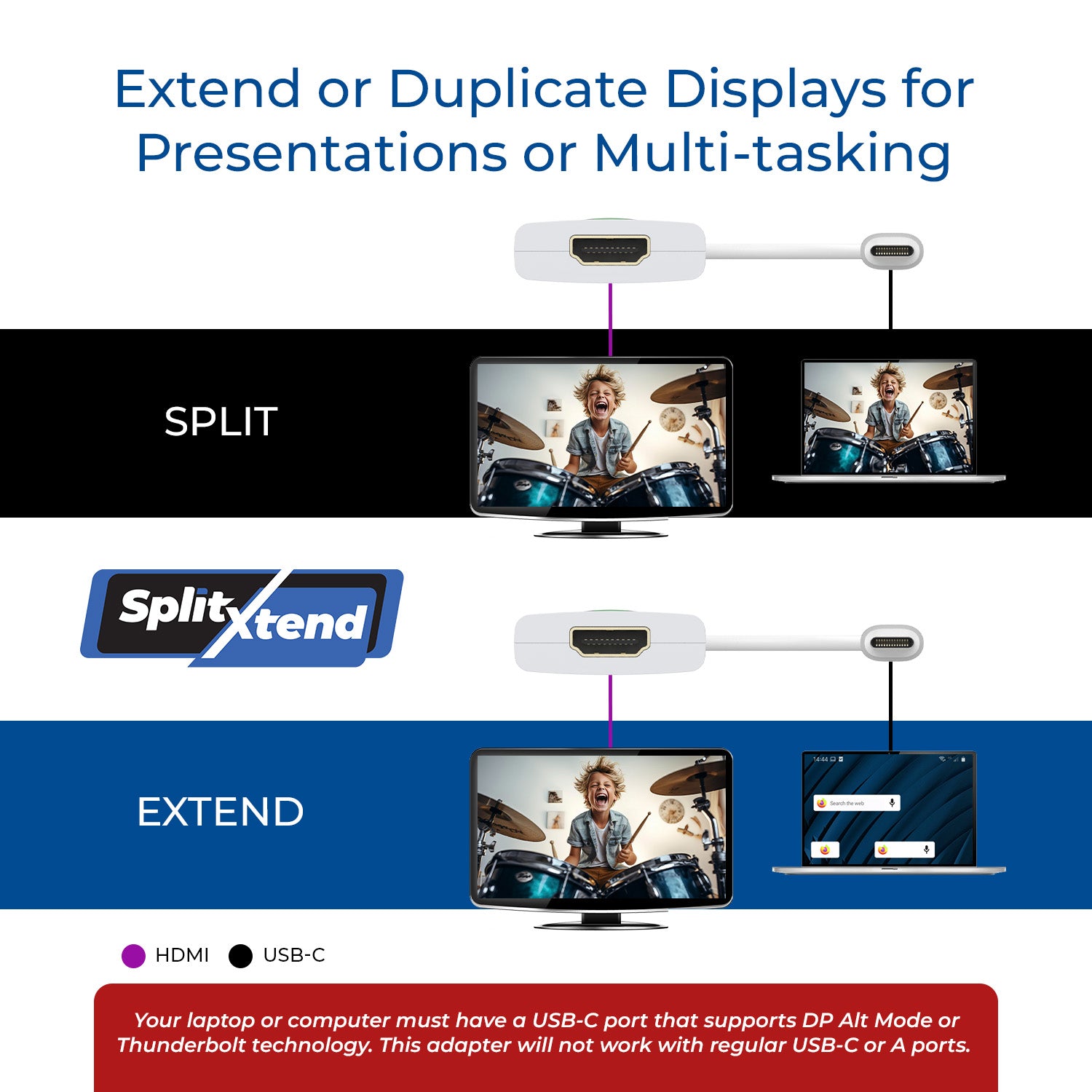

- Extend / Mirror Mode: ❌
- Drivers Required: ✅
- Power Delivery: ❌
- No. of Displays: 2
- Thunderbolt Compatible: ❌
- Host: USB-C to HDMI
- Resolution: 4K@60Hz
- AUDIO AND VIDEO
- Video Bandwidth: 18Gbps (HDMI™), 5.4Gbps (USB-C)
- Video Resolution: 480i@60, 576i@50, 480p@60, 576p@50, 720p@50/60, 1080i@50/60, 1080p@24/25/30/ 50/60, 4K2K@24/25/30, 4K2K@50/60 4:2:0, 4K2K@50/60 4:4:4; 640x480@60, 1024x768@60, 1280x768@60, 1280x800@60, 1280x1024@60, 1360x768@60, 1440x900@60, 1680x1050@60
- POWER
- Power Consumption: 1.5W (Max)
- Power Supply: USB 5V / 1A

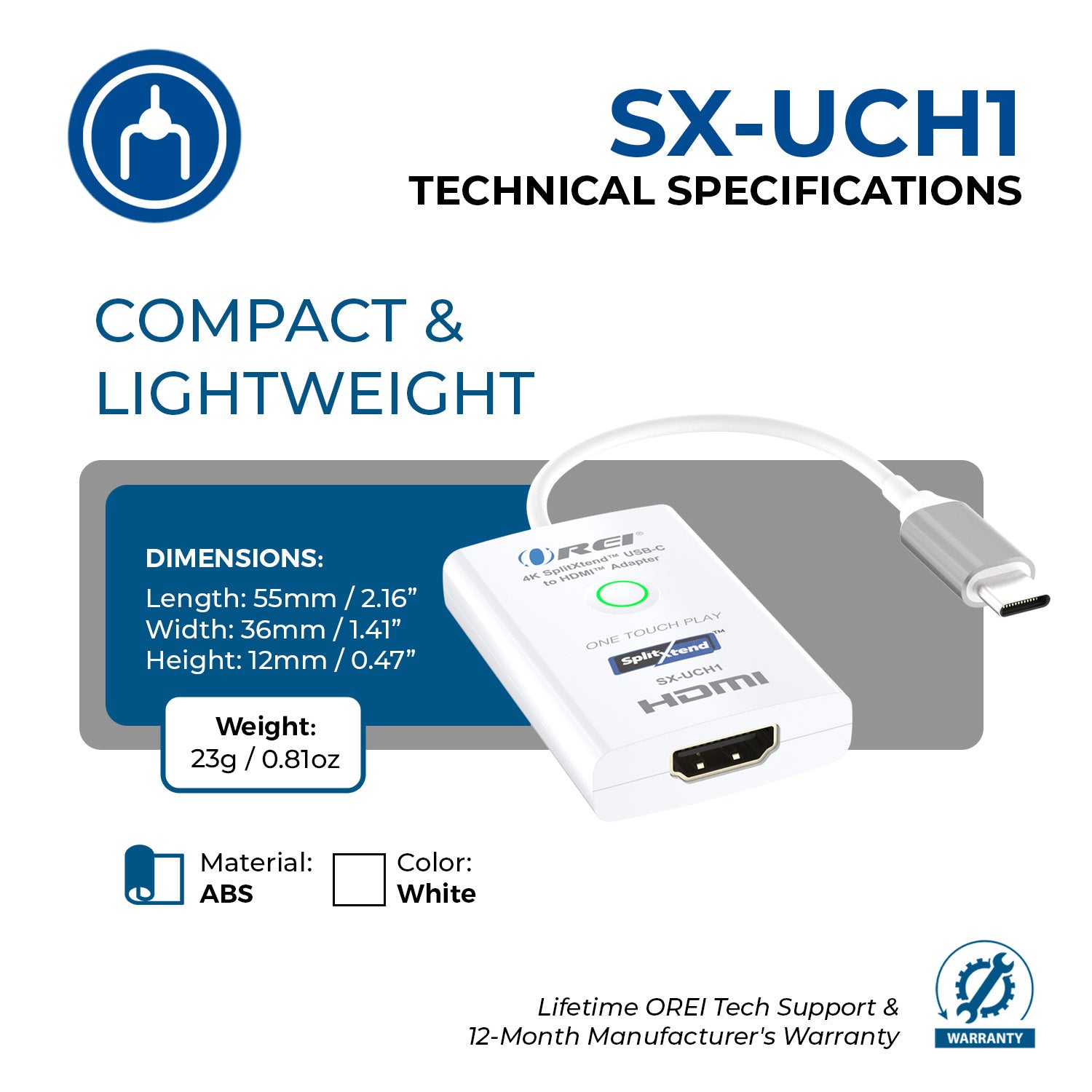

- DIMENSIONS & WEIGHT
- Length: 55mm / 2.17in
- Width: 36mm / 1.42in
- Height: 12mm / 0.47in
- Weight: 23g / 0.81oz
- PROPERTIES
- Color: White
- Housing: Plastic Enclosure
- Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20%~80% relative humidity, non-condensing
- Storage Humidity: 10%~90% relative humidity, non-condensing
- WARRANTY
- 1-Year Manufacturer's Warranty
Includes:
- 1x SX-UCH1
- 1x User Manual
WARRANTY:
- 1-Year Manufacturer's Warranty
