$199.00

  |

In Stock: Usually Ships in 24 Hours

  • Supports KVM function
  • Supports HDR (YUV 4:4:4) with EDID
  • Supports bi-directional IR Signal & POC (Power Over Cable)
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

OREI UHD-EXB400-KVM 4K KVM HDMI HDBaseT Extender up to 400Ft

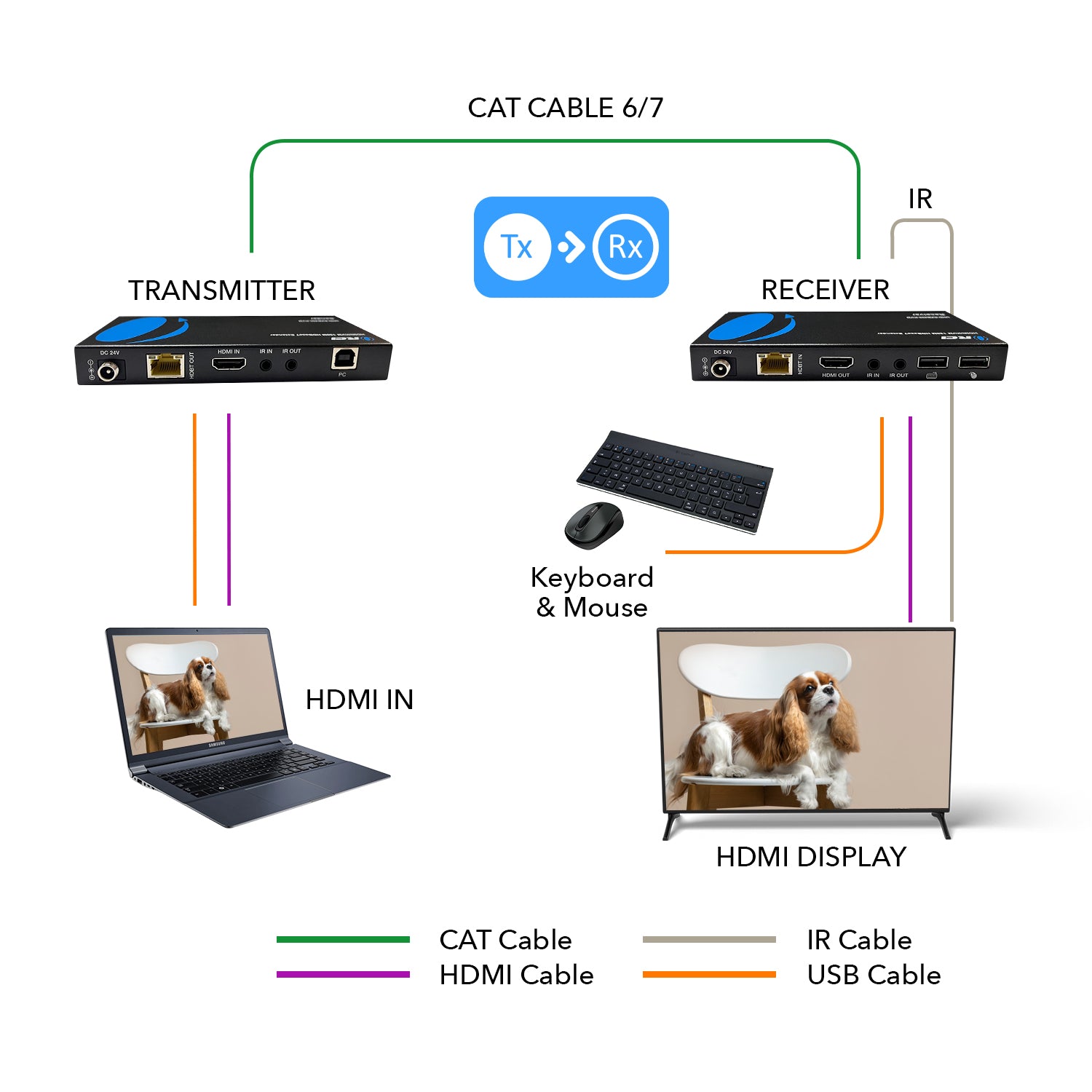

UHD-EXB400-KVM is 18Gbps HDBaseT Extender that can extend HDMI signal, bi-directional IR control signal, and USB KVM signal to a distance up to 400 feet via a single CAT6 cable. This product converts HDMI signal to standard HDBaseT signal and transmits it through a LAN cable. It can easily control the signal source device or display device from the remote end through a bi-directional IR signal pass-through function. Video resolution up to 4K2K@60Hz YUV 4:4:4. It also supports USB KVM and POC functions.

The extender can be widely used in other fields such as video conference systems, multimedia signal broadcasting, HDMI signal extension, etc.

Full Customer Support - 1 Year Warranty - Includes 1x Sender, 1x Receiver, 1x IR Kit, 1x, Manual

Key Features:
  • Transfers the 4K UHD video resolutions at zero latency
  • Supports KVM (keyboard, and mouse) function
  • HDMI 2.0, HDCP 2.2, and USB 1.1 compliant
  • Extends 4K@60Hz signal up to 400 feet via shielded CAT6/7 cable
  • Supports HDR (YUV 4:4:4) with EDID
  • KVM - This feature allows you to control your PC through Keyboard/Mouse remotely at the receiver end. HDMI Loop-out on transmitter unit to connect an HDMI display by the source
  • Support 18Gbps Video Bandwidth
  • This unit requires only one power adapter to work
  • LPCM 7.1CH, Dolby True HD, and DTS-HD Master
  • Surge protection, and ESD protection
  • Plug & play setup
  • AUDIO AND VIDEO
    • Transmitter:
      • INPUT PORTS:
        • 1x HDMI IN [TypeA, 19-pin female]
        • 1x IR IN [3.5mm Stereo Mini-jack]
        • 1x SERVICE [Micro-USB jack]
        • 1x USB [USB-B, 4-pin female]
      • OUTPUT PORTS:
        • 1x HDBT OUT [RJ45]
        • 1x IR OUT [3.5mm Stereo Mini-jack]
    • Receiver:
      • INPUT PORTS:
        • 1x HDBT IN [RJ45 with light]
        • 1x IR IN [3.5mm Stereo Mini-jack]
        • 1x SERVICE [Micro-USB jack]
      • OUTPUT PORTS:
        • 1x HDMI OUT [TypeA, 19-pin female]
        • 1x IR OUT [3.5mm Stereo Mini-jack]
        • 2x USB [USB-A, 4-pin female]
  • COMPLIANCES
    • HDMI Compliance: HDMI 2.0
    • HDCP Compliance: HDCP 2.2
  • SUPPORTED CAT CABLES
    • CAT5e, CAT6, CAT7: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
  • EXTENDING DISTANCE
    • 4K@60Hz: Up to 400 feet
  • VIDEO OUTPUT
    • Video Bandwidth: 18Gbps
    • Video Resolutions: Up to 4K2K@60Hz YUV 4:4:4
  • CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
    • CEC Function: Yes
    • ARC Function: No
    • USB KVM Function: Yes
    • PoC/PoE Function: Yes
    • IR Controller: Yes
    • Downscaler Function: No
    • Over Network Function: Yes
    • HDBaseT Function: Yes
    • RS-232 Function: No
  • LOOP-OUT/LOCAL PORT
    • Has loop out port: No
    • Number of Loop out ports: No
  • AUDIO OUTPUT
    • HDMI Audio Formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master
    • SPDIF/Optical Audio Formats: No
  • SIGNALS
    • TMDS Signals: 3.3V
    • DDC Signals: 5V
  • DIMENSIONS & WEIGHT
    • Height: 18mm
    • Width: 140mm
    • Depth: 65mm
    • Weight:
      • Transmitter: 246g
      • Receiver: 246g
  • PROTECTION
    • Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20~90% RH (non-condensing)
    • Electrostatic Protection of the whole Machine: Human body model — ±8kV (Air-gap discharge) &
      ±4kV (Contact discharge)
  • RJ-45 CONNECTOR TYPE
    • 1x HDBaseT In & Out Port
  • POWER
    • Power Consumption (Max): 10W
    • Power Supply: DC 24V/1A
  • PHYSICAL PROPERTIES
    • Color: Black
    • Housing: Metal Enclosure
    • Treatment Process: USB 1.1
    • Input Cable Length: 5Vp-p
    • Output Cable Length: Wideband 20K-60KHz

Includes:

  • 1x HDBase T Transmitter
    1x HDBase T Receiver
    1x IR Blaster Cable
    1x IR Reciever Cable
    1x USB Cable
    4x Mounting Ears
    8x Machine Screws
    1x 24V/1A Locking Power Supply
    1x User Manual

Warranty:
  • 1 - Year Manufacturer's Warranty

Request a Quote


4K KVM HDMI HDBaseT Extender Over CAT6/CAT7 Cable Up To 400 Ft – Keyboard & Mouse Over Network (UHD-EXB400-KVM)
