AUDIO AND VIDEO

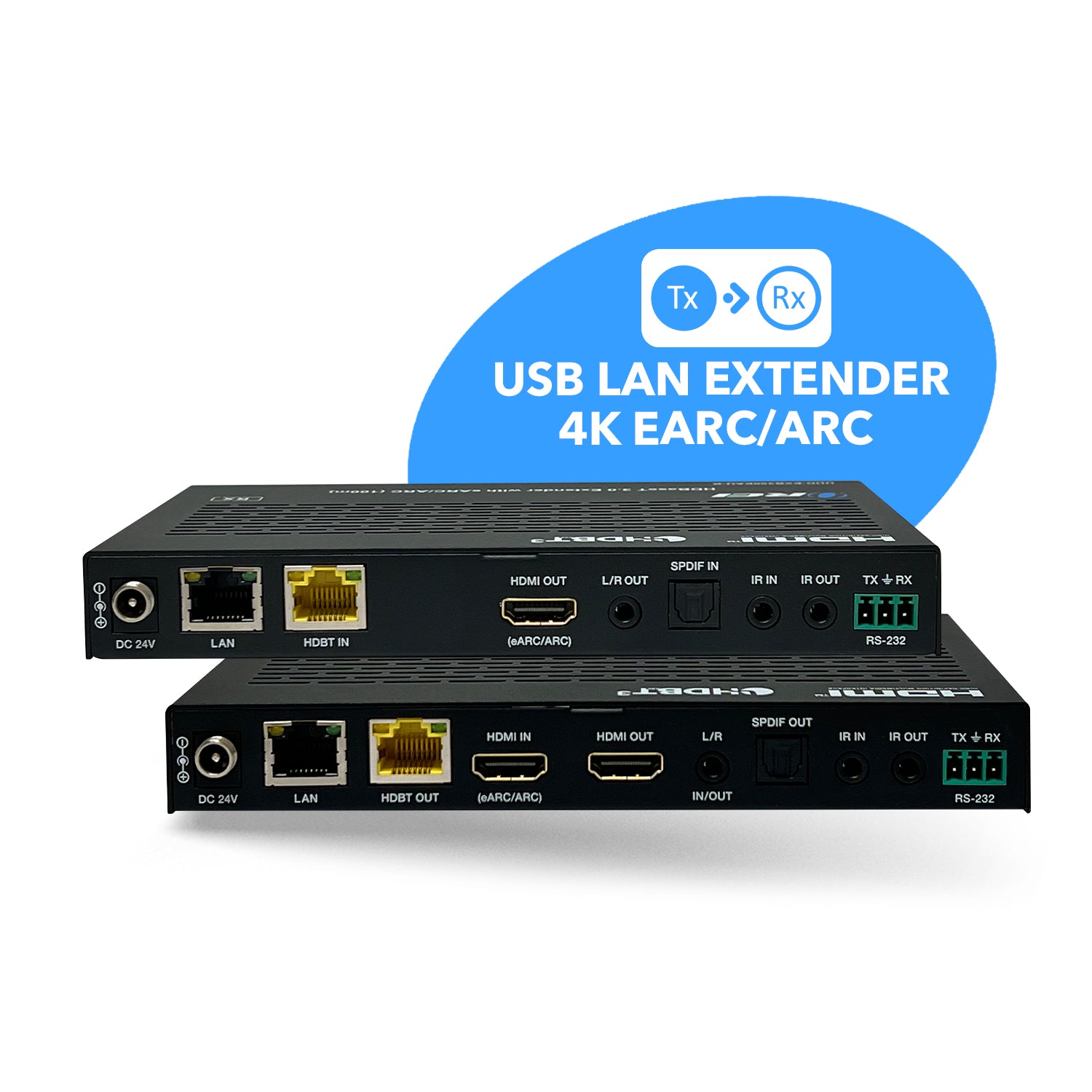

• Transmitter:

• INPUT PORTS:

• 1 x HDMI IN [Type A, 19-pin female]

• OUTPUT PORTS:

• 1 x HDMI OUT [Type A, 19-pin female]
• 1 x HDBT OUT [RJ45, 8-pin female]
• 1 x SPDIF OUT [S/PDIF]
• 1 x L/R OUT [3.5mm Stereo Mini-jack]

• Control:

• 1 x IR I N [3.5mm Stereo Mini-jack]
• 1 x IR OUT [3.5mm Stereo Mini-jack]
• 1 x RS-232 [3pin-3.81mm Phoenix jack]
• 1 x SERVICE [Mini-USB, Update port]
• 1 x USB HOST [USB Type B]
• 2 x USB DEVICES [USB Type A]
• 1 x LAN [RJ45]

• Receiver:
  • INPUT PORTS:

• 1 x HDBT IN [RJ45, 8-pin female]
• 1 x SPDIF IN [S/PDIF]

• OUTPUT PORTS:

• 1 x HDMI OUT [Type A, 19-pin female]
• 1 x L/R OUT [3.5mm Stereo Mini-jack]

• Control:

• 1 x IR IN [3.5mm Stereo Mini-jack]
• 1 x IR OUT [3.5mm Stereo Mini-jack]
• 1 x RS-232 [3pin-3.81mm Phoenix jack]
• 1 x SERVICE [Mini-USB, Update port]
• 1 x USB HOST [USB Type B]
• 2 x USB DEVICES [USB Type A]
• 1 x LAN [RJ45]

• COMPLIANCES

• HDMI Compliance: HDMI 2.0
• HDCP Compliance: HDCP 2.2

• SUPPORTED CAT CABLES

• CAT5e, CAT6, CAT7: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance

• EXTENDING DISTANCE

• 4K@60Hz: Up to 16 Feet

• VIDEO OUTPUT
  • Video Bandwidth: 18Gbps

• Video Resolutions: Up to 4K@60Hz 4:4:4

• CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT

• CEC Function:
• ARC Function: Yes
• USB KVM Function: Yes
• PoC/PoE Function: Yes
• IR Controller: Yes
• Downscale Function: No
• Over Network Function:
• HDBaseT Function: Yes
• RS-232 Function: Yes

• LOOP-OUT/LOCAL PORT
  • Has loop out port: Yes
  • Number of Loop out ports: 1
• AUDIO OUTPUT
  • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • SPDIF/Optical Audio Formats: LPCM2.0, AC3 5.1, DTS 5.1
• SIGNALS
  • TMDS Signals:
  • DDC Signals:

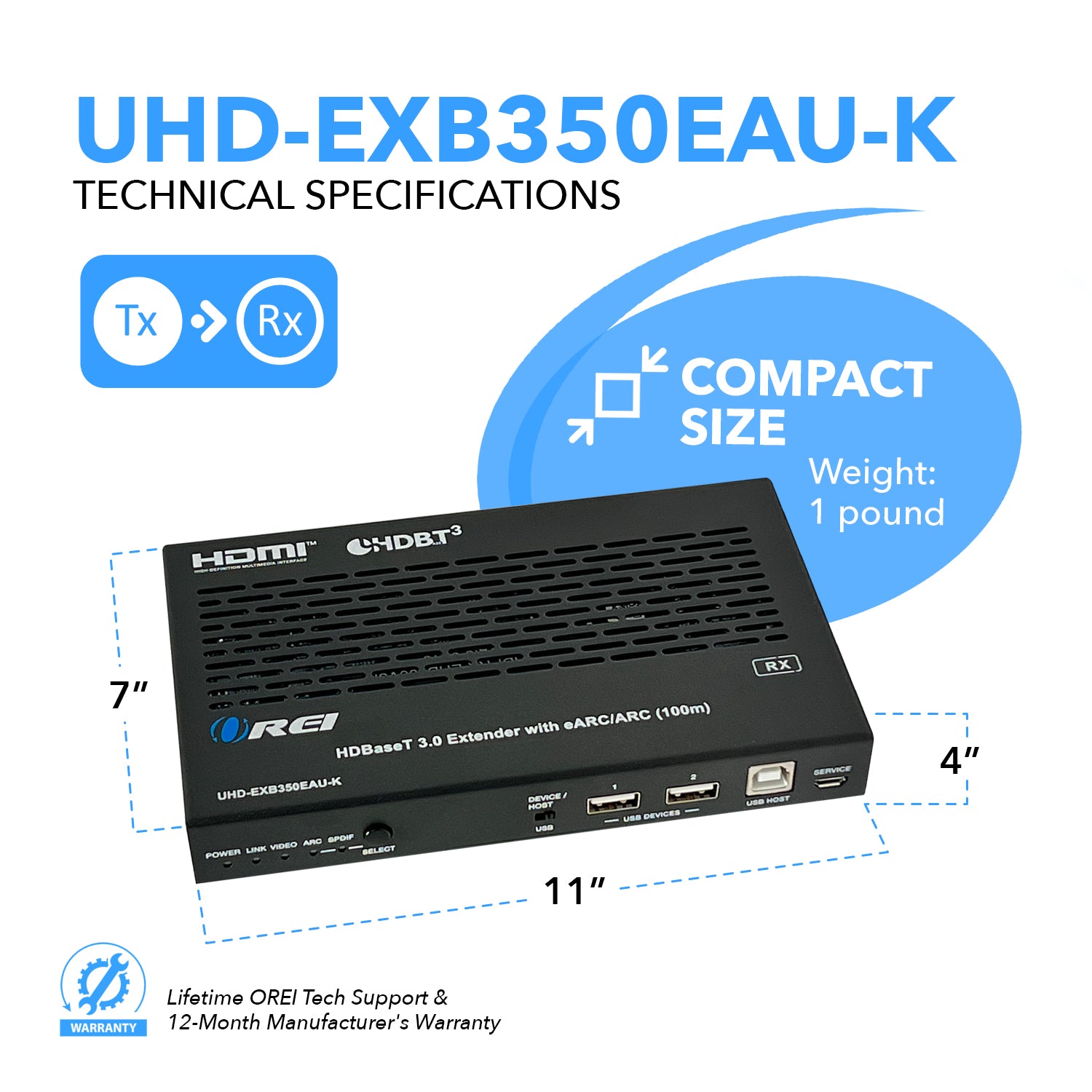

• DIMENSIONS & WEIGHT
  • Height:         22mm
  • Width:          170mm
  • Depth:          102mm
  • Weight:

• Transmitter: 425g
• Receiver: 437g

• PROTECTION
  • Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Relative Humidity: 20~90% RH (Non-condensing)
  • Electrostatic Protection of the whole Machine: Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge)
• RJ-45 CONNECTOR TYPE
  • 1x HDBaseT In & Out Port
• POWER
  • Power Consumption (Max): 15.36W (Max)
  • Power Supply:

• Input: AC 100 - 240V 50/60Hz
• Output: DC 24V/1A (US/EU standard, CE/FCC/UL certified)

• PROPERTIES
  • Color: Black
  • Housing: Metal Enclosure
  • USB Compliance: USB2.0
  • IR Level: 12Vp-p
  • IR Frequency: 20K - 60KHz

Includes:

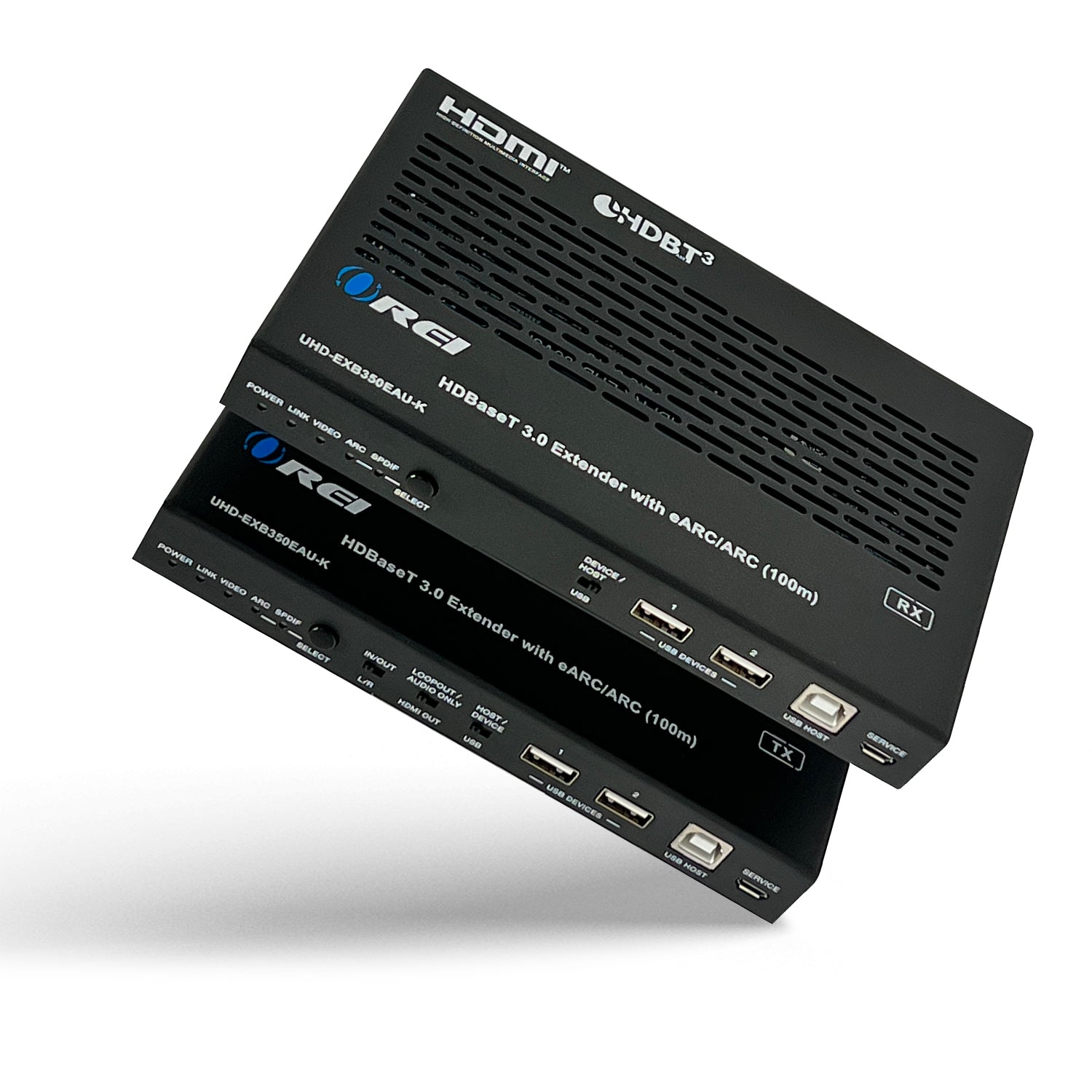

• 1x HDBaseT 3.0 Transmitter
• 1x HDBaseT 3.0 Receiver
• 1x IR Blaster Cable (1.5 meters)
• 1x IR Reciever Cable (1.5 meters)
• 4x Mounting Ears
• 8x Machine Screws (KM3*4)
• 1x 24V/1A Locking Power Supply
• 1x User Manual

Warranty:

• 1 - Year Manufacturer's Warranty
