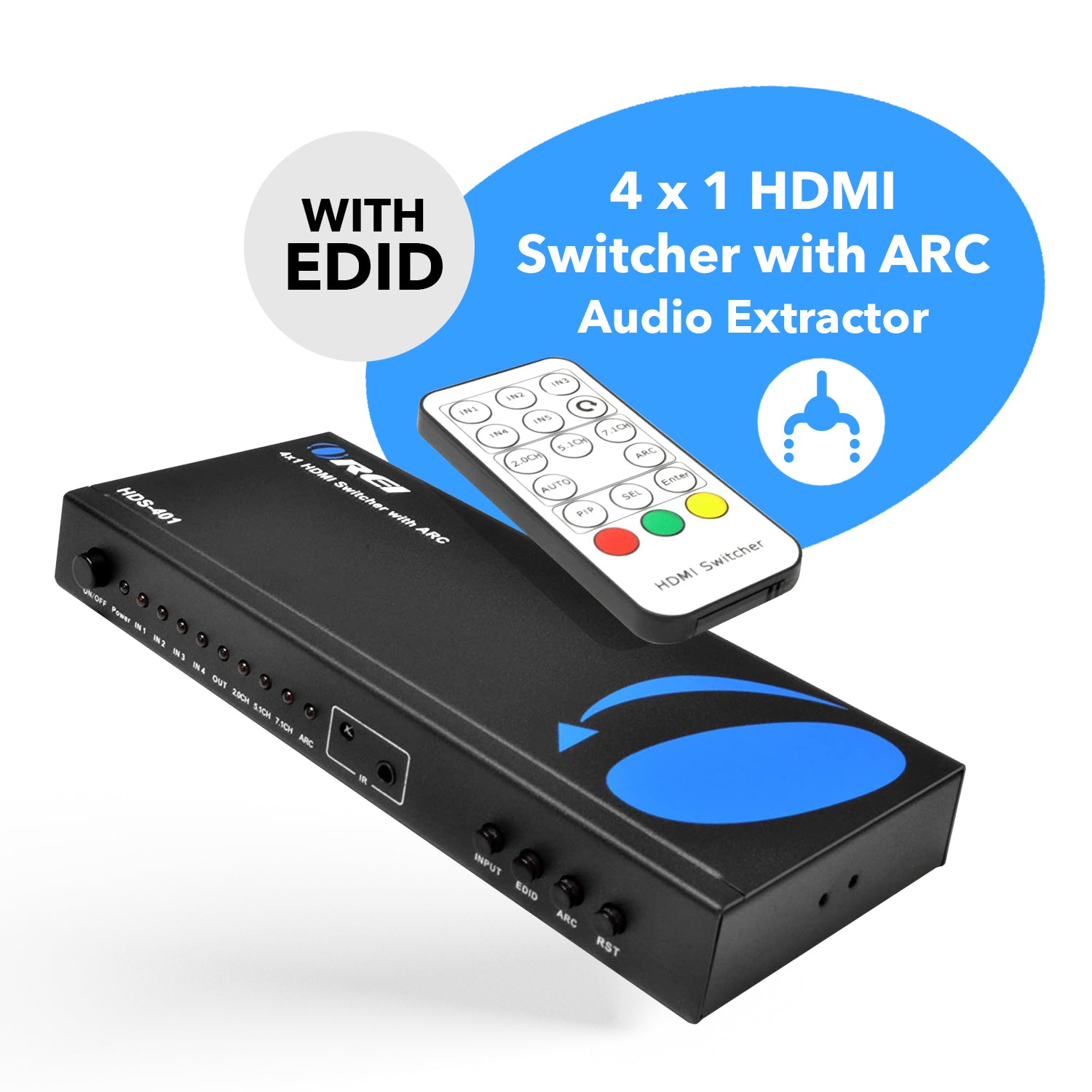

4K 4x1 Switch with ARC Audio Extractor

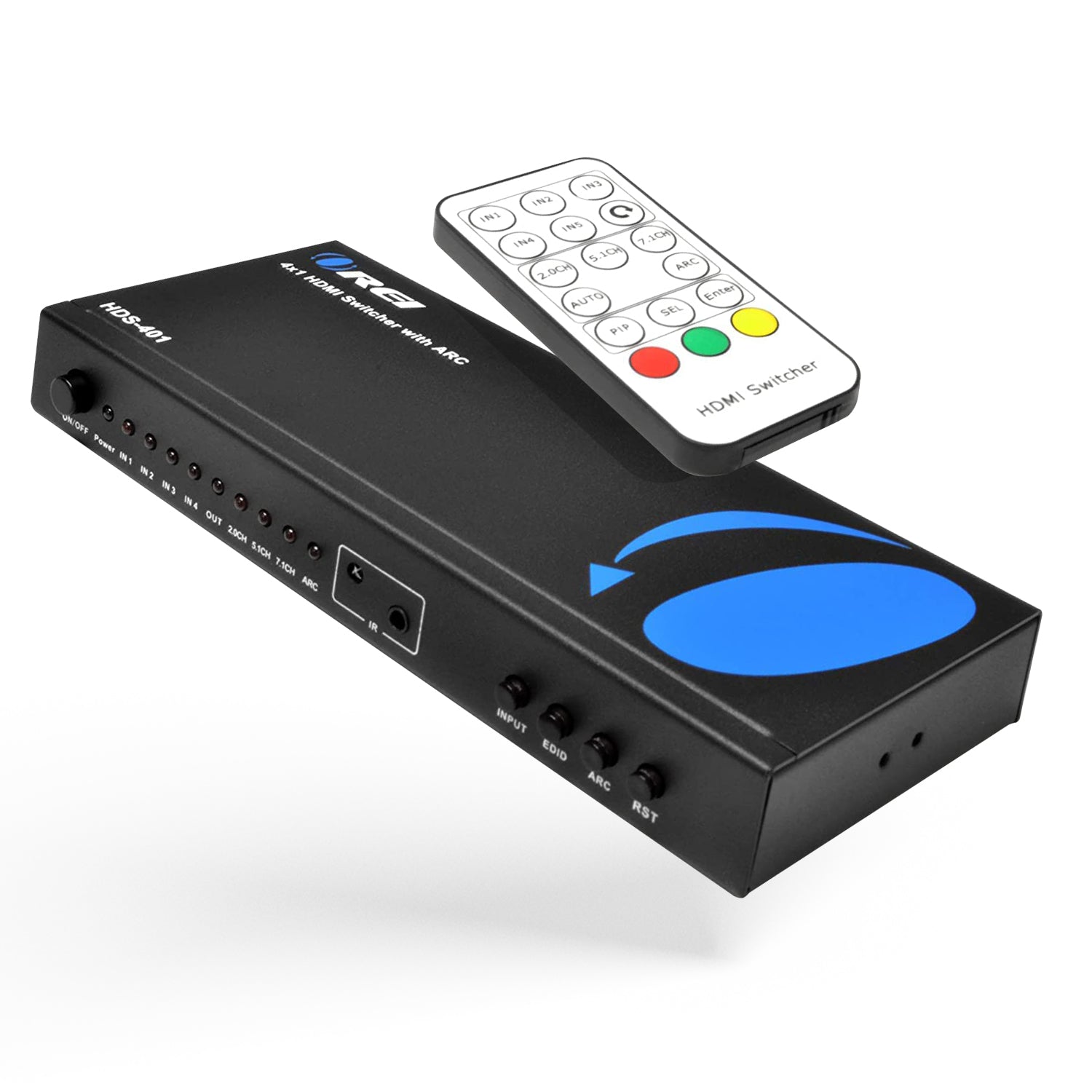

OREI HDS-401 4K x 2K HDMI 4 input into 1 output Switcher. It supports highest video resolution up to 4K x 2K at 30Hz), EDID bypass, full 3D and HDCP2.0 complaint. This HDMI Switcher provides a S/PDIF link and earphone to output the HDMI source audio. It supports PCM, Dolby True HD, DTS-HD Master Audio up to 2.1, 7.1 Ch. Digital and analog Audio output. Supports Audio Return Channel (ARC) through Optical Audio Out from a compatible ARC TV
Key Features:
- 4 input and 1 output Multiplexed HDMI
- This HDMI switcher designed with 4 Input ports and 1 output port

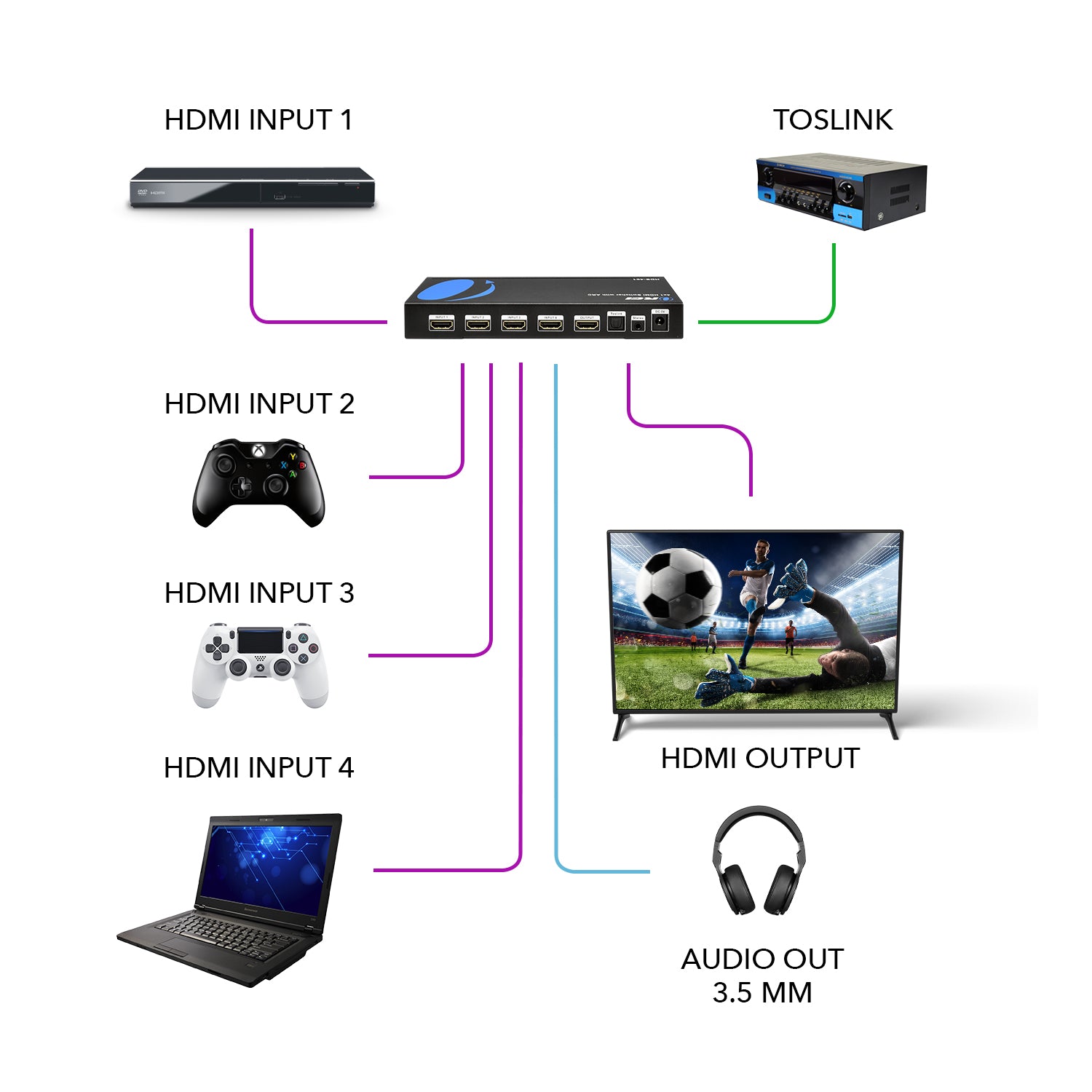

- Supports 4 HDMI input sources to an HD TV or display with real-time fast seamless switching up to 4K@30Hz

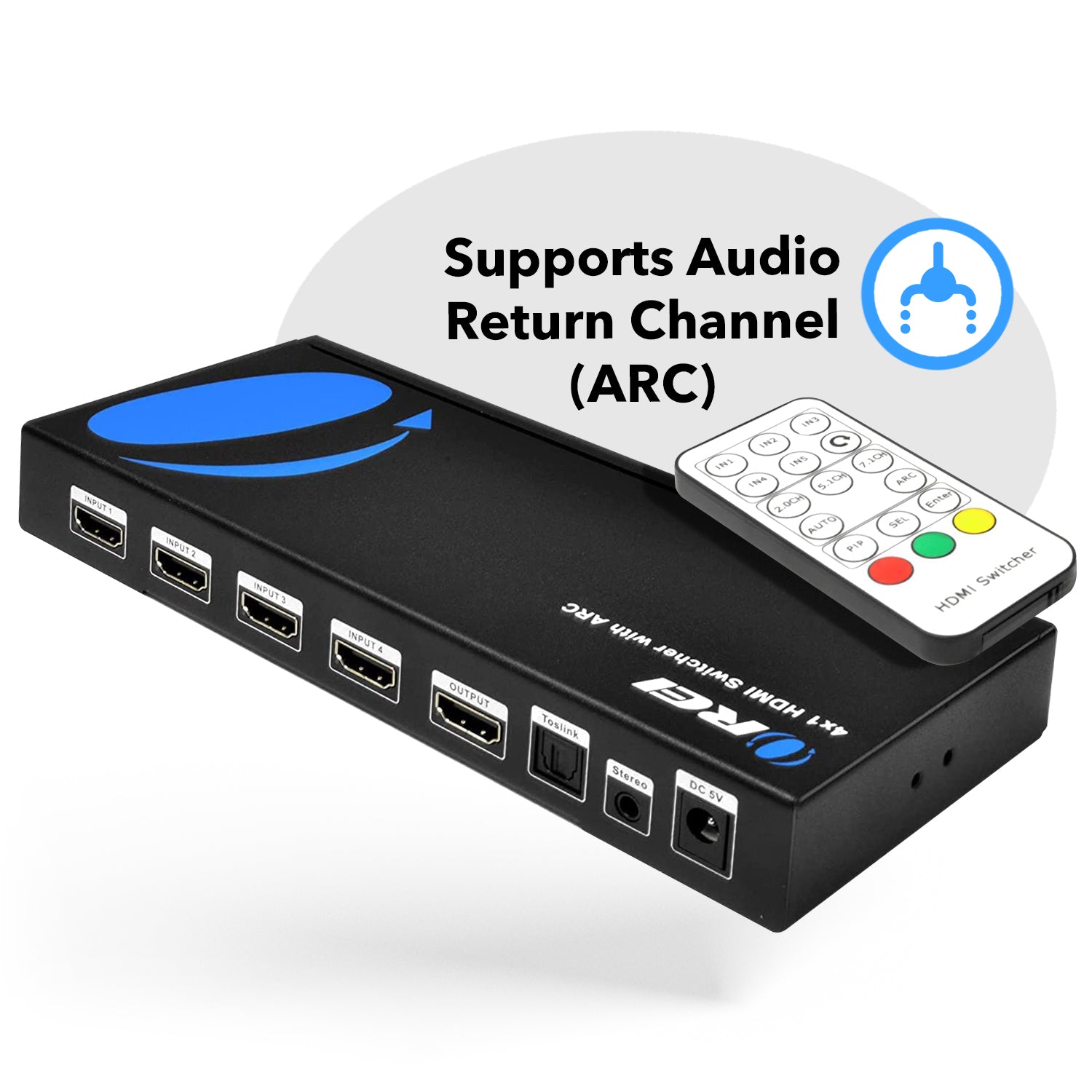

- This HDMI switcher supports Audio Return Channel (ARC)
- Supports video resolution the maximum up to Video resolutions up to 4Kx2K@30Hz
- Supports CEC bypass on HDMI out
- Deep Color support 36/30/24-bit
- Supports digital audio format, DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
- A super wideband IR control system, the IR transport channel can be forward or backward
- Control is via on-panel button and remote control
OREI 4x1 HDMI Switch
- Input Ports: 4 HDMI Type A(Female type)
- Output Ports: 1 HDMI Type A(Female type)
- HDCP Compliance: HDCP 2.0
- Video Bandwidth: 300MHz/10.2 Gbps
- Video Resolutions: 480i ~1080p50/60, 4Kx2K@24/30, VGA~UXGA
- Digital Audio Formats:: DTS-HD/Dolby-True HD/LPCM7.1/AC3/DTS/DSD
- Storage Temperature: −20 °C ~ 60 °C/−4 °F ~140 °F
- Operating Temperature:0 °C~40 °C/ 32 °F~104 °F
- ESD Protection: Human body model: ±8 kV (air-gap discharge),±4 k(contact discharge)

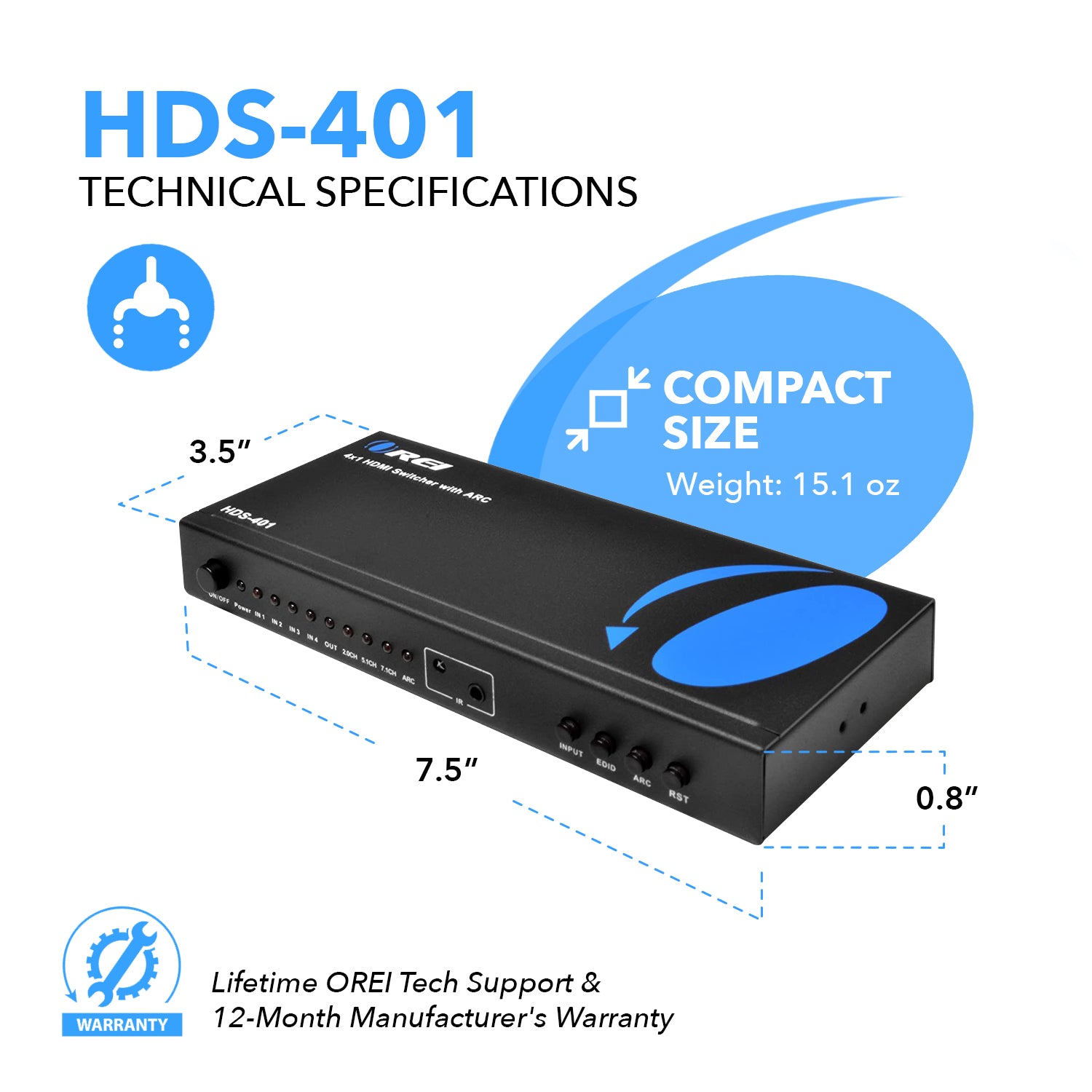

- Dimensions:82 mm(W) x 190 mm(D) x 26 mm(H)
- Weight:430g
- Chassis Material: Metal
- Color: Black
- Power Consumption: 1.5 W
- Power Supply: 5 V/1A DC (US/EU standards, CE/FCC/UL certified)
Includes:
- 1 × HDS-401 HDMI Switcher
- 1 × 5V/1A DC Power Adapter
- 1 × Remote Control
- 1 × 38KHz IR Receiver
- 1 × User Manual
Request a Quote
4K HDMI Switcher 4 x 1 Switch with ARC Audio Extractor
