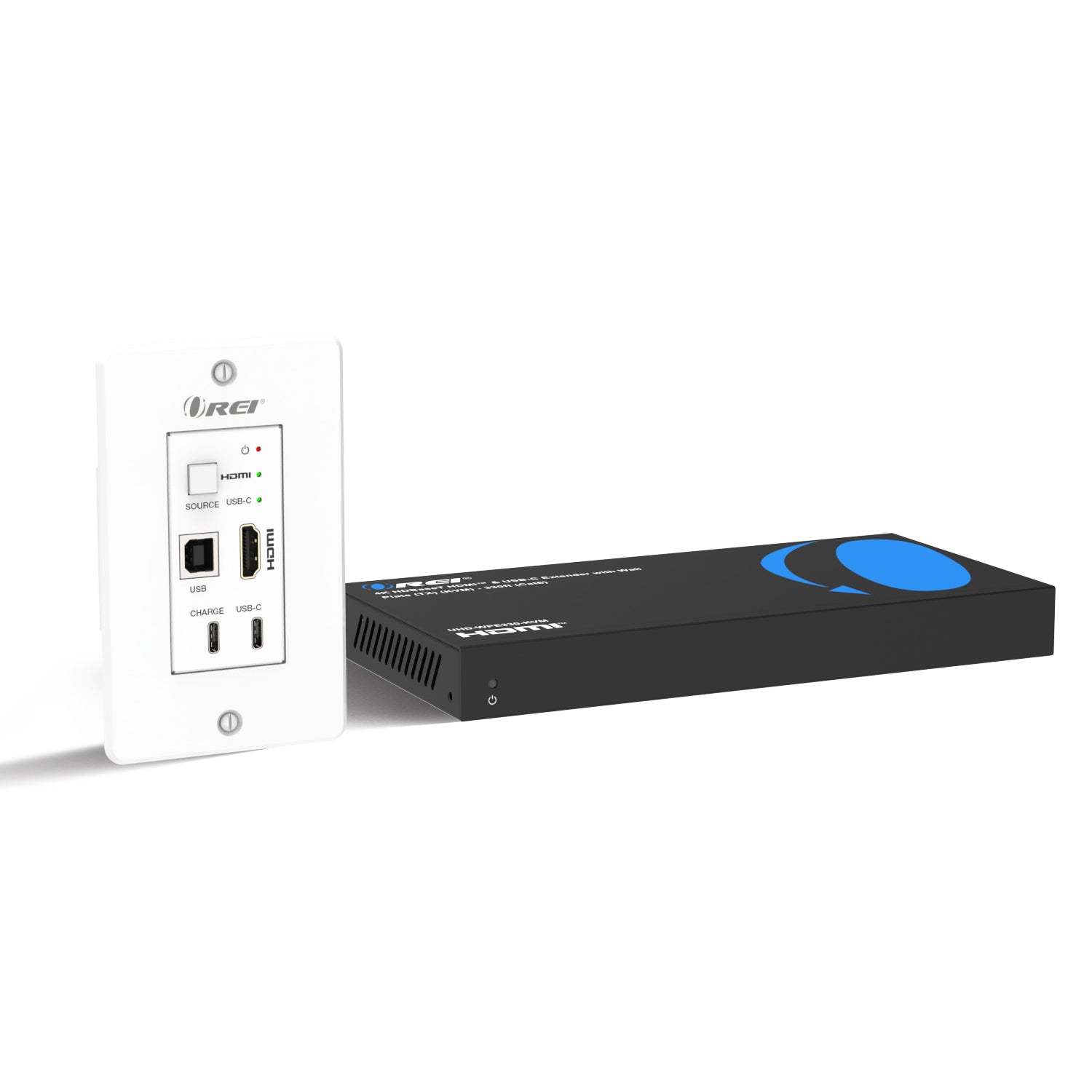

4K HDBaseT HDMI™ & USB-C Extender with Wall Plate (TX) (KVM) - 330ft (Cat6) - UHD-WPE330-KVM
The UHD-WPE330-KVM is a professional-grade solution that integrates a switcher and transmitter into a sleek, in-wall design. Featuring both HDMI™ and USB-C inputs, it provides a versatile interface for connecting laptops, smartphones, and other modern devices, supporting video resolutions up to 4K@60Hz 4:4:4.

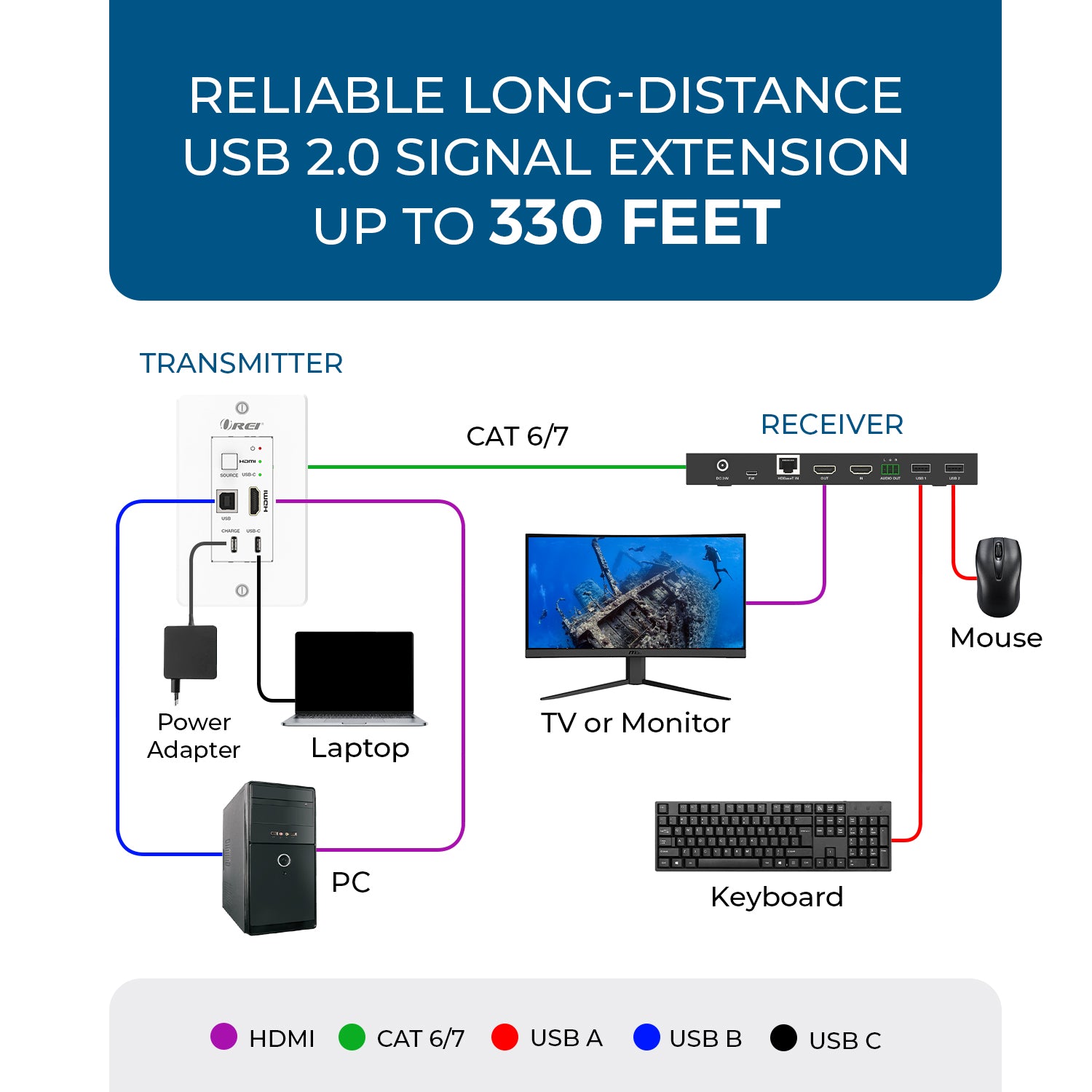

The transmitter extends signals up to 100 meters (328 feet) over a single CAT6/6a/7 cable via HDBaseT technology, with 18Gbps bandwidth and support for HDR10/HDR10+ and immersive audio formats like Dolby Atmos. Powered via PoE from the receiver, it includes a USB-C charging port, USB 2.0 extension, and interchangeable black/white faceplates for seamless integration into any commercial or residential environment.
Key Features:
Key Features:
- Dual Input Wall Plate – Combines 2x1 switcher and HDBaseT transmitter with HDMI™ and USB-C inputs in a Decora-style wall plate.
- 4K@60Hz Extension up to 100m – Transmits uncompressed 4K@60Hz 4:4:4 video up to 328 feet over a single CAT6 cable.
- HDCP 2.2 & HDR10+ Compliant – Ensures compatibility with protected 4K HDR content.
- USB-C Connectivity & Charging – Provides ideal AV interface for modern devices with integrated charging port.
- Immersive Audio Support – Passes through Dolby Atmos, DTS:X, and other high-resolution audio formats.

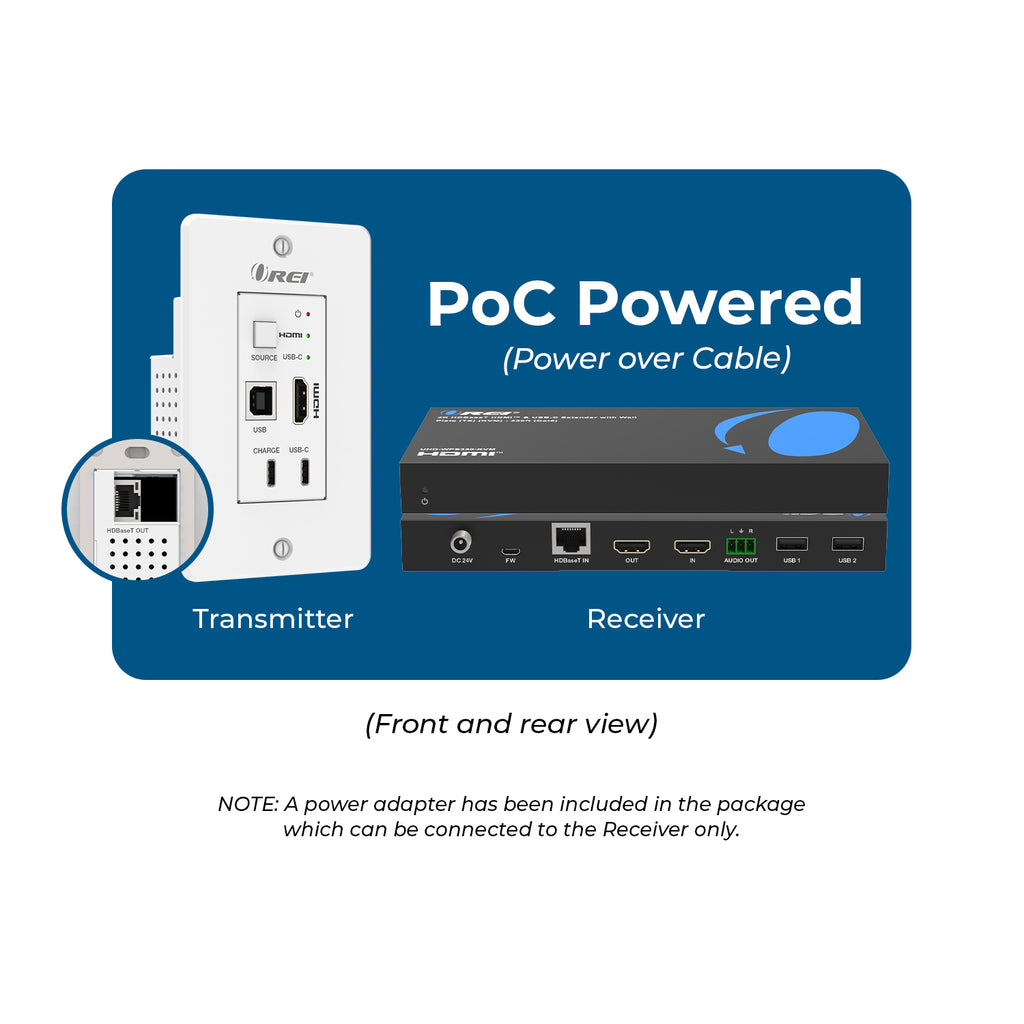

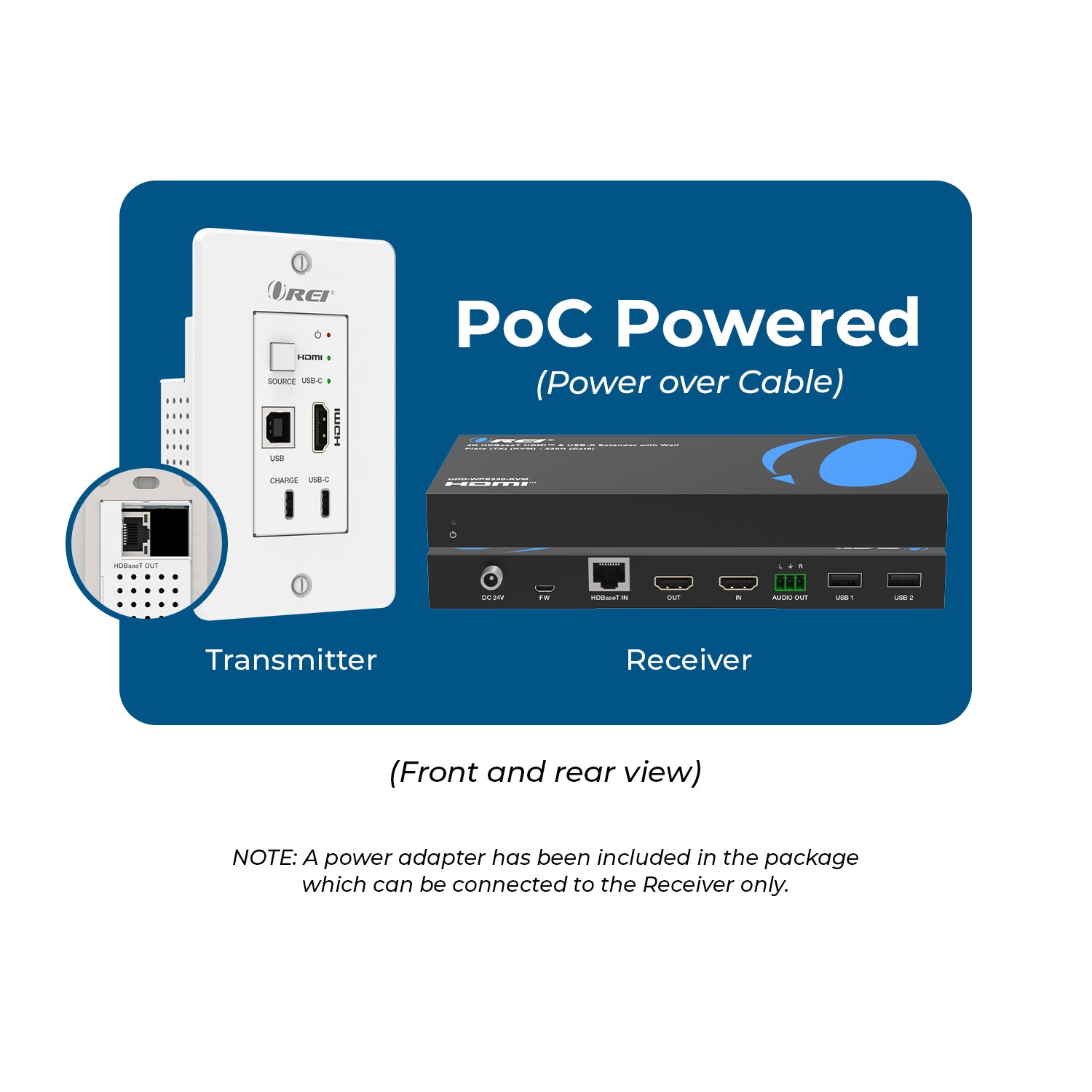

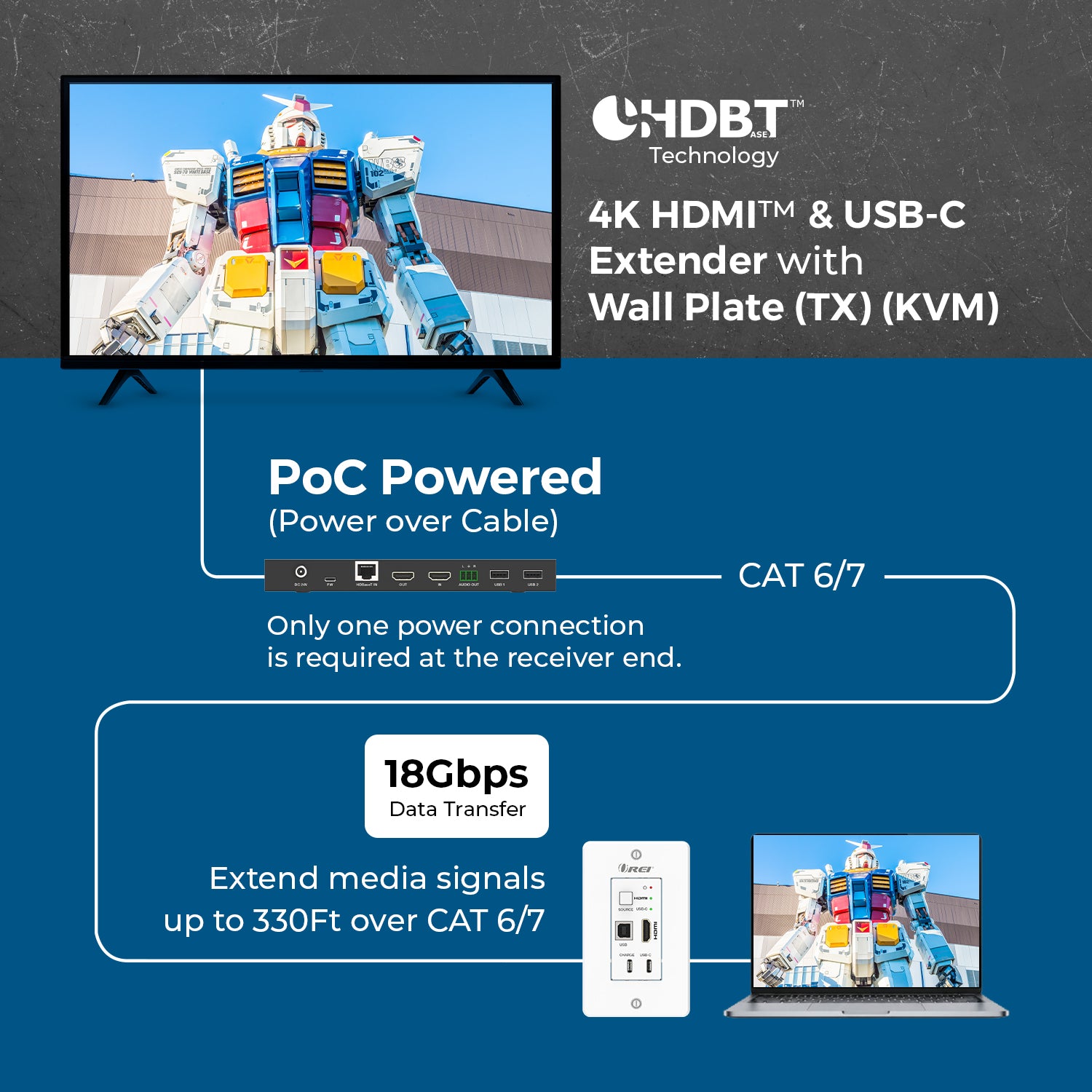

- Power over Ethernet (PoE)– Receiver-powered for simple, single-cable installation.
- Interchangeable Faceplates – Includes both black and white plates to match any decor.

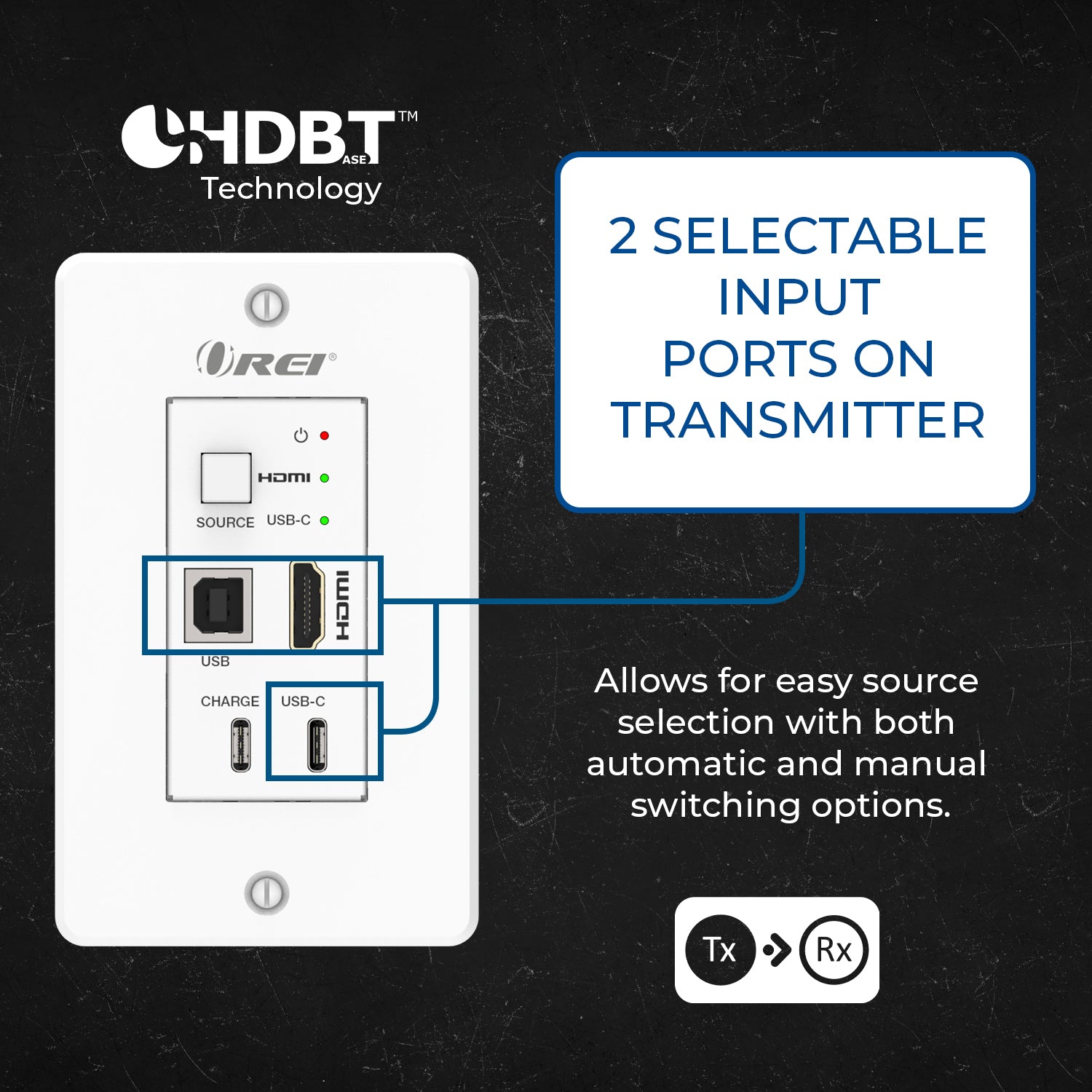

- Automatic Input Switching – Seamlessly selects between HDMI™ and USB-C sources.
- CONNECTIVITY
- Transmitter: INPUTS: 1x HDMI™ Type A [19-pin female]
- 1x USB-C
- OUTPUTS: 1x HDBaseT [RJ45, 8-pin female]
- 1x USB-C (only for charging)
- CONTROL: 1x USB-B [Micro USB, update port]
- Receiver: INPUTS: 1x HDMI™ Type A [19-pin female]
- 1x HDBaseT [RJ45, 8-pin female]
- OUTPUTS: 1x HDMI™ Type A [19-pin female]
- 1x AUDIO [Phoenix jack]
- CONTROL: 2x USB [USB A TYPE]
- 1x FW [Micro USB, update port]

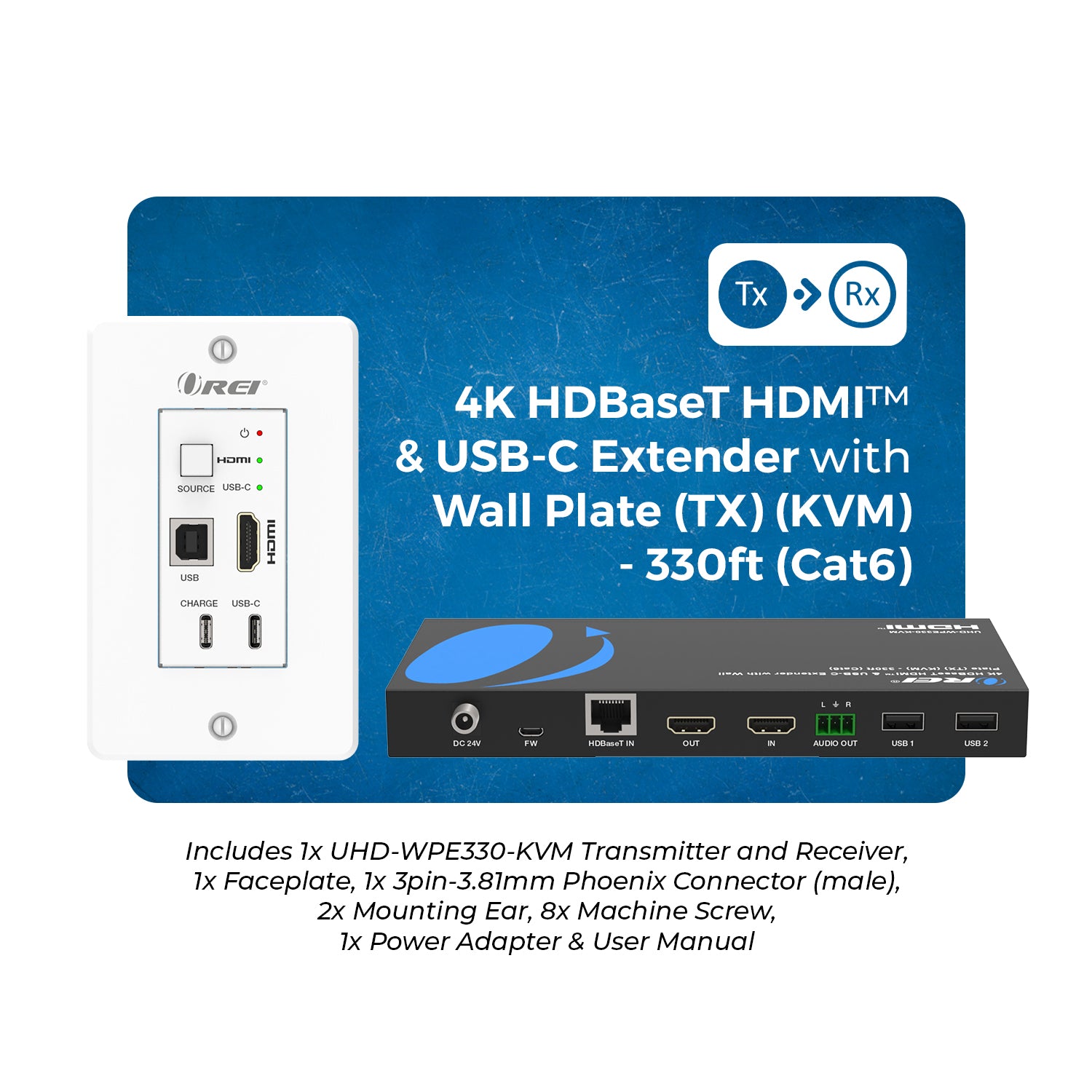

- PACKAGE CONTENTS
- 1x UHD-WPE330-KVM (Transmitter)
- 1x UHD-WPE330-KVM (Receiver)
- 1x Faceplate
- 1x 3-pin 3.81mm Phoenix Connector (male)
- 2x Mounting Ears
- 8x Screws
- 1x Power Adapter
- 1x User Manual
- POWER
- Power Consumption: Wall plate: 9W (Max), Receiver: 11W (Max)
- Power Supply: POE (only from Receiver to Transmitter)

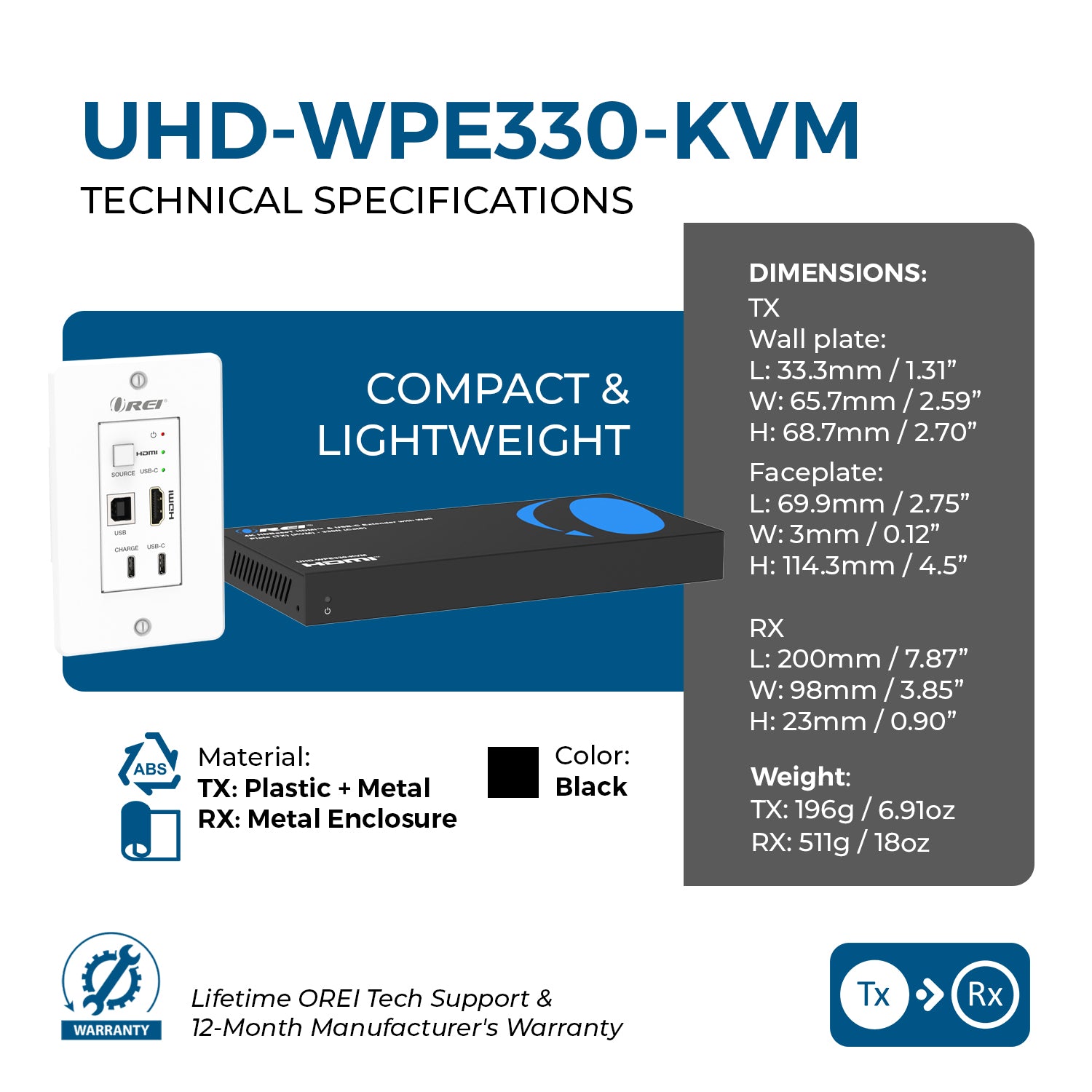

- DIMENSIONS & WEIGHT
- WALL PLATE:
- Length: 33.3mm/1.31in
- Width: 65.7mm/2.59in
- Height: 68.7mm/2.70in
- Weight: 196g/6.91oz
- FACE PLATE:
- Length: 69.9mm/2.75in
- Width: 3mm/0.12in
- Height: 114.3mm/4.5in
- Weight: 196g/6.91oz
- RECEIVER:
- Length: 200mm/7.87in
- Width: 98mm/3.86in
- Height: 23mm/0.91in
- Weight: 511g/18.02oz
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20%~80% (relative humidity, non-condensing)
- Storage Humidity: 10%~90% (relative humidity, non-condensing)
- WARRANTY
- 1-Year Manufacturer's Warranty
Includes:
- 1x UHD-WPE330-KVM (Transmitter)
- 1x UHD-WPE330-KVM (Receiver)
- 1x Faceplate
- 1x 3-pin 3.81mm Phoenix Connector (male)
- 2x Mounting Ears
- 8x Screws
- 1x Power Adapter
- 1x User Manual
WARRANTY:
- 1-Year Manufacturer's Warranty
