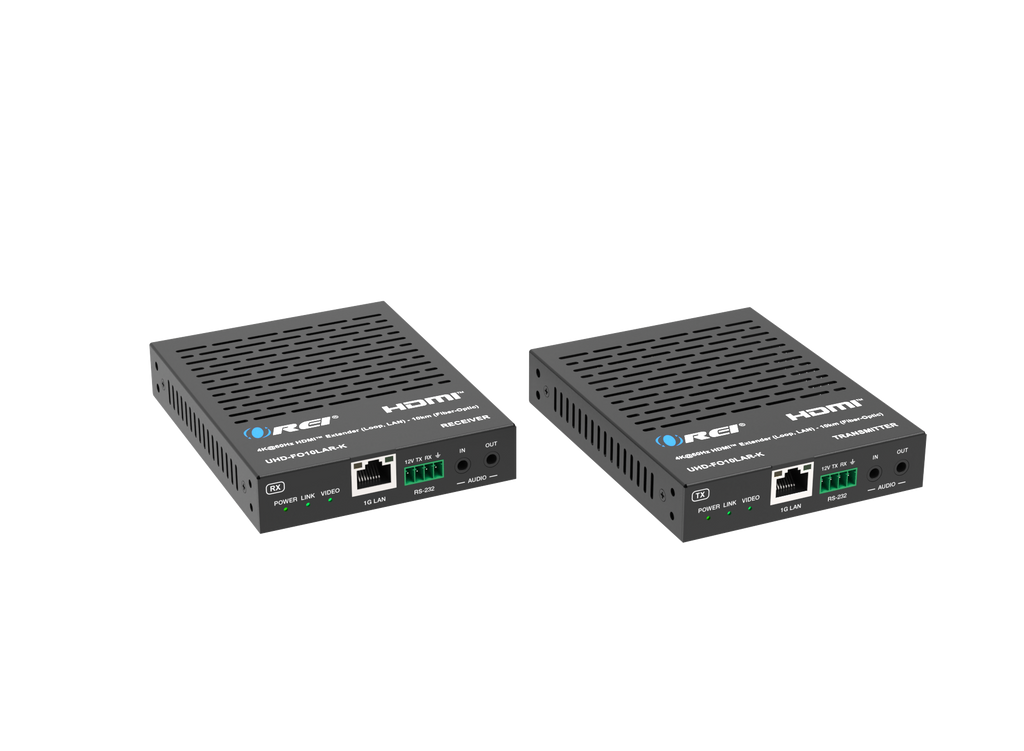

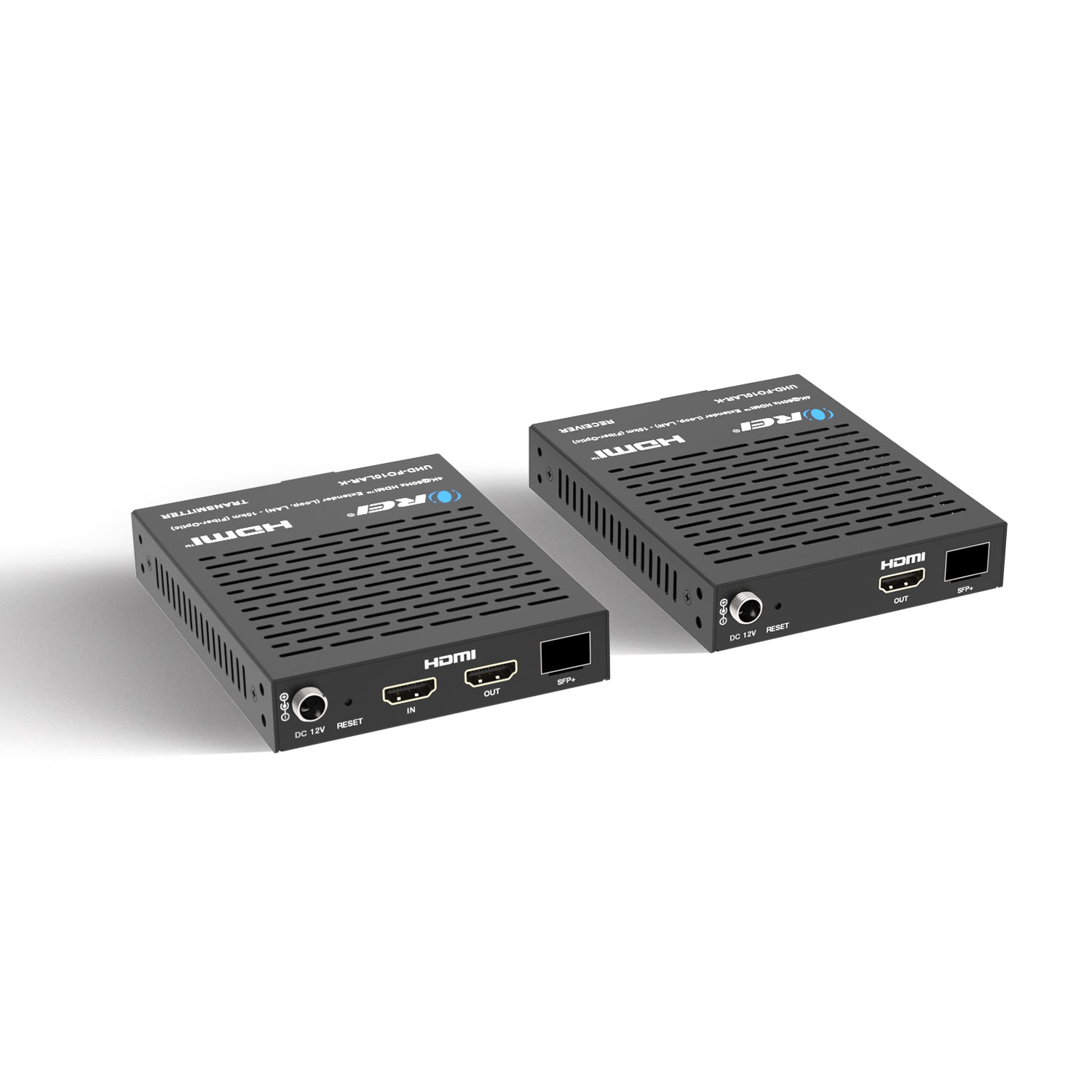

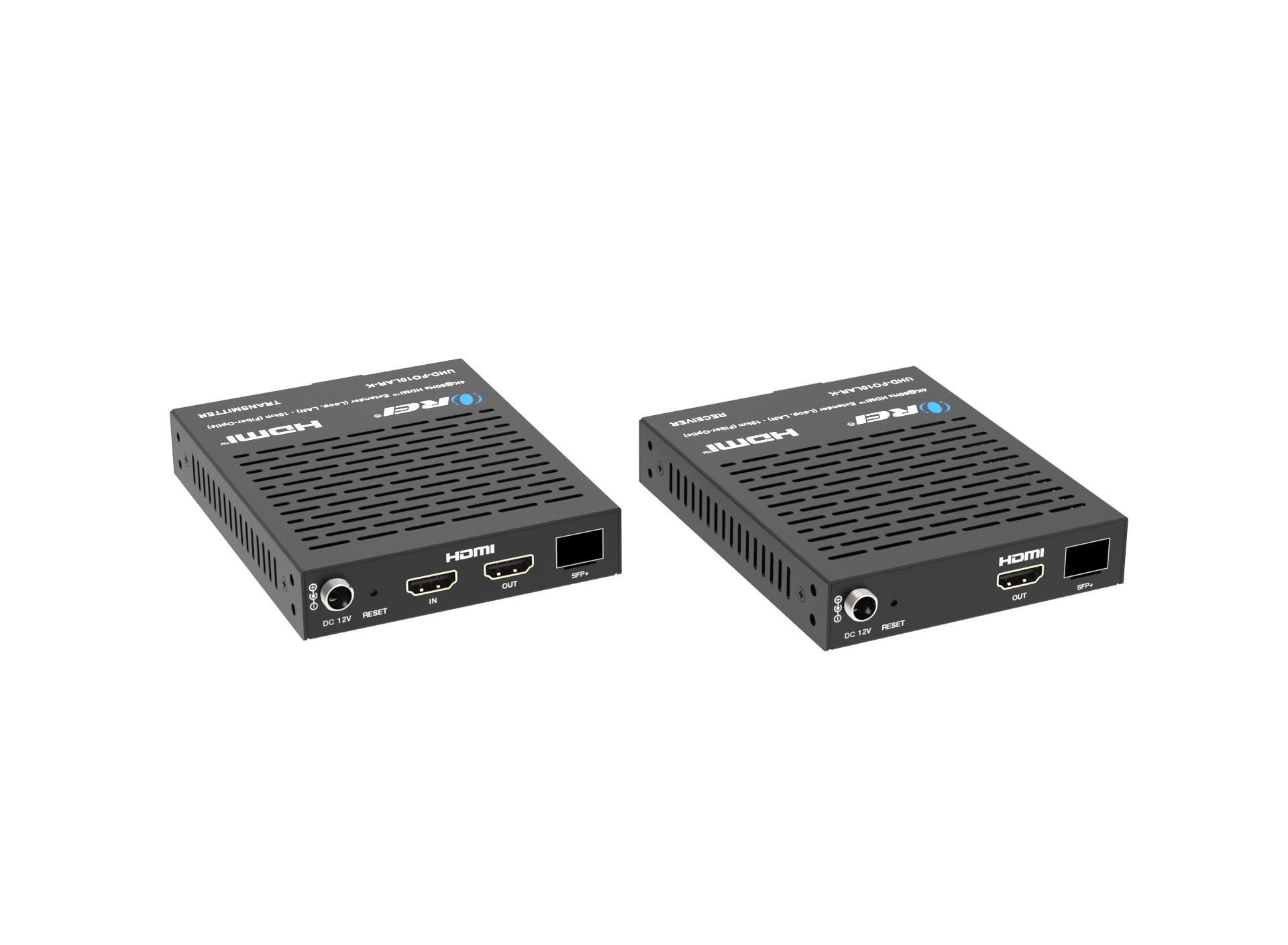

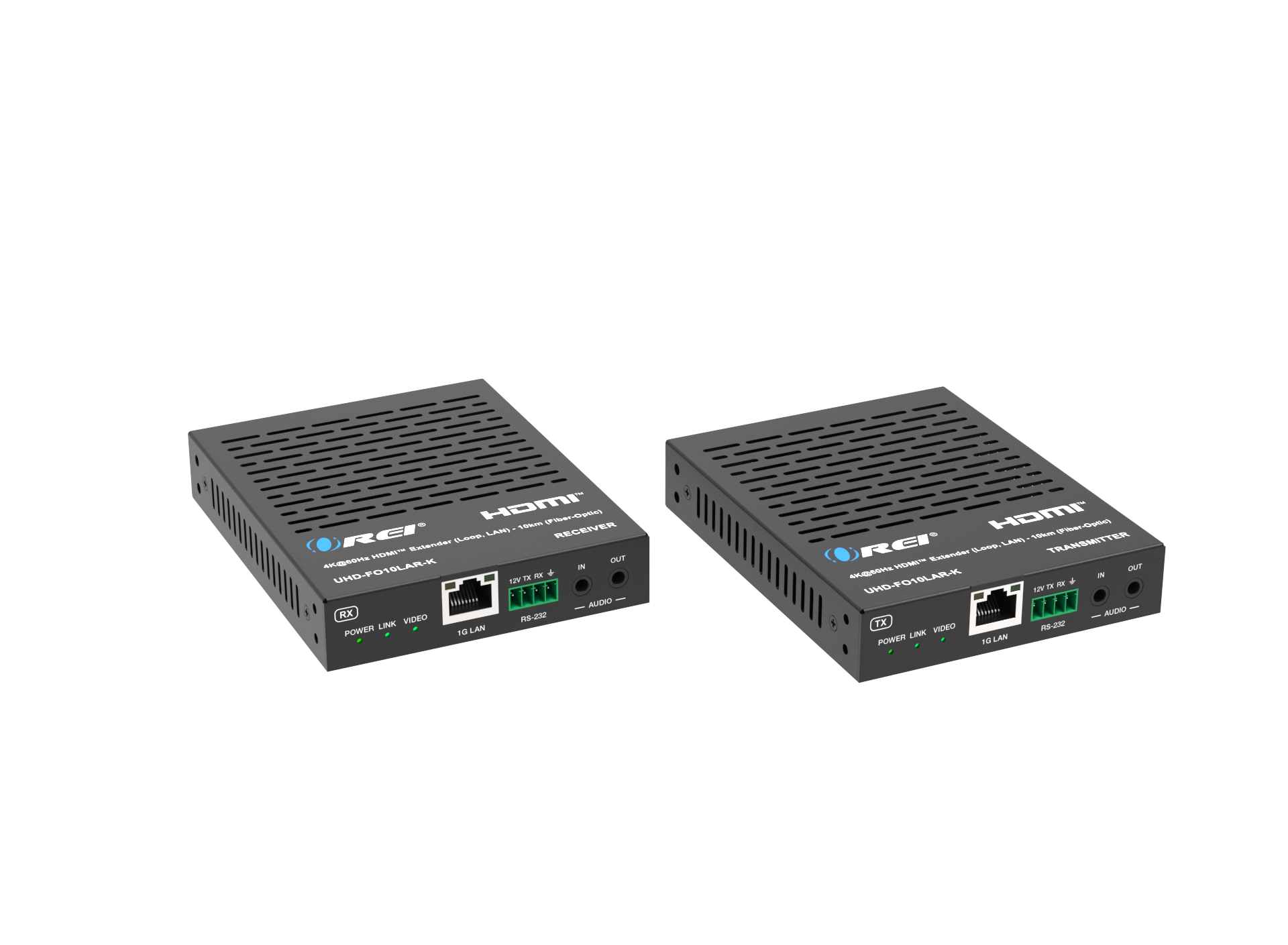

OREI 4K HDMI Extender Balun up to 10 KM with SDVoE Technology

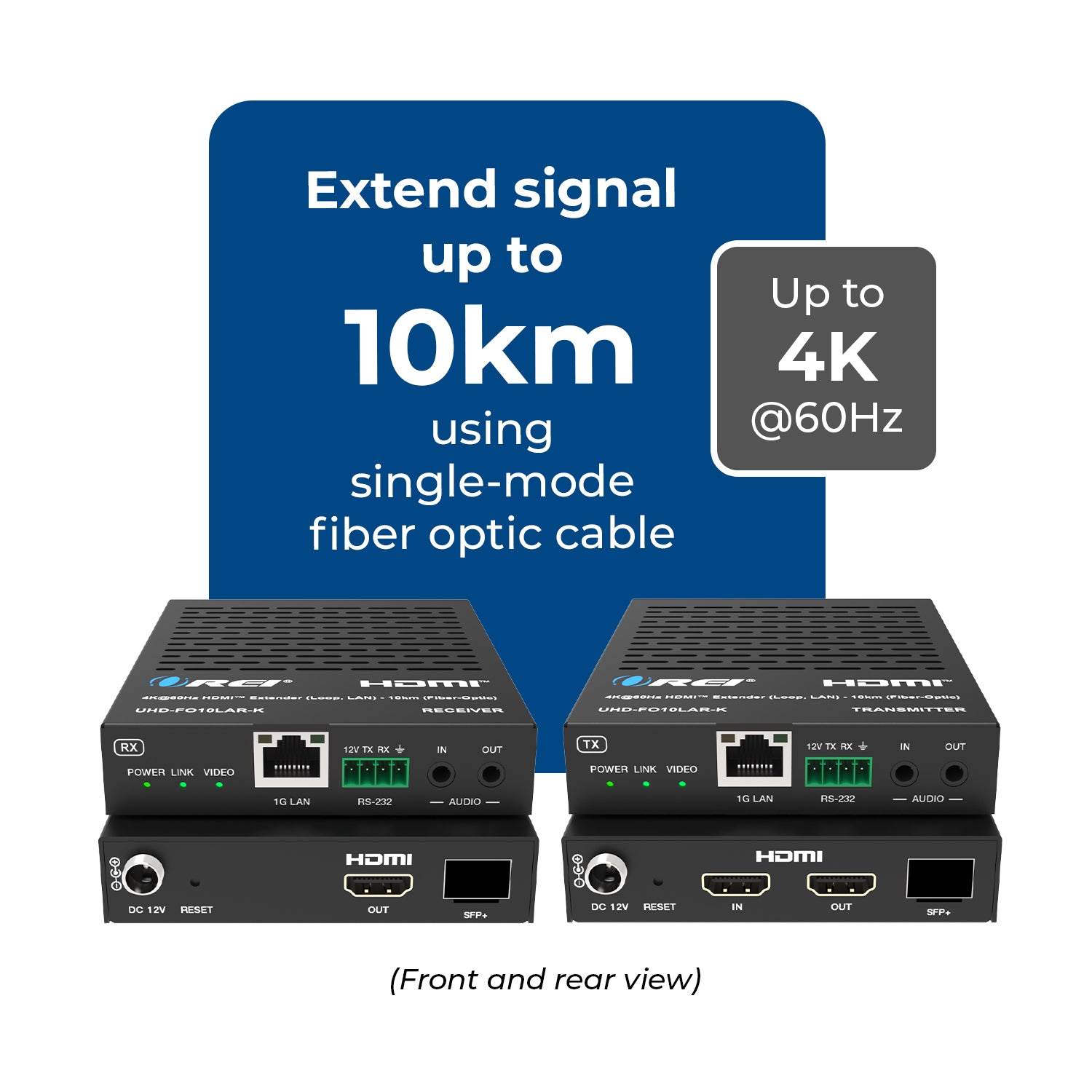

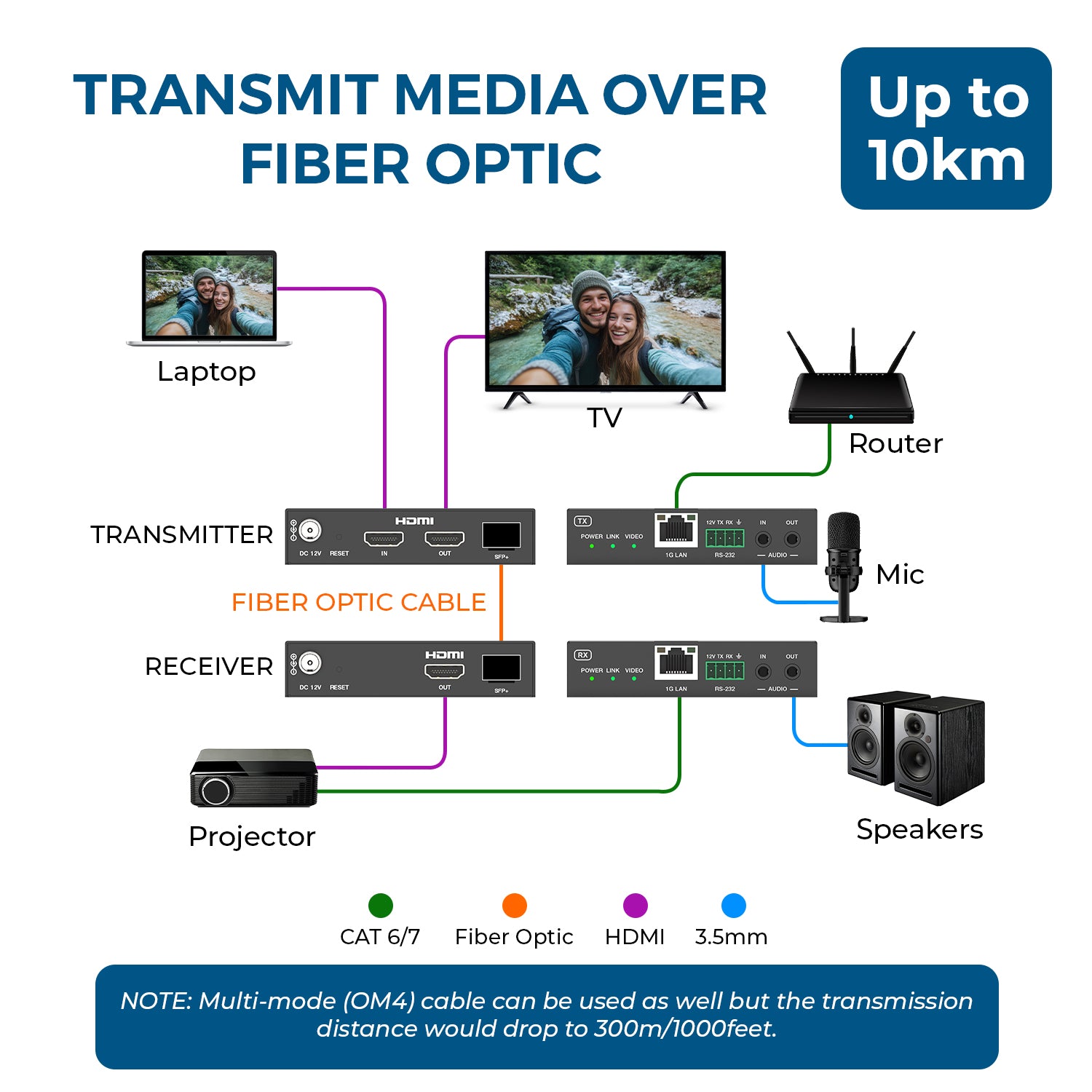

The UHD-FO10LAR-K is a high-performance HDMI over Fiber Optic Extender built on SDVoE technology, designed for long-distance, zero-latency AV transmission. It enables uncompressed 4K@60Hz HDR video extension up to 10 km over single-mode fiber or up to 300 meters over multi-mode fiber, making it ideal for mission-critical commercial environments. The Transmitter includes an HDMI loop-out for local monitoring, while the Receiver offers video scaling to match the display’s capabilities. Both units provide 1G LAN passthrough for network extension and include 3.5mm analog audio input/output for embedding or extracting audio as required.
With support for CEC, RS-232 pass-through, and full compatibility with advanced audio formats—including LPCM 2/5.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Atmos, DTS-HD MA, and DTS:X—the system ensures seamless integration across diverse AV setups.
Each kit includes two 10G SFP+ (10 km) modules, allowing immediate deployment without additional purchases. Engineered for large commercial spaces where long-distance transmission and zero latency are essential, the UHD-FO10LAR-K delivers reliable, uncompressed, high-quality AV performance.

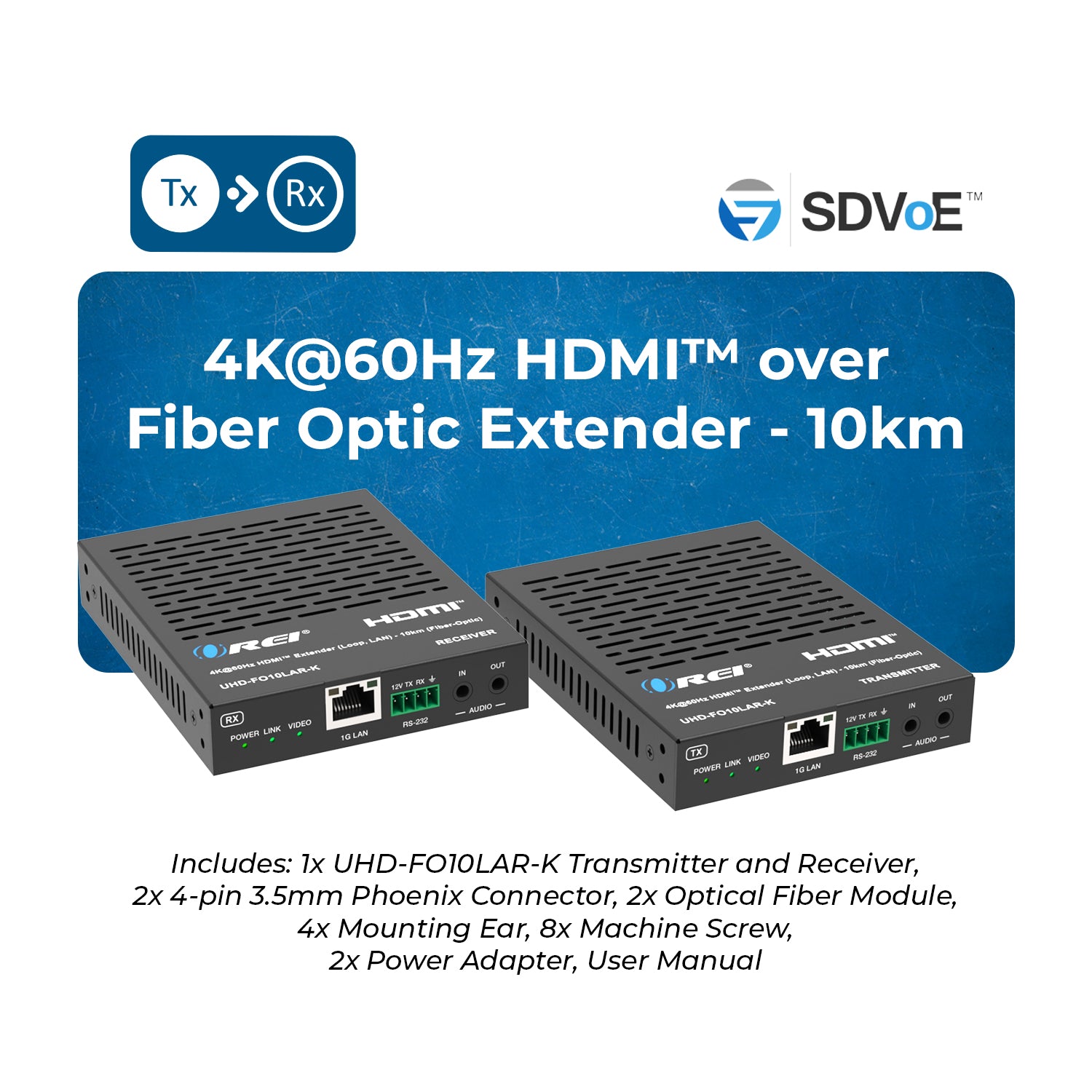

Package Includes UHD-FO10LAR-K (Transmitter and Receiver), 4x Mounting ear, 8x Machine screw (KM3*4), 2x 4-pin 3.5mm Phoenix Connector, 2x Optical Fiber Module, 2x Power Adapter and User Manual.
Key Features:
- HDMI 2.0b, HDCP 2.2, and DVI 1.0 compliant.
- 18Gbps video bandwidth.
- Video resolution up to 4K@50/60Hz 4:4:4.
- HDMI audio formats: LPCM2/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD.
- 3D and HDR video support.

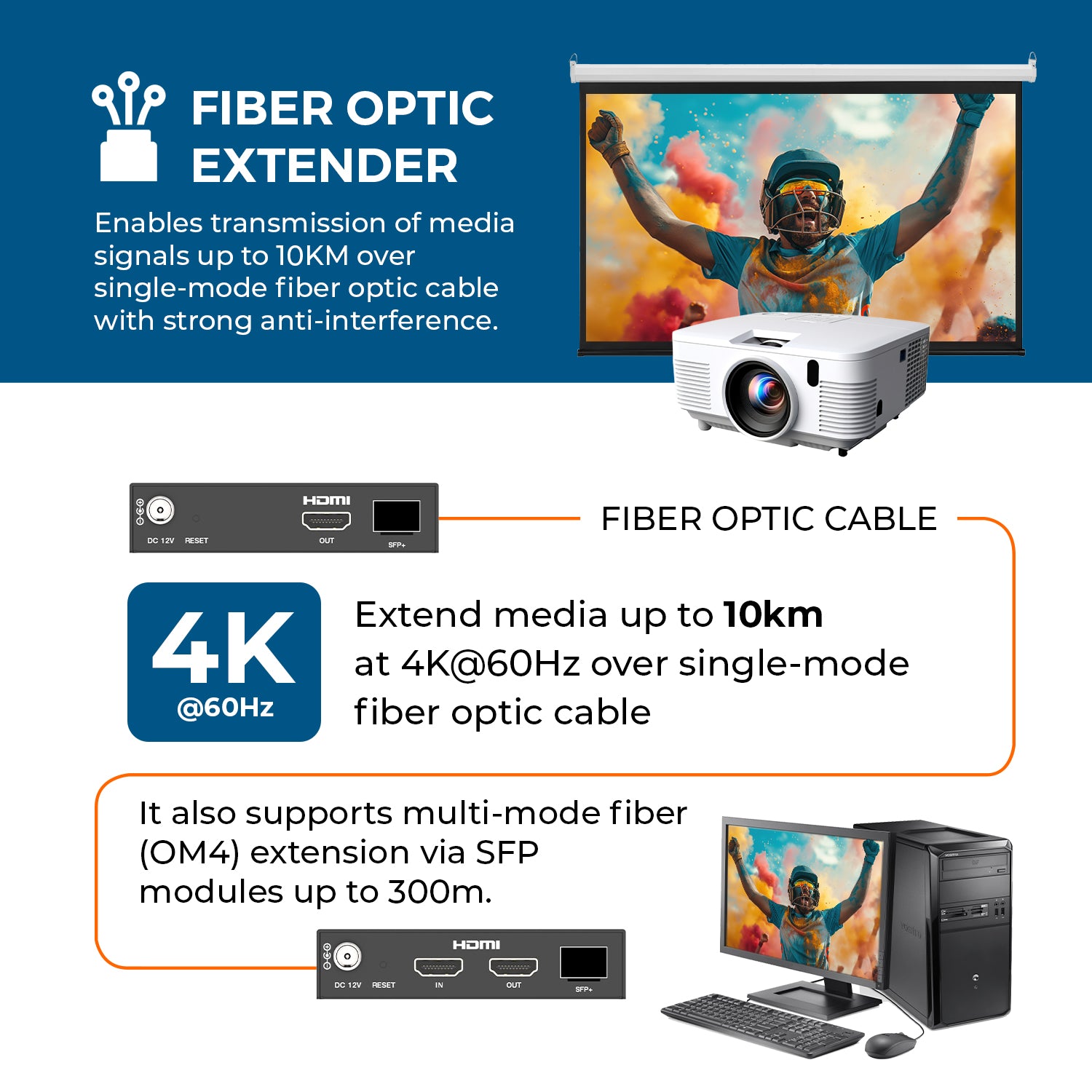

- Transmission distance up to 33000 feet/10km (over single-mode fiber cable).*It is possible to use multi-mode fiber with these SFP modules but the distance can not be guaranteed.
- Bi-directional IR enables control to and from the Transmitter and Receiver.
- RS-232 pass-through and EDID management for simple and convenient control.

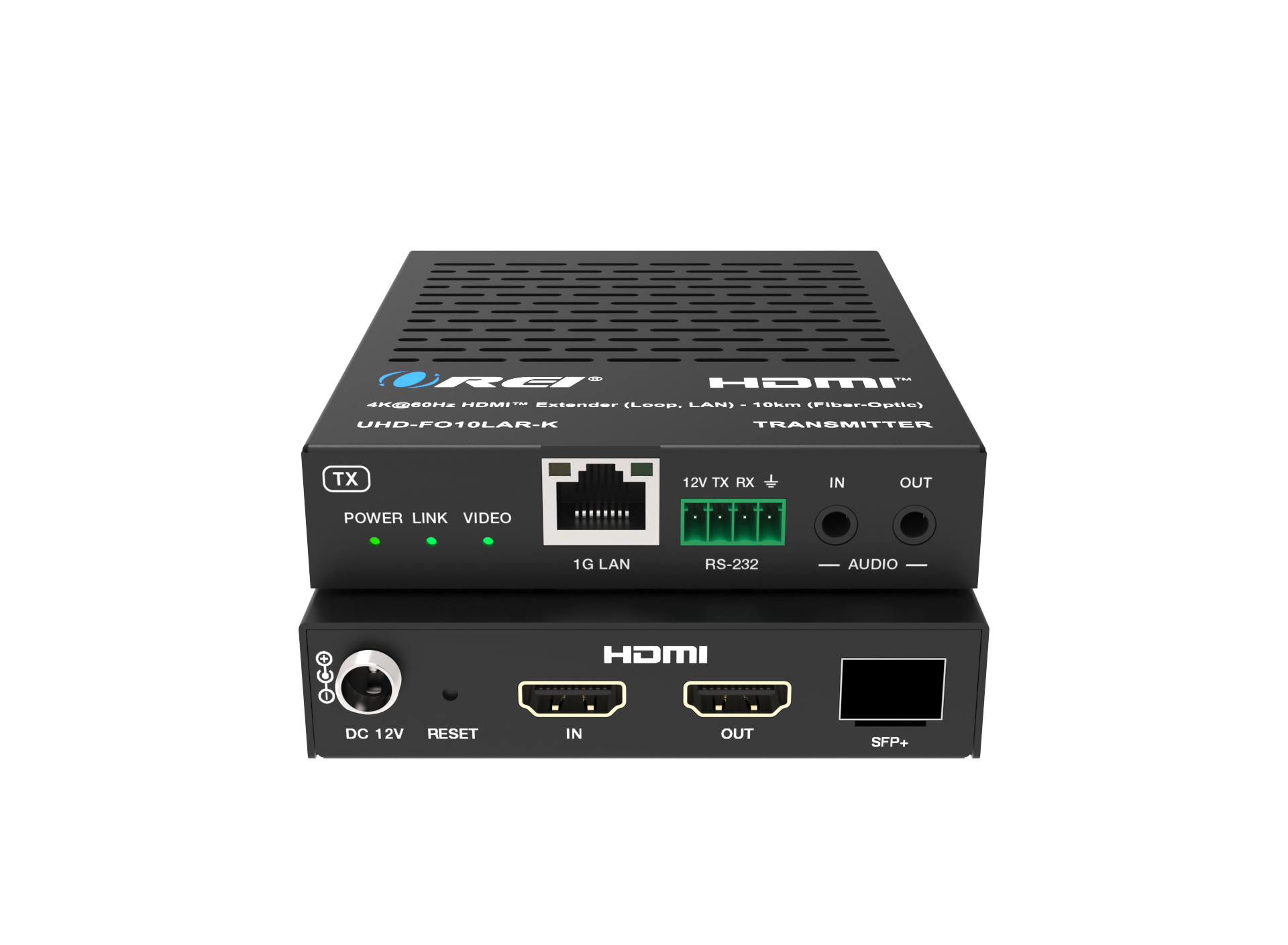

- The transmitter features an HDMI loop output to connect a display near the source.
- Audio Extraction through 3.5mm output on the Receiver end.
- Compact design for easy and flexible installation.

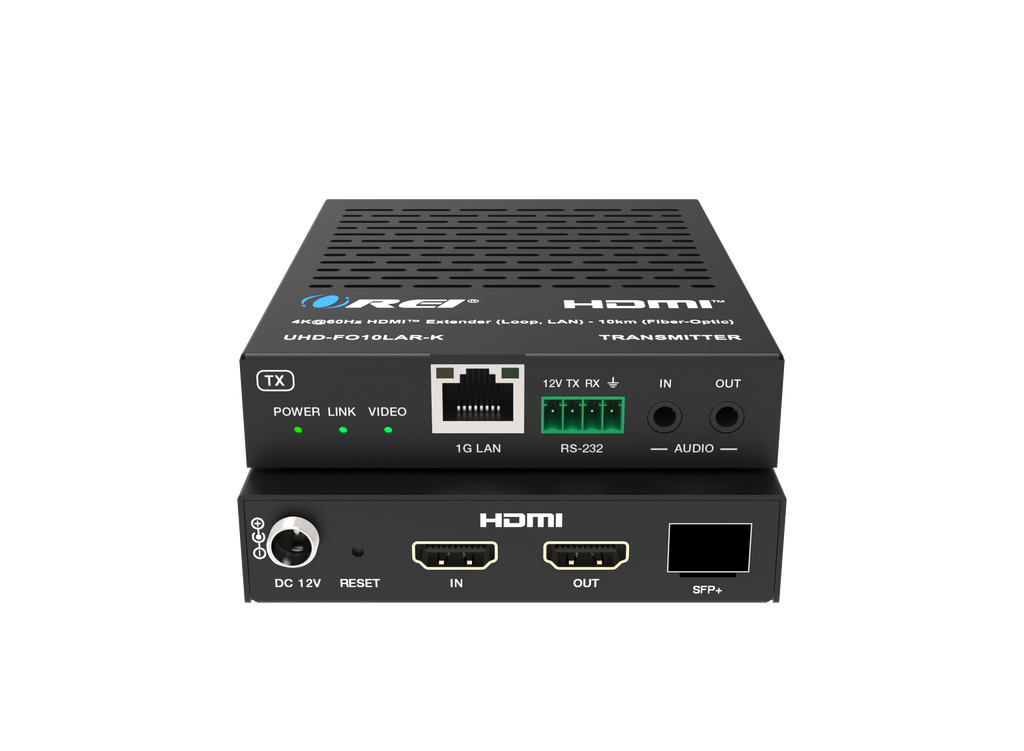

- CONNECTIVITY

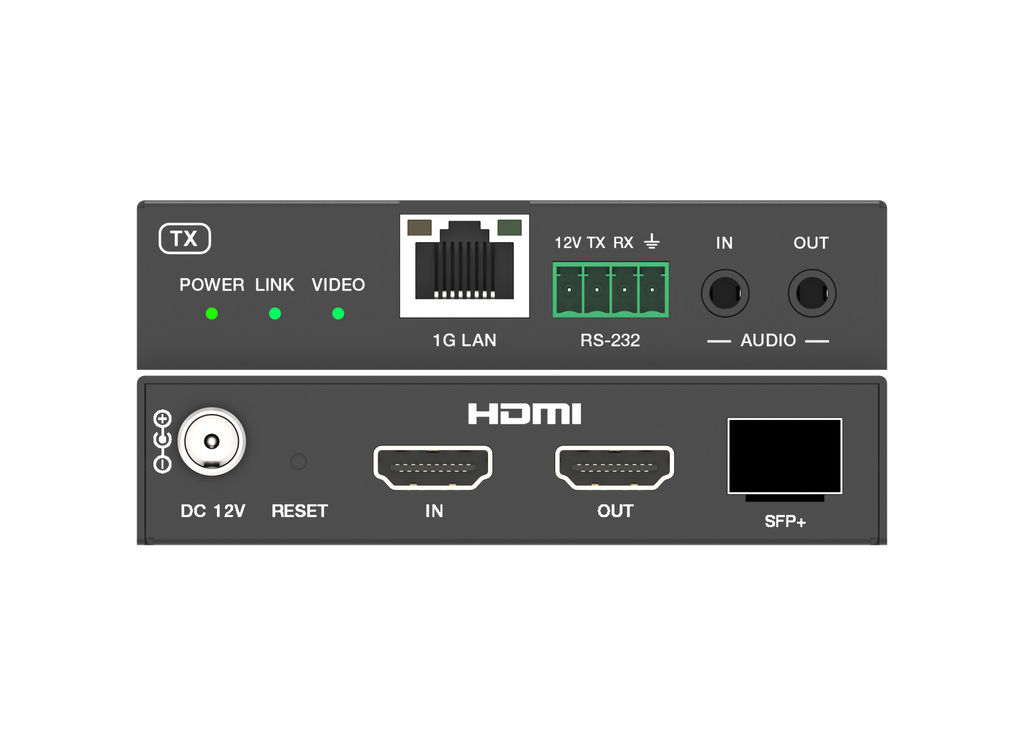

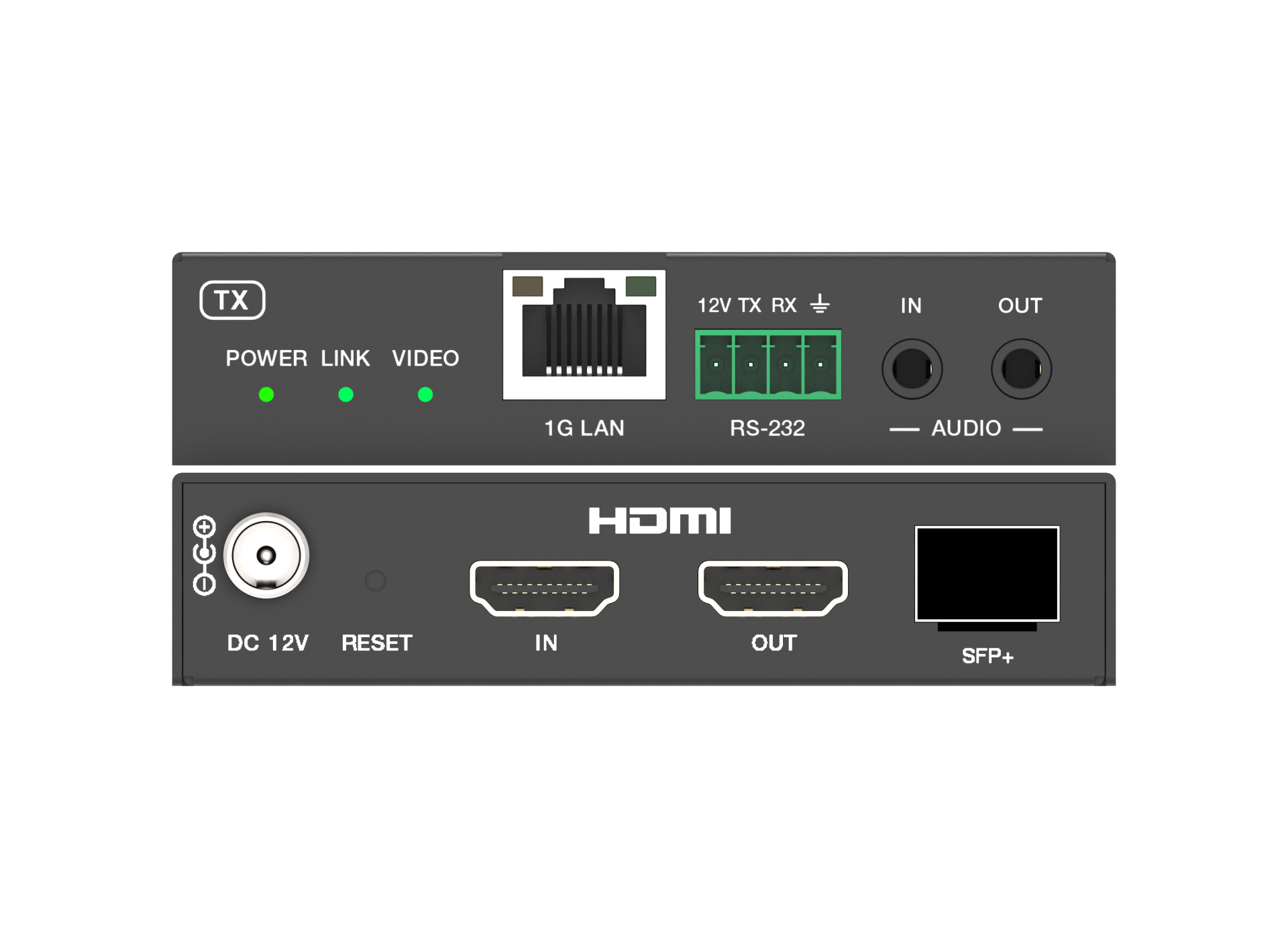

- Transmitter: INPUT PORTS: 1 × HDMI IN [Type A, 19-pin Female]
- Transmitter: INPUT PORTS: 1 × AUDIO [3.5mm audio jack]
- Transmitter: OUTPUT PORTS: 1 × HDMI OUT [Type A, 19-pin Female]

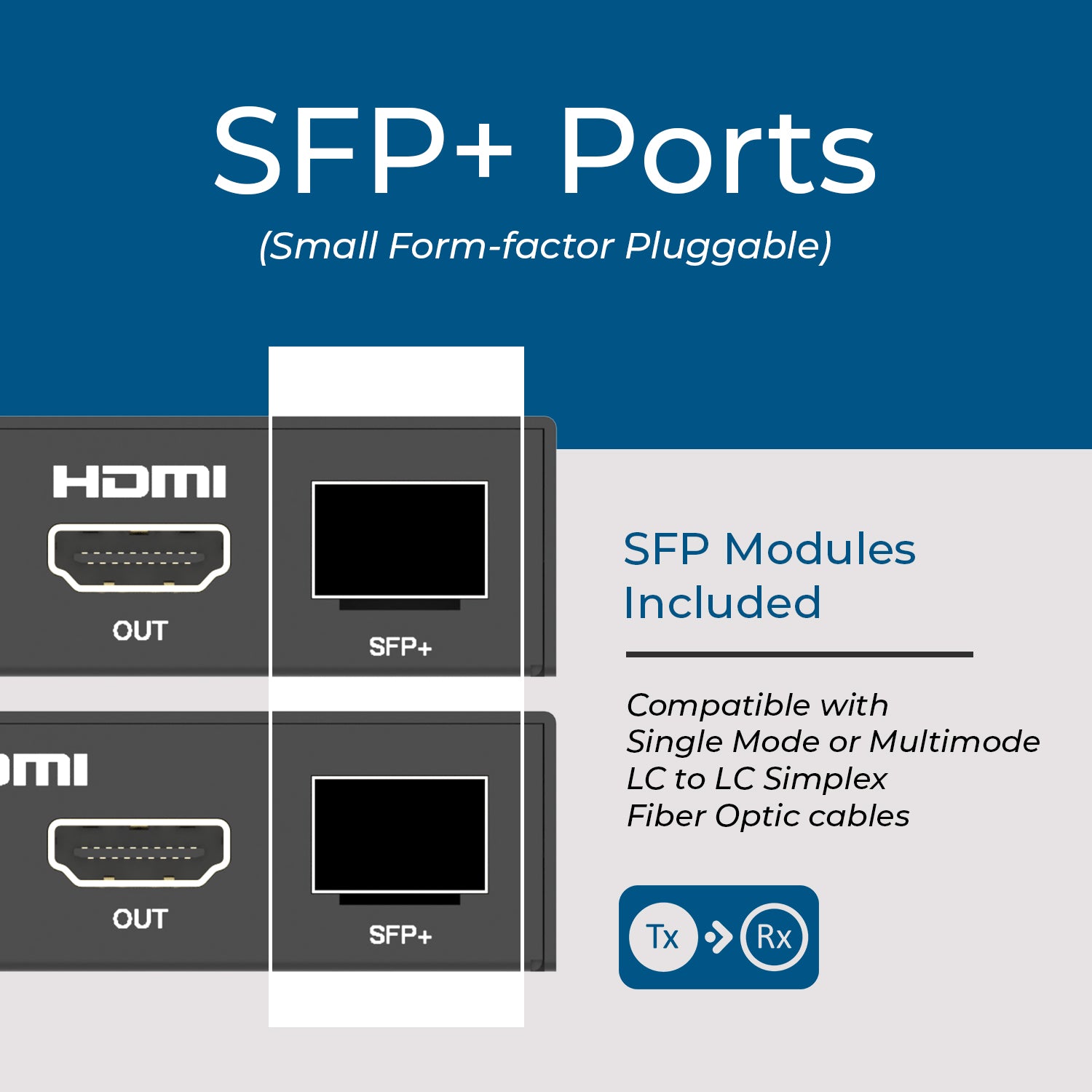

- Transmitter: OUTPUT PORTS: 1 × SFP+ [FIber slot, 10GBps]
- Transmitter: OUTPUT PORTS: 1 × AUDIO [3.5mm Stereo Mini-jack]
- Transmitter: CONTROL: 1 × 1G LAN [RJ45 jack]
- Transmitter: CONTROL: 1 × RS-232 [4pin-3.5mm phoenix connector]

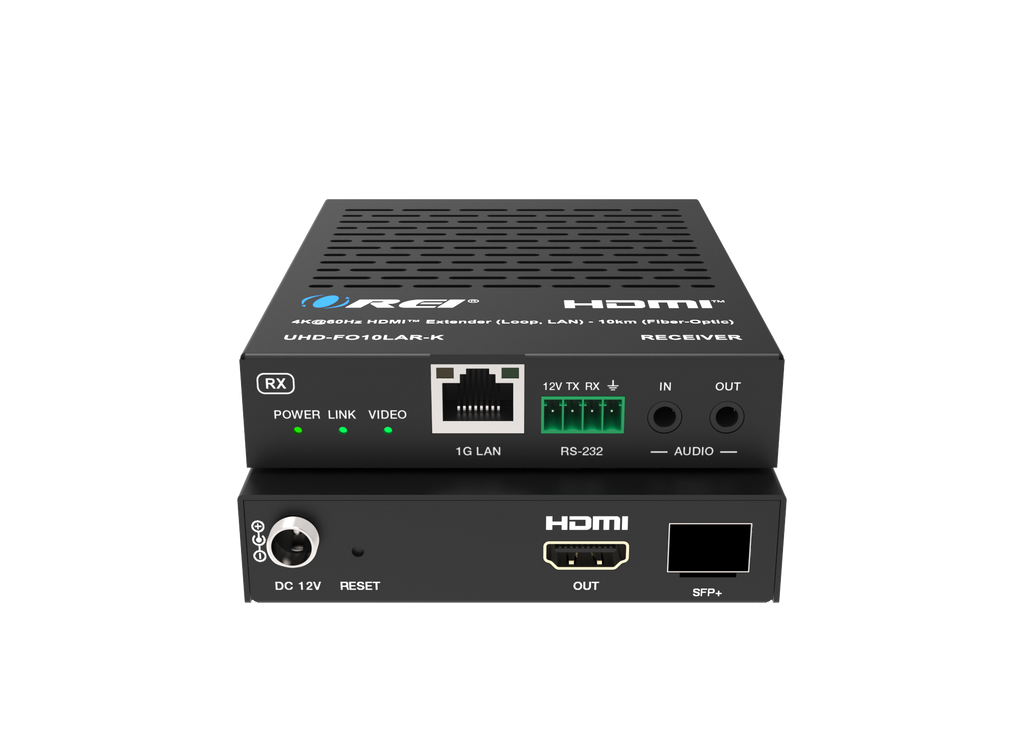

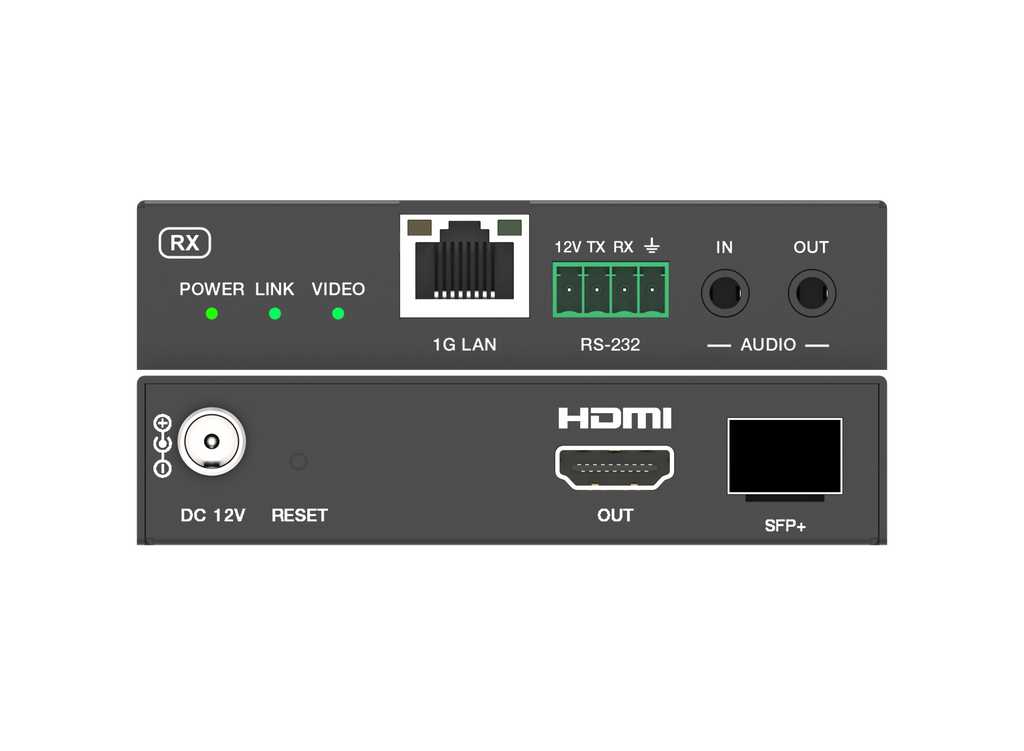

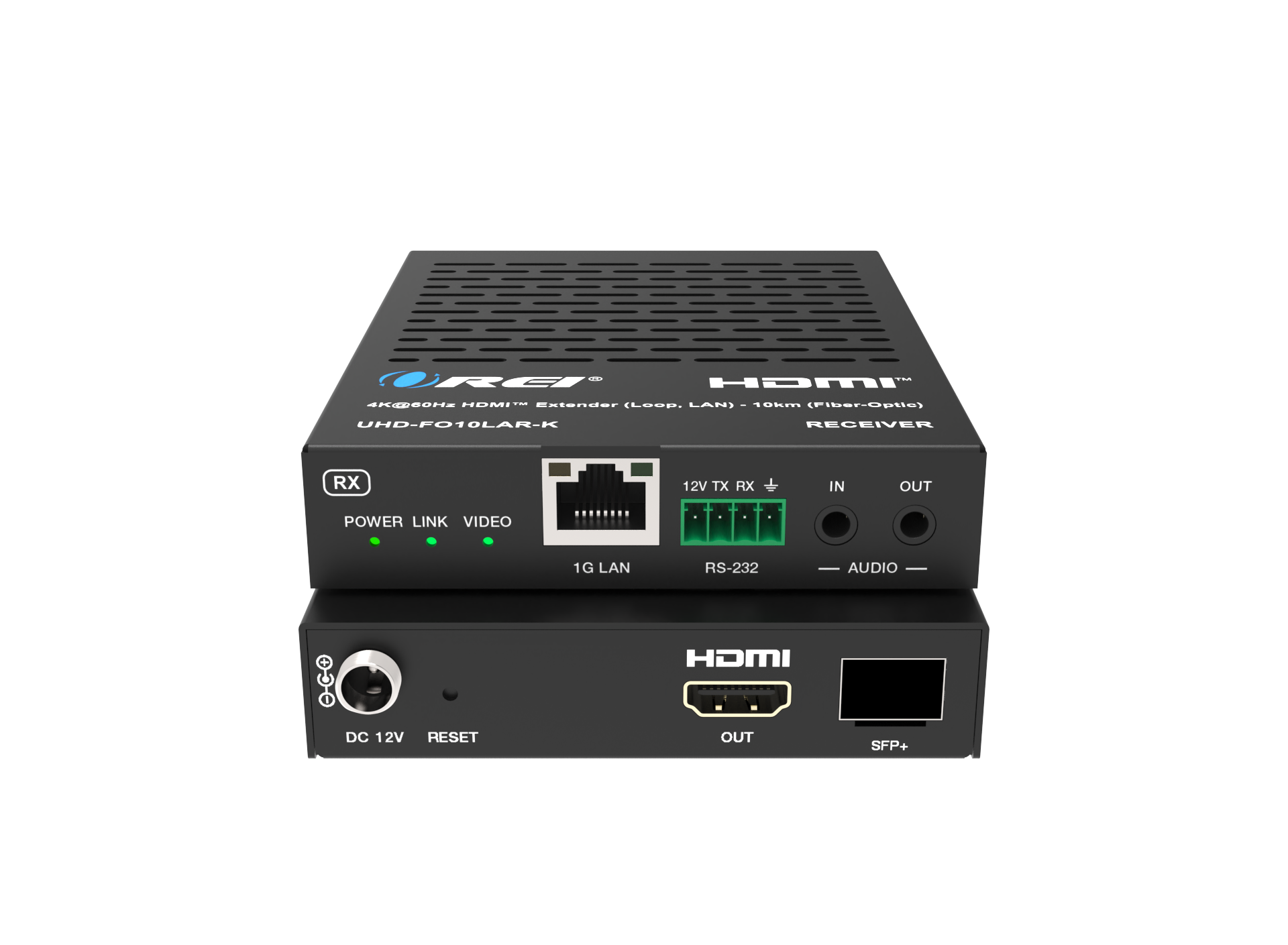

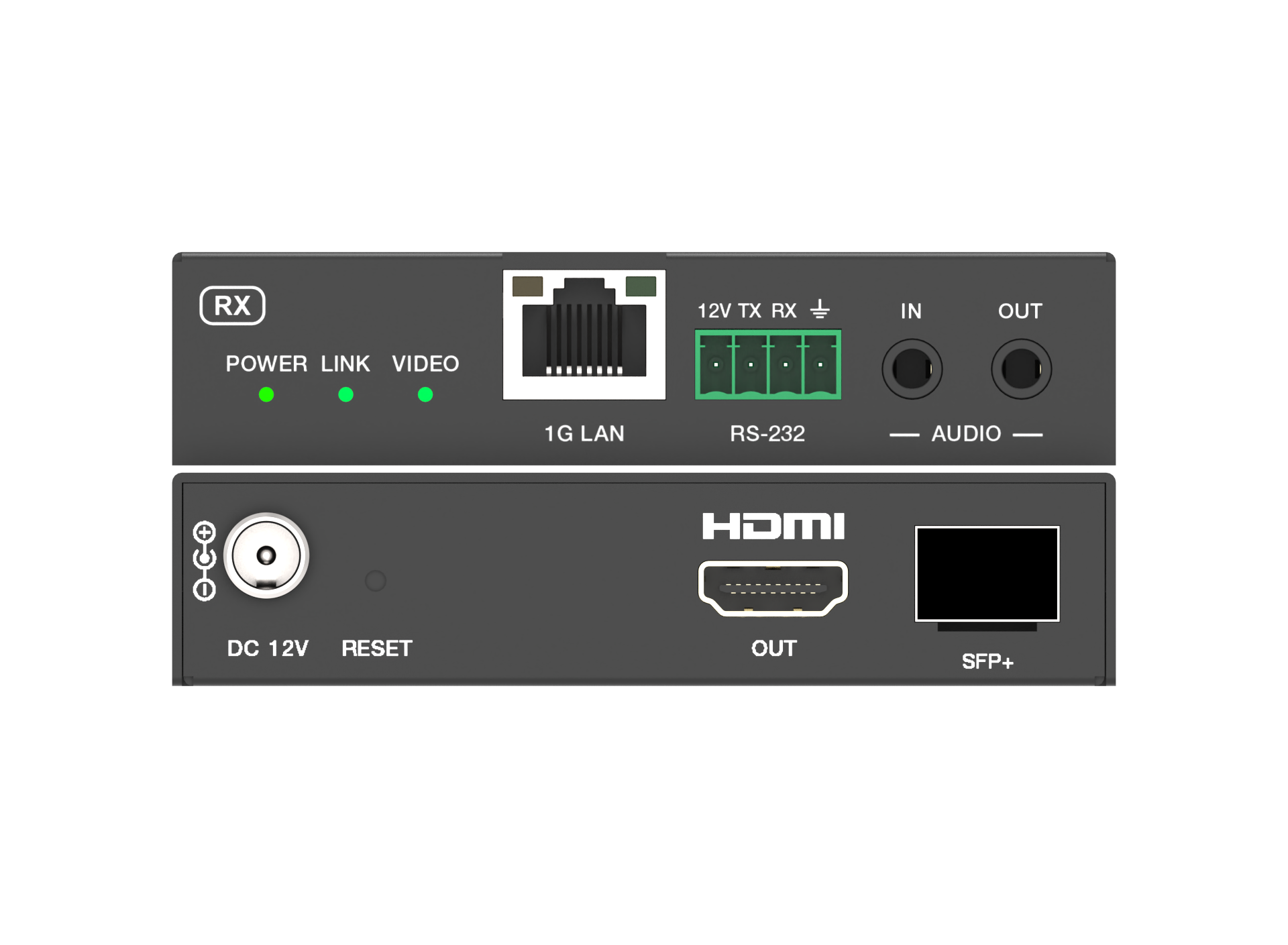

- Receiver: INPUT PORTS: 1 × SFP+ [Fiber slot, 10Gbps]
- Receiver: INPUT PORTS:1 × AUDIO [3.5mm audio jack]
- Receiver: OUTPUT PORTS: 1 × HDMI OUT [Type A, 19-pin Female]
- Receiver: OUTPUT PORTS: 1 × AUDIO [3.5mm audio jack]
- Receiver: CONTROL: 1 × 1G LAN [RJ45 jack]
- Receiver: CONTROL: 1 × RS-232 [4pin-3.5mm phoenix connector]
- AUDIO AND VIDEO
- Video Bandwidth: 18Gbps
- Video Resolutions: 480i ~1080p50/60Hz, 2560x1440@24/30/50/60Hz, 4K@24/30Hz, 4K@60Hz
- Color Space: RGB, YCbCr 4:4:4 / 4:2:2, YUV 4:2:0
- Color Depth: 8-bit, 10-bit, 12-bit
- HDMI Audio Formats: LPCM 2/5.1/7.1CH, Dolby Digital/Plus, Dolby True HD,Dolby Atmos, DTS 5.1, DTS-HD Master Audio, DTS:X
- COMPLIANCES
- HDMI Compliance HDMI 2.0b
- HDCP Compliance HDCP 2.2
- ADDITIONAL FEATURES
- CEC: Yes
- SDVoE: Yes
- LAN: Yes
- ARC: No
- USB KVM: No
- PoC: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: Yes
- SUPPORTED FIBER OPTIC CABLES
- Single Mode Fiber Optic We recommend you use Single Mode Fiber Optic cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- 4K@60Hz: 33000 Feet
- LOOP-OUT/LOCAL PORT
- Has loop out port: Yes
- Number of Loop out ports: 1
- SIGNALS
- TMDS Signals: -
- DDC Signals: -
- PROTECTION
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
- RJ-45 CONNECTOR Type
- WE/SS 8P8C
- POWER
- Power Consumption (Max): Transmitter: 5.52W (Max.)
- Receiver: 5.04W (Max.)
- Power Supply: Input: AC 100~240V 50/60Hz
- Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)

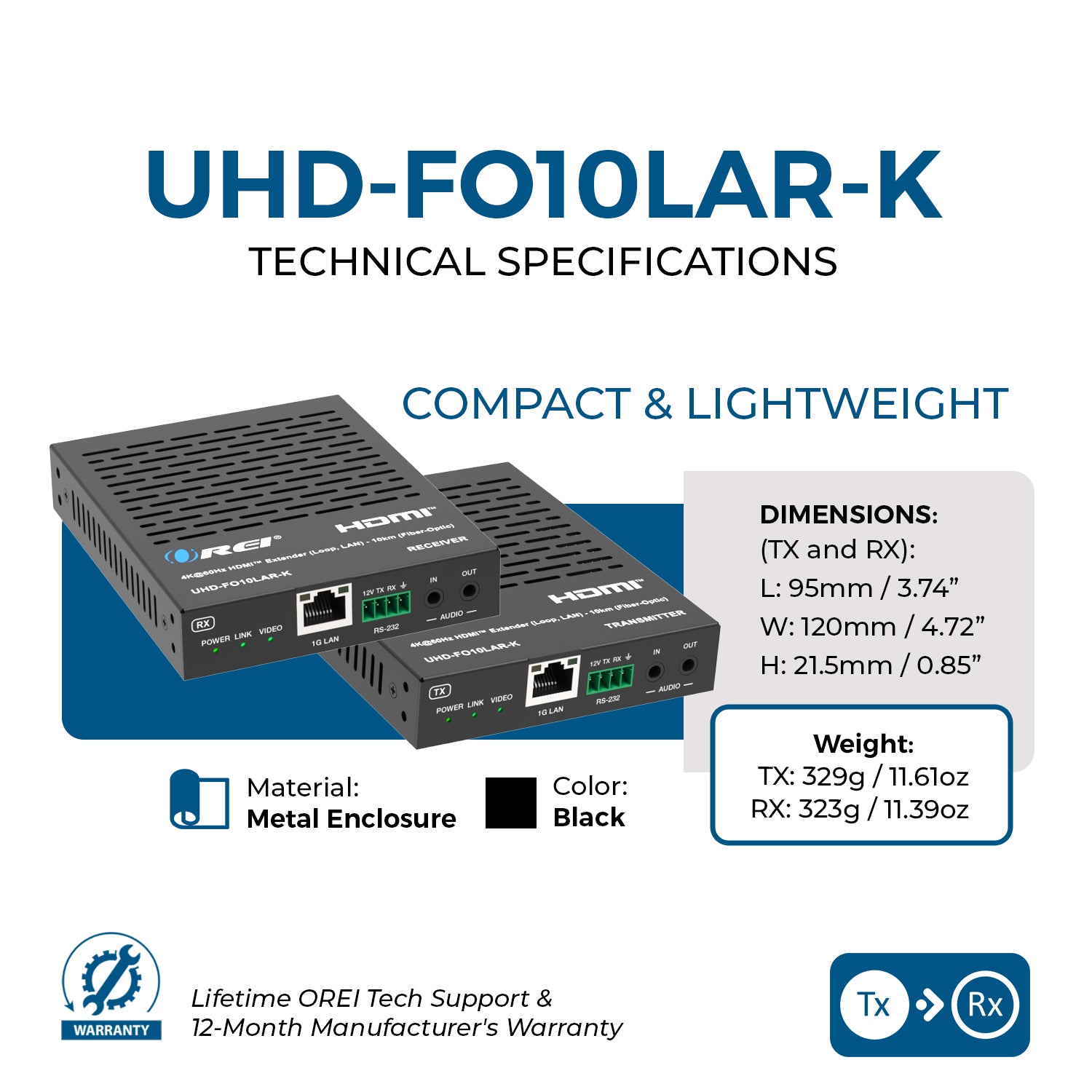

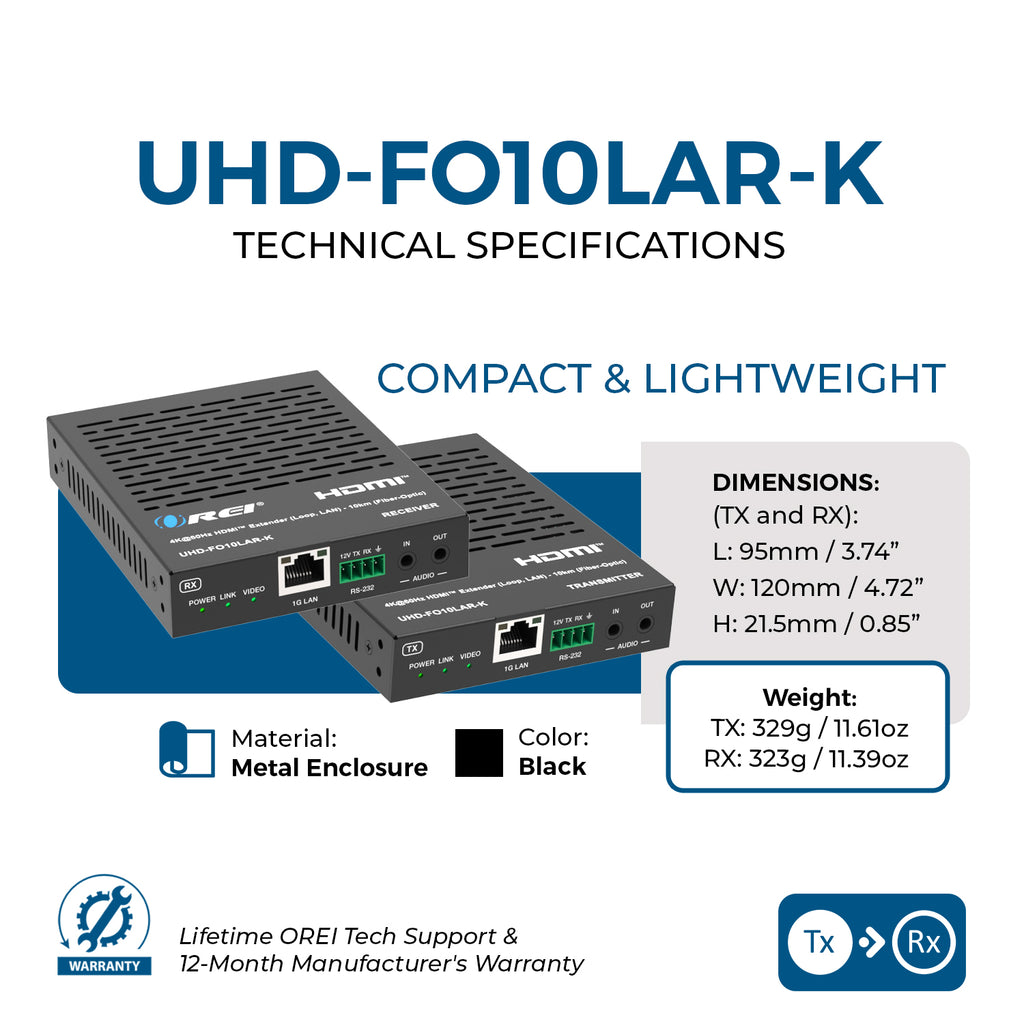

- DIMENSIONS & WEIGHT
- Transmitter: Height: 21.5mm
- Transmitter:Width: 120mm
- Transmitter:Depth: 95mm
- Transmitter:Weight: 329g
- Receiver: Height: 21.5mm
- Receiver:Width: 120mm
- Receiver:Depth: 95mm
- Receiver:Weight: 323g
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operation Temperature: 32~104°F / 0~40°C
- Storage temperature: -4~140°F / -20~60°C
- Operating Humidity: 20~80% RH (Non-condensing)

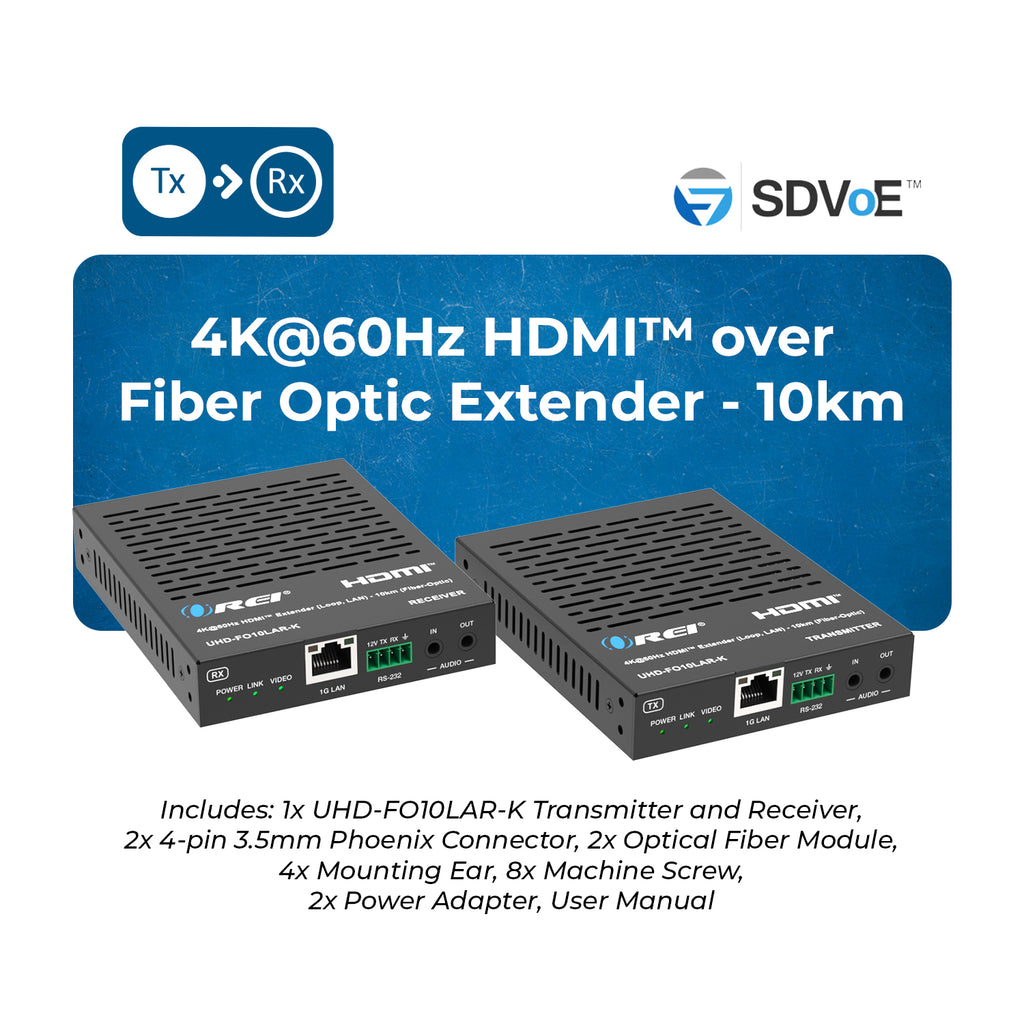

Includes:
- 1 × UHD-FO10LAR-K (Transmitter)
- 1 × UHD-FO10LAR-K (Receiver)
- 4 × Mounting ear
- 8 × Machine screw (KM3*4)
- 2 × 4-pin 3.5mm Phoenix connector
- 2 × Optical Fiber Module
- 2 × Power Adapter
- 1 × User Manual
Warranty:
- 1 Year Warranty
