$79.99

  |

In Stock: Usually Ships in 24 Hours

  • Split 2 HDMI Source to 2 identical displays
  • Video resolution upto 4K@120Hz
  • Compliance: HDMI 2.1 - HDCP 2.3
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

OREI BK-22: 2x2 8K HDMI Splitter

The OREI BK-22 is a reliable distribution amplifier-powered splitter that will take HDMI 2.1 signal up to 8K and duplicate the signal to up to 2 HDMI displays simultaneously, creating an impressive lossless image or audio transmission via HDMI cable.

Compact, durable, and easy to set up and operate. Ideal for a trade show, conference rooms, lecture halls, bedrooms, living rooms, kitchen rooms, and backyard.

Please note that this HDMI 2.1 splitter will duplicate the source to the two output displays. It can’t be used to extend a desktop for a PC or a laptop. If the connected displays do not support the same resolution then the splitter will lower the output resolution to the next best resolution supported by both displays and the same goes with the audio signal. We recommend using this HDMI 2.1 splitter with high-quality HDMI cables 30 feet or less.

The package includes an Orei BK-22 HDMI splitter 8K, 5V AC Adapter & user manual.

Key Features:
  • WILL NOT WORK TO EXTRACT AUDIO
  • NOT COMPATIBLE WITH CAPTURE CARD
  • DOES NOT SUPPORT ARC

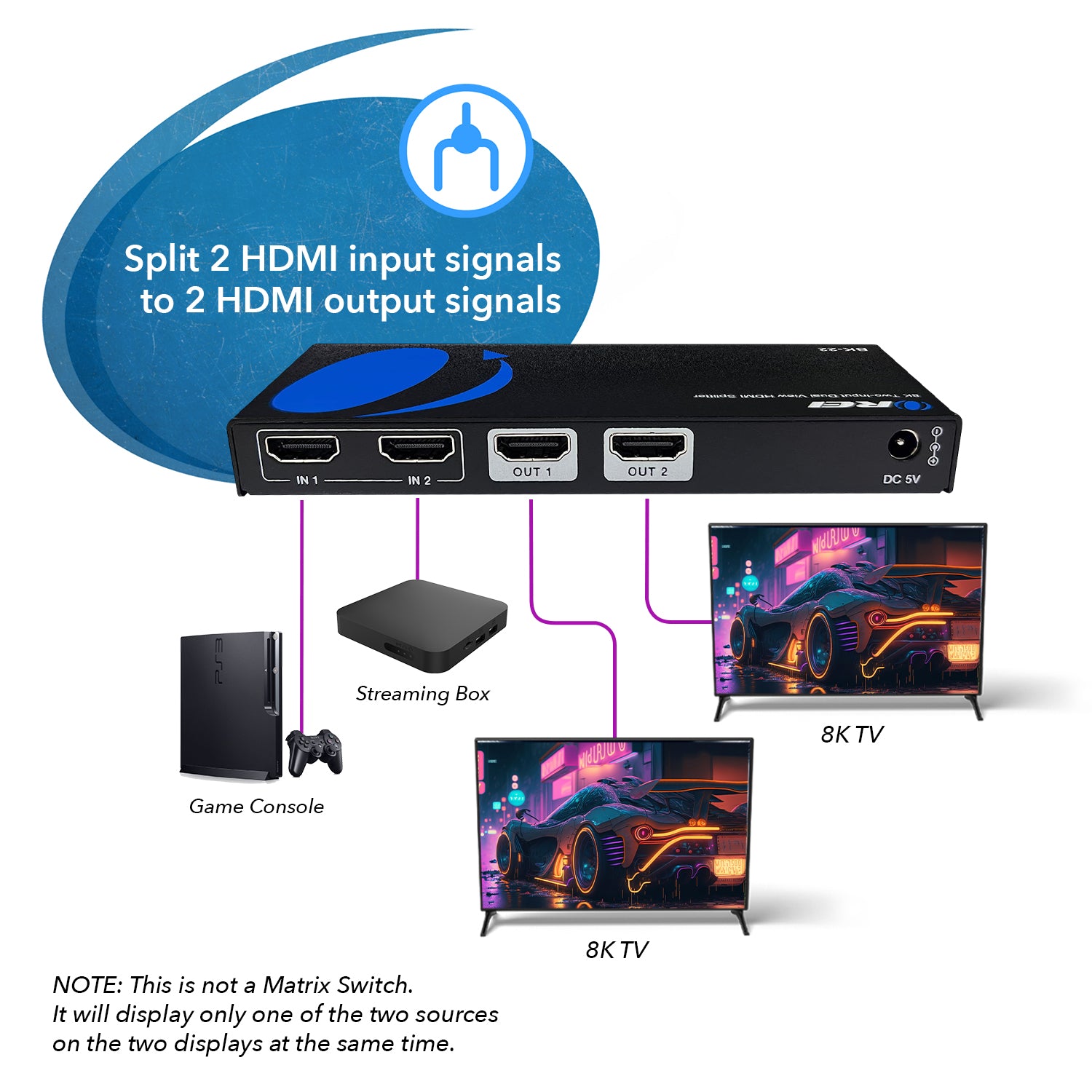

  • Split two HDMI 2.1 input signal to two HDMI output signals identical to the input signal
  • 8K 40 Gbps Powered HDMI Splitter
  • Input: 2x HDMI & Outputs: 2x HDMI
  • Auto EDID management
  • Built-in Equalizer, Retiming and Driver
  • 2 in 2 out HDMI Splitter
  • Supported resolution: up to 8K, 4K/120Hz, 1080p, 720p, HDR, HDR10, HDR10+
  • Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby TrueHD/DTS-HD master audio, Essentially all available audio options are supported
  • Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation
  • Will not work as a Matrix, will only output the same input on both TVs.
  • Compact in size
  • Easy plug & play installation
  • HDCP 2.3 Compliant
  • Includes 100-240 50/60 Hz auto switching power supply for use anywhere in the world
  • Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty
  • AUDIO AND VIDEO
    • Inputs: 2 × HDMI Type A (19-pin female)
    • Output Ports: 2 × HDMI Type A (19-pin female)
    • Video Bandwidth: 40 Gbps
    • Video Resolution: Up to 8K@60Hz YCBCR 4:2:0 10bit, 8K30 RGB/YCBCR 4:4:4 10bit or,4K120 RGB/YCBCR 4:4:4 10bit
    • Color Space: RGB, YCbCr 4:4:4 / 4:2:2. YCbCr 4:2:0
    • HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
  • COMMUNICATION AND CONTROL
    • HDMI Compliance: HDMI 2.1
    • HDCP Compliance: HDCP 2.3
  • POWER
    • Power Supply: Input: AC100 - 240V 50/60Hz, Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
    • Power Consumption: 2.25W (Max)
  • ENVIRONMENTAL
    • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
    • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
    • Relative Humidity: 20 - 90% RH (no condensation)
  • DIMENSIONS & WEIGHT
    • Height: 18 mm
    • Width: 115 mm
    • Depth: 68 mm
    • Weight: 220 g
  • REGULATORY
    • Safety and Emission: CE | FCC | RoHS
Includes:
  • 1 × BK-22 2×2 HDMI Splitter
  • 1 × Power Adapter
  • 1 × User Manual
Warranty:
  • 1 - Year Manufacturer's Warranty

Request a Quote


2x2 HDMI Splitter : 2-In 2-Out, UltraHD 8K, EDID (BK-22)
