$399.00

  |

In Stock: Usually Ships in 24 Hours

  • Supports ipcolor technology
  • Supports 18Gbps video bandwidth
  • Supports Bi-directional IR, RS-232 Control & Advance EDID
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

OREI UHD14-IPC230-K 4K HDMI Extender Splitter up to 230Ft


UHD14-IPC230-K  is 1 Input 4 Outputs Extender Splitter Kit, which integrates the functions of distribution and extension. You can enjoy seamless videos with zero latency.

It distributes 1 HDMI input signal to 4 identical signal outputs, extends these signals up to 230 feet, and supports 18 Gbps video bandwidth 4K@60Hz resolution with ipcolor technology.

It also supports bi-directional IR pass back, RS-232 control and advance EDID control settings.

This product has an HDMI loop out port so that you can connect a local display to the transmitter & enjoy the video.

It is suitable for studios, multimedia classrooms, rail transit, etc.

We recommend you using shielded CAT6 cables & high-quality HDMI cables for optimum performance.

Key Features:
  • Zero latency transmission of video signals
  • Can split and extend one HDMI input signal to four output devices
  • Support up to 4K@60Hz resolutions

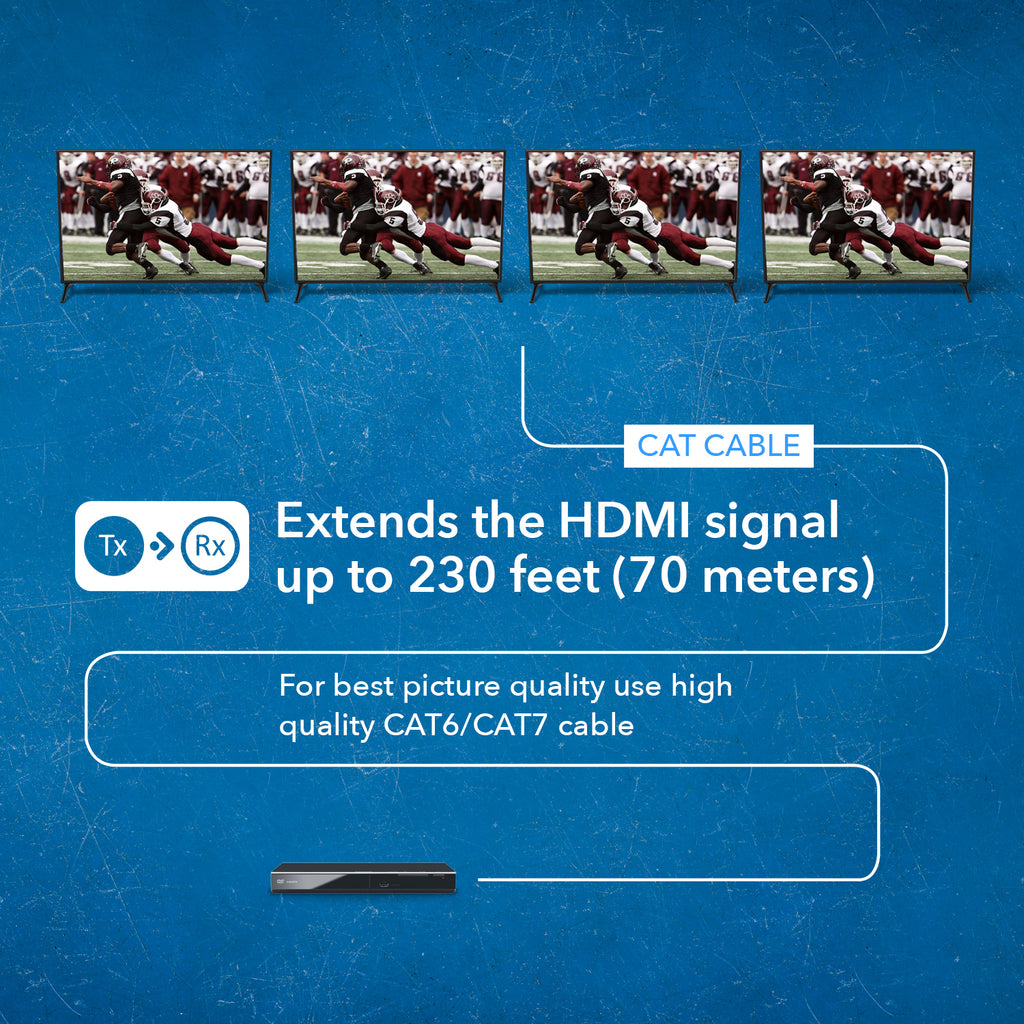

  • Transmission is up to 230 feet by using shielded CAT6/7 cables
  • Supports bi-directional IR
  • Supports Advance EDID control settings
  • Has an HDMI loop out port on the transmitter
  • The receiver can output the digital audio of the TV or the source device from the S/PDIF port
  • Supports RS-232 command control
  • Surge Protection, Lightning Protection, ESD Protection
  • Equipped with rack mount ears
  • AUDIO AND VIDEO
    • Transmitter:
      • INPUT PORTS: 1x HDMI INPUT
      • OUTPUT PORTS:
        • 4x RJ45 OUTPUT
        • 1x HDMI OUTPUT
    • Receiver:
      • INPUT PORTS: 1x RJ45 INTPUT
      • OUTPUT PORTS: 1x HDMI OUTPUT
  • COMPLIANCES
    • HDMI Compliance: HDMI 2.0
    • HDCP Compliance: HDCP 2.2
    • Transmission Protocol: Ipcolor
  • SUPPORTED CAT CABLES
    • CAT5e, CAT6, CAT7: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
  • EXTENDING DISTANCE
    • 4K@60Hz: Up to 230 Feet
  • VIDEO OUTPUT
    • Video Bandwidth: 18 Gbps
    • Video Resolutions: Up to 4K@60Hz
    • Color Space: RGB YCbCr4::4:4 YCbCr4::4:2 YCbCr4::2:0
    • Color Depth: 8bit
  • CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
    • CEC Function: No
    • ARC Function: Yes
    • USB KVM Function: No
    • PoC/PoE Function: No
    • IR Controller: Bi-Directional IR
    • Downscaler Function: No
    • Over Network/IP Function: No
    • HDBaseT Function: No
    • RS-232 Function: Yes
  • LOOP-OUT/LOCAL PORT
    • Has loop out port: Yes
    • Number of Loop out ports: 1
  • SWITCHES
    • EDID Management: Supports Advance EDID Management Control
    • ARC: Supports ARC from the TV (receiver end)
    • S/PDIF: Supports from the source device
  • AUDIO OUTPUT
    • HDMI Audio Formats: LPCM/DTS-HD/DTS-Audio/ Dolby Digital 5.1CH
    • SPDIF/Optical Audio Formats: Up to 5.1Ch
  • SIGNALS
    • TMDS Signals: 0.7~1.2Vp-p
    • DDC Signals: 5Vp-p
  • DIMENSIONS & WEIGHT
    • Transmitter:
      • Height: 23.5mm
      • Width: 104mm
      • Depth: 264mm
      • Weight: 640g
    • Receiver:
      • Height: 26.2mm
      • Width: 99mm
      • Depth: 106mm
      • Weight: 210g
  • PROTECTION
    • Operation Temperature: -20 - 60°C
    • Storage temperature: -30 - 70°C
    • Relative Humidity: 0 - 90% RH
    • ESD Protection: 1a Contact discharge level 3, 1b Air discharge level 3, implementation of the standard: IEC61000-4-2
    • Electrostatic Protection of the whole Machine: IEC61000-4-2
    • Lightning Protection: Yes
    • Surge Protection: Yes
  • RJ-45 CONNECTOR TYPE
    • 8P8C connector
  • POWER
    • Power Consumption (Max)
      • Transmitter: 13W
      • Receiver: 4W
    • Power Supply
      • Input: DC 12V/2A
      • Output: DC 5V/2A
  • PHYSICAL PROPERTIES
    • Color: Black
    • Housing: Aluminium Alloy Material + Crystal Panel
    • Processing Technology: Ipcolor transmission technology
    • Finishing: Grit blast

Includes:

  • 1x HDMI Transmitter
  • 4x HDMI Receivers
  • 1x DC 12V/2A Power Adapter
  • 4x DC 5V/2A Power Adapter
  • 1x Terminal Block (RS-232)
  • 1x IR Blaster Extension Cable
  • 4x IR Receiver Extension Cable
  • 20x Mounting Brackets
  • 40x Screw



Warranty:

  • 1 - Year Manufacturer's Warranty
