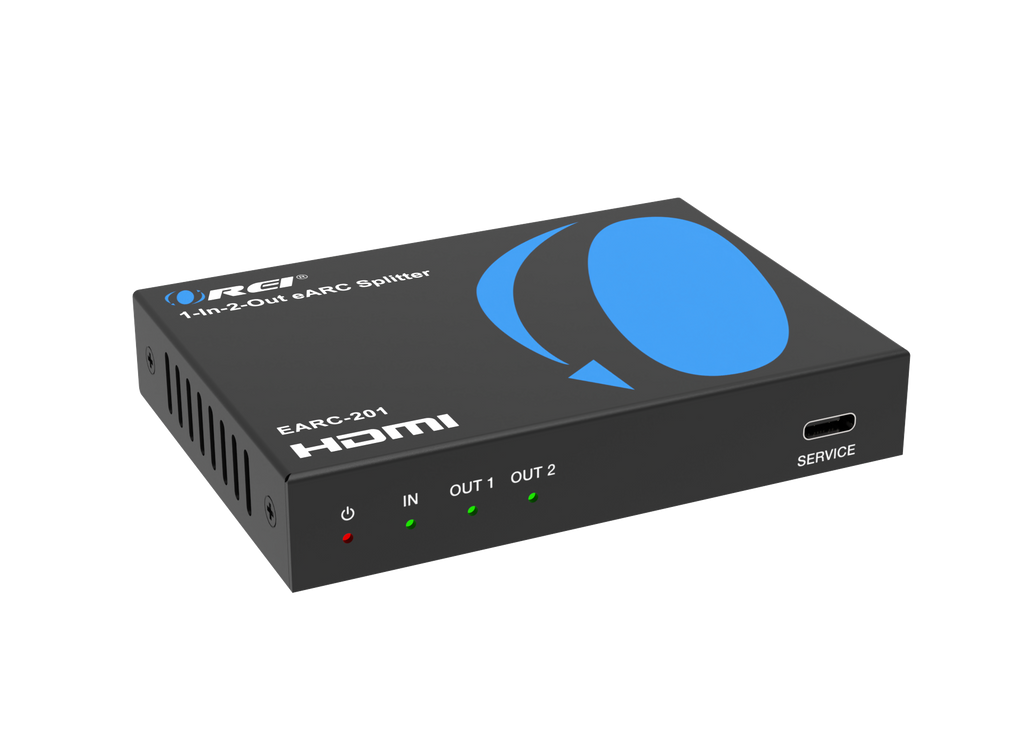

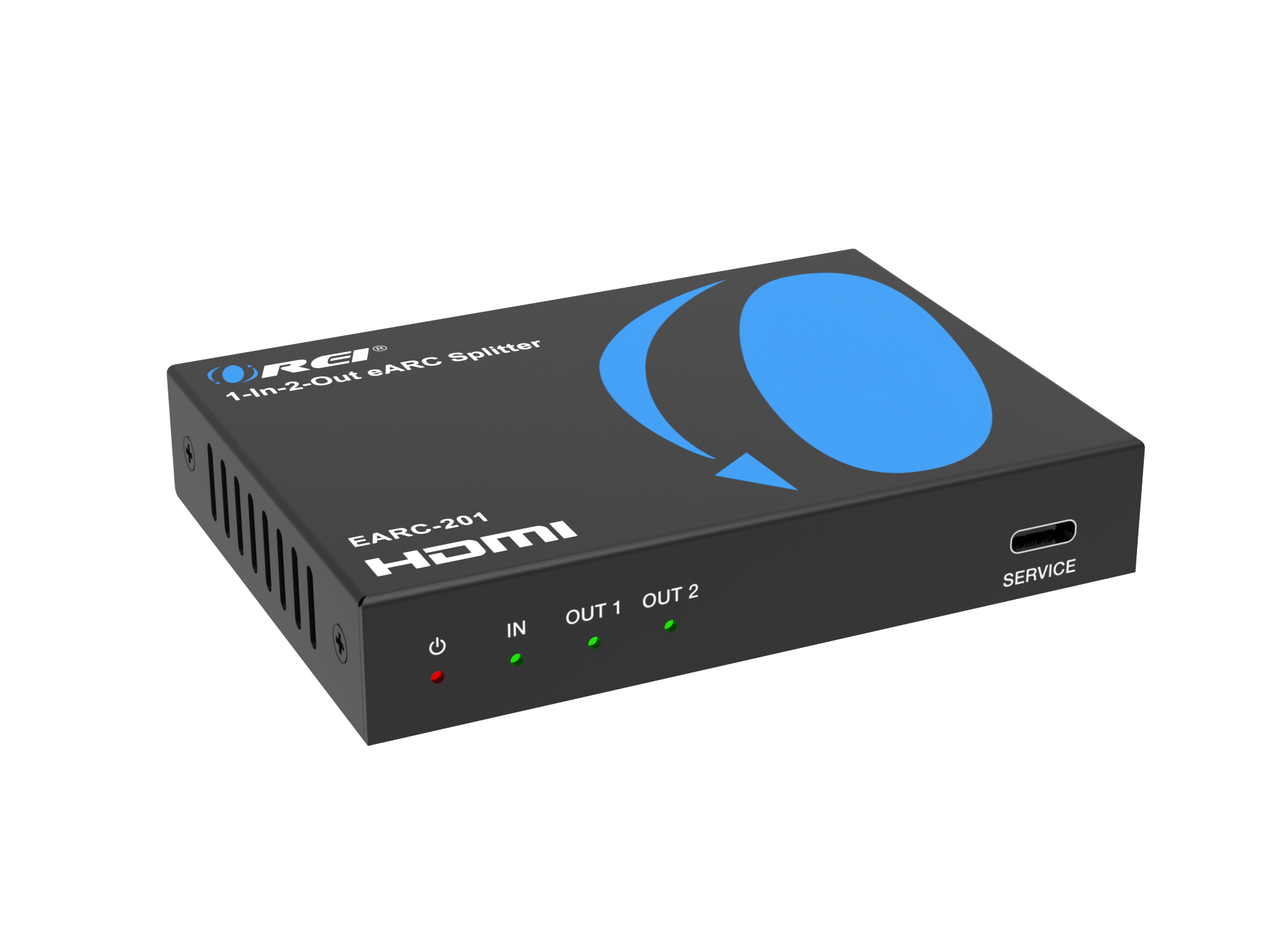

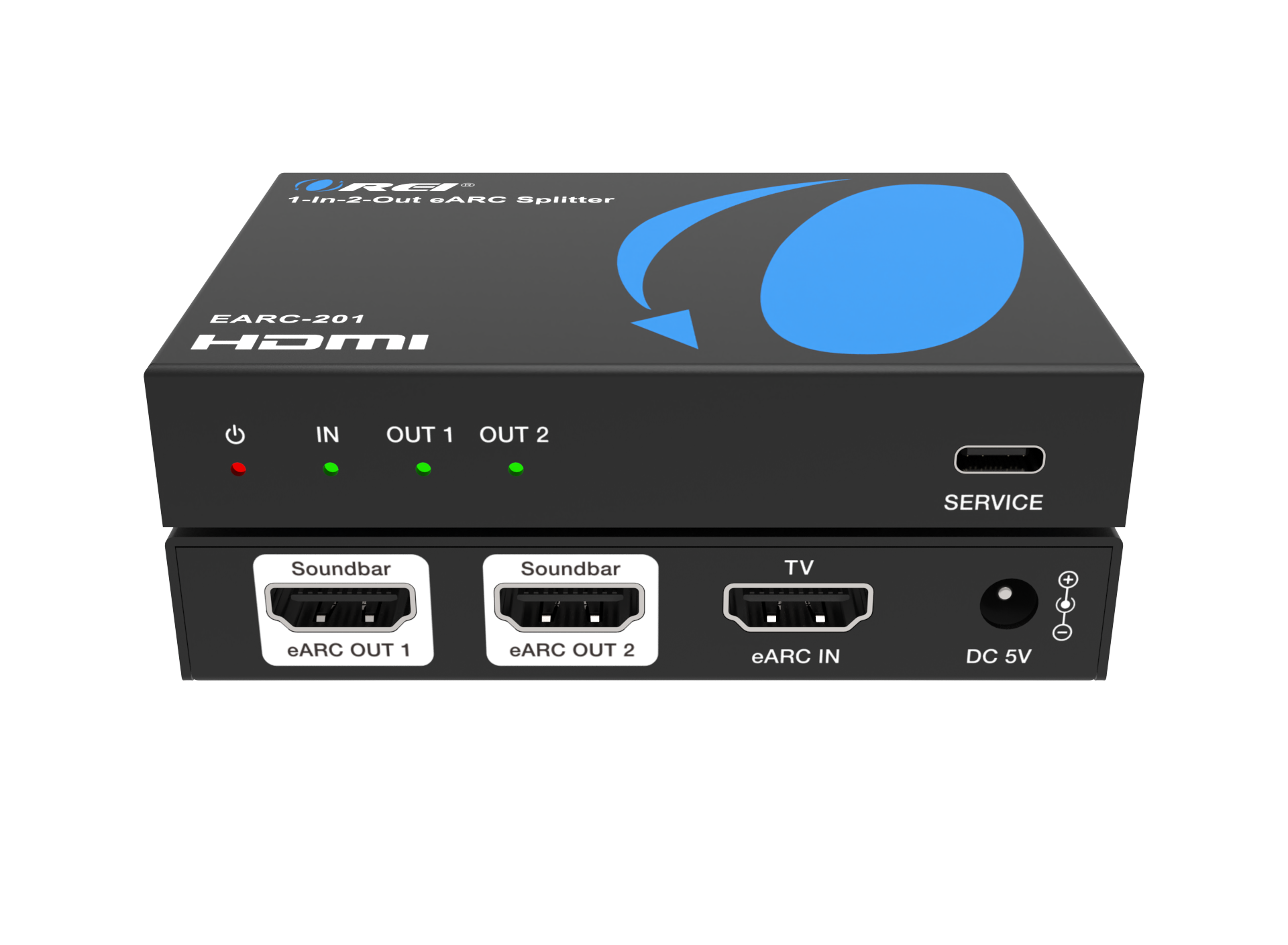

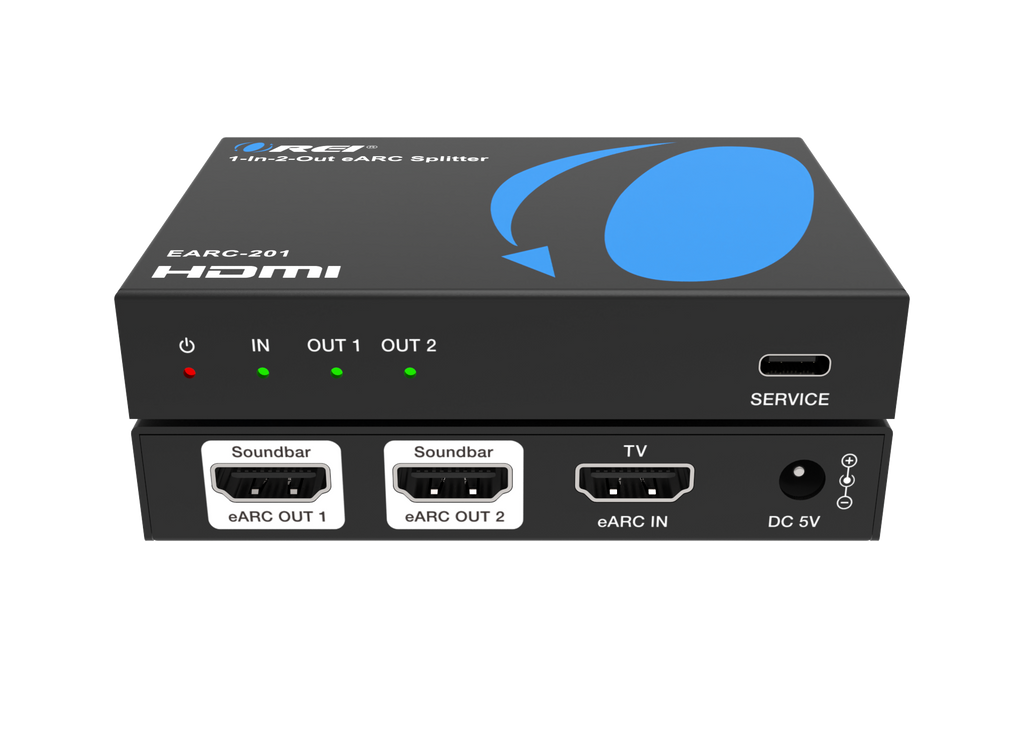

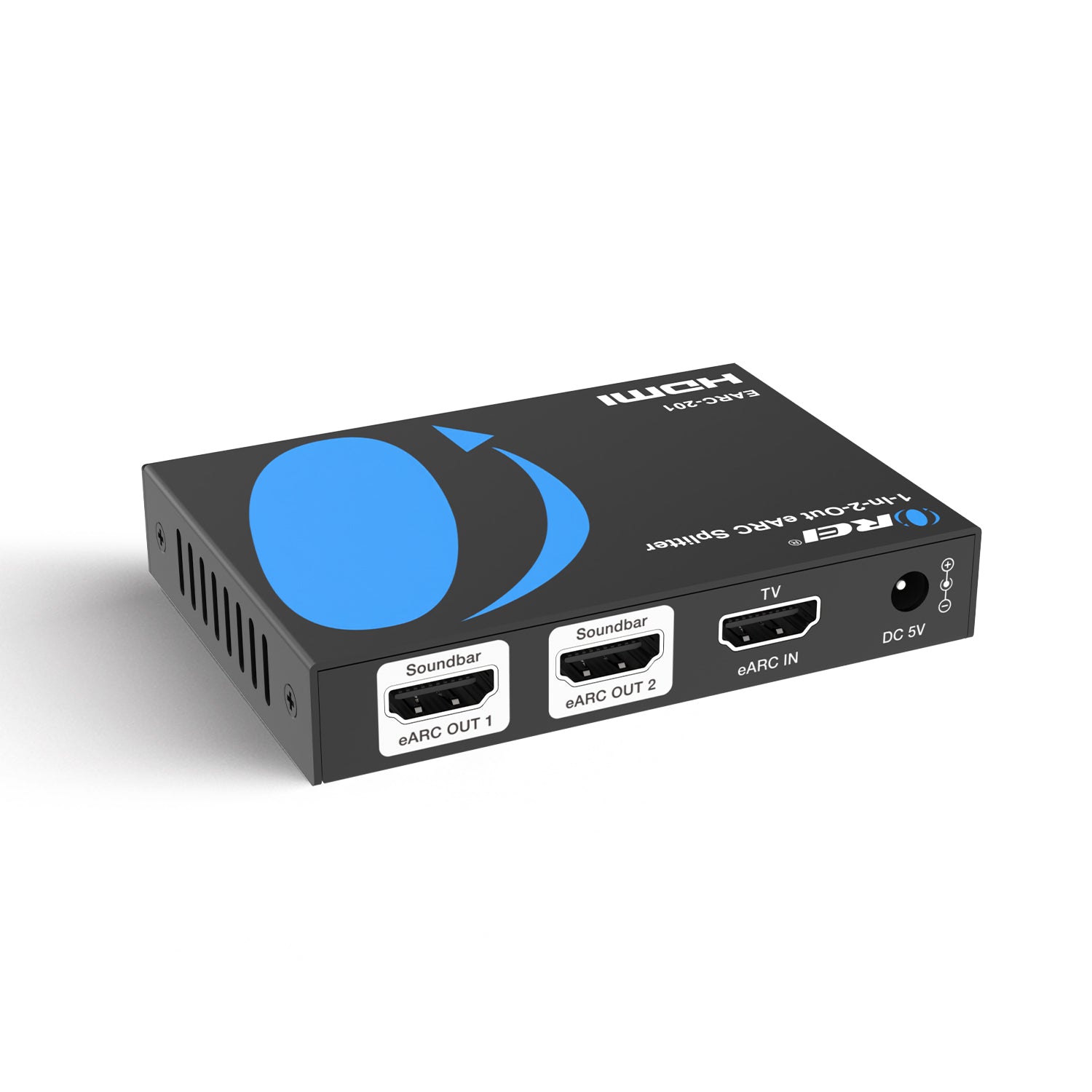

OREI EARC-201: 1-IN-2-OUT EARC SPLITTER
Key Features:
-

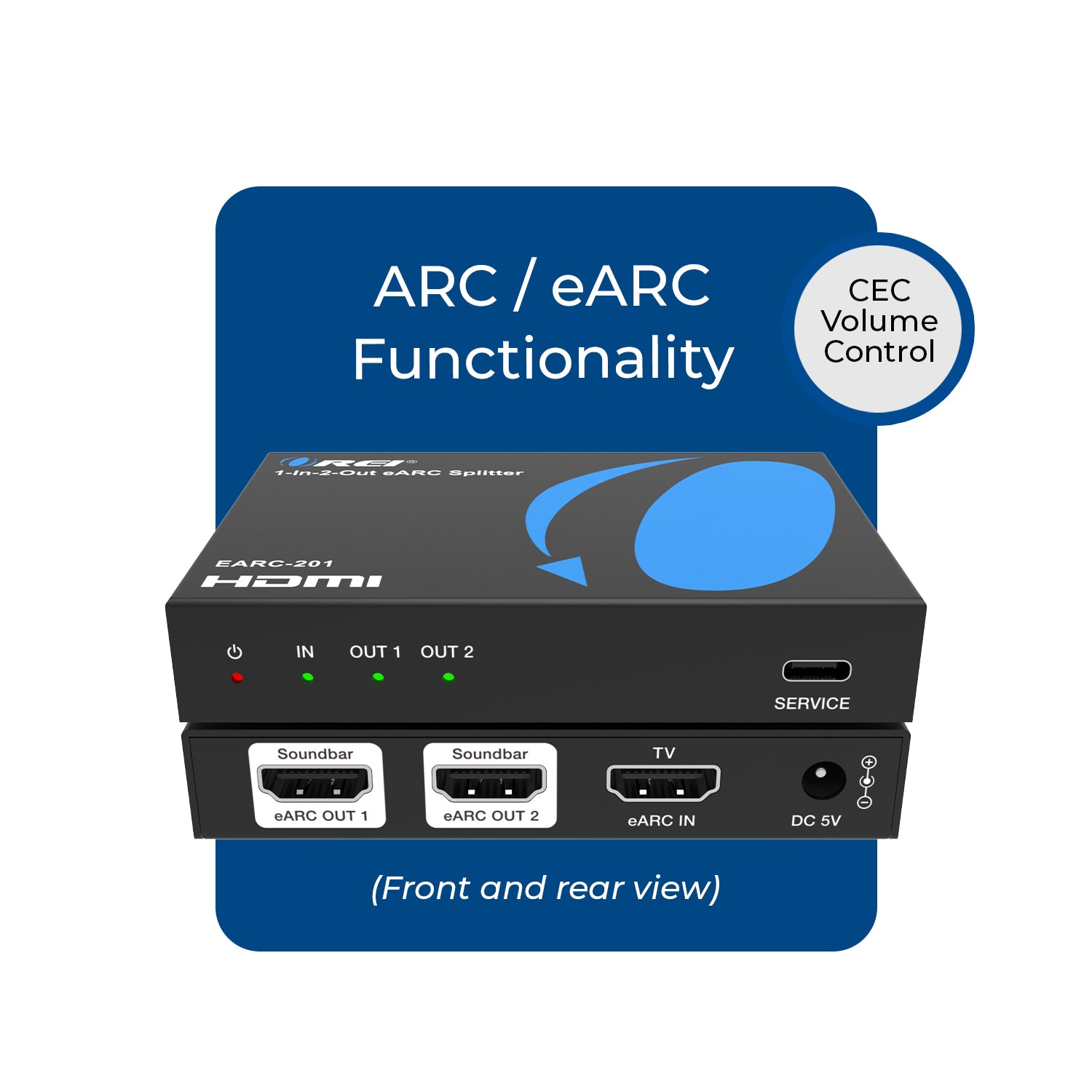

ARC/eARC Functionality – Splits audio signals returned from TV to two soundbars or audio systems.
-
eARC Audio Formats – Supports LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DTS:X, and DSD.
-
ARC Audio Formats – Compatible with PCM 2.0CH and Dolby/DTS 5.1CH.
-

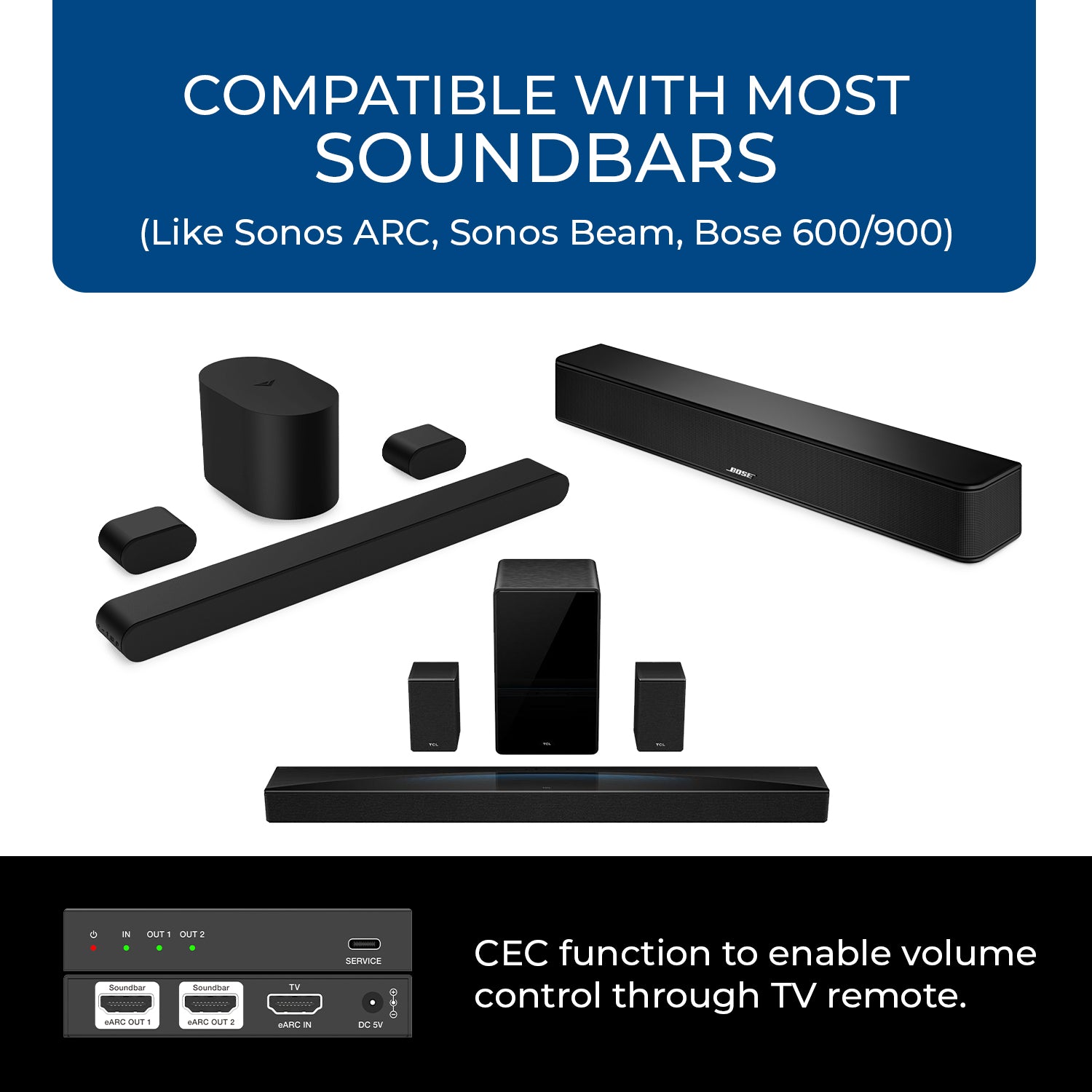

CEC Volume Control – Allows volume adjustment of connected sound systems using the TV remote.

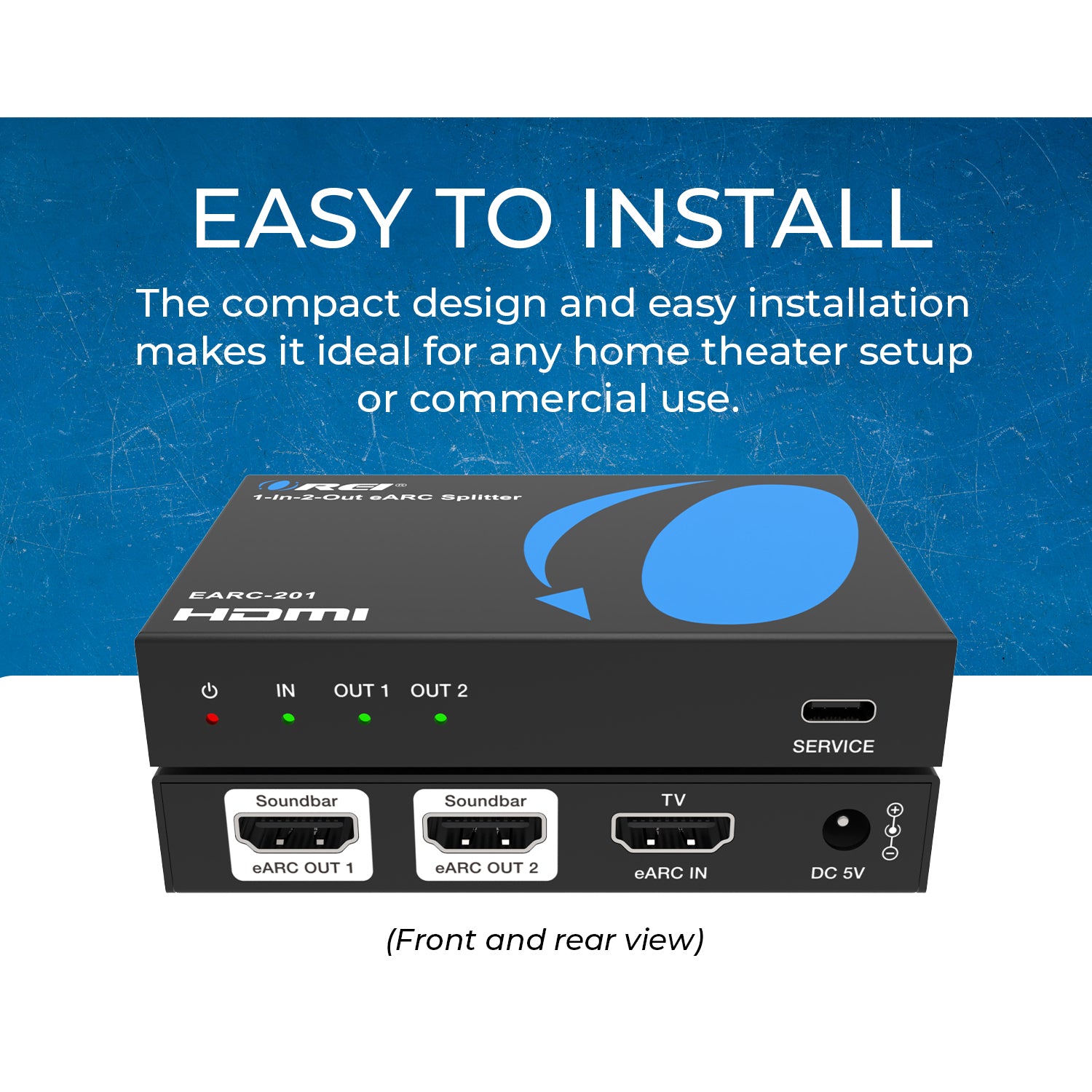

- Compact Design – Slim and easy to install, ideal for flexible home AV setups.

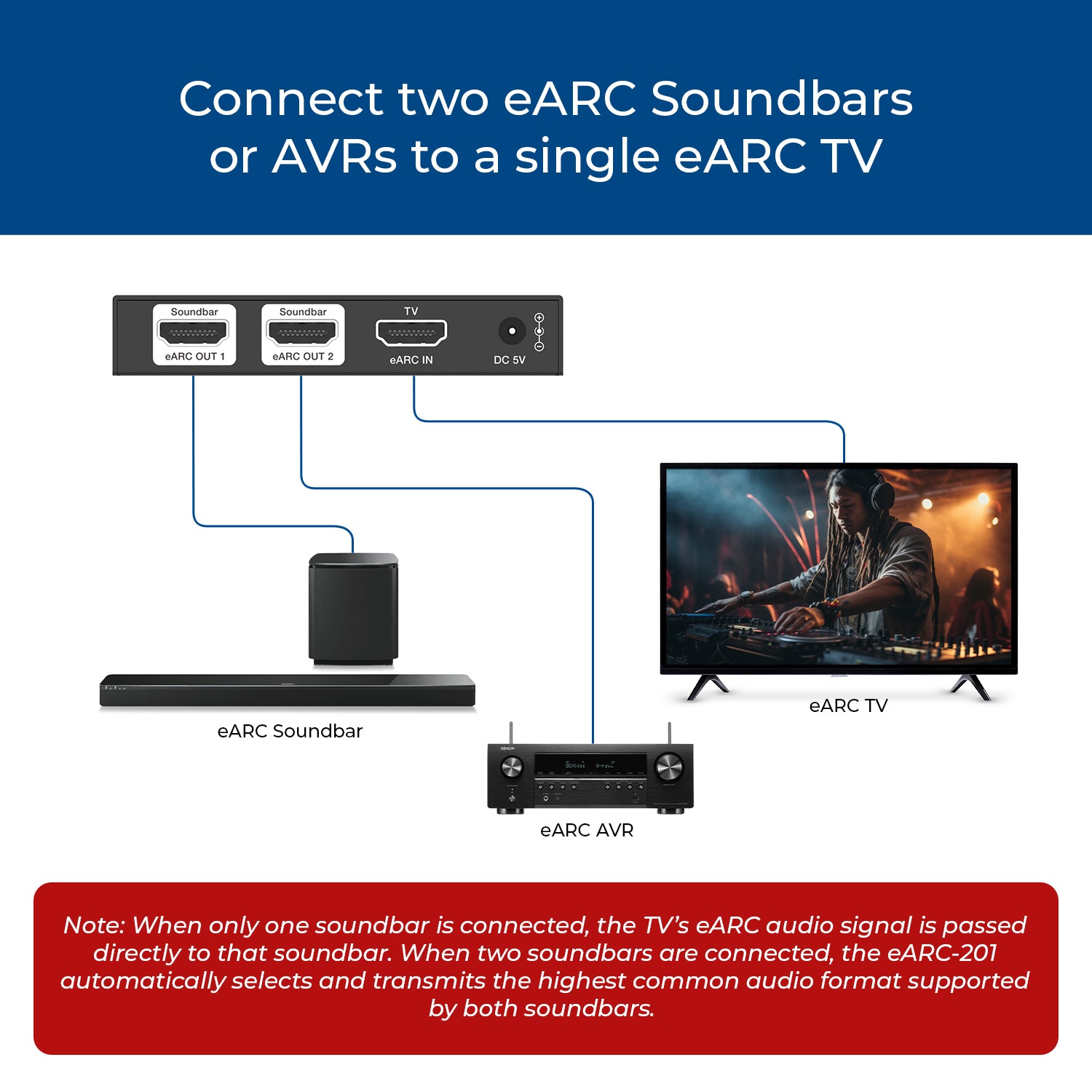

The EARC-201 is a high-performance ARC/eARC audio splitter designed to deliver premium multi-channel audio distribution. It allows the audio signal returned from a TV to be split and sent to two soundbars or other audio systems simultaneously, ensuring an immersive sound experience across multiple setups.
Supporting advanced audio formats such as LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD Master Audio, DTS:X, DSD, and more, the EARC-201 ensures compatibility with the latest surround sound technologies. For ARC connections, it supports PCM 2.0CH and Dolby/DTS 5.1CH.
In addition, the device supports CEC control, enabling users to adjust soundbar volume directly through the TV’s remote. With its compact, plug-and-play design, the EARC-201 provides seamless integration into home entertainment systems while maintaining exceptional performance.

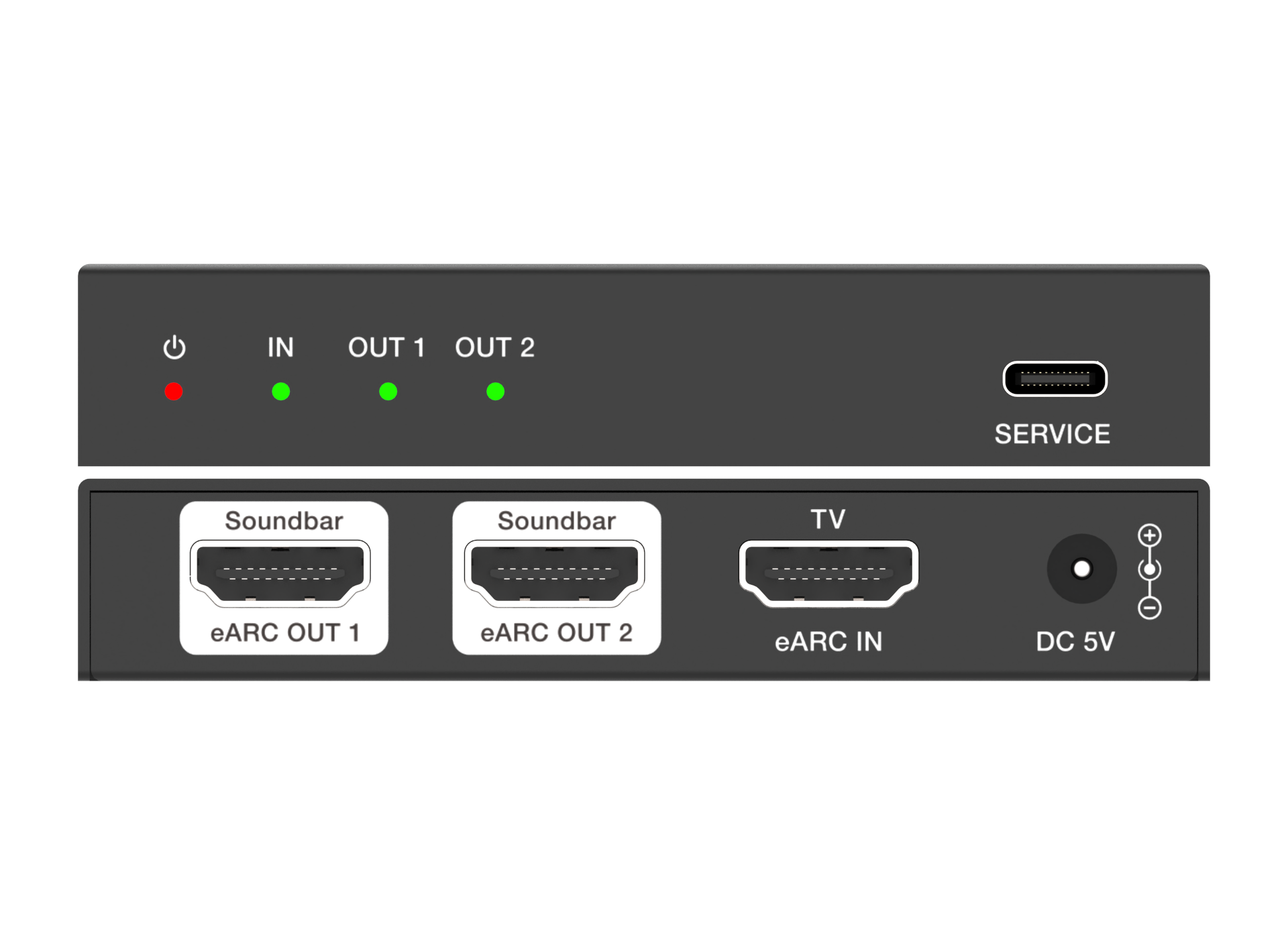

CONNECTIVITY

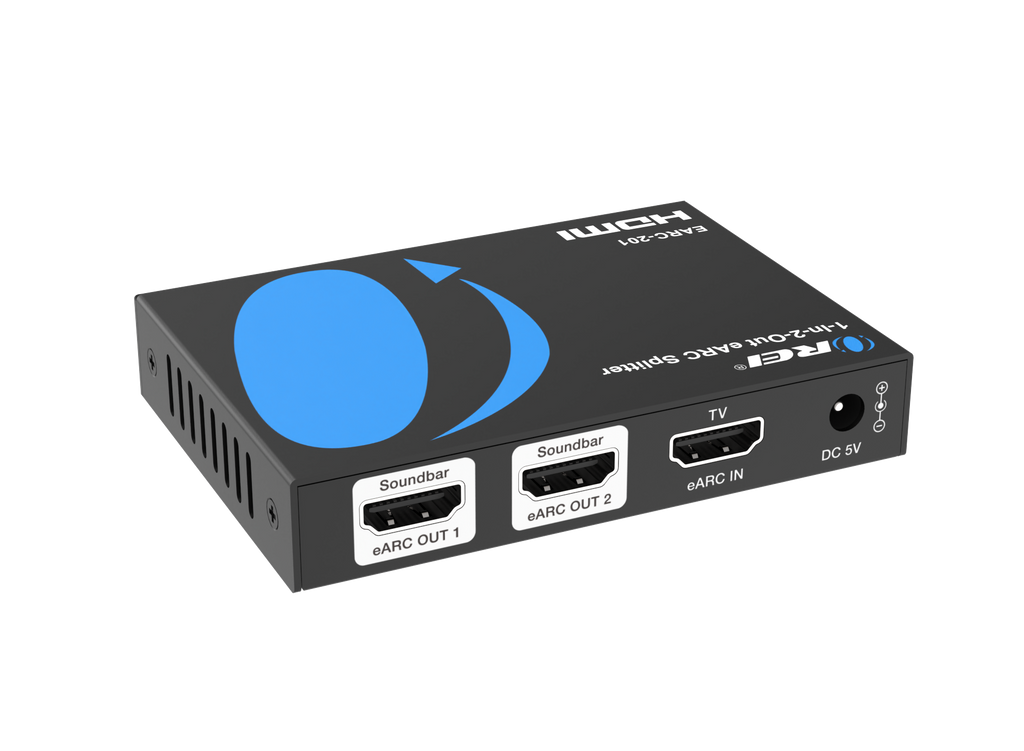

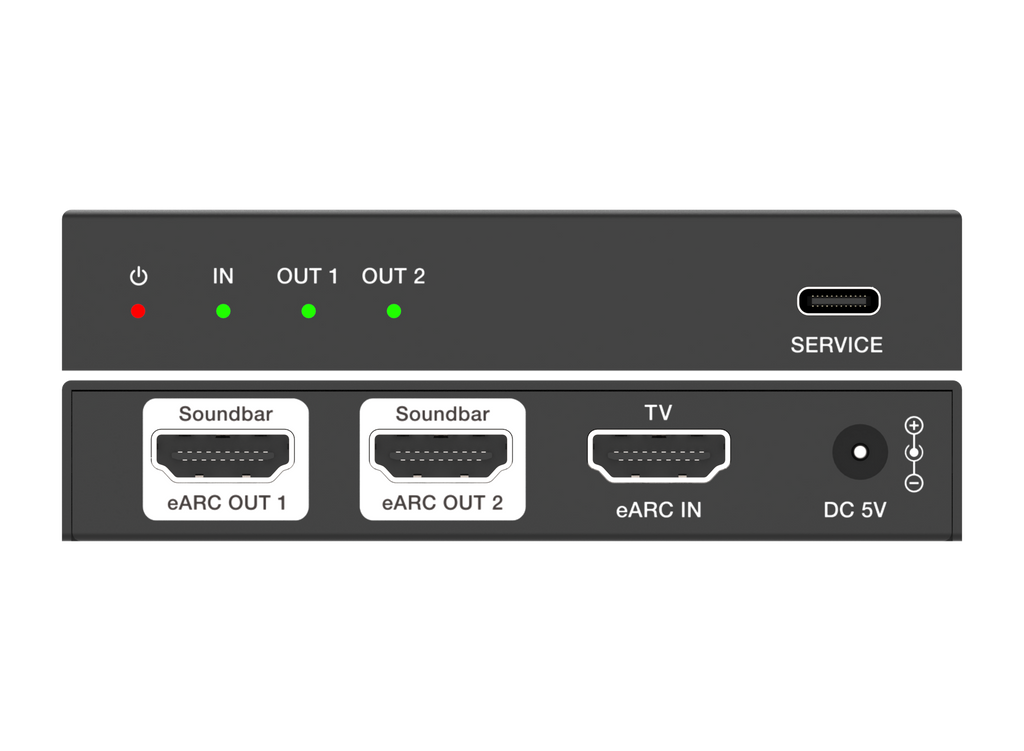

| INPUT: | 1 × eARC TV [HDMI™ Type A, 19-pin female] |
| OUTPUT: | 2 × eARC Soundbar [HDMI™ Type A, 19-pin female] |
| CONTROL: | 1 × SERVICE [Type C, update port] |

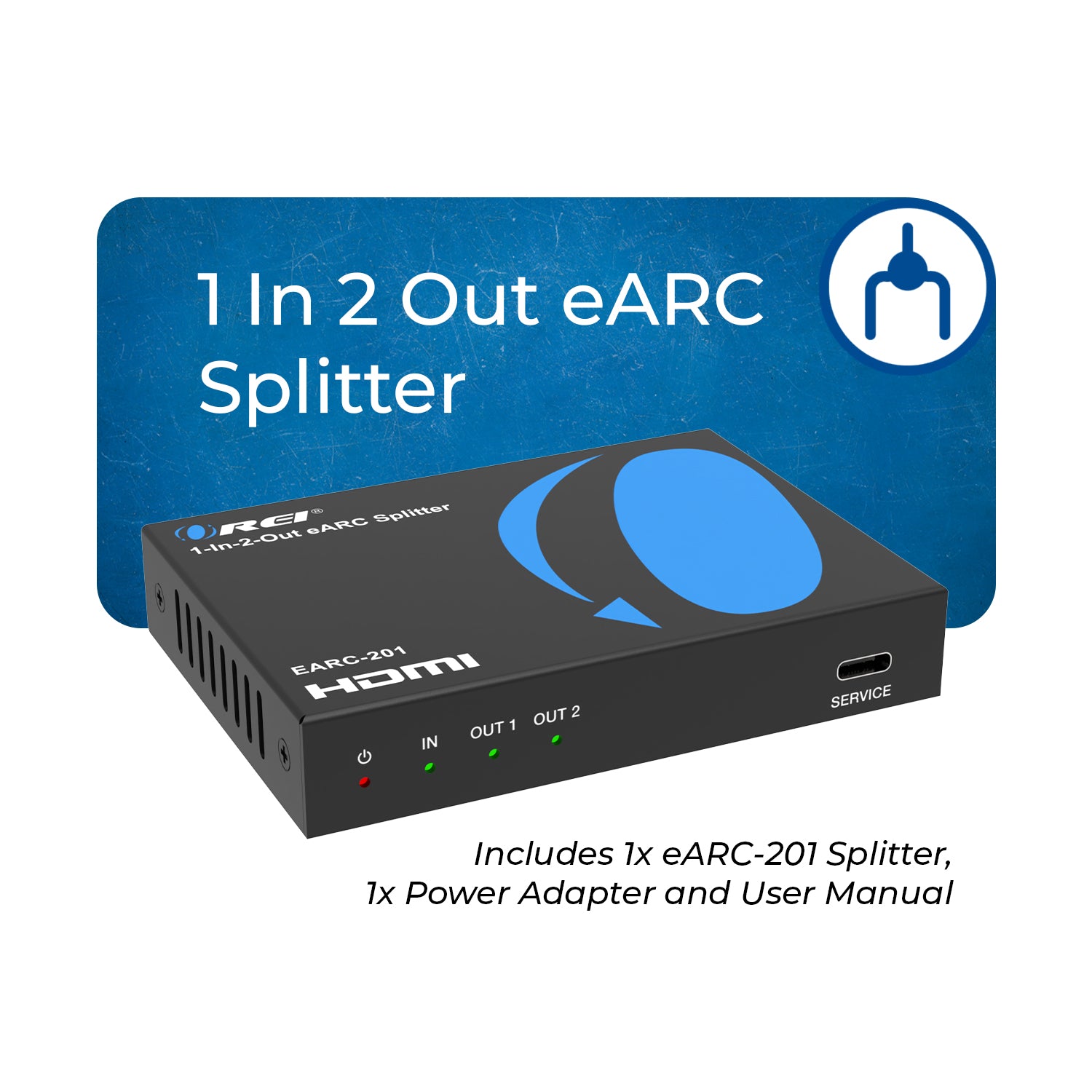

PACKAGE CONTENTS
| 1x EARC-201 |
| 1x Power Adapter |
| User Manual |
SUPPORTED HDMI CABLES
| HDMI 2.0/2.1 | We recommend using high quality HDMI 2.0/2.1 cables under 30 feet for optimum performance |
ADDITIONAL FEATURES
| CEC: | Yes |
| ARC: | No |
| USB KVM: | No |
| PoC/PoE: | No |
| IR Control: | Yes |
| Downmix: | No |
| Downscale: | No |
| Over IP: | No |
| HDBaseT: | No |
| RS-232: | No |

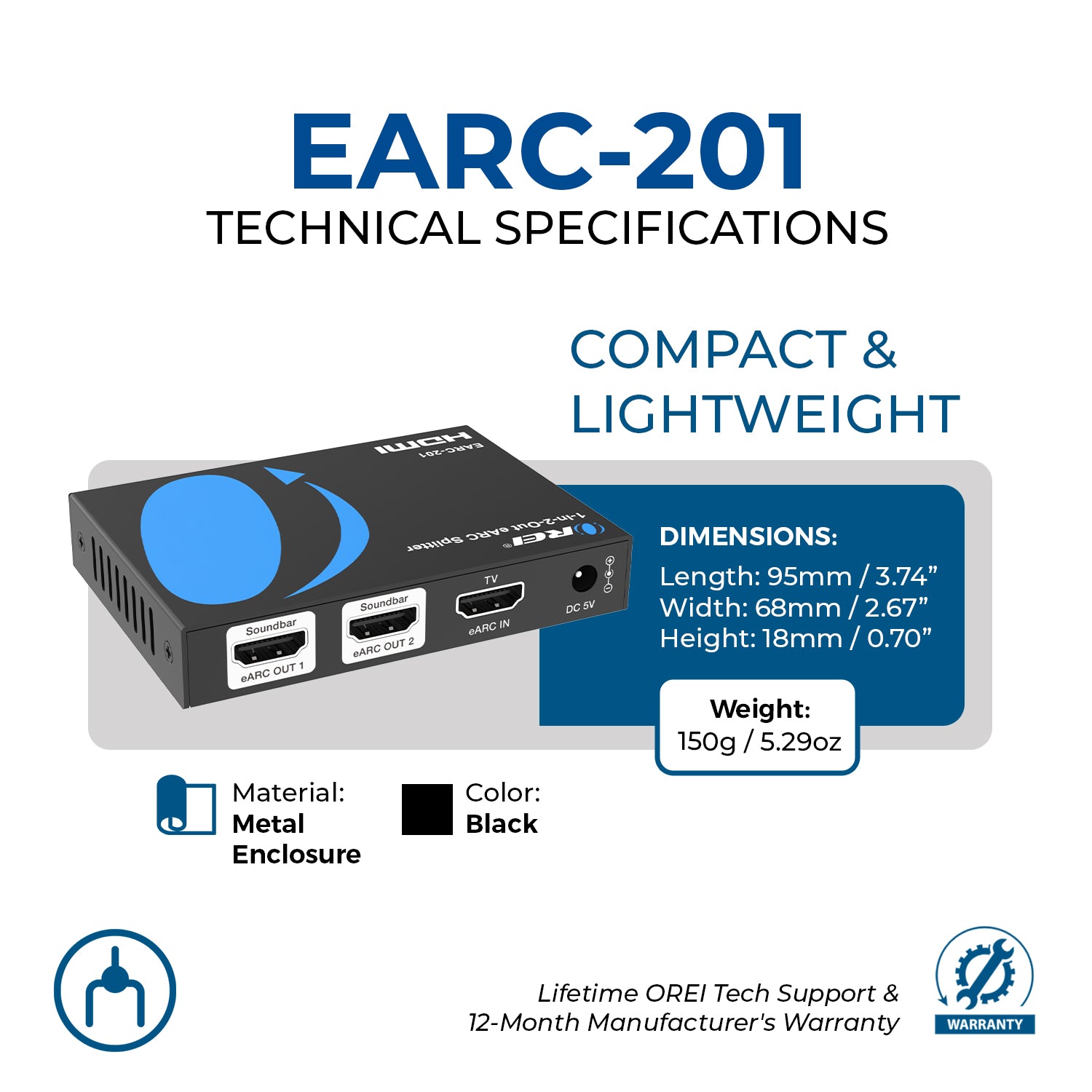

DIMENSIONS & WEIGHT
| Width: | 68mm / 2.67in |
| Depth: | 95mm / 3.74in |
| Height: | 18mm / 0.70in |
| Weight: | 150g / 5.29 oz |

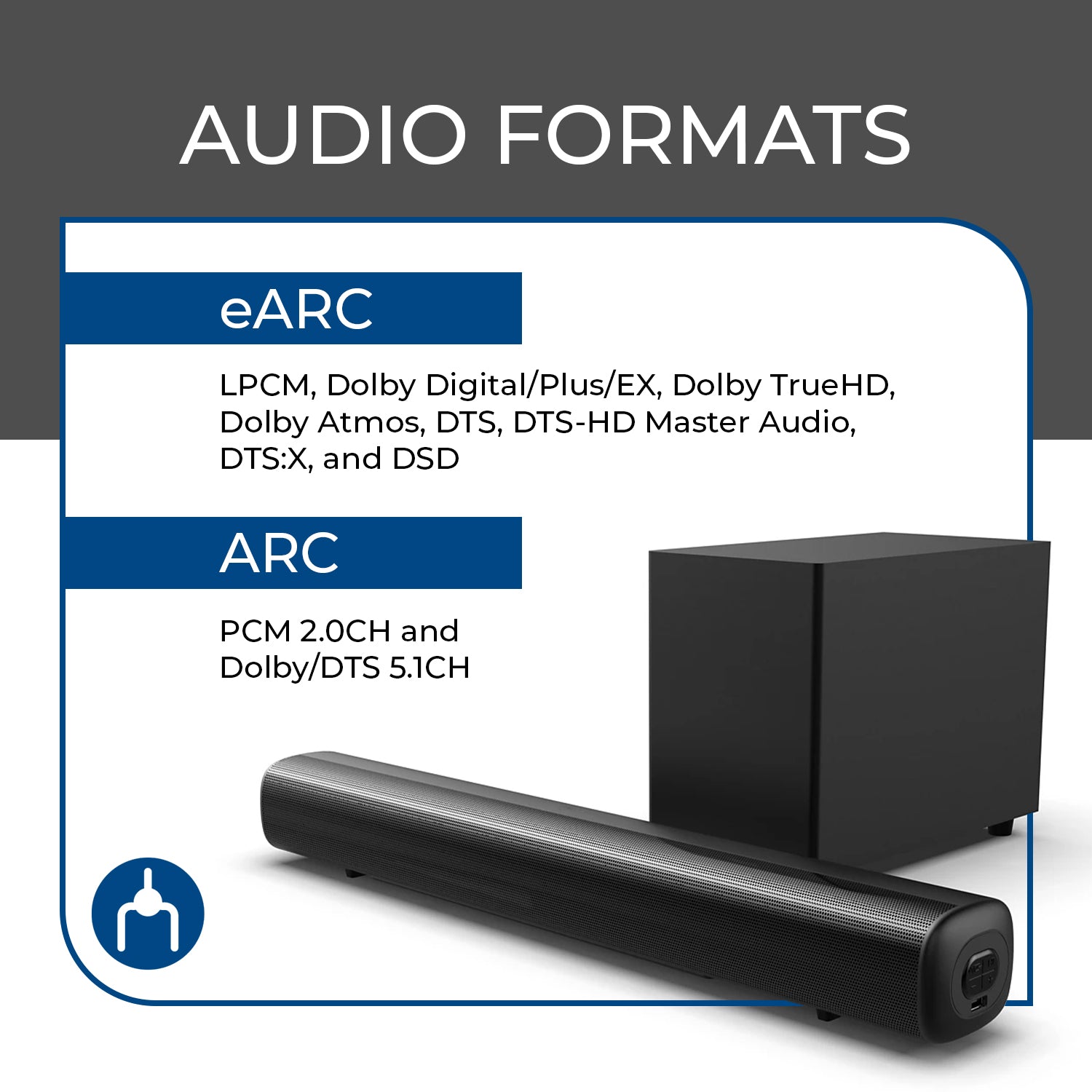

AUDIO SUPPORT
| eARC AUDIO: |
LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X, DSD
|
| ARC AUDIO: |
PCM 2.0CH / Dolby / DTS 5.1CH
|
POWER
| Power Consumption: | 1.06W (Max) | |
| Power Supply: | Input: AC 100–240V 50/60Hz Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified) |
PROPERTIES
| Color: | Black |
| Housing: | Metal Enclosure |
WARRANTY
| 1-Year Manufacturer's Warranty |
- ARC/eARC Functionality
- eARC Audio Formats
- ARC Audio Formats
Visit Our Help Center for FAQs, Troubleshooting and other queries: www.support.orei.com
