OREI Wireless HDMI 2 dongle Transmitter Receiver Extender upto 50 Feet
This HDMI wireless extender includes transmitter unit and receiver unit, allows to transmit and extend HDMI signal up to 50 Feet long away wirelessly, it has strong anti-interference ability by running at 5GHz operation frequency, and supports point to point connection.
IR pass back with 20-60KHz frequency helps to remote control the source device from the receiver side. It is really a very good solution for meeting, conference, home entertainment and multi-media education etc.
Note:
1)Transmission distance will be different due to the environment.
2)Wall, bricks or glass will shorten the signal coverage or cause big signal loss.
Key Features:
- Extend Full HD 1080P Signal upto 50 Feet Wirelessly
- Will not Transmit through Walls, Direct Signal Only
- Using Channel 128 & 132 on a 5 Ghz Wireless Band
- Connect the Transmitter to an HDMI Camera and the Receiver to an HDMI Monitor
- Power the transmitter with a Mirco USB Cable to the laptop or Even a Power Bank
- Support point to point wireless connection
- Support: HDMI 480i 60HZ, 480p 60HZ, 576i 60HZ, 576 50HZ, 720p 50/60HZ, 1080i 50/60HZ, 1080P 50/60HZ
- Plug & Play Setup without any Software Installation. ~50Khz IR Devices Supported
OREI Wireless HDMI Extender Transmitter & Receiver @1080P
- Transmitter:
- Input Ports:
- 2 x HDMI Female
- Input Ports:

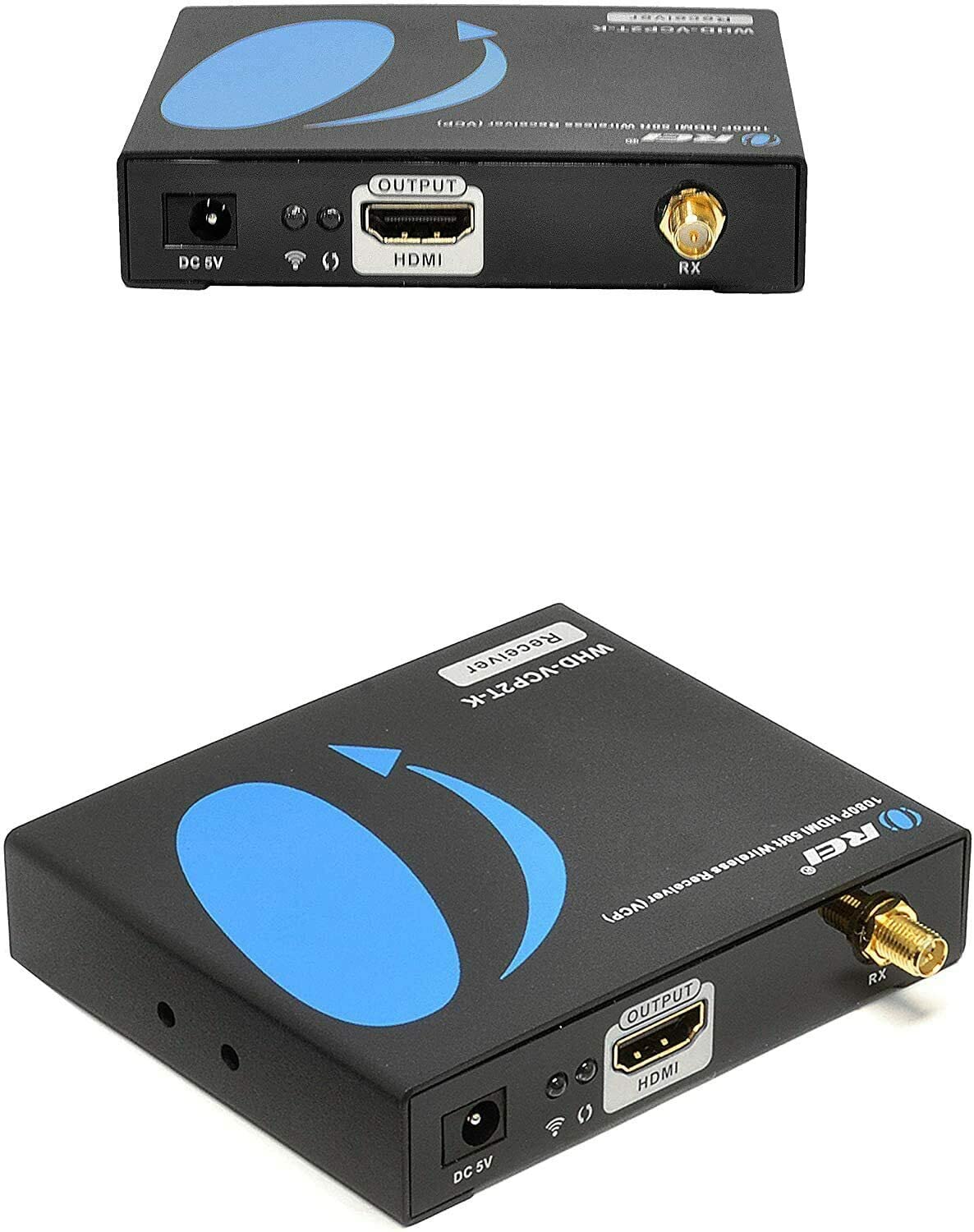

- Receiver:
- Output Ports:
- 1 x HDMI Male
- Output Ports:
- HDMI Compliance: HDMI 1.3
- HDCP Compliance: HDCP 1.2
- HDMI Resolutions Supported: Up to 1080p@50/60Hz, 720p@50/60Hz, 576p@50Hz, 480p@60Hz
- 15 meters transmission distance
- Operation Temperature: 32 - 122°F / 0 - 50°C
- Storage temperature: 14 - 158°F / -10 - 70°C
- ESD Protection - Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge)
- Relative Humidity: 0 - 90% RH (no condensation)
- Video Bandwidth: 4.95Gbps
- Wireless Performance & Interface:
- Transfer Method: 5G Wireless Transmission
- Transmission Distance: 15 Meters
- Latency: Less then 200ms
- Protection Level:
- Electrostatic protection of the whole machine:
- 1a Contact discharge level 3
- 1b Air discharge level 3
- Standard: IEC61000-4-2
- Electrostatic protection of the whole machine:
- Dimentions:
- Transmitter:
- 38.92mm [W] x 88.75mm [D] x 15.26mm [H]
- Receiver:
- 85.58mm [W] x 138.11mm [D] x 19.18mm [H]
- Transmitter:
- Weight:
- Transmitter: 20g
- Receiver: 120g
- Power Supply:
- Transmitter: Powered by input sources through HDMI port
- Receiver: DC 5V/2A
- Power Consumption(Max):
- Transmitter: 2.5W
- Receiver: 5W
- Housing: Plastic
- Color: Black
Request a Quote
OREI WHD-VCP2T-K: Wireless HDMI Extender 2 Transmitter & 1 Receiver Dongle @1080p upto 50 Feet
