ToVi X4 Series (4K) w/ KVM

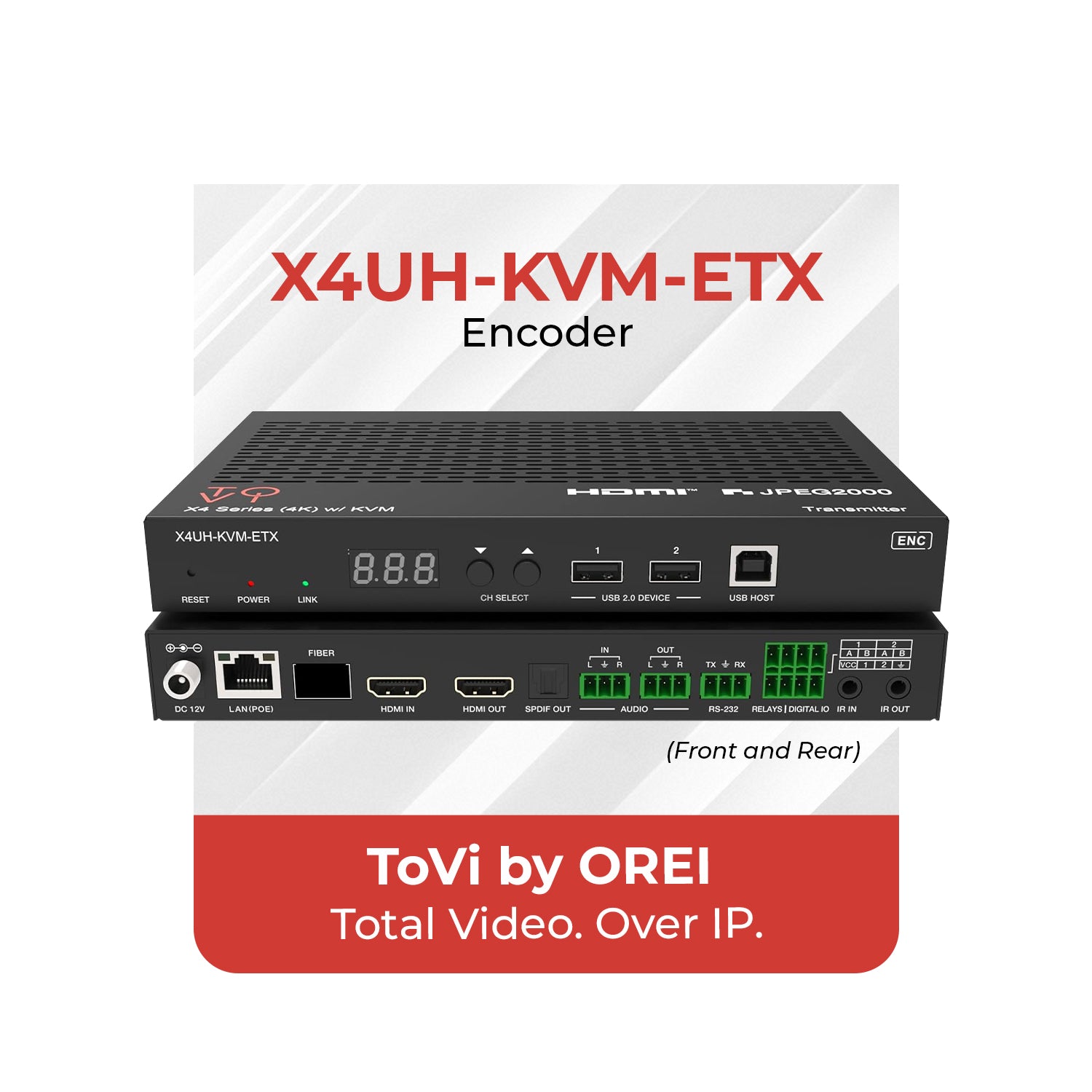

The X4UH-KVM-ETX is a versatile HDMI extender and AV-over-IP solution designed for high-performance, long-distance signal transmission. Fully compliant with HDCP 2.2 and HDMI 2.0b, it supports 4K@60Hz (4:4:4) video with up to 18Gbps bandwidth, delivering uncompromised ultra-high-definition quality.

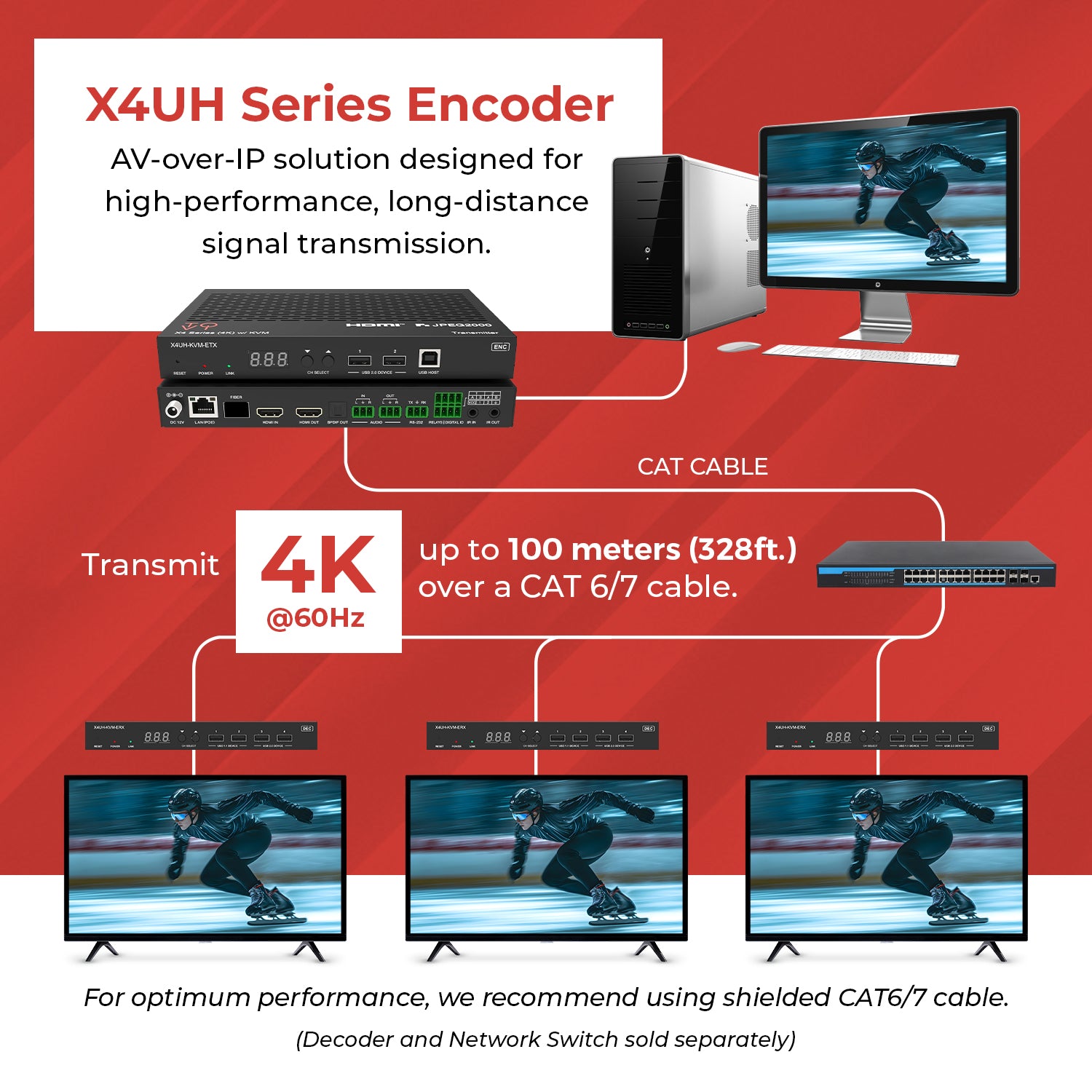

It extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables, transmitting video, analog and digital audio, IR, RS-232, CEC, and USB data seamlessly over Ethernet.
This compact unit integrates copper and fiber ports, supporting ARC/eARC, S/PDIF, and analog audio return channels for flexible audio routing. Channel configuration is simplified via front panel buttons and an LED display.

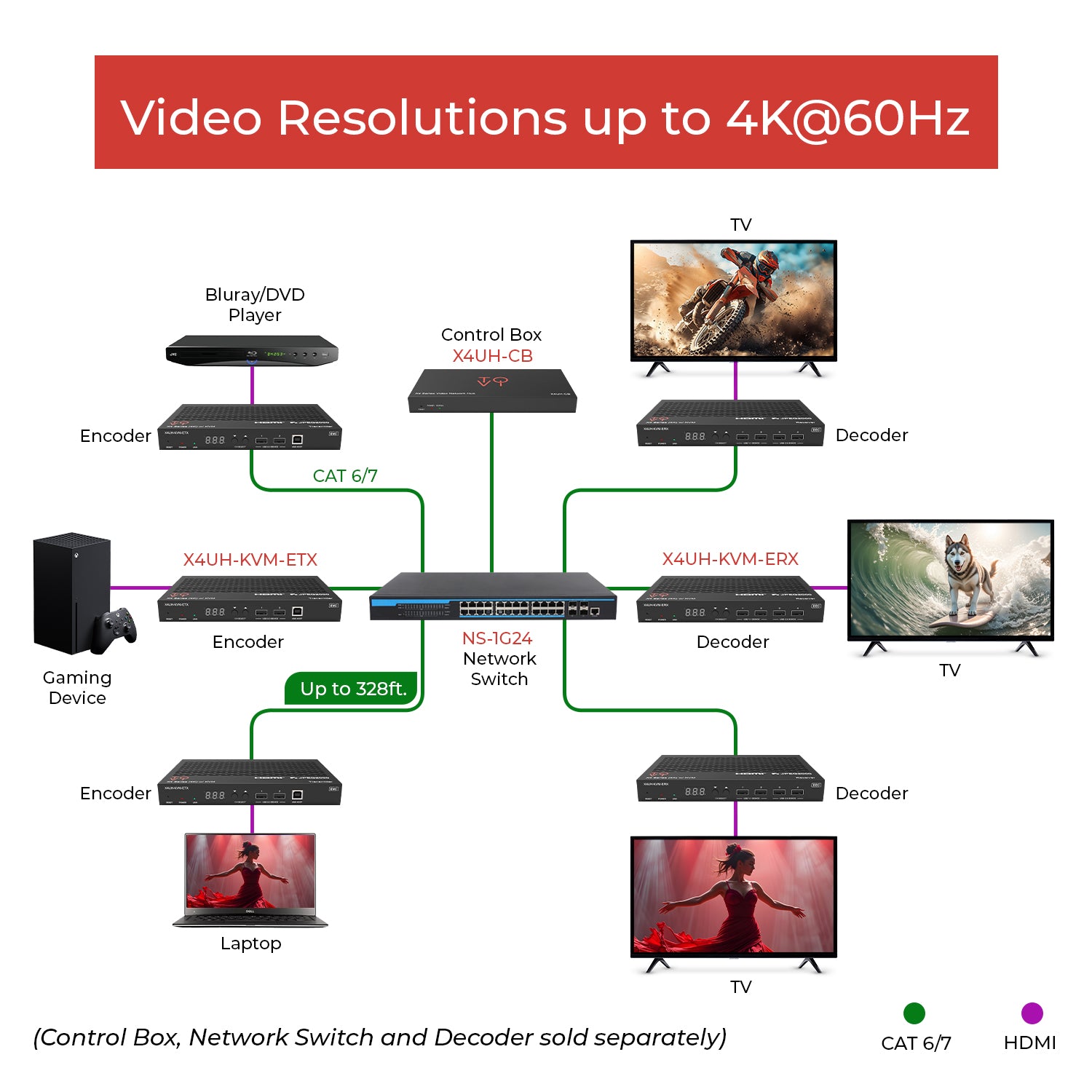

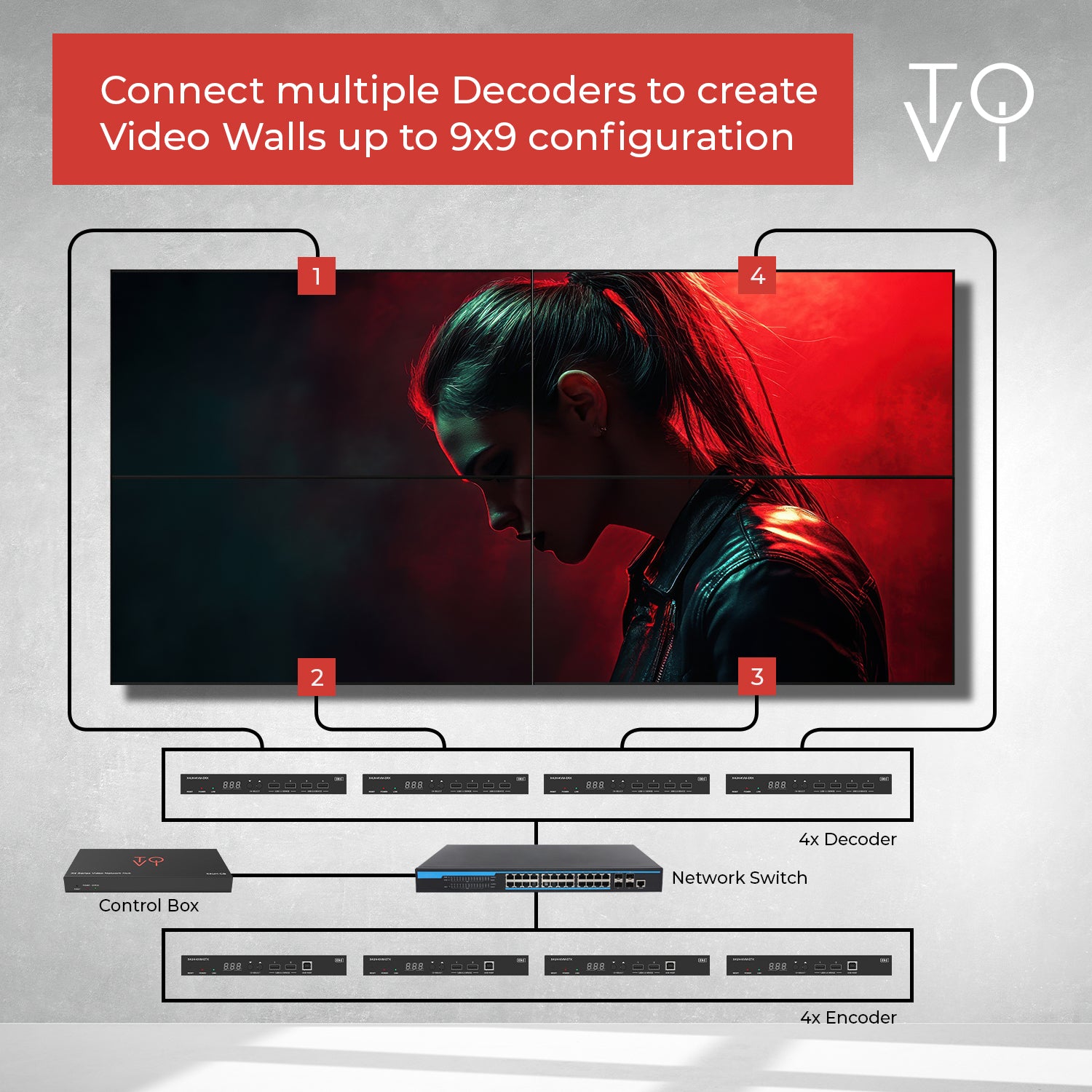

The X4UH-KVM includes two relay channels and two I/O ports for contact control, supporting diverse AV control scenarios. It enables unicast, multicast, point-to-point, matrix switching, and scalable video wall deployments up to 9x9 setup. Intelligent video wall class management and real-time MJPEG sub-stream preview enhance monitoring and operational efficiency.

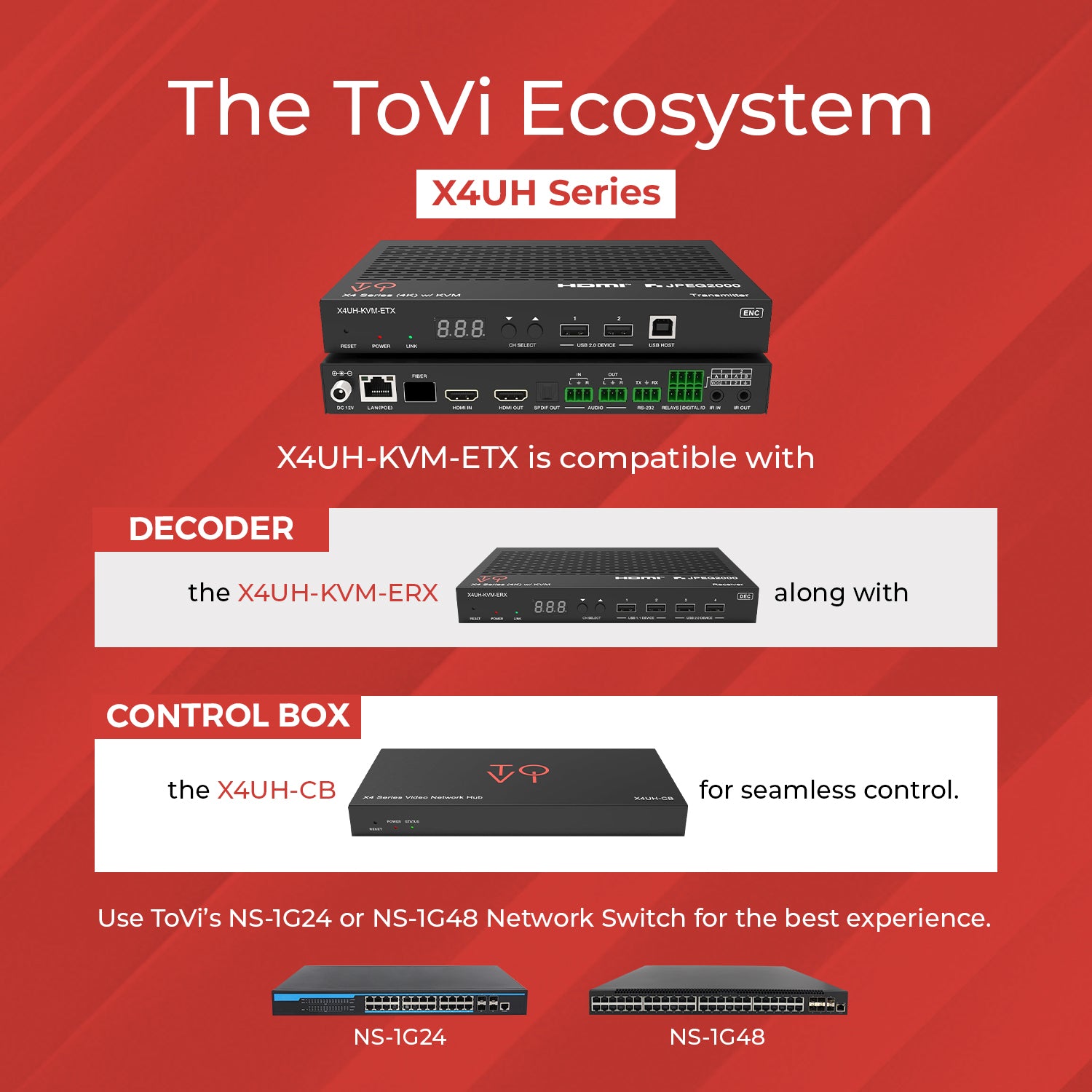

Operating on a 1G Ethernet network with PoE support, the device offers comprehensive control and configuration through a built-in web interface, Telnet, and SSH. Control is made easier using the X4UH-CB to control all your X4UH Series devices on a single network. It supports a broad range of HDMI audio formats, including LPCM 2.0/5.1/7.1, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD). The smart networking design ensures easy, flexible installation for commercial AV, broadcast, and professional environments.

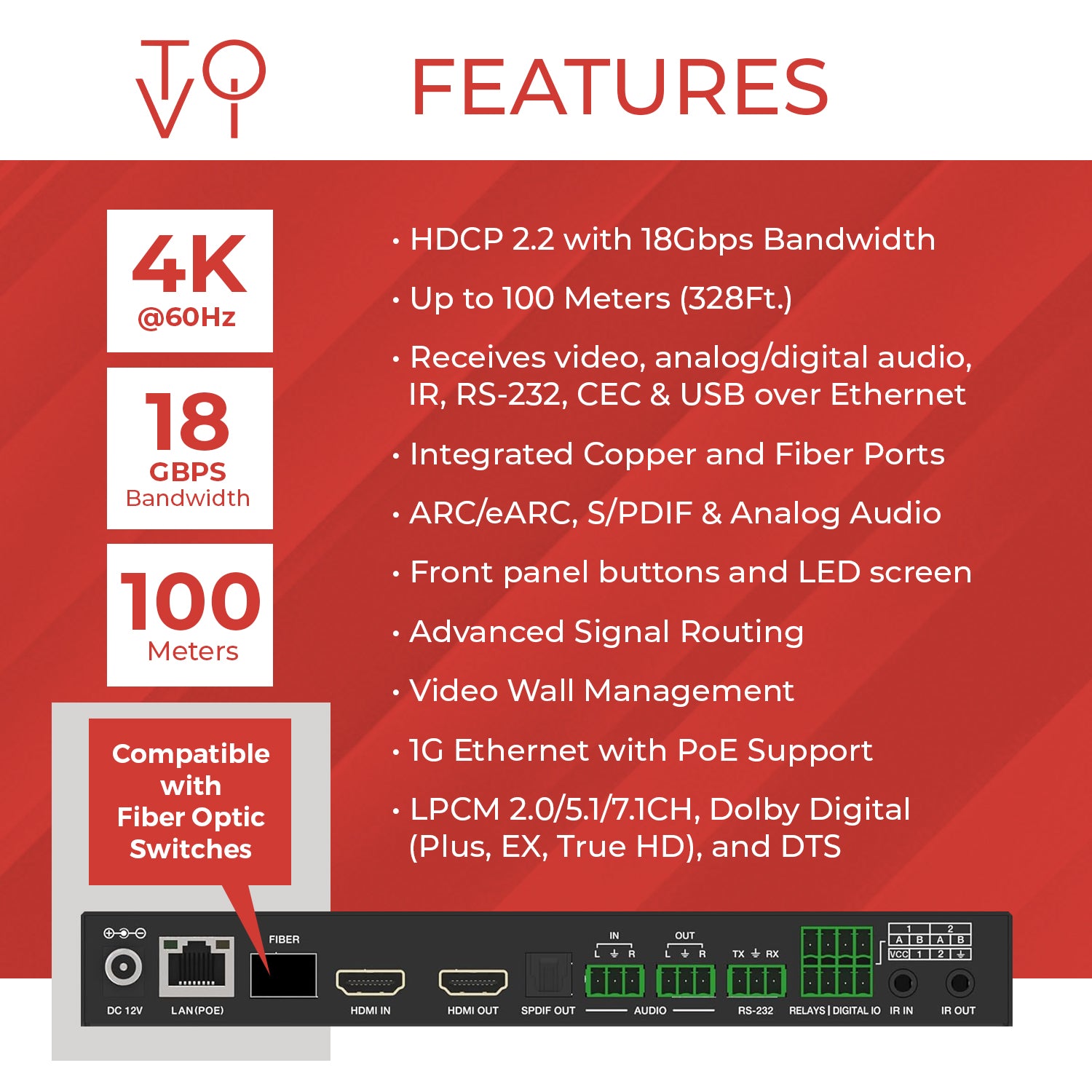

Key Features:
- HDCP 2.2 Compliant with 18Gbps Bandwidth – Supports pristine 4K@60Hz (4:4:4) video transmission in compliance with HDMI 2.0b standards.
- Long-Distance Extension – Extends AV signals up to 100 meters (328 feet) over CAT6/6A/7 cables.
- Comprehensive Signal Transmission – Simultaneously transmits video, analog/digital audio, IR, RS-232, CEC, and USB over Ethernet

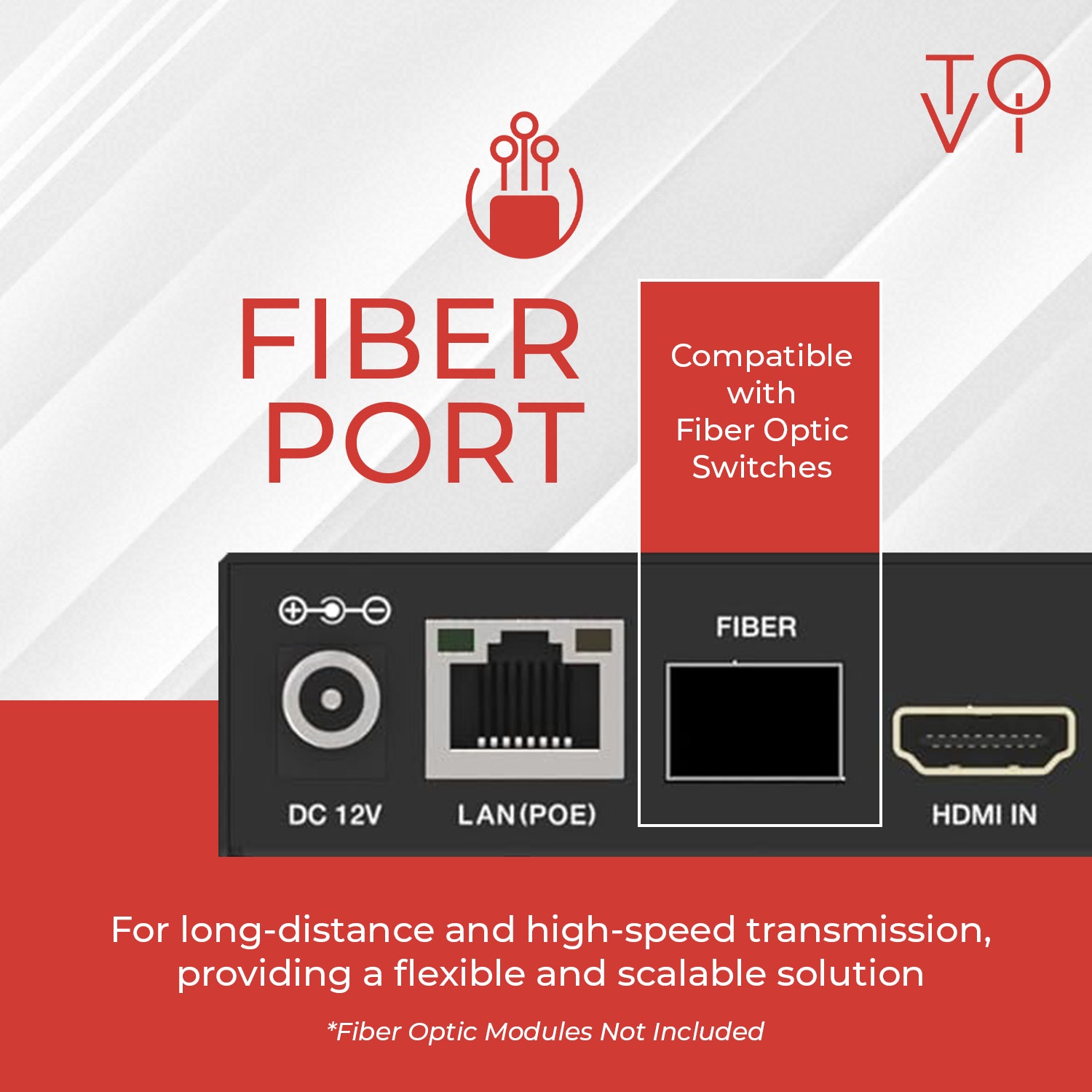

- Integrated Copper and Fiber Ports – Offers versatile connectivity options within one compact unit.
- Audio Return Support – Compatible with ARC/eARC, S/PDIF, and analog audio return for flexible audio management.

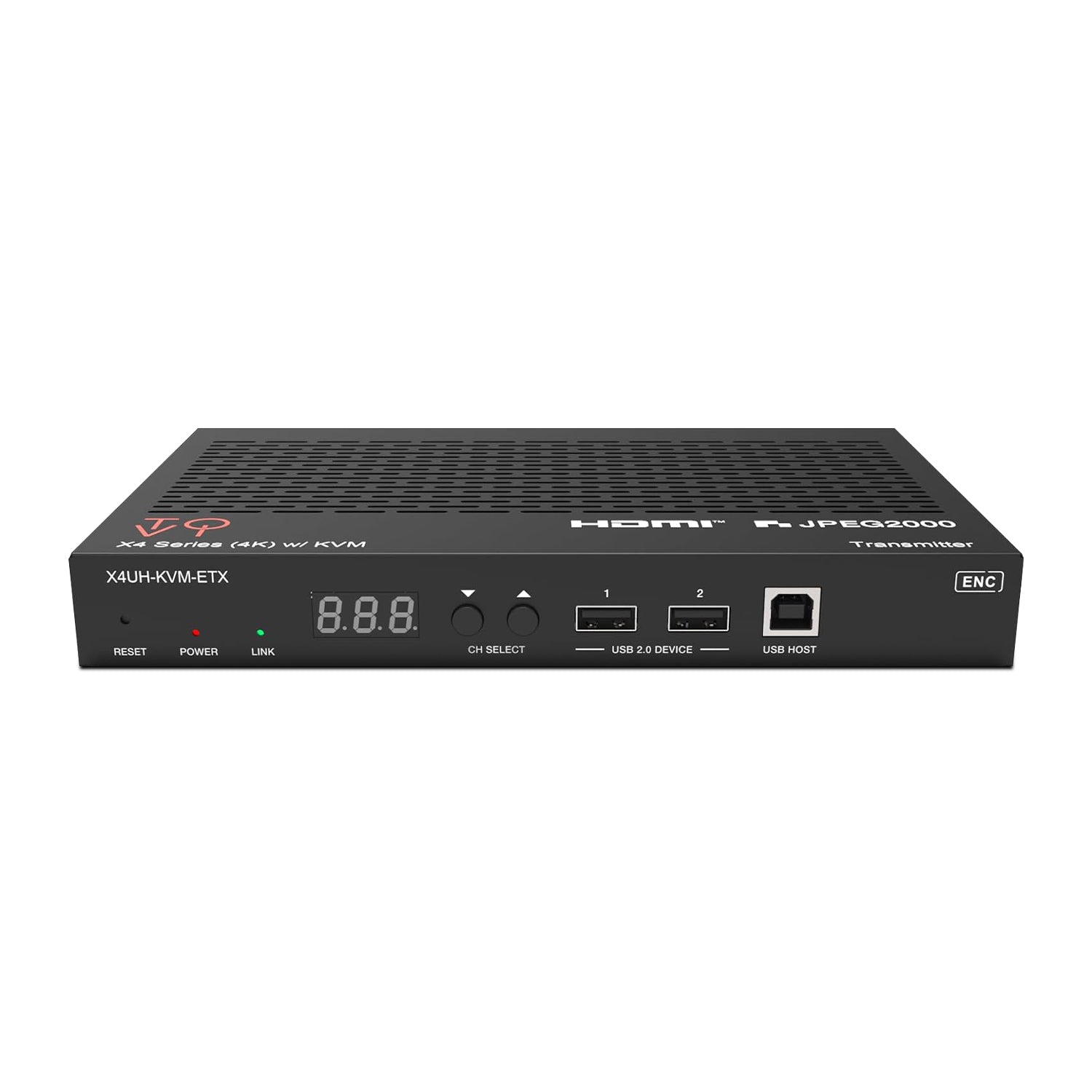

- User-Friendly Channel Configuration – Front panel buttons and LED screen facilitate straightforward setup.
- Contact Control Ports – Includes 2-channel relay and 2-channel I/O ports for diverse control applications.
- Advanced Signal Routing – Supports unicast, multicast, point-to-point, matrix switching, and video wall functionality (up to 9x9).
- Intelligent Video Wall Management – Features video wall class management and MJPEG sub-stream real-time preview.
- 1G Ethernet with PoE Support – Simplifies installation and power delivery over standard network infrastructure.

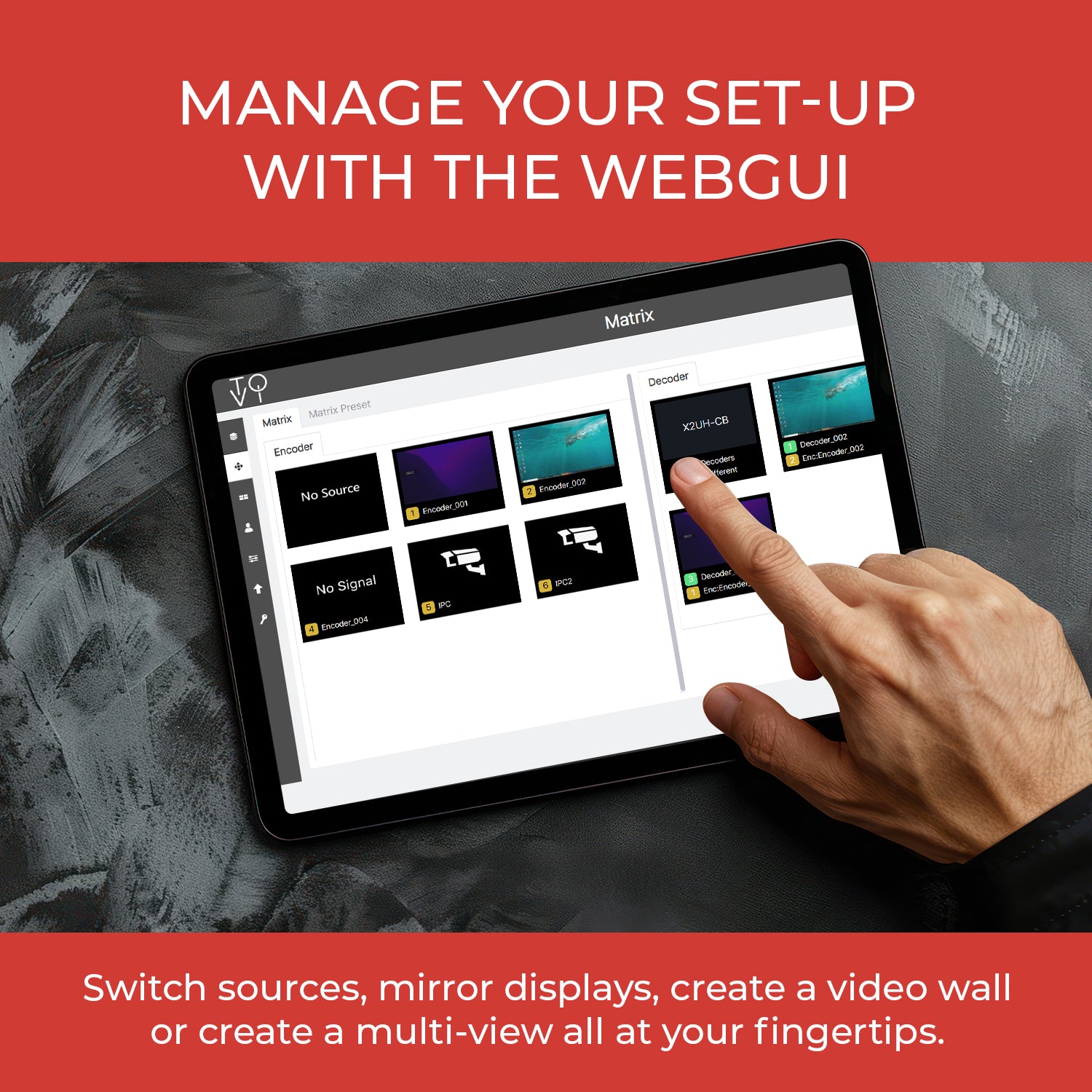

- Robust Control Interfaces – Built-in web interface, Telnet, and SSH for flexible device management. Control is made even easier through the X4UH-CB Network Hub.
- Wide Audio Format Support – Compatible with LPCM 2.0/5.1/7.1CH, Dolby Digital (Plus, EX, True HD), and DTS (96/24, EX, High Res, HD Master, DSD).
- Smart Networking Design – Ensures easy, flexible installation for diverse professional AV environments
- CONNECTIVITY
- Transmitter: INPUT: 1 x HDMI™ [Type A, 19-pin female]
- 1 x L/R AUDIO [3-pin 3.81mm Phoenix connector]
- OUTPUT: 1 x HDMI™ [Type A, 19-pin female]
- 1 x L/R AUDIO [3-pin 3.81mm Phoenix connector]
- 1 x SPDIF [Optical]
- CONTROL: 1 x RS-232 [3-pin 3.81mm Phoenix connector]
- 1 x LAN (PoE) [RJ45]
- 1 x FIBER [Fiber Optic]
- 1 x USB 2.0 HOST [Type B, 4-pin female]
- 2 x USB 2.0 [Type-A, 4pin female]
- 2 x RELAYS [3.81mm Phoenix connector]
- 2 x DIGITAL IO [3.81mm Phoenix connector]
- 1 x IR IN [3.5mm Stereo Jack]
- 1 x IR OUT [3.5mm Stereo Jack]
- SUPPORTED CAT CABLES
- CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- 4K@60Hz: 328 Feet
- VIDEO OUTPUT
- Video Bandwidth: 18Gbps
- Video Resolutions: Up to 4K@60Hz 4:4:4
- Color Space: RGB 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
- Color Depth: Input: 8/10/12-bit Output: 8-bit
- Video Compression Standard: JPEG2000
- Video Network Bandwidth: 1G
- ADDITIONAL FEATURES
- CEC: Yes
- ARC: Yes
- USB KVM: Yes
- PoC/PoE: Yes
- IR Control: Yes
- Downmix: No
- Downscale: No
- Over IP: Yes
- HDBaseT: No
- RS-232: Yes
- AUDIO SUPPORT
- HDMI™ Audio Formats: LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master
- COMPLIANCES
- HDMI™ Compliance HDMI™ 2.0b
- HDCP Compliance HDCP 2.2
- POWER
- Power Consumption: Encoder: 8.52W, Decoder: 7.08W (Max)
- Power Supply: Input: AC100 - 240V 50/60Hz
- Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
- DIMENSIONS & WEIGHT
- Transmitter: Length: 204mm / 8.03in
- Width: 136mm / 5.35in
- Height: 25.5mm / 1.00in
- Weight: 631g / 1.39lbs
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20%~80% (relative humidity, non-condensing)
- Storage Humidity: 10%~90% (relative humidity, non-condensing)

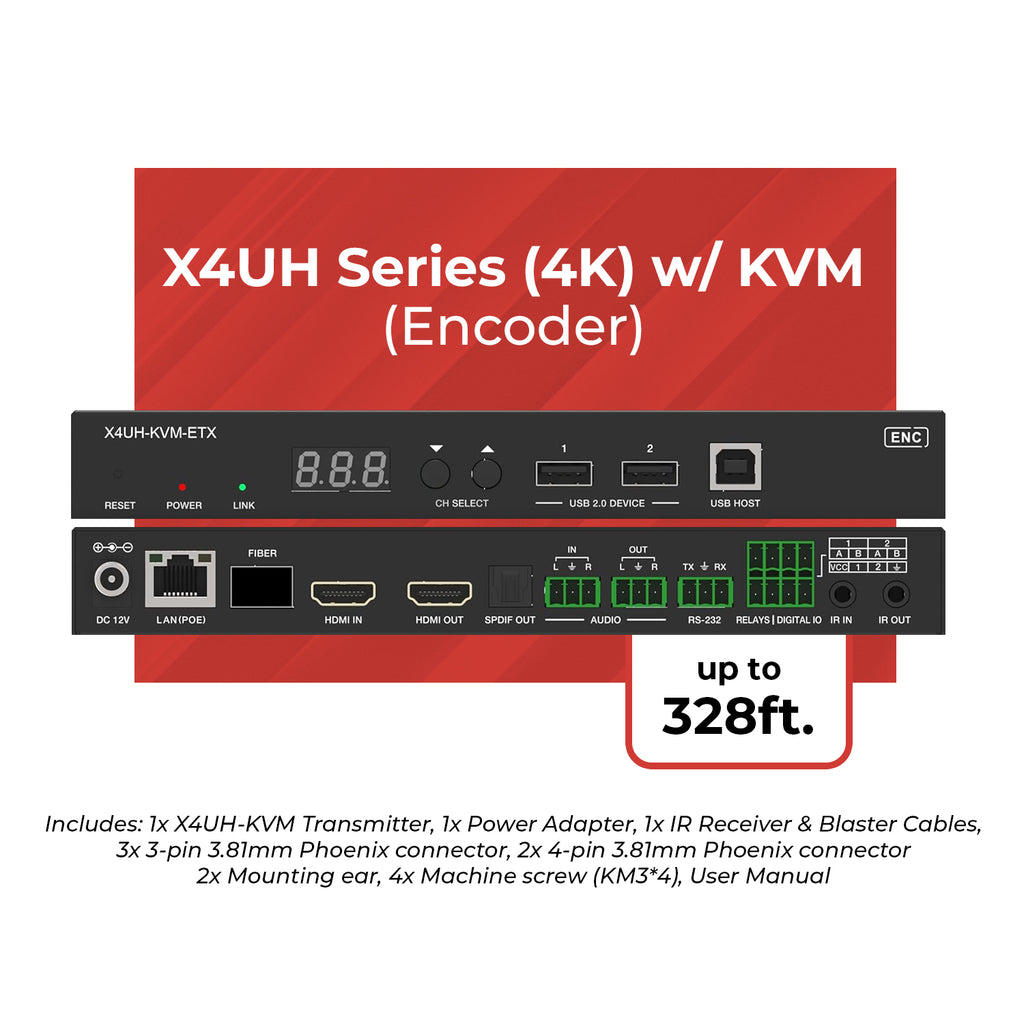

Includes:
- 1x X4UH-KVM-ETX
- 1x IR Receiver cable (1.5 meters)
- 1x IR Blaster cable (1.5 meters)
- 3x 3-pin 3.81mm Phoenix connector
- 2x 4-pin 3.81mm Phoenix connector
- 2x Mounting ear
- 4x Machine screw (KM3*4)
- 1x Power Adapter
- 1x User Manual
- 1-year manufacturer's warranty
