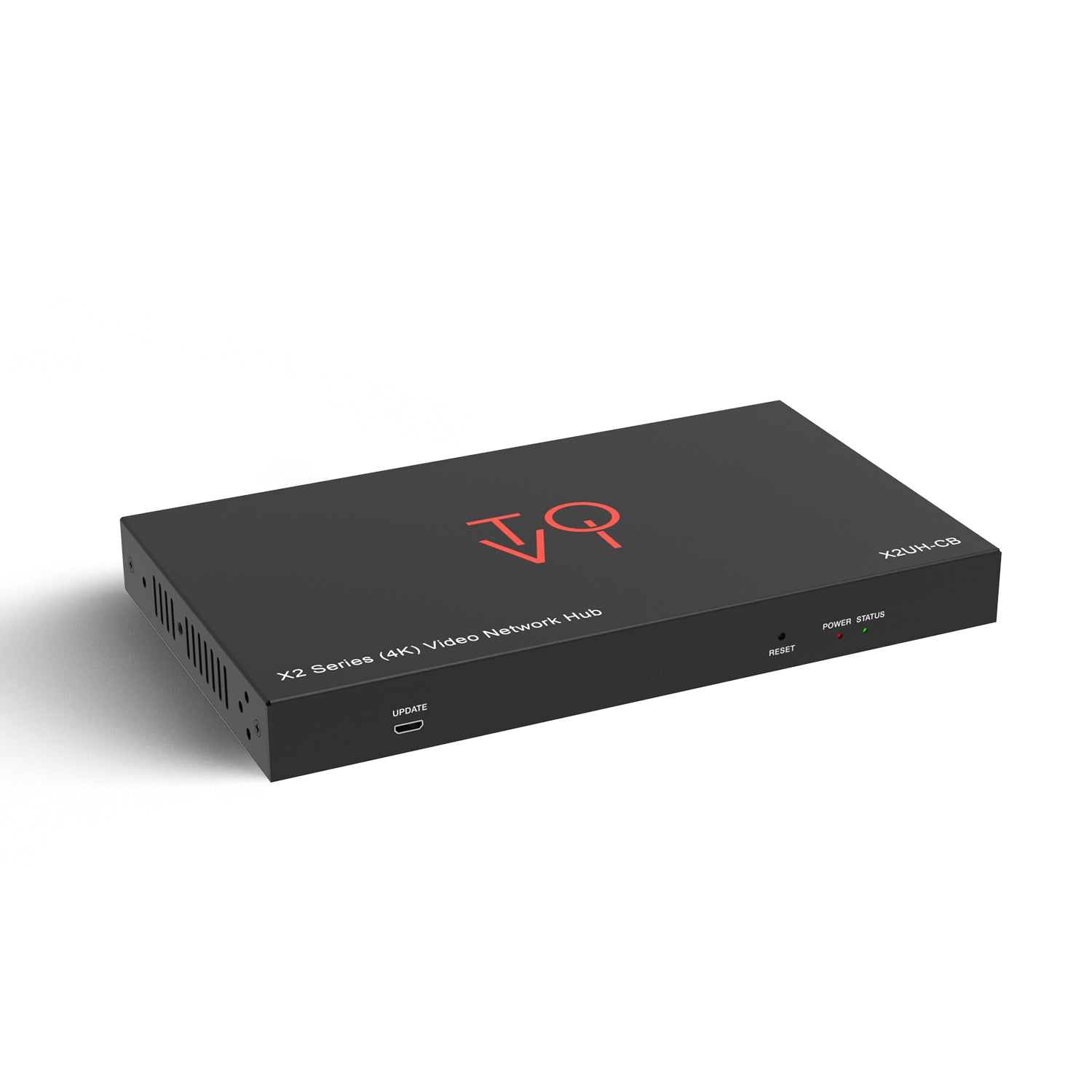

TOVI X2 Series 4K Video Network Hub

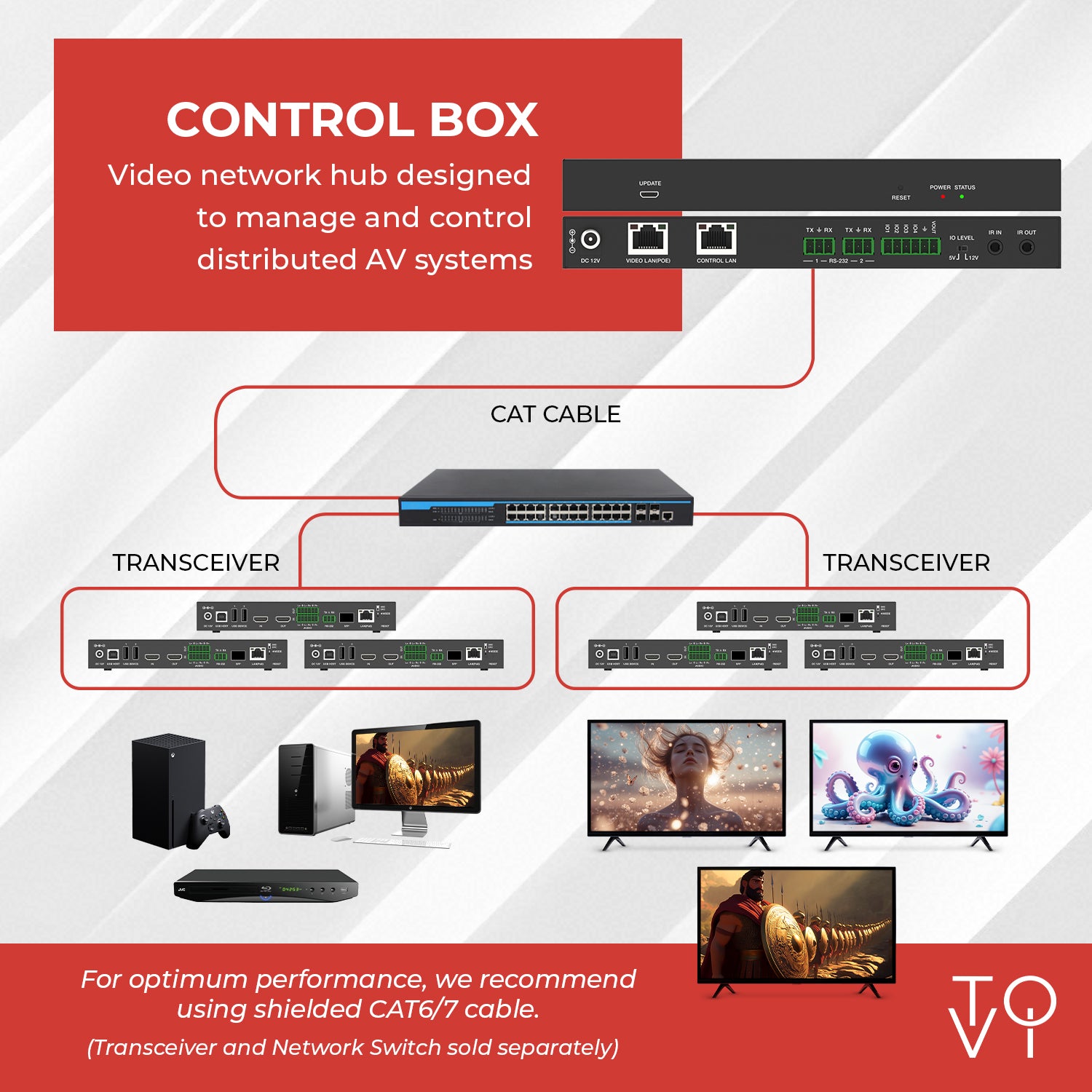

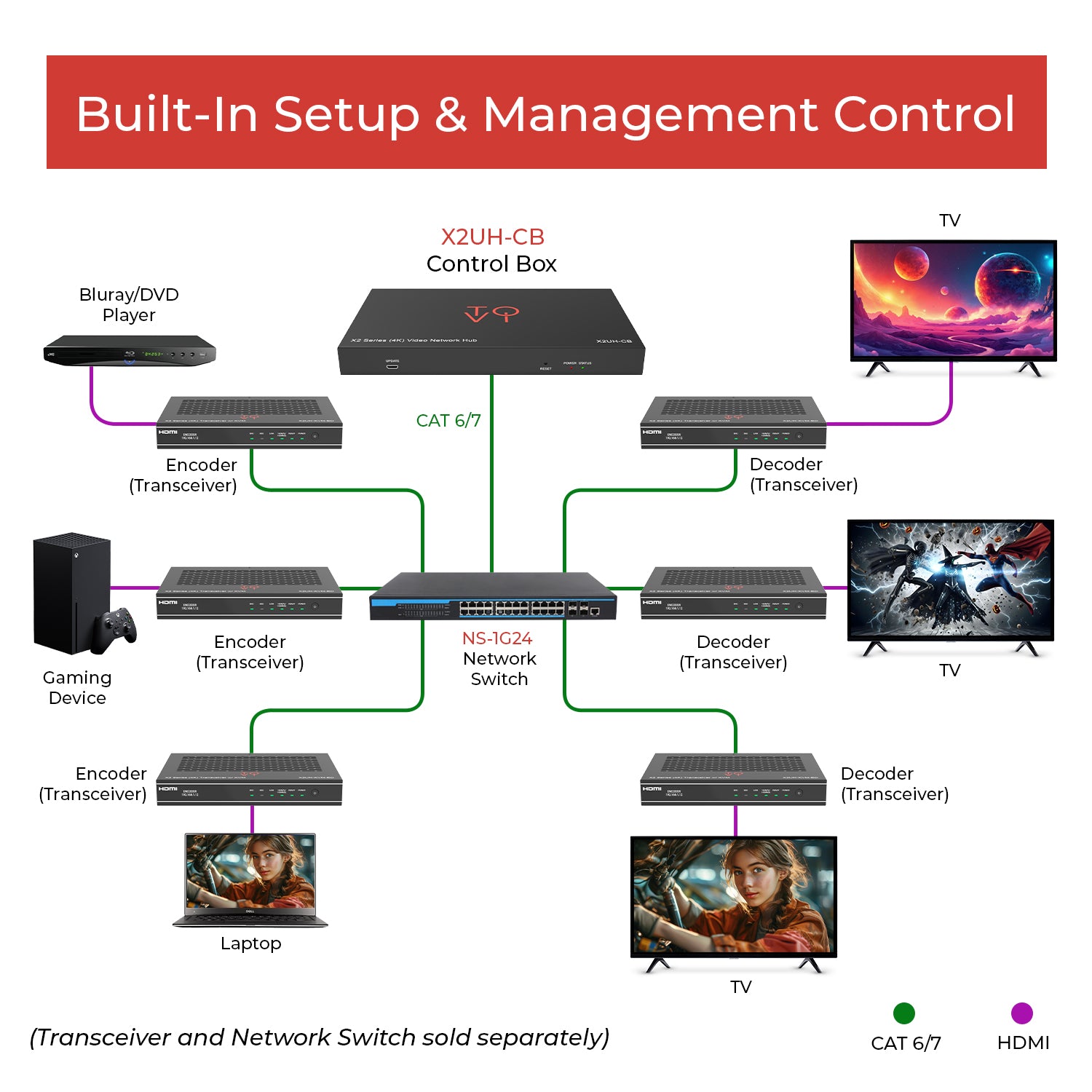

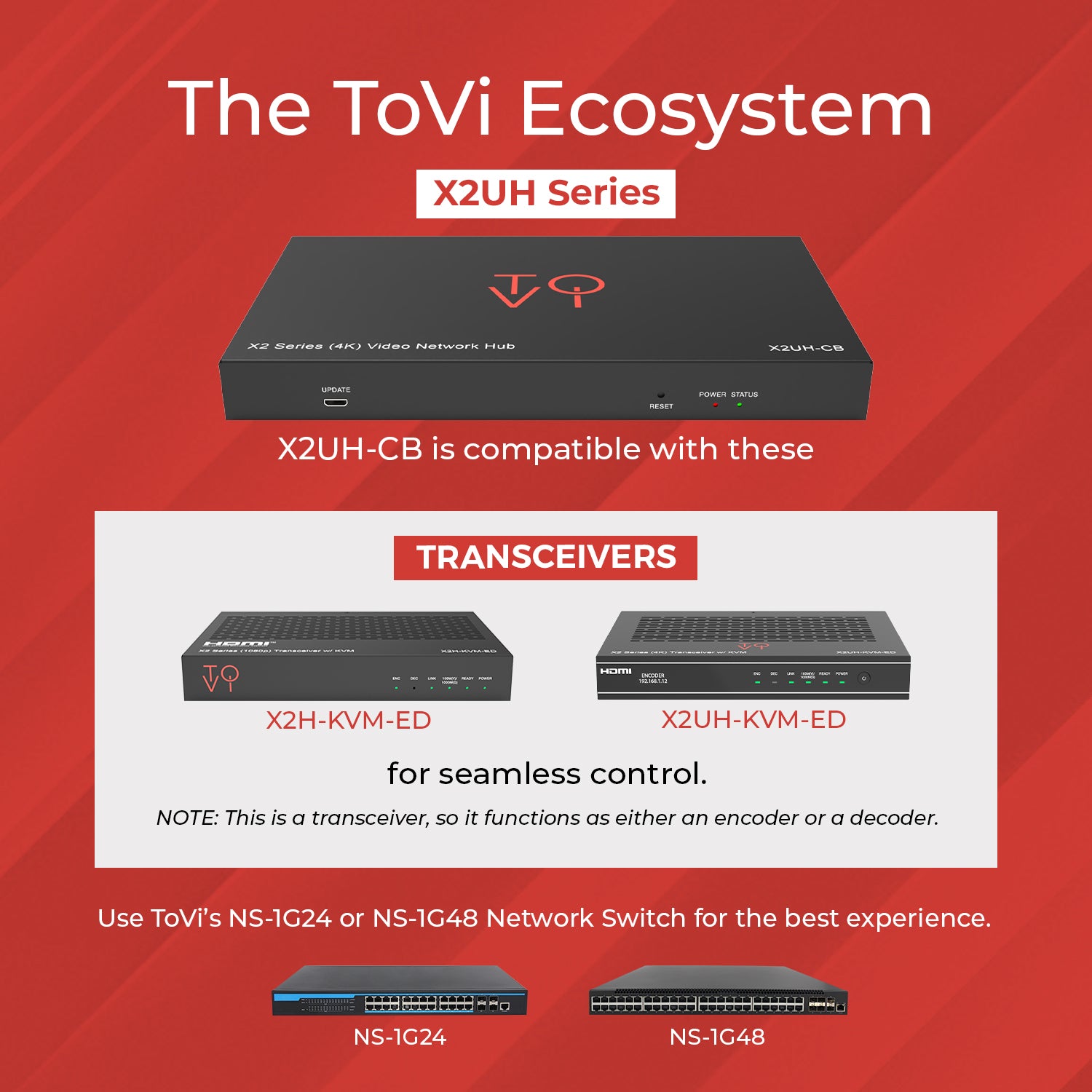

The X2UH-CB is a powerful IP video network hub designed specifically for use with ToVi’s X2 series of AV over IP products. Engineered for efficient AV signal management, it supports H.264/265 IP video control and features dual 1G network ports to isolate control and video distribution traffic, ensuring stable, high-performance operation.

With built-in HTTPS and SSH support, the X2UH-CB enables secure remote access, while its intuitive Web GUI with drag-and-drop functionality simplifies system setup and control. It supports robust video wall configurations with window roaming, marquee display, and seamless distributed switching.

Advanced collaboration is enabled through mouse roaming, allowing a single user to manage multiple PCs across the network. The system supports video, audio, RS-232, IR, and KVM control, and can ingest IP camera feeds directly as source inputs. It also allows high-definition background images—both video and picture—with multi-screen splicing for immersive displays

Dual RS-232 ports offer integration with central control systems or external device control. IR signals can be received and looped out via a 3.5mm jack, while four GPIO ports (5V/12V selectable) allow for external device triggering and automation

The X2UH-CB easily integrates with major 3rd party control systems and is protected against lightning, surges, and ESD. It supports PoE (802.3af PD) and includes a 12V power supply to be used if needed and is compatible with 1U/6U V2 rack installations. Built for 24/7 operation, the X2UH-CB delivers dependable performance for mission-critical AV environments.

Key Features:
  • Supports H.264/265 IP video product control – Enables efficient and flexible AV signal management
  • Dual 1G ports – Separates control and video distribution networks for optimized performance
  • HTTPS and SSH protocol compatibility – Ensures secure and safe remote system access
  • Built-in Web GUI control interface – Offers drag-and-drop functionality for intuitive operation

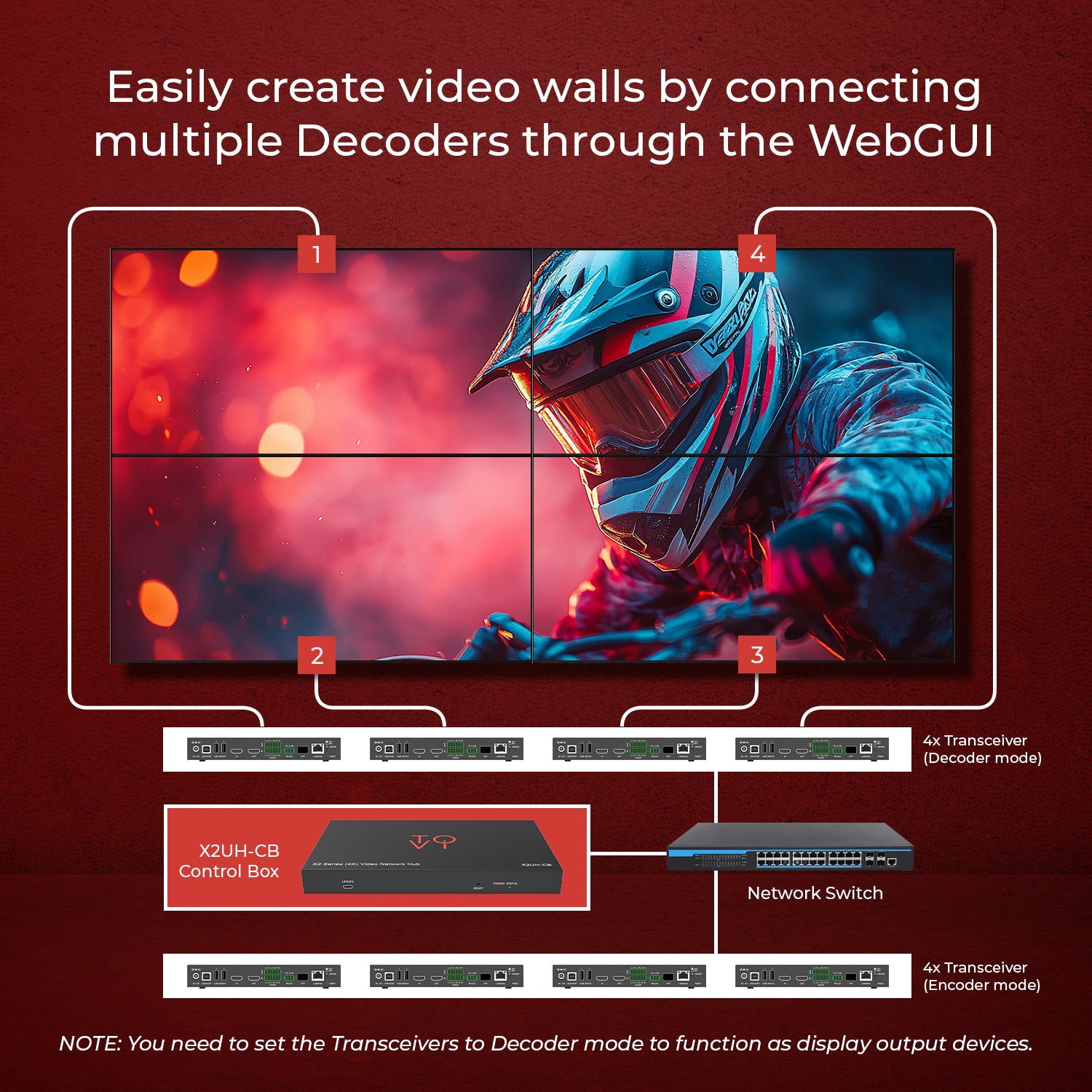

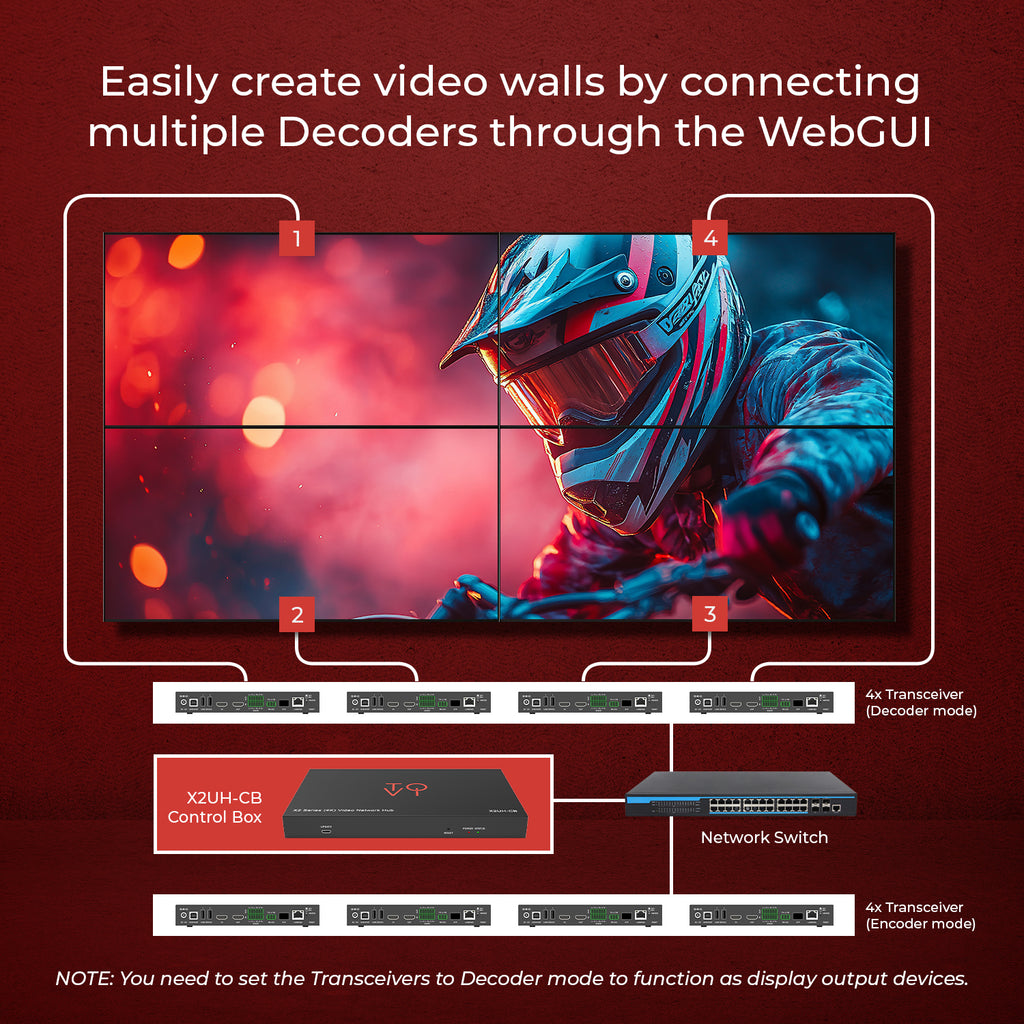

  • Powerful video wall capabilities – Supports window roaming, marquee, and seamless distributed switching
  • Collaboration management with mouse roaming – Allows a single operator to control multiple PCs effortlessly
  • Video, Audio, RS-232, and KVM control – Facilitates complete distributed system management
  • IP camera input as source – Expands source flexibility by accepting direct IP camera feeds
  • High-definition background images and multi-screen splicing – Enables immersive and large-scale display setups
  • Dual RS-232 ports – Integrate with central control systems or manage external devices
  • IR signal receiving and loop output – Uses 3.5mm audio jack (12V level) for infrared control
  • 4-channel GPIO control ports – Offers 5V/12V selectable output for external device management
  • Easy integration with major 3rd party control systems – Ensures broad compatibility in professional setups
  • Multiple circuit protections – Built-in lightning and ESD protection for long-term reliability
  • PoE (802.3af PD) or 12V power supply – Supports PoE for power or the included power supply
  • Rack Mountable – Compatible with 1U/6U V2 rack installations for versatile deployment
  • Reliable system design – Engineered for stable 24/7 continuous operation

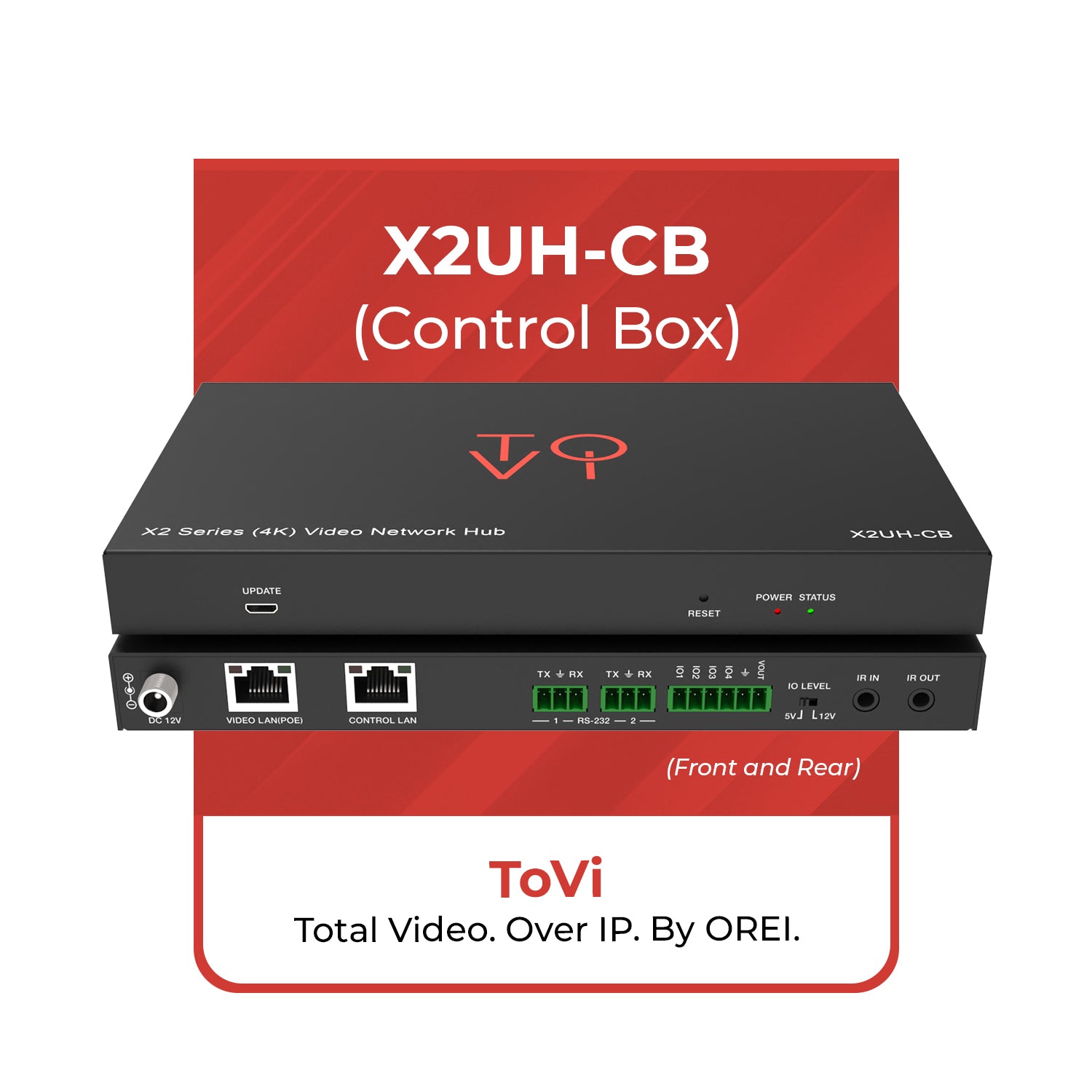

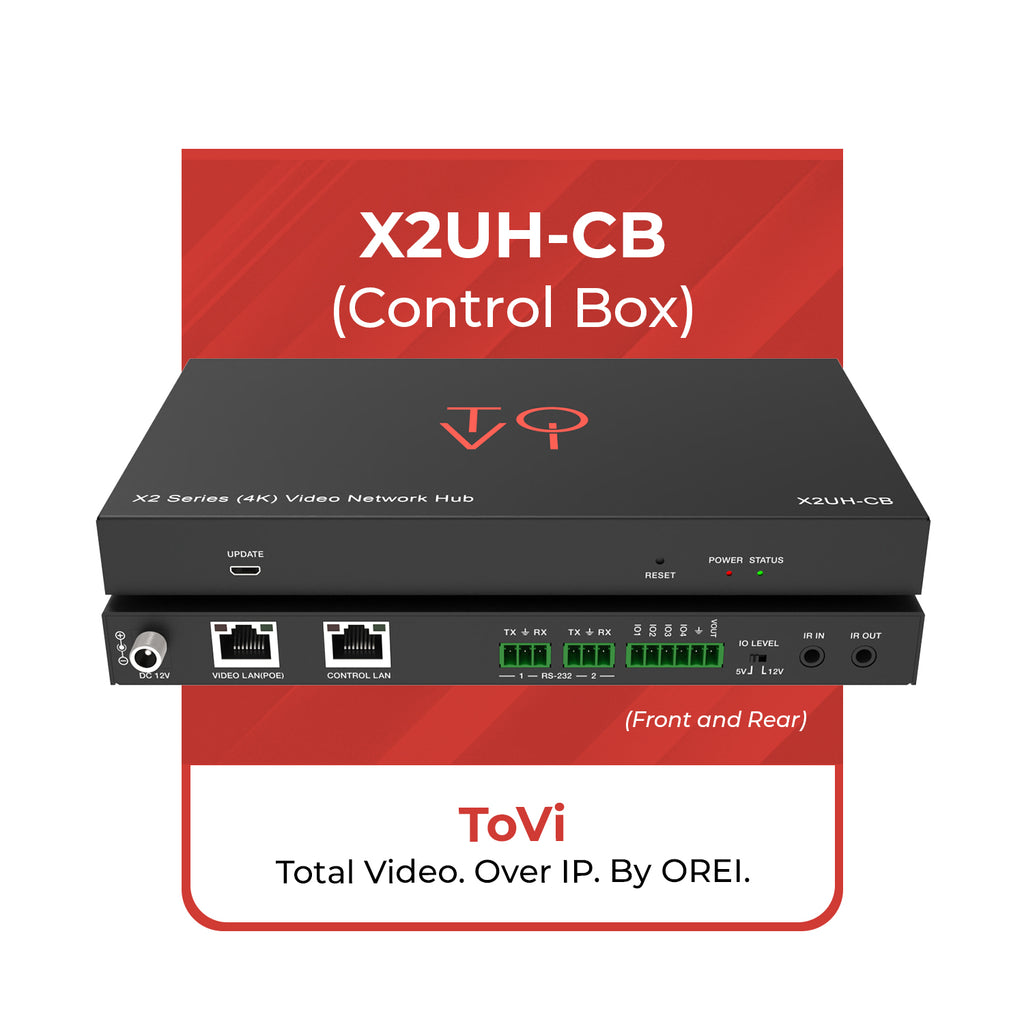

  • CONNECTIVITY
  • Control Ports: 2 x LAN [RJ45]
  • 1 x IR IN [3.5mm stereo jack, 12V level]
  • 1 x IR OUT [3.5mm stereo jack, 5V level]
  • 1 x Digital I/O [6-pin 3.81mm phoenix connector]
  • 2 x RS-232 [3-pin 3.81mm phoenix connector]
  • 1 x Micro-USB [firmware update port]
  • SUPPORTED CAT CABLES
  • CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
  • EXTENDING DISTANCE
  • Transmission Distance: 100m (CAT5E/6/6A/7)
  • Network Bandwidth: 1G
  • ADDITIONAL FEATURES
  • CEC: No
  • ARC: No
  • KVM: Yes
  • PoC/PoE: Yes
  • IR Control: Yes
  • Downmix: No
  • Downscale: No
  • Over IP: Yes
  • HDBaseT: No
  • RS-232: Yes
  • POWER
  • Power Consumption: 6.84W
  • Power Supply: 12V/2.5A

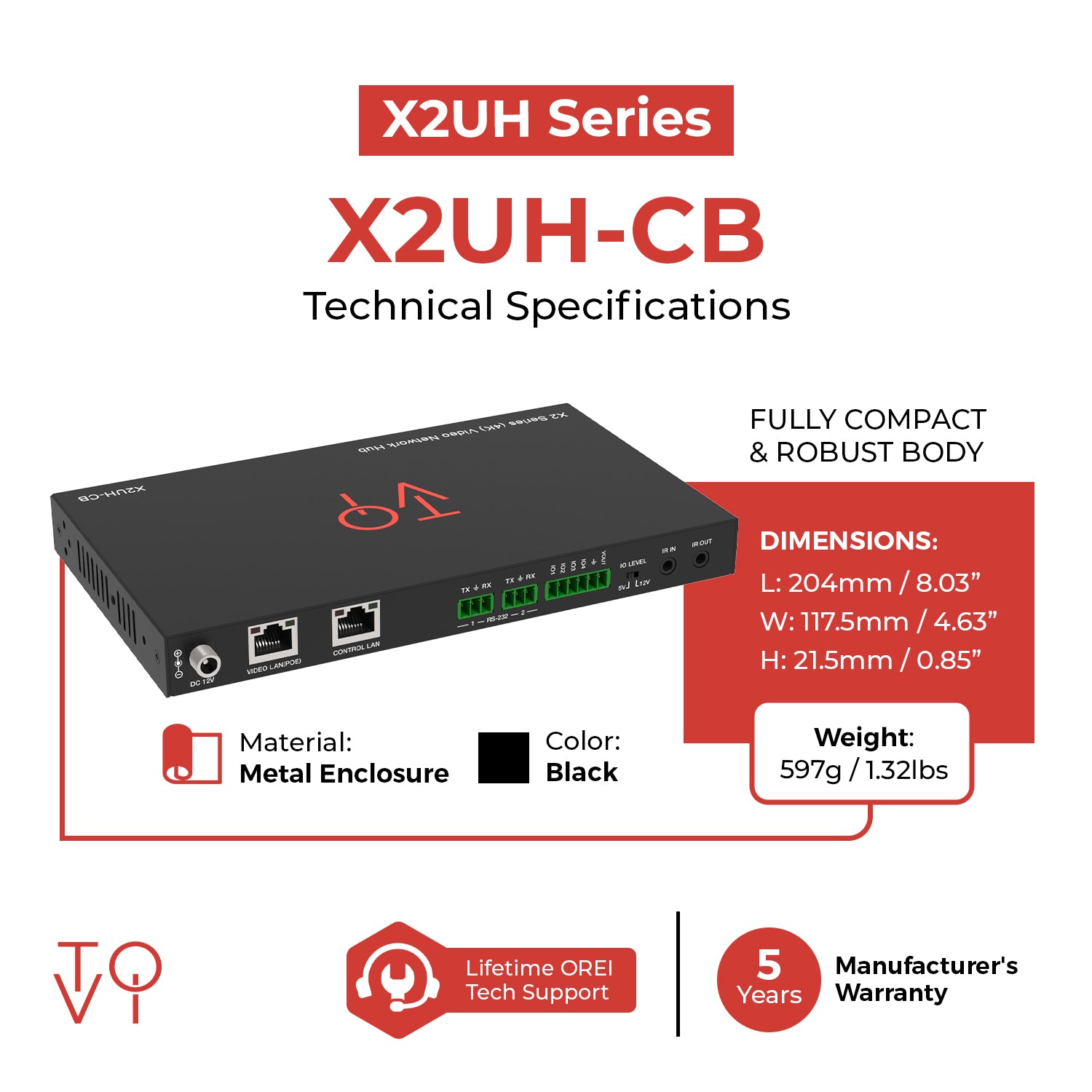

  • DIMENSIONS & WEIGHT
  • Length: 204mm / 8.03in
  • Width: 117.5mm / 4.63in
  • Height: 21.5mm / 0.85in
  • Weight: 597g / 1.32lbs
  • PROPERTIES
  • Color: Black
  • Housing: Metal Enclosure
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Operating Humidity: 20%~80% relative humidity, non-condensing
  • Storage Humidity: 10%~90% relative humidity, non-condensing

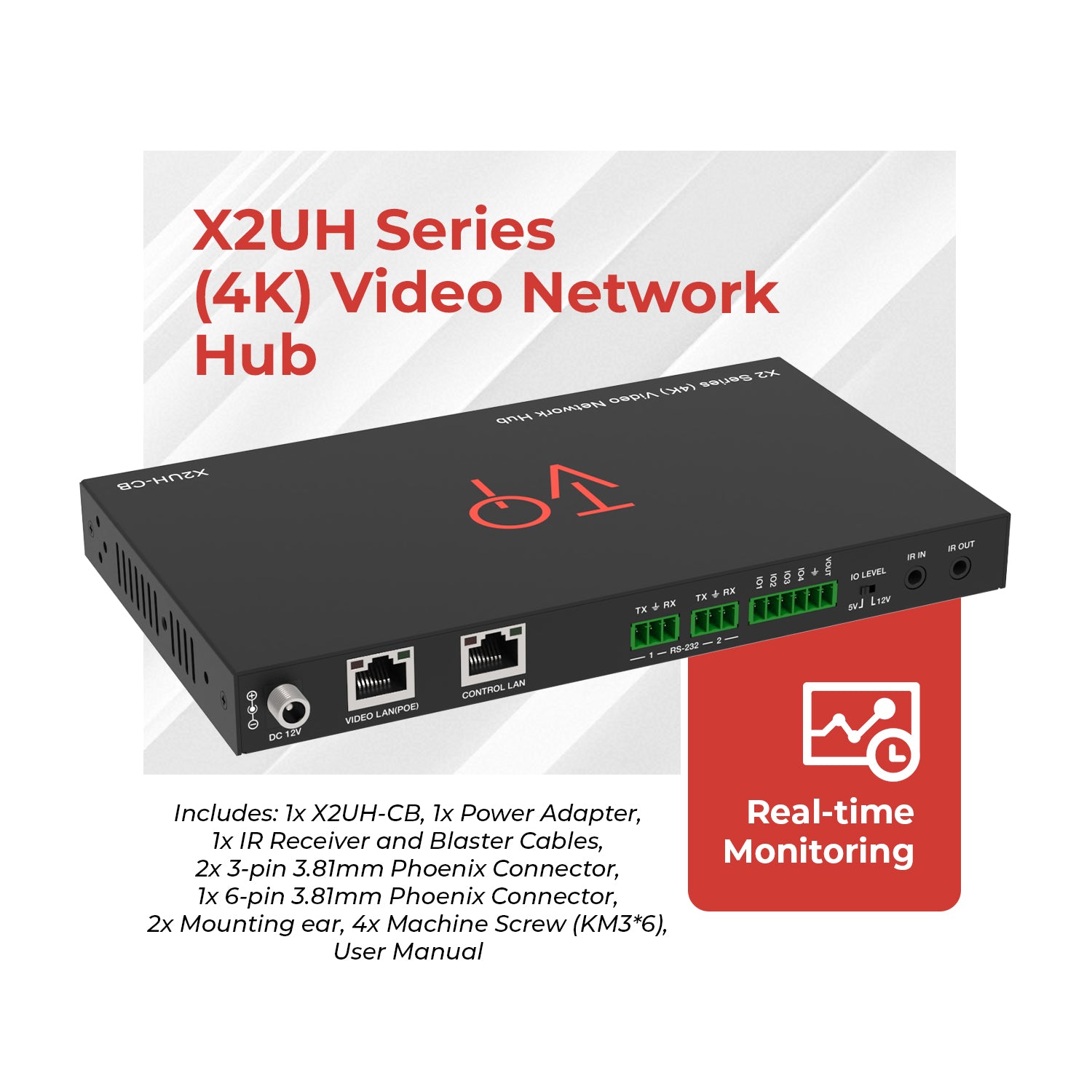

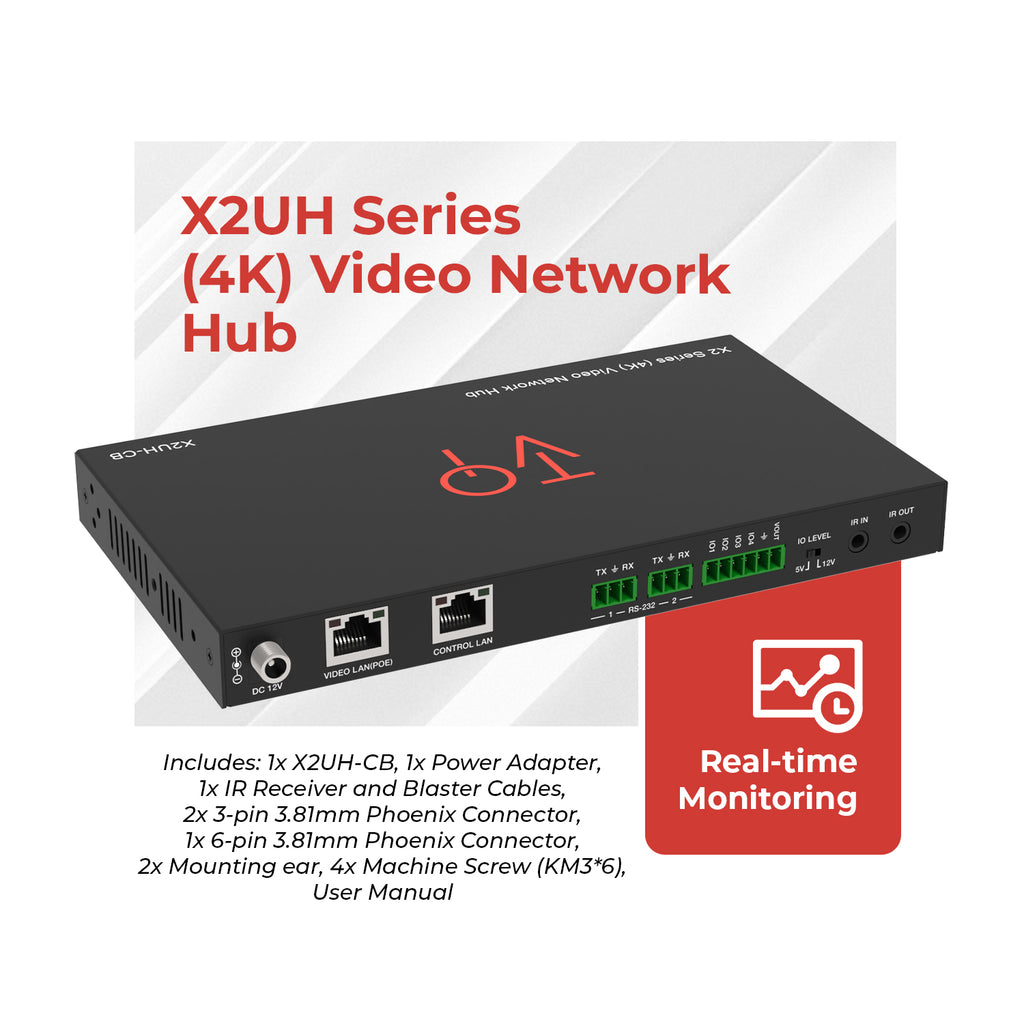

Includes:

  • 1x X2UH-CB
  • 1x IR Receiver Cable (1.5 meters)
  • 1x IR Blaster Cable (1.5 meters)
  • 2x 3-pin 3.81mm Phoenix Connector (male)
  • 1x 6-pin 3.81mm Phoenix Connector (male)
  • 2x Mounting Ear
  • 4x Machine Screw (KM3*6)
  • 1x Power Adaptor
  • User Manual
Warranty:
  • 5-year manufacturer's warranty
