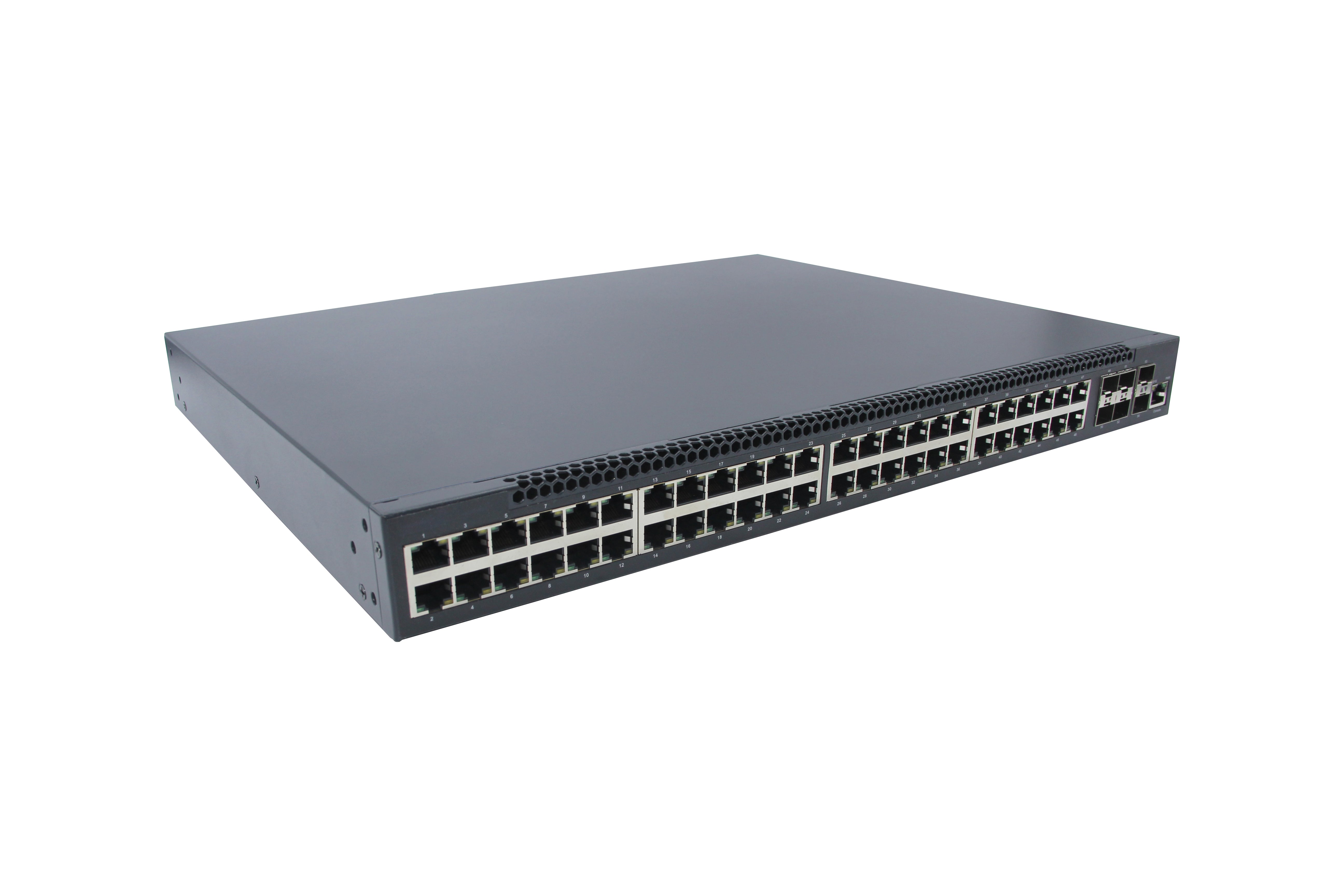

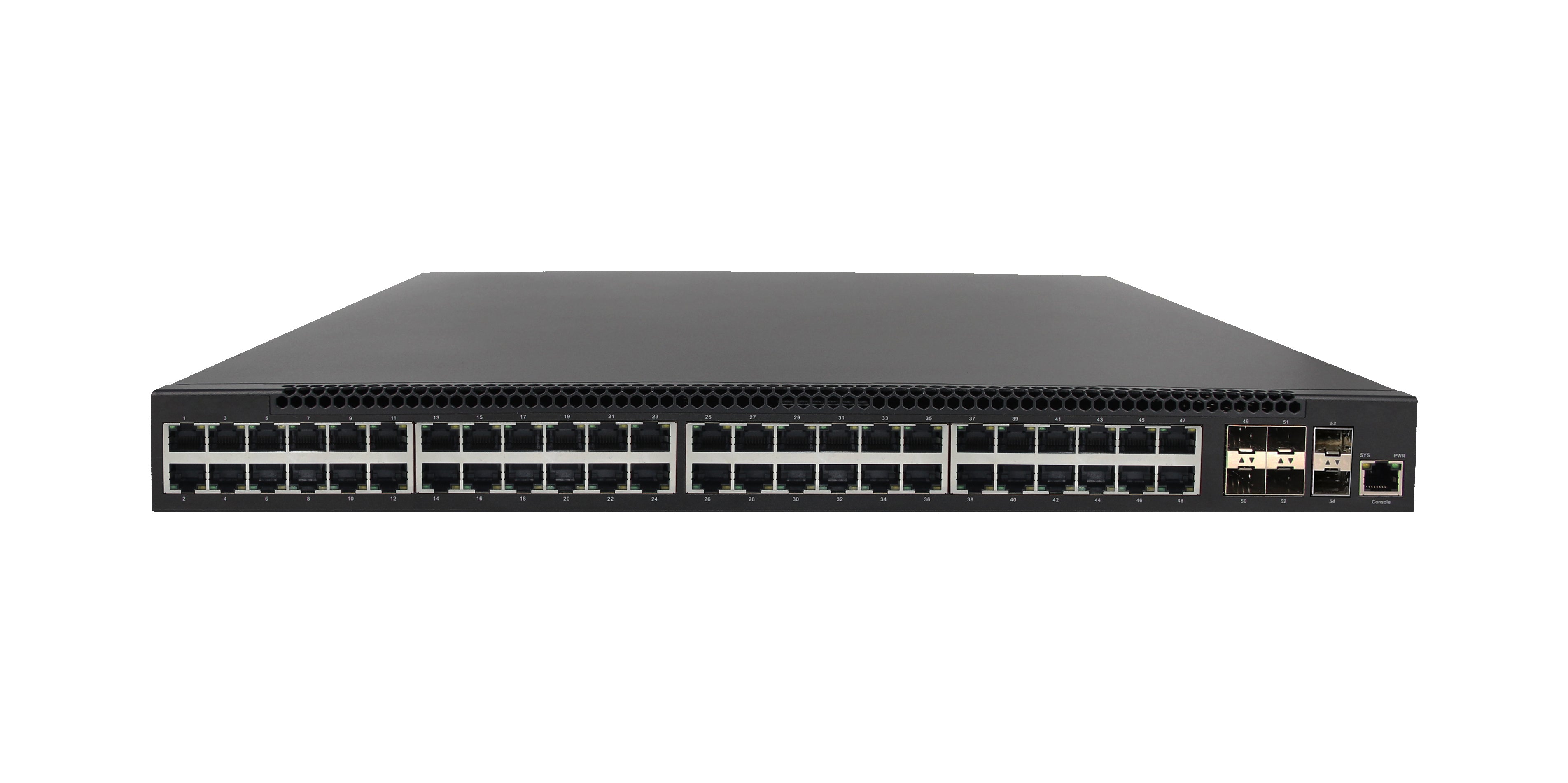

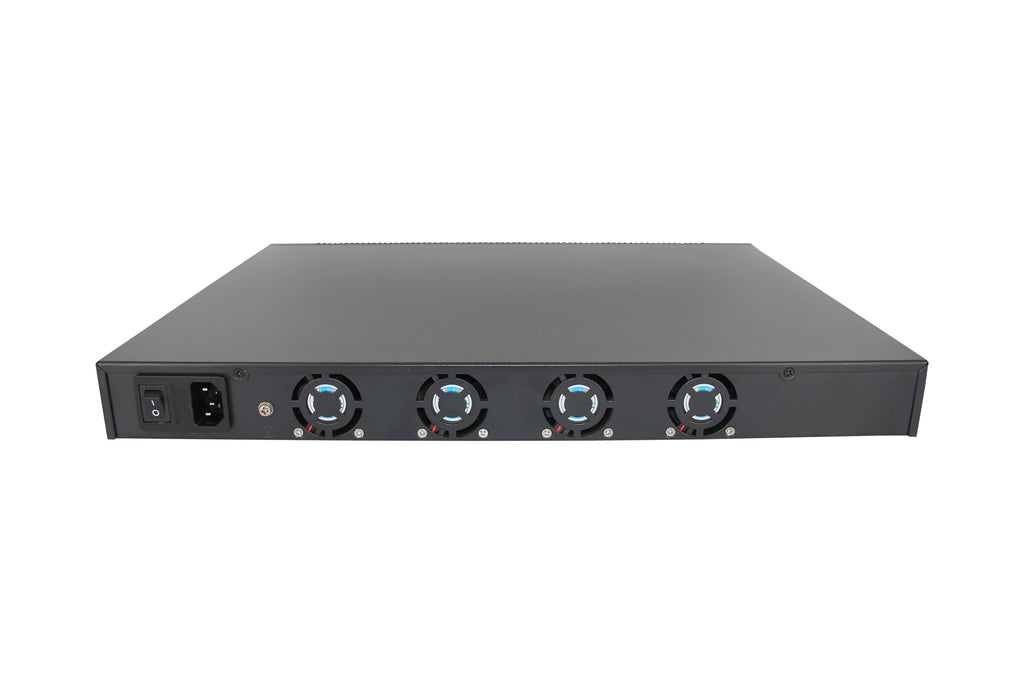

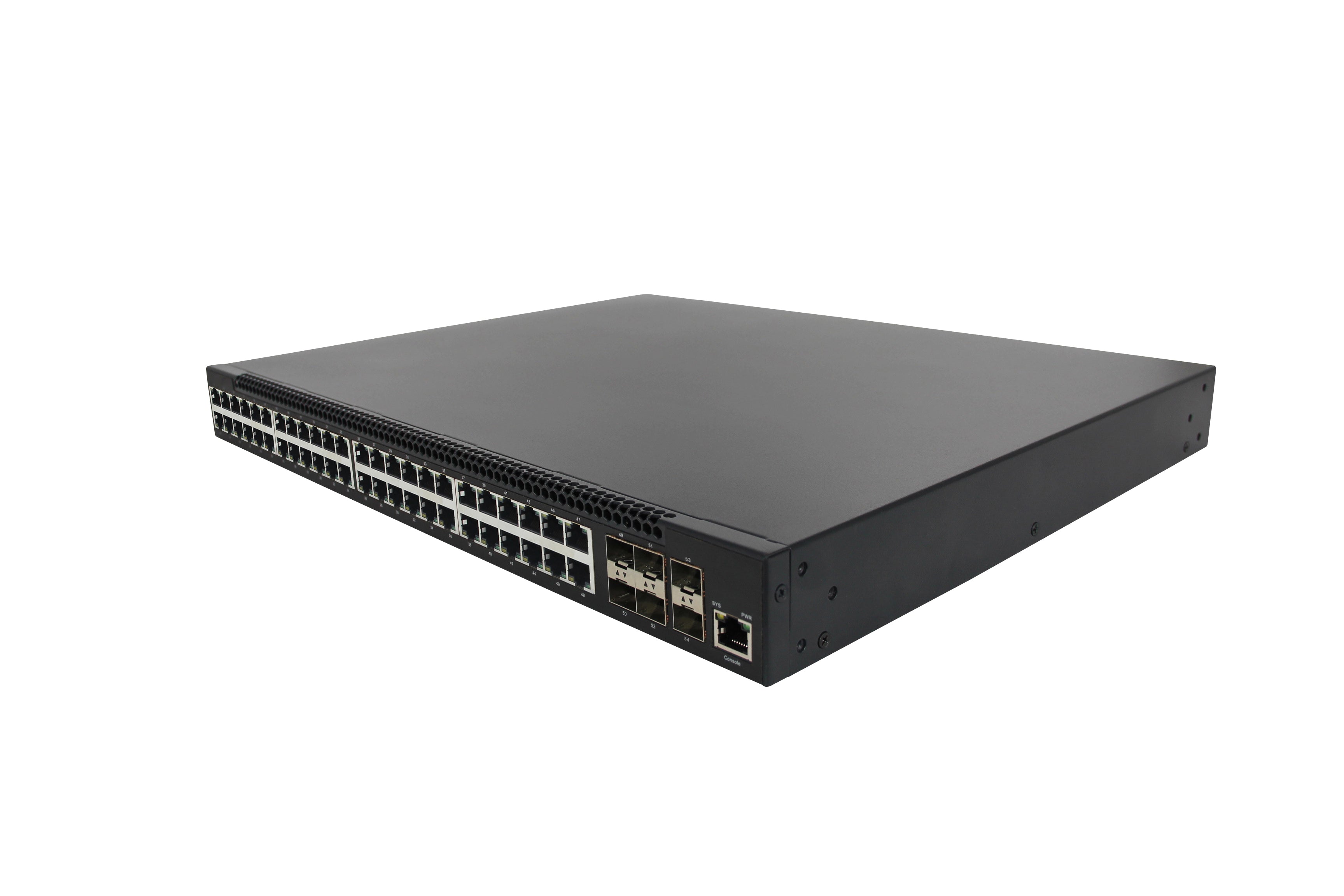

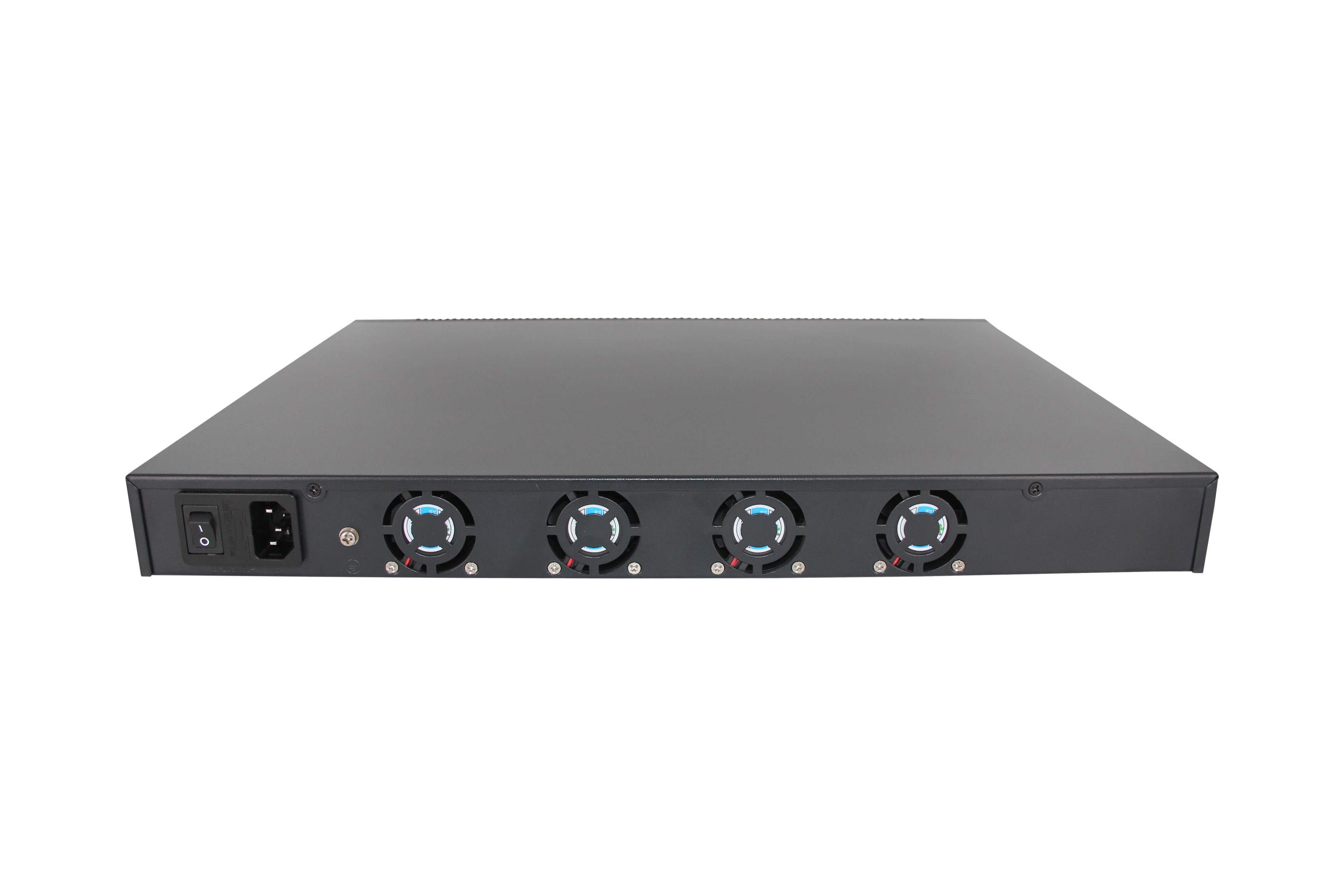

ToVi 48-Port Gigabit PoE Switch w/ 6×10G SFP+ Uplink (1U Rackmount)
The NS-1G48 Network Switch is a high-performance solution featuring 48 adaptive 10/100/1000M PoE ports and 4 high-speed 10G SFP+ uplink ports. Built for demanding network environments, it supports full line-speed forwarding to ensure smooth and stable data transmission across all connected devices.
Housed in a rugged 1U 19-inch metal chassis, the NS-1G48 is suitable for both desktop and rack-mount installations, offering flexible deployment in a variety of environments. It functions effectively as a core switch for medium-sized LANs, an aggregation switch for large-scale networks, or an access switch in enterprise-level infrastructure, delivering dependable and scalable connectivity.
A built-in web-based management interface allows intuitive control and configuration of network settings. PoE support simplifies the installation of IP cameras, wireless access points, and AV equipment, including the ToVi range of products by OREI. The NS-1G48 is fully compatible with and purpose-built for seamless integration with ToVi’s X1, X2, and X4 series.
Key Features:
- 48x 1Gbps Adaptive PoE Ports + 4x 10G SFP+ Ports – Provides extensive connectivity and high-speed uplink options for scalable network expansion.
- Full Line-Speed Forwarding – Guarantees stable, uninterrupted data transfer across all ports, even under heavy loads.
- Standard 19-Inch 1U Rackmount Design – Supports both rack-mounted and desktop installations for flexible deployment.
- Durable Metal Housing – Engineered for reliable performance in demanding environments, including surveillance, networking, and enterprise AV systems.
- Plug-and-Play Setup – Allows quick deployment without requiring software installation for basic configurations.
- PoE Support – Simplifies deployment of powered devices such as IP cameras and AV Over IP equipment
- Web-Based Management Interface – Offers centralized, user-friendly control for monitoring and configuring the network.
- Made for ToVi – Fully compatible with ToVi’s X1, X2, and X4 series products, ensuring seamless integration.
- GENERAL
- Ports: 48x Gigabit network port [RJ45]
- 6x 10 Gigabit SFP+ port [SFP+]
- Forwarding Mode: Store-and-forward
- Number of VLANs: 4K
- Number of Three-layer Interfaces: 1K
- Routing Host: 8K IPv4 or 2K IPv6
- Routing Table Size: 12K IPv4 or 3K IPv6
- ACL Table Size: 4K
- Packet Forwarding Cache: 16Mbit
- MAC Address Table Capacity: 32K
- Port Queue: 8
- PERFORMANCE
- Exchange Bandwidth: 216 Gbps
- Packet Forwarding Rate: 160.7 Mbps
- Jumbo Frame: 12K
- DDR Memory: 2 Gbit
- Flash Storage: 256 Mbit
- POE
- PoE Ports: 1-48
- PoE Standard: IEEE802.3af, IEEE802.3at
- PoE Power Budget: 850W
- Maximum PoE Power Per Port: 30W
- PoE Voltage: 52V
- PoE Pin Definition: V - (RJ45 Pin 1,2), V + (RJ45 Pin 3,6)
- MECHANICAL
- Dimensions (L × W × H): L: 440mm / 17.3in | W: 350mm / 13.78in | H: 44mm / 1.73in
- Weight: 5.37kg / 11.84lbs
- Color: Gray
- Material: Metal Enclosure
- Mounting: 1U Rack Mountable
- ENVIRONMENT
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -10°C ~ 70°C / 14°F ~ 158°F
- Humidity: 5%~95% relative humidity, non-condensing
- ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Includes:
- 1x NS-1G48
- User Manual
- 1-year manufacturer's warranty
