$99.99

  |

In Stock: Usually Ships in 24 Hours

  • USB-C Docking Hub with USB 3.0, DP, Ethernet, PD, and Display extension
  • Video resolutions up to 4K@60Hz
  • Up To 3 Extended Displays and power delivery up to 85W
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

OREI SplitXtend Docking Hub with USB-C input, USB-A, Ethernet, DP, Power delivery up to 85 Watt and up to 3 Extended Displays

The OREI SplitXtend SX-3C4K85 USB-C Docking Hub is your comprehensive connectivity solution for enhanced productivity. With two HDMI ports, a DisplayPort, USB-C, and four USB-A ports, this hub effortlessly integrates multiple devices for seamless multitasking. Supporting Power Delivery (PD) up to 100W, including 85W for upstream charging, it ensures efficient power management. Extend your workspace across three displays with HDMI and DisplayPort options, while the RJ45 Gigabit Ethernet Port provides high-speed network connectivity. Enjoy swift data transfer rates of up to 5Gbps, backward compatible with USB 2.0 devices. Plus, with MicroSD and SD Card Readers supporting SDHC/SDXC (Capacity up to 2TB), the SX-3C4K85 offers expanded storage options for your files and media.

Key Features:
  • HDMI 2.0, DP 1.4, USB 3.0/2.0 compliant
  • Extend up to three displays with two types of video outputs HDMI and DP
  • Supports Power Delivery(PD) up to 100W including a maximum of 85W for upstream charging.
  • RJ45 Gigabit Ethernet Port provides high-speed internet.
  • Data transfer rate up to 5Gbps, and downwards compatible with USB 2.0
  • Features MicroSD and SD Card Reader SDHC/SDXC (Capacity up to 2TB).
  • Supports SD V2.0, SDHC up to 32GB, and SDXC up to 2TB.
  • Windows 7/8/10 or later; MacOS X 10 or later required.
  • Compact design and easy installation.
  • Please note that the USB-C port must be compatible with Displayport technology in order to extend displays.
  • CONNECTIVITY
    • Inputs: 1 × USB-C [Female]
    • OUTPUT: 2 × HDMI [Type A, 19-pin female]
    • CONTROL: 1 × DisplayPort [Type A, female]
    • CONTROL: 4 × USB [Type A, female]
    • CONTROL: 1 × LAN [RJ45, 8-pin female]
    • CONTROL: 1 × MicroSD [female]
    • CONTROL: 1 × SD [female]
  • VIDEO OUTPUT
    • Video Bandwidth for HDMI: 18Gbps
    • Video Bandwidth for DP: 32.4Gbps
    • Video Resolutions: Up to 4K@60Hz 4:4:4
  • ADDITIONAL FEATURES
    • CEC: No
    • ARC: No
    • USB: Yes
    • PoC/PoE: No
    • IR Control: No
    • Downmix: No
    • Downscale: No
    • Over IP: No
    • HDBaseT: No
    • RS-232: No
  • AUDIO SUPPORT
    • HDMI Audio Formats: PCM 2.0
  • COMPLIANCES
    • HDMI Compliance HDMI 2.0
    • USB Compliance USB 3.0 & 2.0
    • DP Compliance DP 1.4
  • POWER
    • Power Consumption: 15W (Max)
    • Power Supply: Output: DC 5V/1A
  • DIMENSIONS & WEIGHT
    • Length: 207.32mm / 8.16in
    • Width: 57.98mm / 2.28in
    • Height: 19.6mm / 0.77in
    • Weight: 250g / 8.8oz
  • PROPERTIES
    • Color: Black
    • Housing: Aluminium + Plastic

Includes:

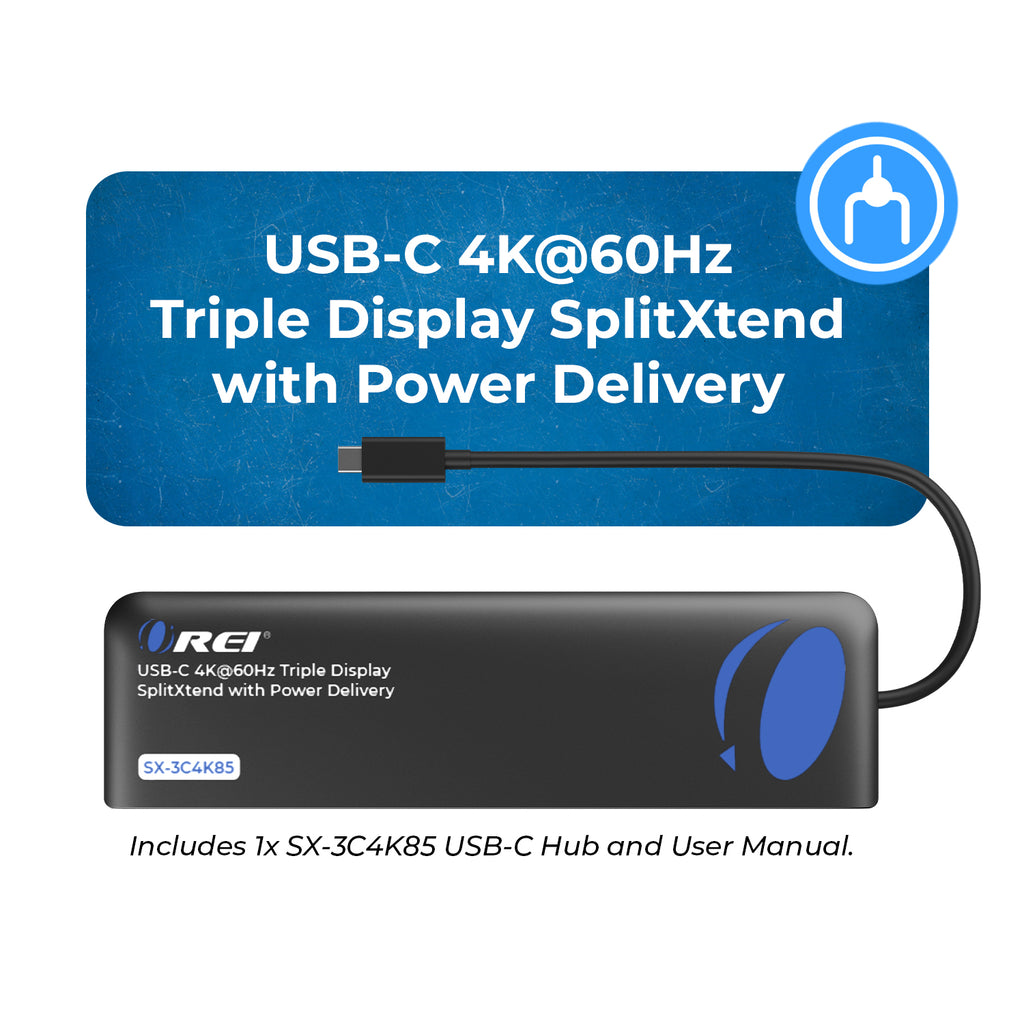

  • 1x SX-3C4K85 USB-C Hub

Warranty:

  • 1 year manufacturer's warranty
