PRODUCT CODE:

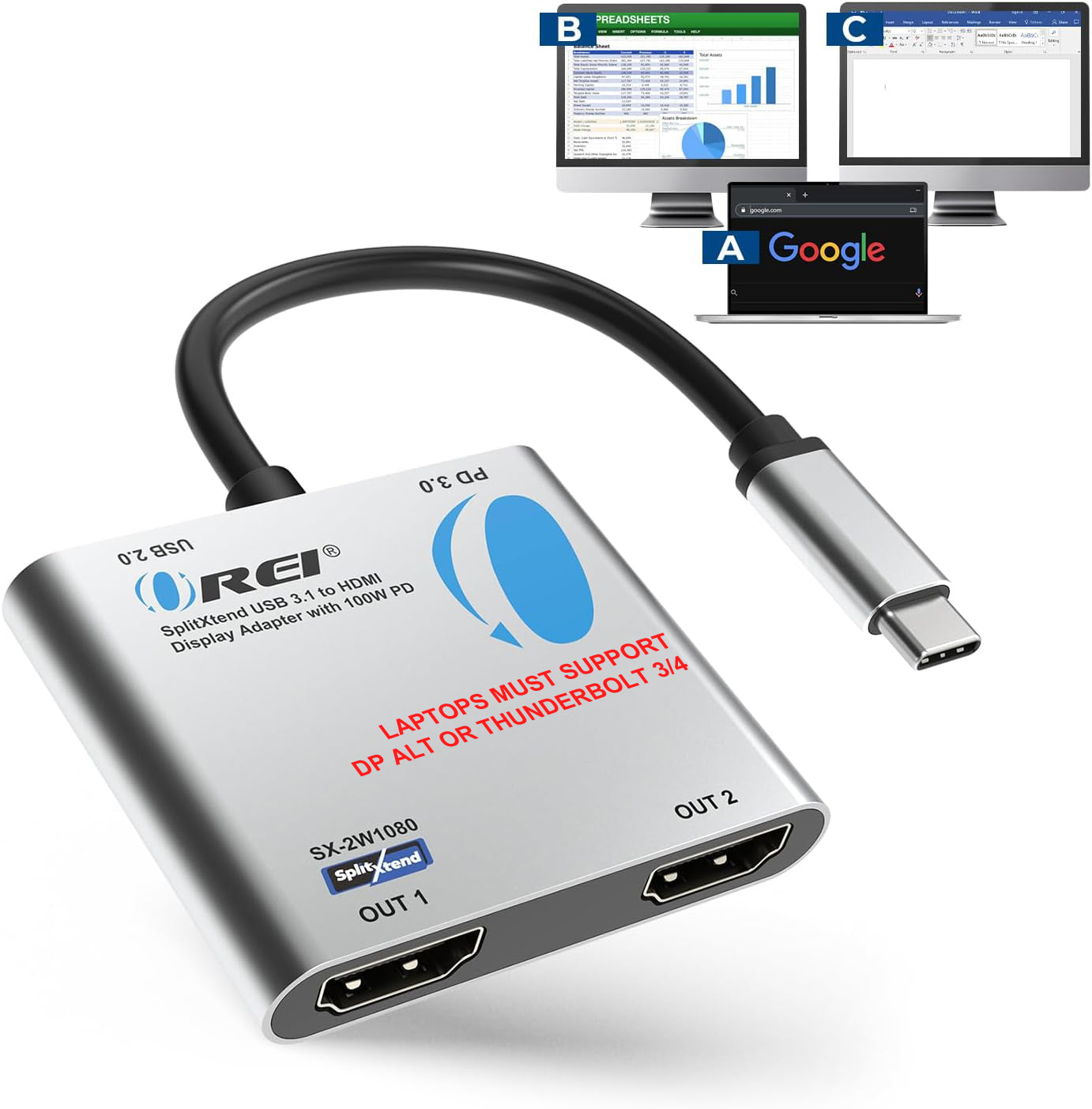

OREI SplitXtend USB 3.1 to HDMI Display Adapter with 100W PD (SX-2W1080)

PRODUCT CODE:

OREI SplitXtend USB 3.1 to HDMI Display Adapter with 100W PD (SX-2W1080)

$24.99

In Stock: Usually Ships in 24 Hours

USB-C Docking Hub with USB 3.0, DP, Ethernet, PD, and Display extension
Video resolutions up to 4K@60Hz
Up To 3 Extended Displays and power delivery up to 100W

Quantity:

REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

OREI SplitXtend Docking Hub with USB-C input, USB-A, Ethernet, DP, Power delivery up to 100 Watt and up to 3 Extended Displays

The SplitXtend SX-2W1080 is a USB C to HDMI adapter that allows you to connect 2 displays to your laptop, enabling you to extend or duplicate screens for increased productivity. It supports video resolutions up to 4K@60Hz with a single output and 4K@30Hz with both outputs. Compliant with USB 3.1 and Thunderbolt 3 ports, it supports DP 1.4 Alt Mode. The device includes a USB C port with 100W PD for laptop charging and a USB A 2.0 port for USB drives. No drivers are needed, but your laptop must support video output through its USB C port for the device to function.

Key Features:

USB 3.1 compliant
2 HDMI outputs supporting 4K@60Hz when only one is used and 4K@30Hz when both are used
Mirror or Extend displays for multitasking
PD3.0 100W fast charging to charge your laptop while using it
DP 1.4 Alt Mode support
Compatible with Thunderbolt 3
USB-A 2.0 port to connect an external USB device like USB drives
No drivers required
NOTE: Your laptop must support video through the USB-C port to work with this adapter
Note: MST function only works on Windows. MacOS products only support SST function.
If you want to output 4K@60Hz through this adapter the laptops USB-C output should support enough bandwidth (compatible the DP 1.4 standard or thunderbolt 3) to meet four lane to transmit the 4K@60Hz 4:4:4 signal,and each lane`s bandwidth up to 8.1Gbps or higher.

CONNECTIVITY
INPUT: 1 × USB [Type C, Male]
OUTPUT: 1 × USB 2.0 [Type A, Female]
1 × USB 3.1 [Type C, Female]
2 × HDMI [Type A, 19-pin Female]
SUPPORTED HDMI CABLES
HDMI 2.0/2.1: We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
VIDEO OUTPUT
Video Bandwidth: 3.4Gbps per channel (10.2Gbps all channels)
Video Resolutions: 480i,576i,1080i,480p,576p,720p,1080p, 4K@24/30/50/60Hz
AUDIO SUPPORT
HDMI Audio Formats: LPCM/DTS/Dolby Digital/DTS-HD Master Audio™/Dolby TrueHD
HDR: Not supported
COMPLIANCES
HDMI Compliance HDMI 2.0 for single output only
HDCP Compliance HDCP 2.3
POWER
Power Consumption: 5W
Power Supply: FCC, CE, RoHS
DIMENSIONS & WEIGHT
Length: 58.5mm / 2.3in
Width: 51.5mm / 2.02in
Height: 11.8mm / 0.46in
Weight: 65g / 2.29oz
PROPERTIES
Color: Silver
Housing: Aluminium Alloy + ABS
Operation Temperature: 0°C ~ 60°C / 32°F ~ 140°F
Storage Temperature: -10℃to 70℃
Relative Humidity: 5% to 90% RH non-condensation
ESD Protection: Contact discharge (±4KV), air discharge (±8kv),lmplementation of the standard: IEC61000-4-2
