OREI HDMI 18Gbps Audio Extractor with Audio Downmix (HDA-913)

PRODUCT CODE:

OREI HDMI 18Gbps Audio Extractor with Audio Downmix (HDA-913)

$89.99

In Stock: Usually Ships in 24 Hours

Video Resolution up to 4K2K@50/60Hz(YUV4:4:4)
HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
Bitstream audio down-mix to L/R analog output

Quantity:

REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

OREI 4K HDMI Audio Extractor Audio Passthrough

The HDA-913 Audio Extractor with Audio Downmix can extract audio signals from any HDMI compliant source to digital optical or analog stereo L/R audio outputs. For maximum flexibility, this audio extractor also supports bitstream audio down-mix to analog stereo output, and keeps optical and HDMI output audio pass-through.

Further, both input and output HDMI support video resolutions up to 4K2K@50/60Hz (YUV444). It supports 10bits HDR (High Dynamic Range) and HDMI high resolution digital audio pass-through formats, such as LPCM 2CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos and DTS-HD Master Audio. Audio sampling rate is up to 192kHz. HDCP 2.2 and CEC pass-through are also supported.

Key Features:

HDMI 2.0b, HDCP 2.2 and DVI 1.0 compliant
Video resolutions up to 4K2K@50/60Hz (YUV444)
Extract HDMI source audio to multi-channel optical (SPDIF) or L/R analog audio output
HDMI pass-through audio input to HDMI and optical audio output
Supports bitstream audio down-mix to L/R analog output
Optical audio supports LPCM 2CH
Dolby Digital 2/5.1CH, DTS 2/5.1CH
Supports HDMI High Bit Rate(HBR) audio pass-through
Audio sample rates up to 192kHz
10bits HDR (High Dynamic Range) pass-through
Supports CEC pass-through

CONNECTIVITY
INPUT PORTS: 1 × HDMI Type A [19-pin female]
OUTPUT PORTS: 1 × HDMI Type A [19-pin female]
: 1 × L/R Audio Out [RCA]
: 1 × Optical Out [S/PDIF]
COMPLIANCES
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2/1.4
AUDIO AND VIDEO
Video Bandwidth:   18Gbps
Video Resolutions:   Up to 4K2K@50/60Hz(YUV4:4:4), 4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space:   RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth:   10-bit, 12-bit
HDMI Audio Formats:   LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
FUNCTIONS
CEC:   YES
eARC/ARC:   NO
SWITCHES
Audio Select:   -

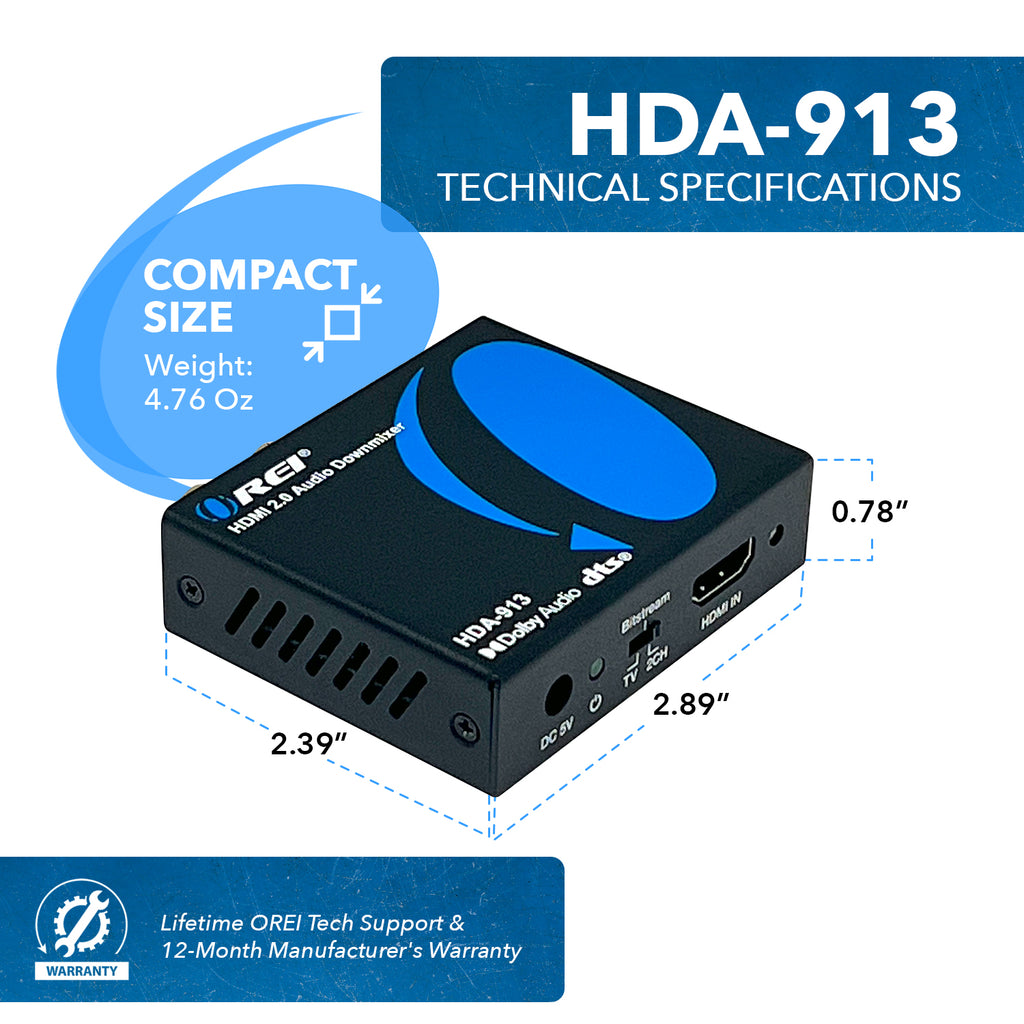

DIMENSIONS & WEIGHT
Height:   20mm
Width:   73.5mm
Depth:   60.7mm
Weight:   135g
PROTECTION
Operation Temperature:   32~104°F/0~40°C
Storage temperature:   -4~140°F/-20~60°C
Relative Humidity:   20~90% RH (non-condensing)
ESD Protection:   Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)
POWER
Power Consumption (Max):   1.25W (Max)
Power Supply:   Input: AC 100-240V 50/60Hz; Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
PROPERTIES
Color:   Black

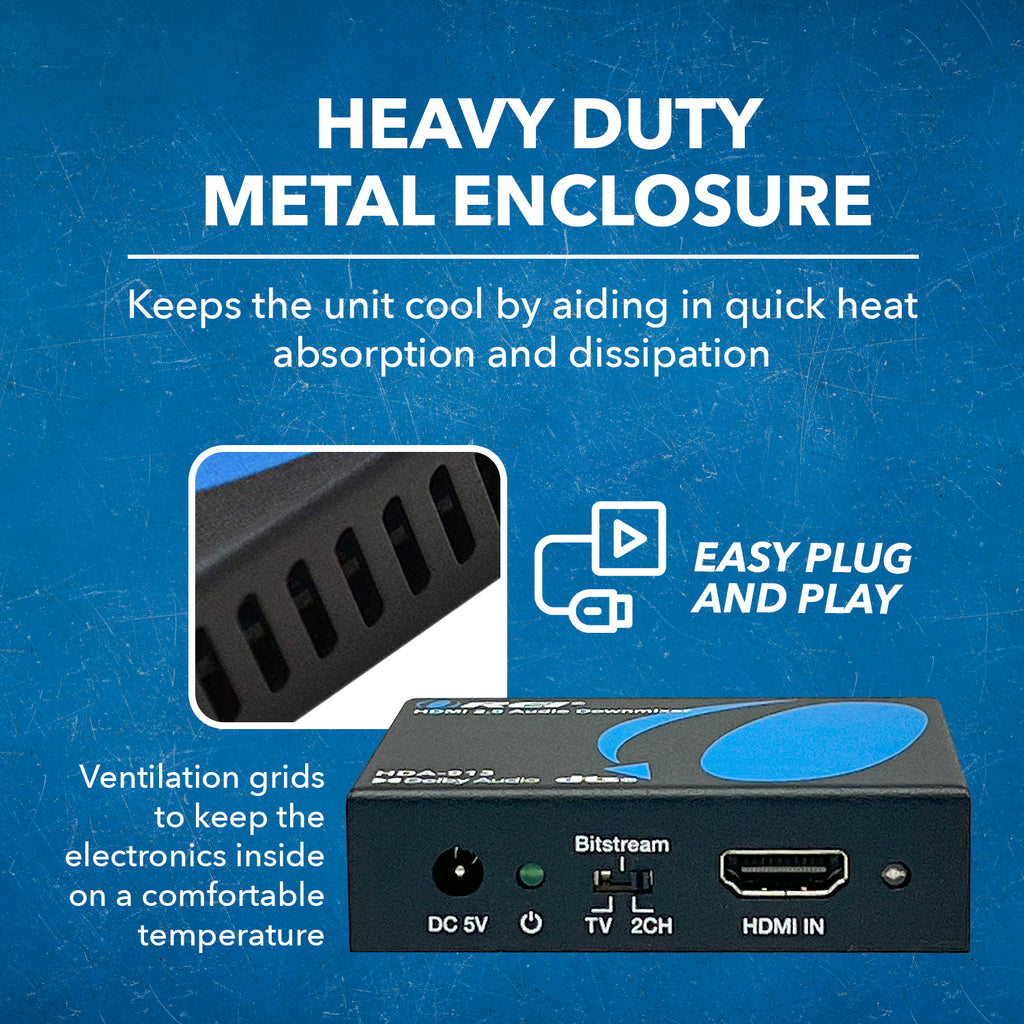

Housing:   Metal Enclosure

Includes:
