OREI BK-301P: 8K 3-PORT HDMI™ SWITCH
The BK-301P is a premium ultra-compact 3x1 HDMI™ switcher designed to simplify signal routing for modern home theater and professional AV installations. With three HDMI™ inputs and one HDMI™ output, this compact switcher allows seamless selection between multiple HDMI™ sources for a single display. It supports cutting-edge 48Gbps FRL and 18Gbps TMDS bandwidth, delivering stunning video resolutions up to 8K@60Hz (4:2:0 12bit) and 4K@120Hz (4:4:4 12bit), fully compliant with HDMI™ 2.1 standards. Advanced video features like HDR10+, Dolby Vision, and HLG are supported for an immersive visual experience. In addition to video, the BK-301P ensures pristine audio performance with pass-through support for LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master, and DTS:X formats. Convenient control is provided via front panel buttons and the included IR remote, with auto-switching and manual switching options. Ideal for next-generation home entertainment setups, gaming systems, or conference rooms, the BK-301P delivers reliable, high-performance HDMI™ switching in a sleek, space-saving design.

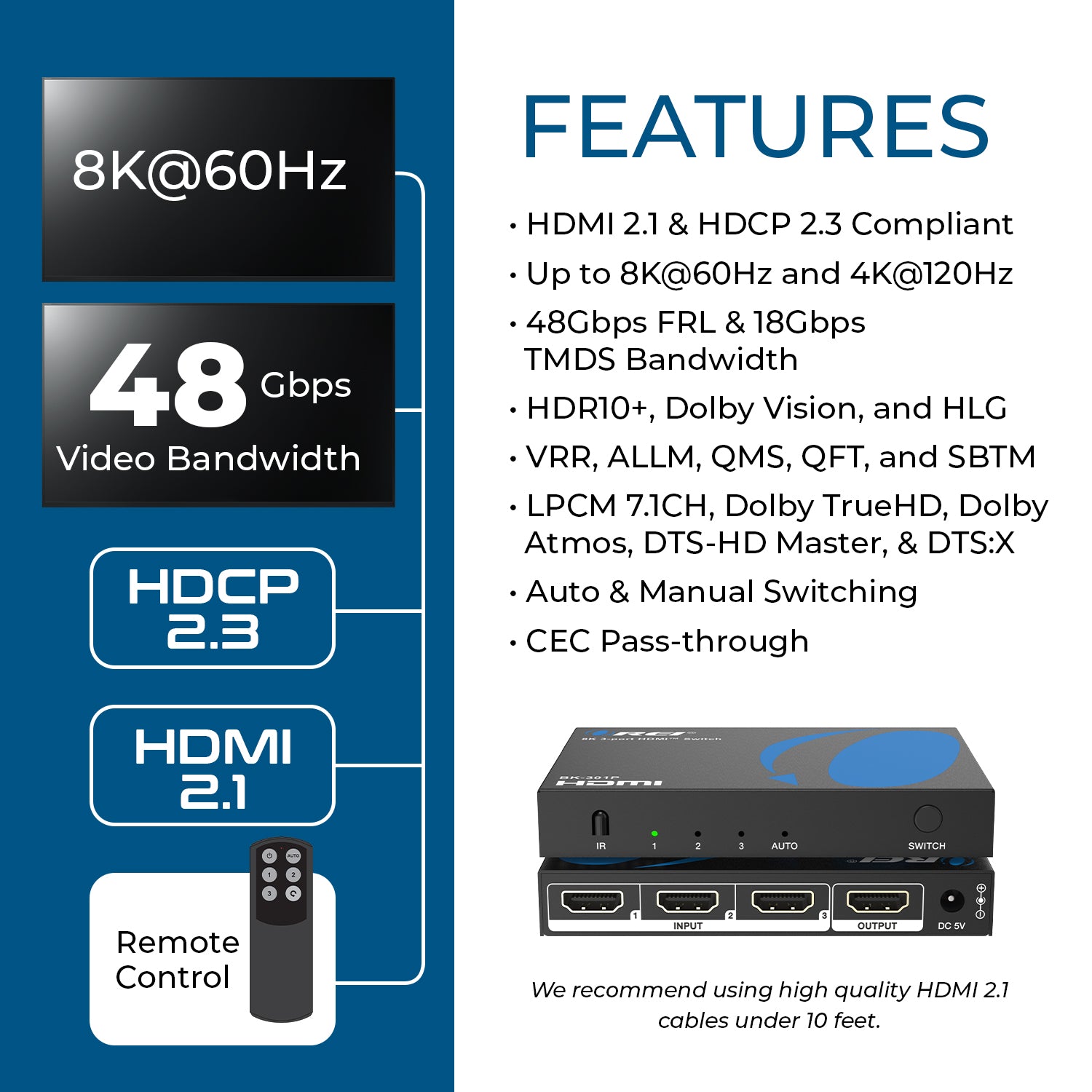

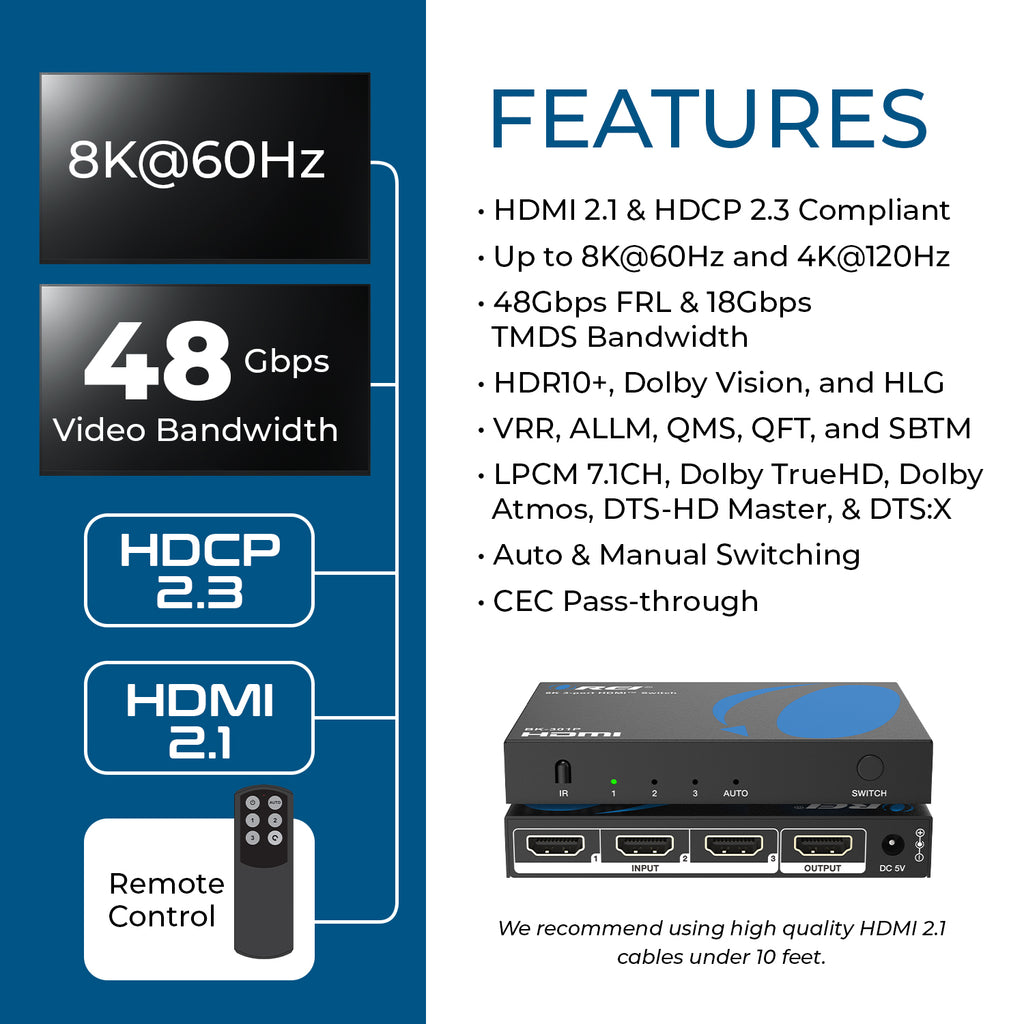

Key Features:
- HDCP 2.3 Compliant – Ensures compatibility with the latest content protection standards.
- Ultra HD 8K & 4K Video – Transmits video resolutions up to 8K@60Hz (4:2:0 12bit) and 4K@120Hz (4:4:4 12bit) as per HDMI™ 2.1 specifications.
- 48Gbps FRL & 18Gbps TMDS Bandwidth – Delivers uncompressed, high-quality video and audio signals.
- Advanced HDR Support – Pass-through for HDR10+, Dolby Vision, and HLG ensures compatibility with high dynamic range content.
- HDMI™ 2.1 Features Supported – Includes VRR, ALLM, QMS, QFT, and SBTM for enhanced video and gaming performance.
- Multichannel Audio Pass-through – Supports premium audio formats including LPCM 7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master, and DTS:X.

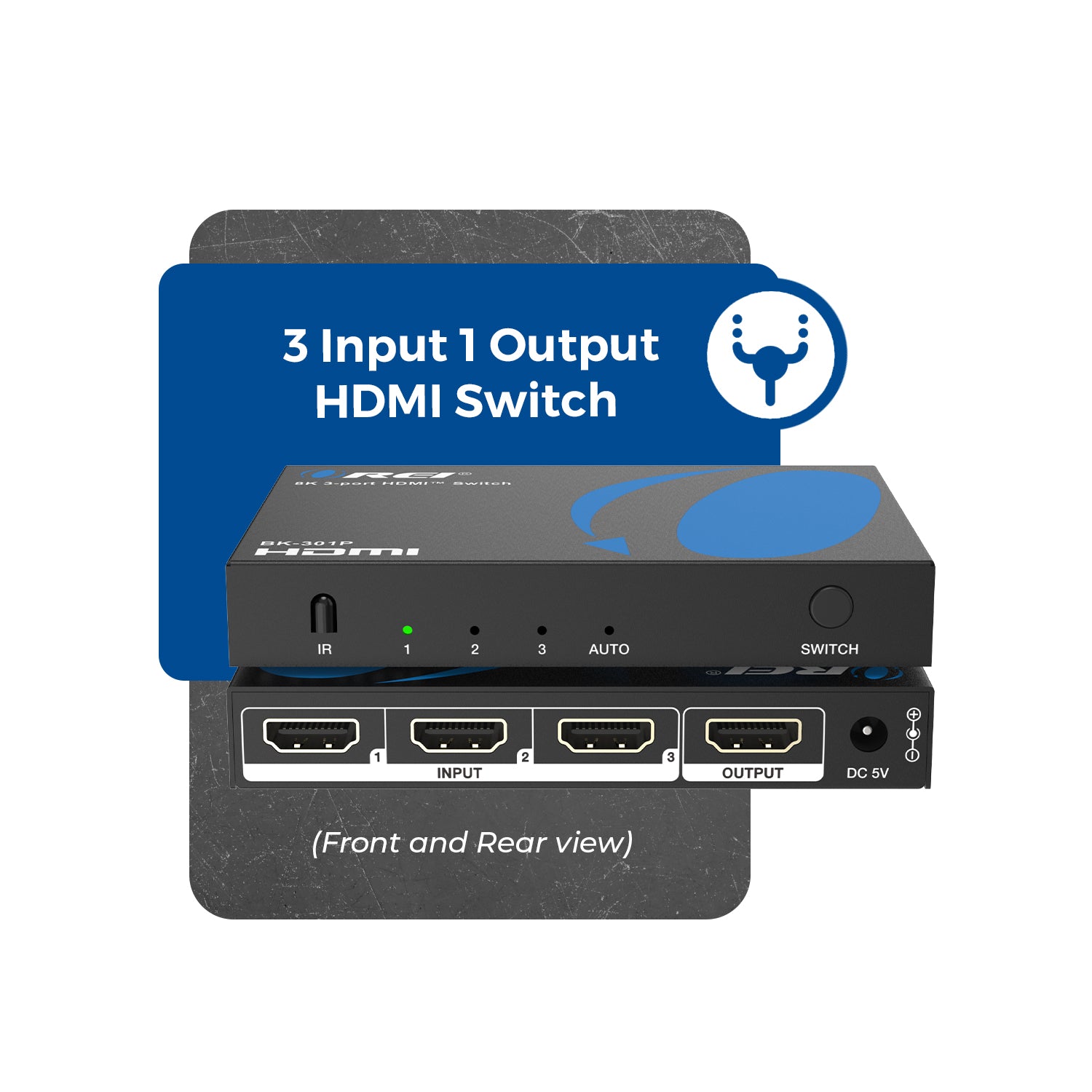

- 3x1 HDMI™ Switching – Three HDMI™ inputs routed to one HDMI™ output for flexible source selection.

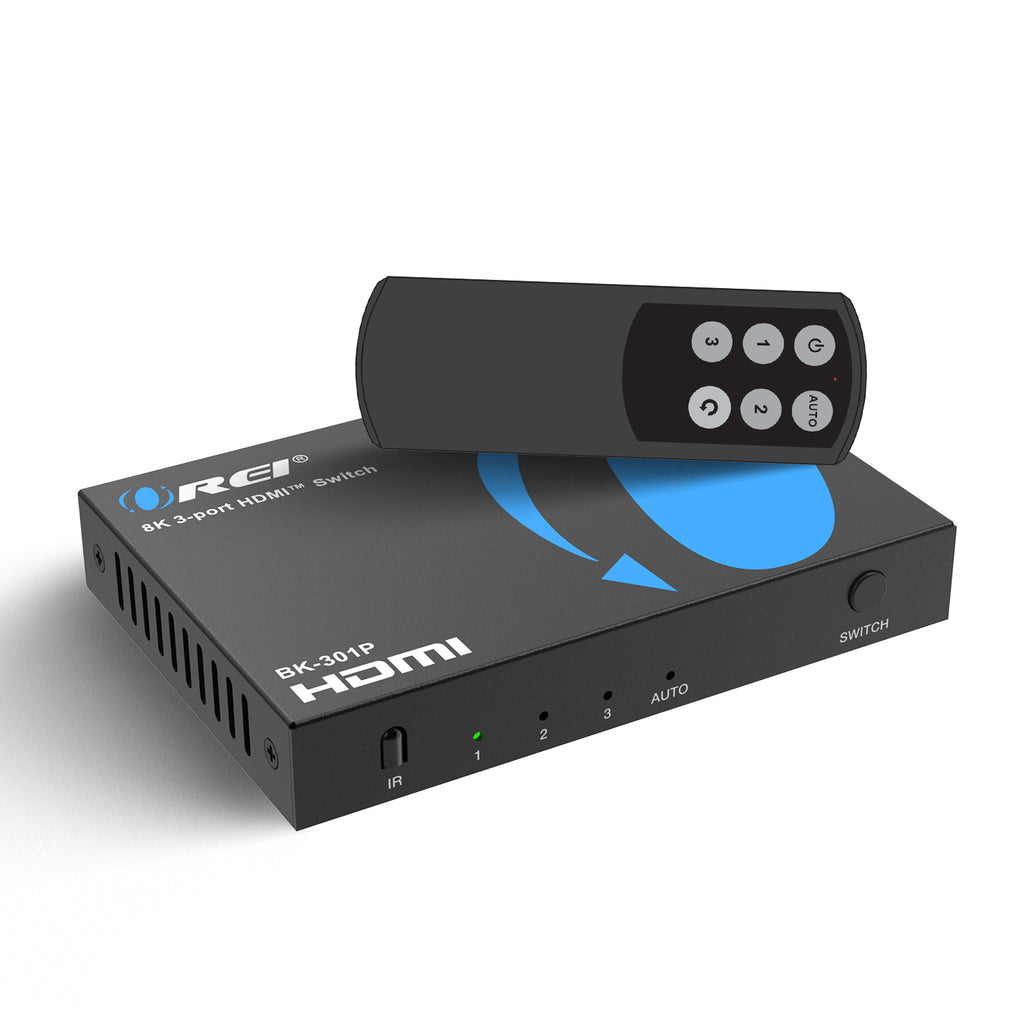

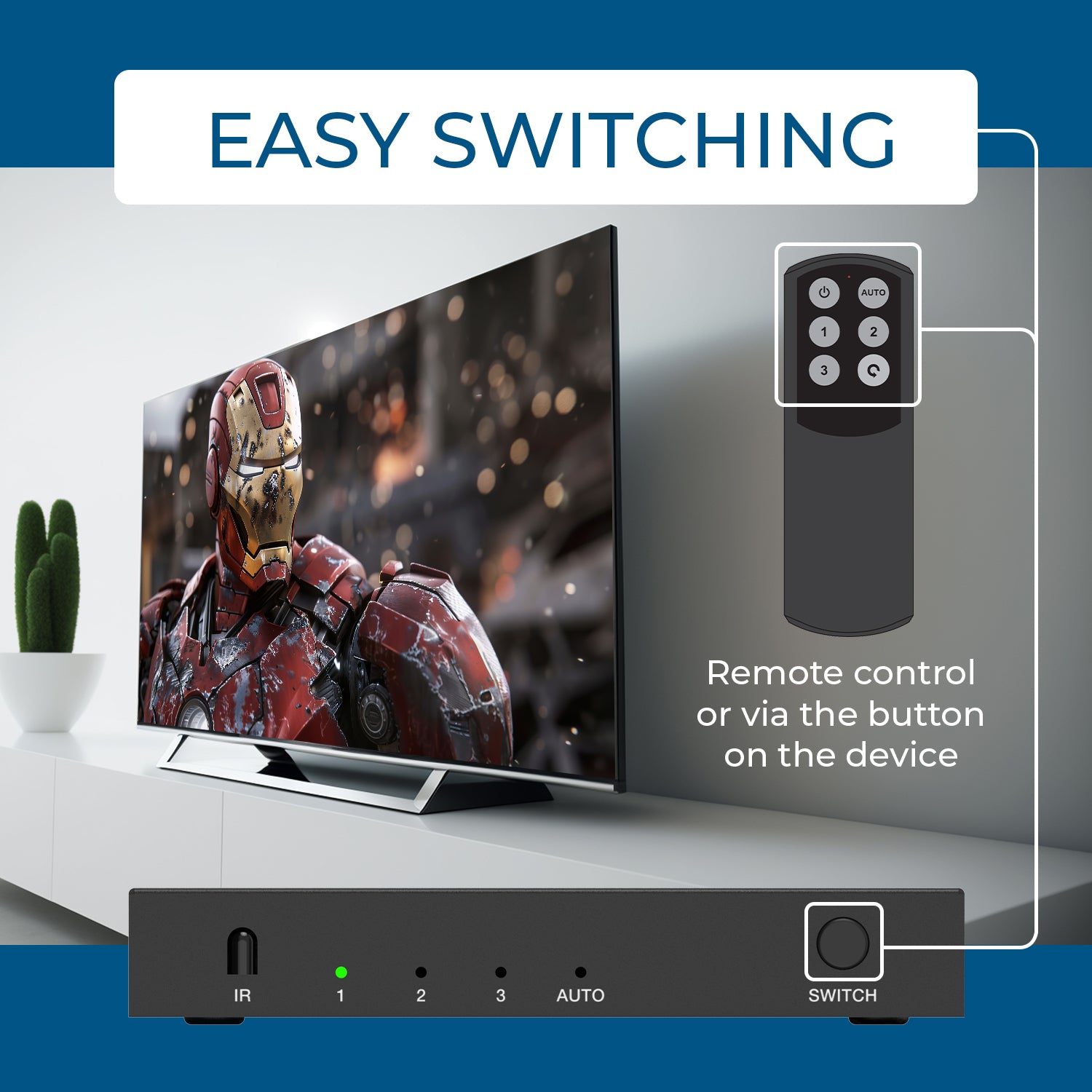

- Convenient Control Options – Easily switch inputs via front panel buttons or included IR remote.
- Auto & Manual Switching – Supports automatic source detection and manual switching modes.
- CEC Pass-through – Allows device control over HDMI™ for simplified system operation.
- CONNECTIVITY
- INPUT: 3× HDMI™ [Type A, 19-pin female]
- OUTPUT: 1× HDMI™ [Type A, 19-pin female]
- SUPPORTED HDMI CABLES
- HDMI 2.1 We recommend using high-quality HDMI 2.1 cables under 30 feet for optimum performance
- VIDEO OUTPUT
- Video Bandwidth: 48Gbps FRL and 18Gbps TMDS
- Video Resolutions: Up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit * All available resolutions are shown as follow.
- ADDITIONAL FEATURES
- CEC: Yes
- ARC: No
- USB KVM: No
- PoC/PoE: No
- IR Control: Yes
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- HDR: Yes
- AUDIO SUPPORT
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DTS:X
- COMPLIANCES
- HDMI Compliance HDMI™ 2.1
- HDCP Compliance HDCP 2.3
- POWER
- Power Consumption: 1.94W (Max)
- DIMENSIONS & WEIGHT
- Length: 75mm / 2.95in
- Width: 110mm / 4.33in
- Height: 18mm / 0.70in
- Weight: 180g / 6.35oz
- PROPERTIES Color: Black
- Housing: Metal
Includes:
- 1x BK-301P
- 1x Remote
- 1x Power Adapter
- User Manual
- 1-year manufacturer's warranty
