$159.00

  |

In Stock Soon: Usually Ships in 3-5 Business Days.

  • Supports KVM function
  • Able to extract the audio via S/PDIF port
  • Supports HDR (YUV 4:4:4), EDID pass back
REQUEST A QUOTE

FREE SHIPPING WITHIN *USA ON ORDERS $50 & MORE

                

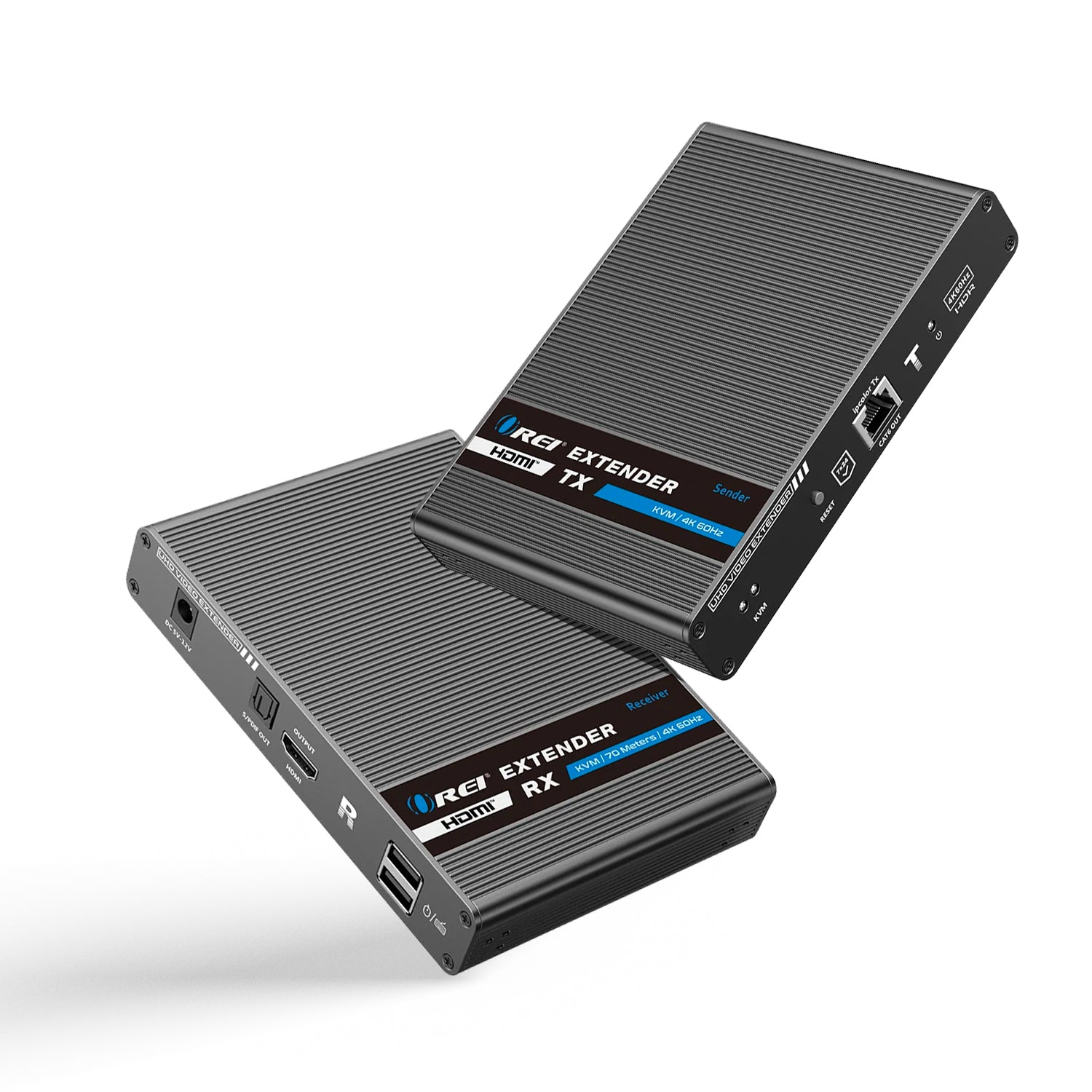

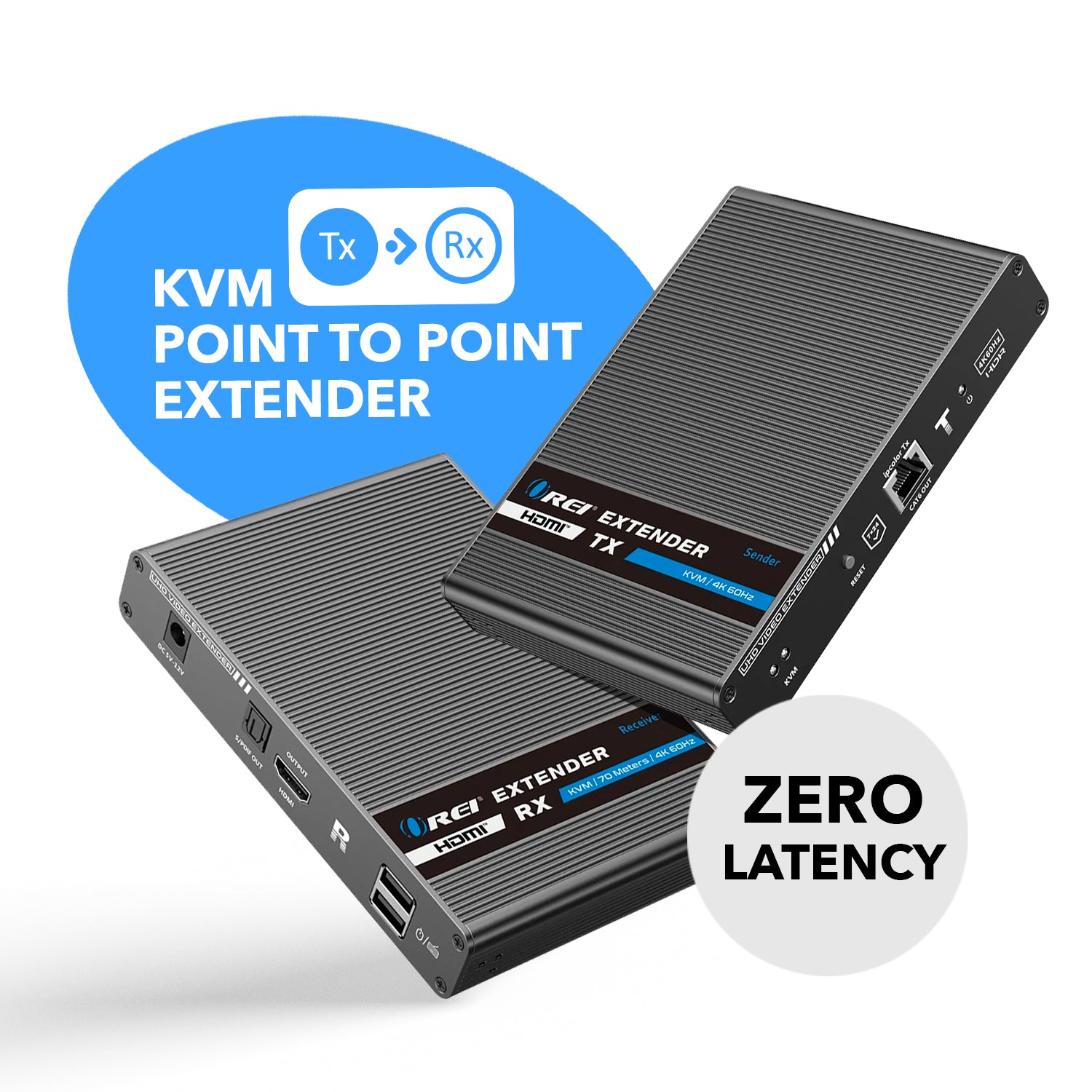

OREI UHD-IPC230-KVM 4K KVM HDMI Extender Over LAN up to 230Ft

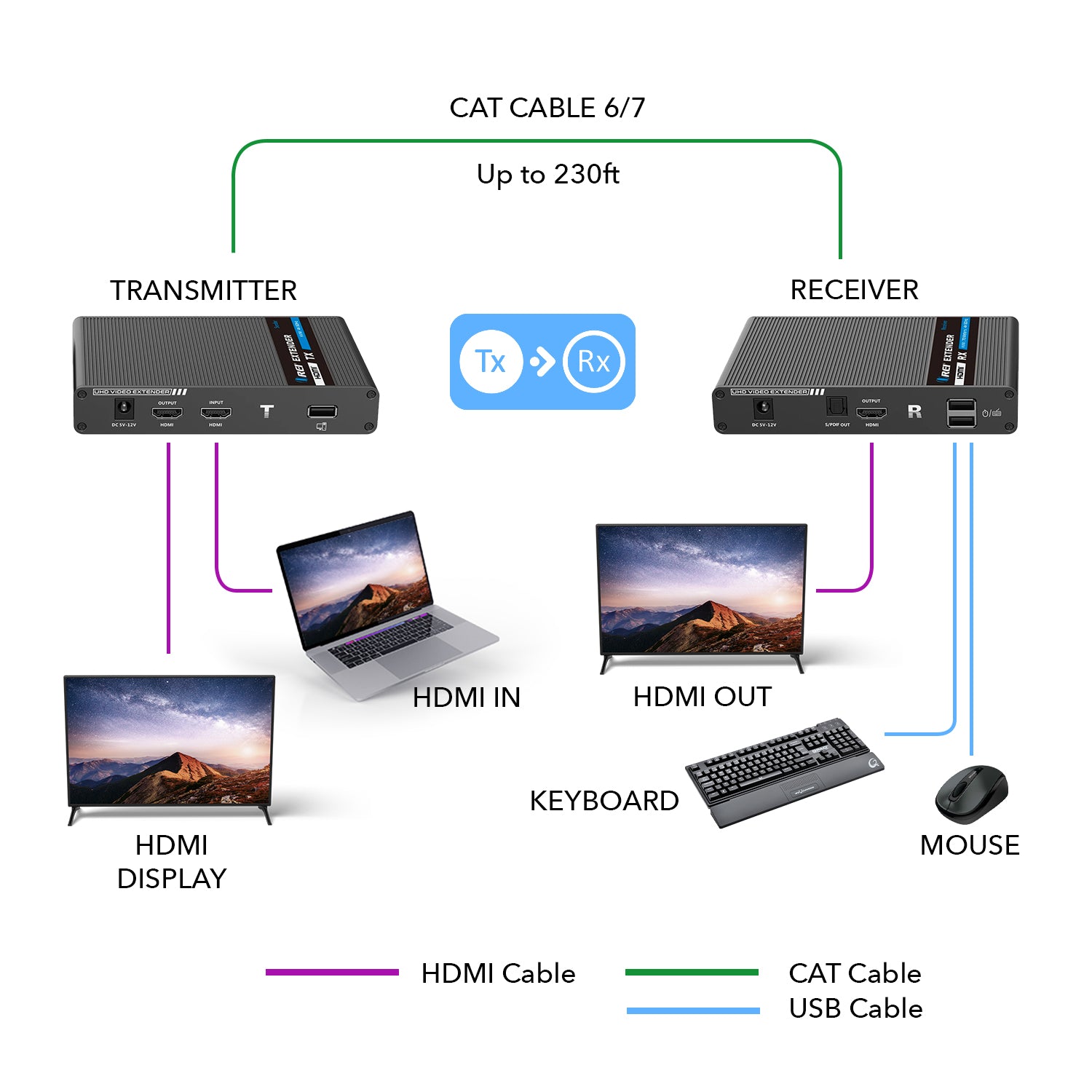

UHD-IPC230-KVM is a 4K UHD KVM HDMI Extender, allows HDMI signal to be transmitted up to 230 feet at 4K@60Hz resolution using a round shielded CAT6/7 network ethernet cable.

Compatible with HDMI units such PC, Roku, TV, Amazon Fire TV, Ultra Projector, Xbox, Apple TV, HDMI LCD, Cable box, Blu-ray player, DVD player, PC, STB and more. It is perfect for outdoor advertising, video clips, monitor system, home entertainment, conference etc.

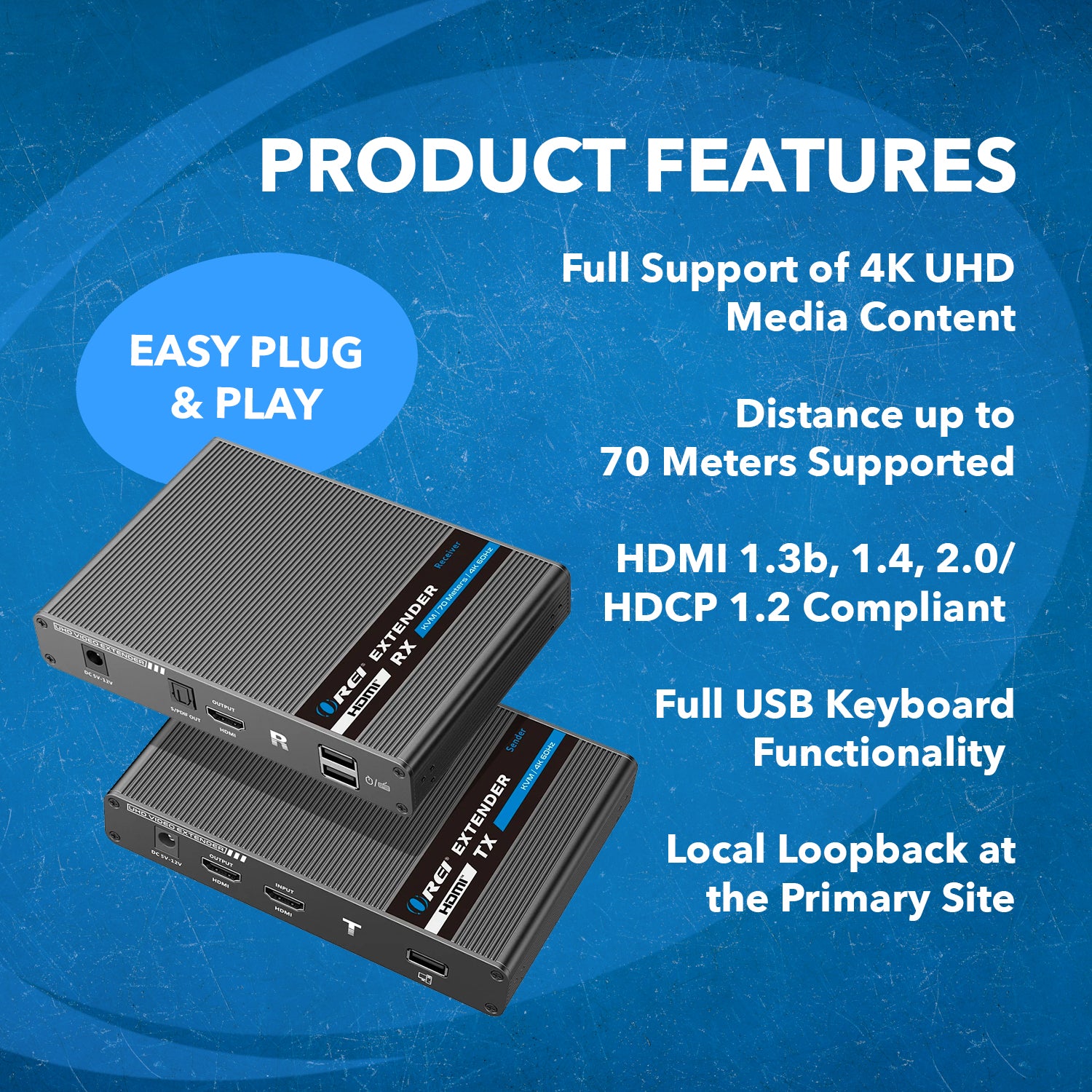

Key Features:
  • Transfers the 4K UHD video resolutions at zero latency

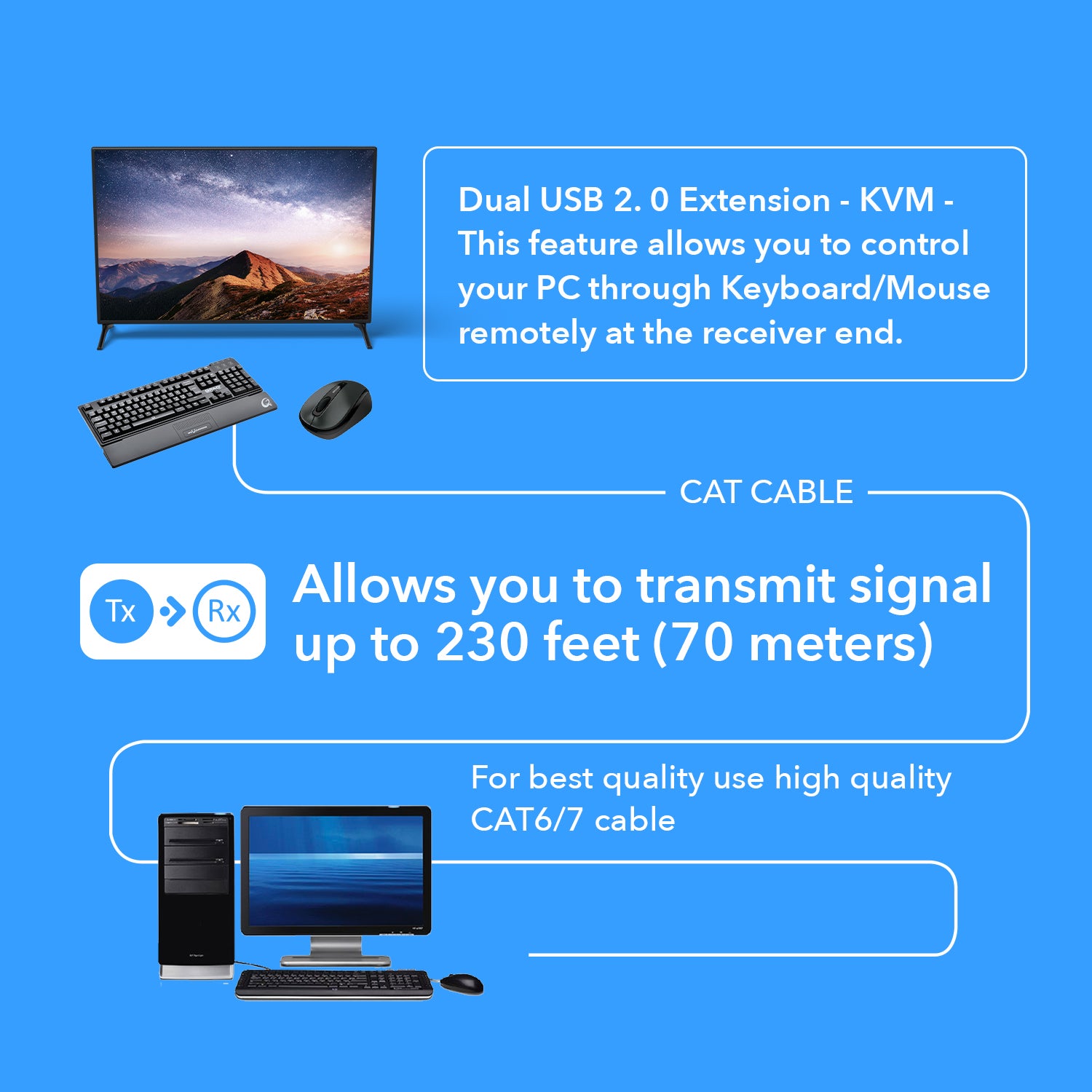

  • Supports KVM (keyboard, video and mouse) function
  • Supports ipcolor technology
  • HDMI 2.0 & HDCP 2.2 compliant
  • Extends 4K@60Hz signal up to 230 feet via shielded CAT6/7 cable
  • Supports HDR (YUV 4:4:4), EDID pass back
  • Supports LPCM, DTS-HD, DTS-Audio, Dolby Digital 5.1 Ch audio formats
  • The receiver can extract the digital audio from the transmitter through the S/PDIF port
  • Transmitter supports one HDMI loop out port
  • Lightning protection, surge protection, ESD protection
  • Plug & play setup
  • AUDIO AND VIDEO
    • Transmitter:
      • INPUT PORTS:
        • 1x HDMI Input
        • 1x USB
      • OUTPUT PORTS:
        • 1x Optical Output
        • 1x RJ45 Output
    • Receiver:
      • INPUT PORTS:
        • 1x RJ45 Input
      • OUTPUT PORTS:
        • 1x HDMI Output
        • 2x USB
  • COMPLIANCES
    • HDMI Compliance: HDMI 2.0
    • HDCP Compliance: HDCP 2.2
  • SUPPORTED CAT CABLES
    • CAT5e, CAT6, CAT7: We recommend you to use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
  • EXTENDING DISTANCE
    • 4K@60Hz: Up to 230 feet
  • VIDEO OUTPUT
    • Video Bandwidth: 18Gbps
    • Video Resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@60Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50Hz, 4096x2160@24/25Hz, 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1360x768, 1366x768, 1600x900, 1024x768, 800x600
  • CEC, EARC, POC/POE, IR, DOWNSCALER, KVM, OVER IP, HDBASET, RS-232 SUPPORT
    • CEC Function: No
    • ARC Function: No
    • USB KVM Function: Yes
    • PoC/PoE Function: No
    • IR Controller: No
    • Downscaler Function: No
    • Over Network/IP Function: No
    • HDBaseT Function: No
    • RS-232 Function: No
  • LOOP-OUT/LOCAL PORT
    • Has loop out port: Yes
    • Number of Loop out ports: 1
  • AUDIO OUTPUT
    • HDMI Audio Formats: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1 Ch.
    • SPDIF/Optical Audio Formats: Up to 5.1Ch.
  • SIGNALS
    • TMDS Signals: 0.7-1.2Vp-p(TMDS)
    • DDC Signals: 5Vp-p(TTL)

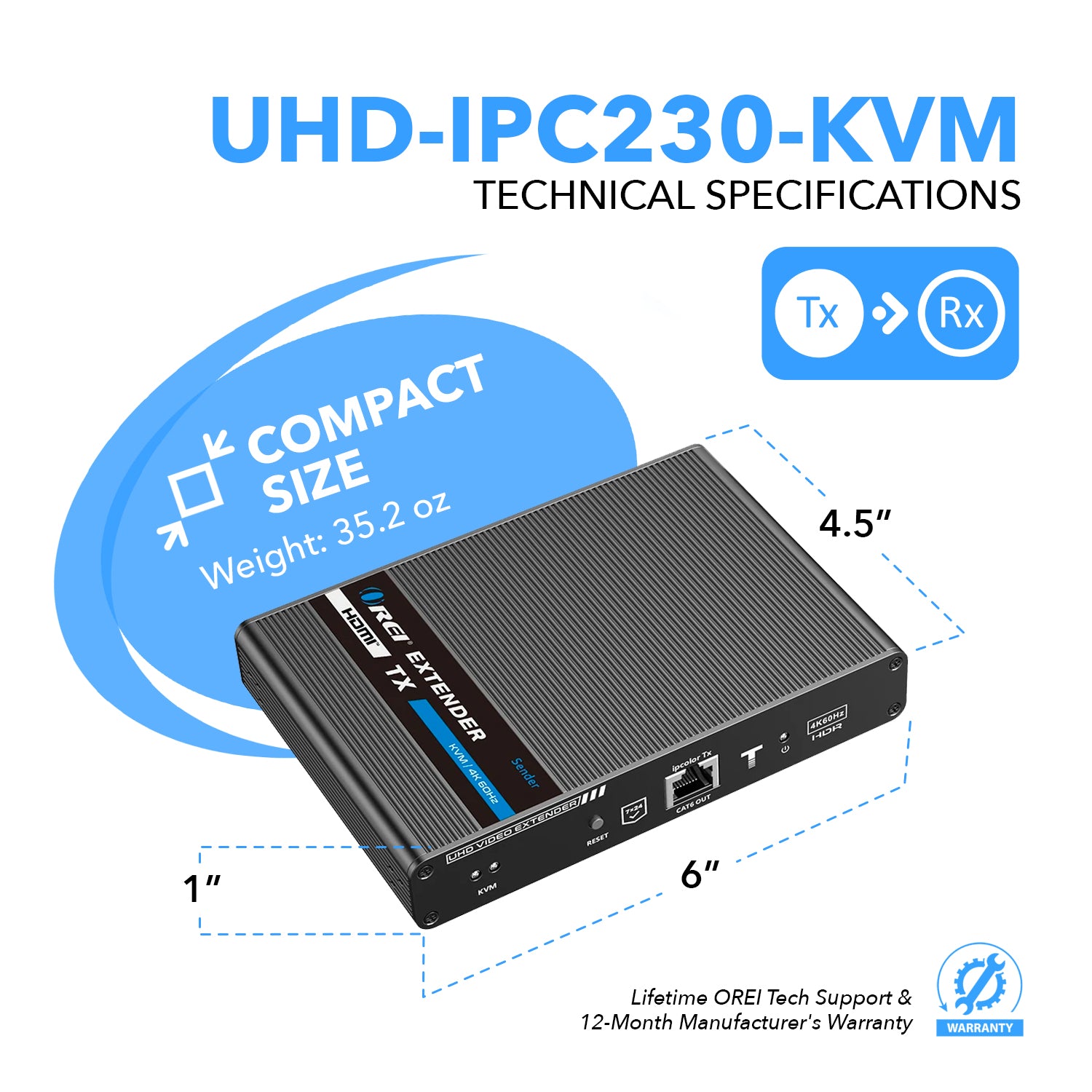

  • DIMENSIONS & WEIGHT
    • Height: 28.4mm
    • Width: 107mm
    • Depth: 150mm
    • Weight:
      • Transmitter: 260g
      • Receiver: 260g
  • PROTECTION
    • Operation Temperature: -20 ~ 60°C
    • Storage temperature: -30 ~ 70°C
    • Relative Humidity: 0 ~ 90% RH
    • Electrostatic Protection of the whole Machine: 1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2
  • RJ-45 CONNECTOR TYPE
    • WE/SS 8P8C
  • POWER
    • Power Consumption (Max):
      • Transmitter: 4W
      • Receiver: 4W
    • Power Supply: DC5V/12V
  • PHYSICAL PROPERTIES
    • Color: Black
    • Housing: Aluminium Alloy Material + Crystal Panel
    • Treatment Process: Grit Blast
    • Input Cable Length: <=8m(AWG24)
    • Output Cable Length: <=8m(AWG24)

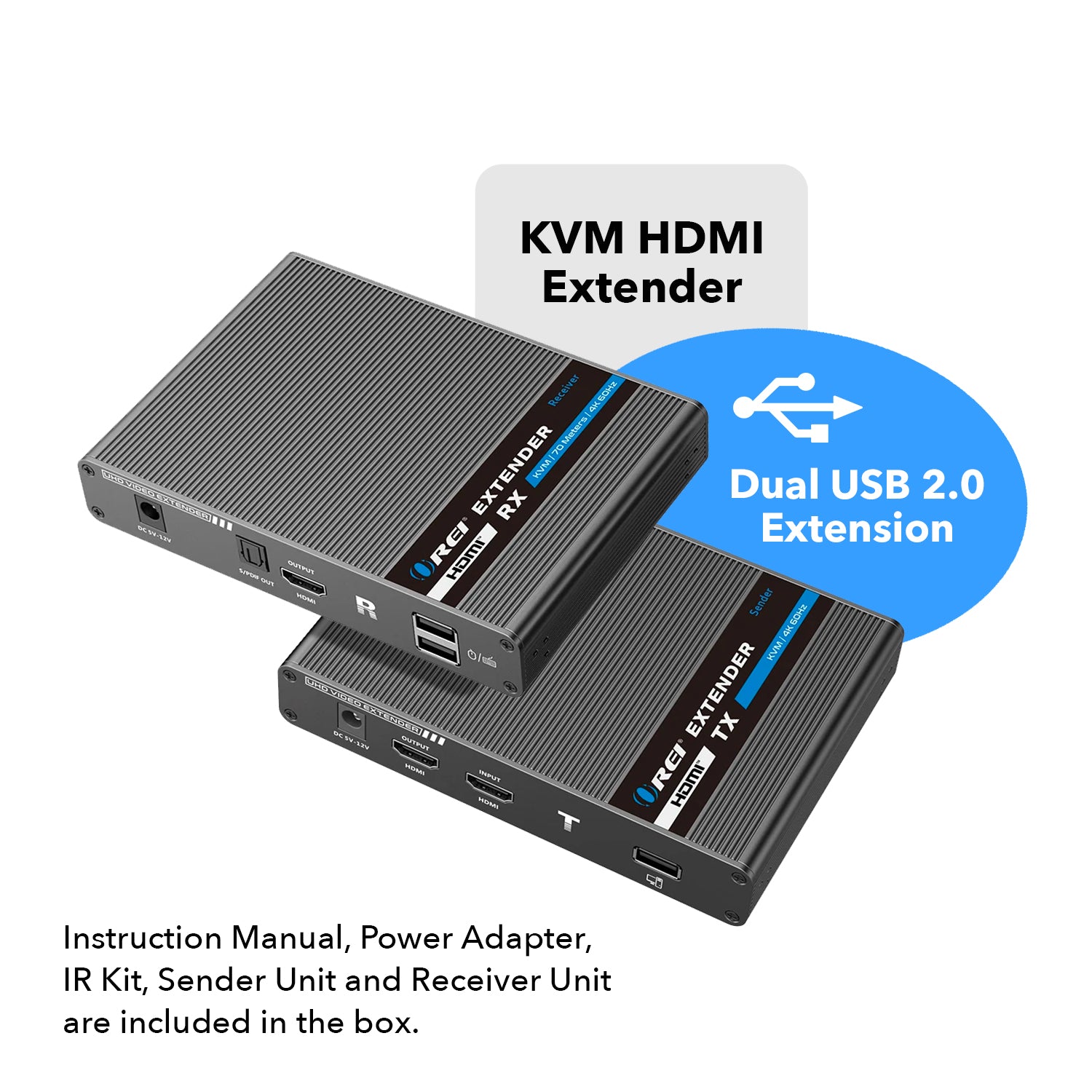

Includes:

  • 1x HDMI Transmitter
  • 1x HDMI Receiver
  • 2x DC5V/2A Power Adapter
  • 1x USB Cable
  • 8x Mounting Brackets
  • 18x Screw
  • 1x User Manual

Warranty:
  • 1 - Year Manufacturer's Warranty

Request a Quote


OREI 4K KVM HDMI Extender Over CAT6/CAT7 Cable, 4K@60Hz Up to 230 Ft – Keyboard & Mouse Over Network (UHD-IPC230-KVM)
