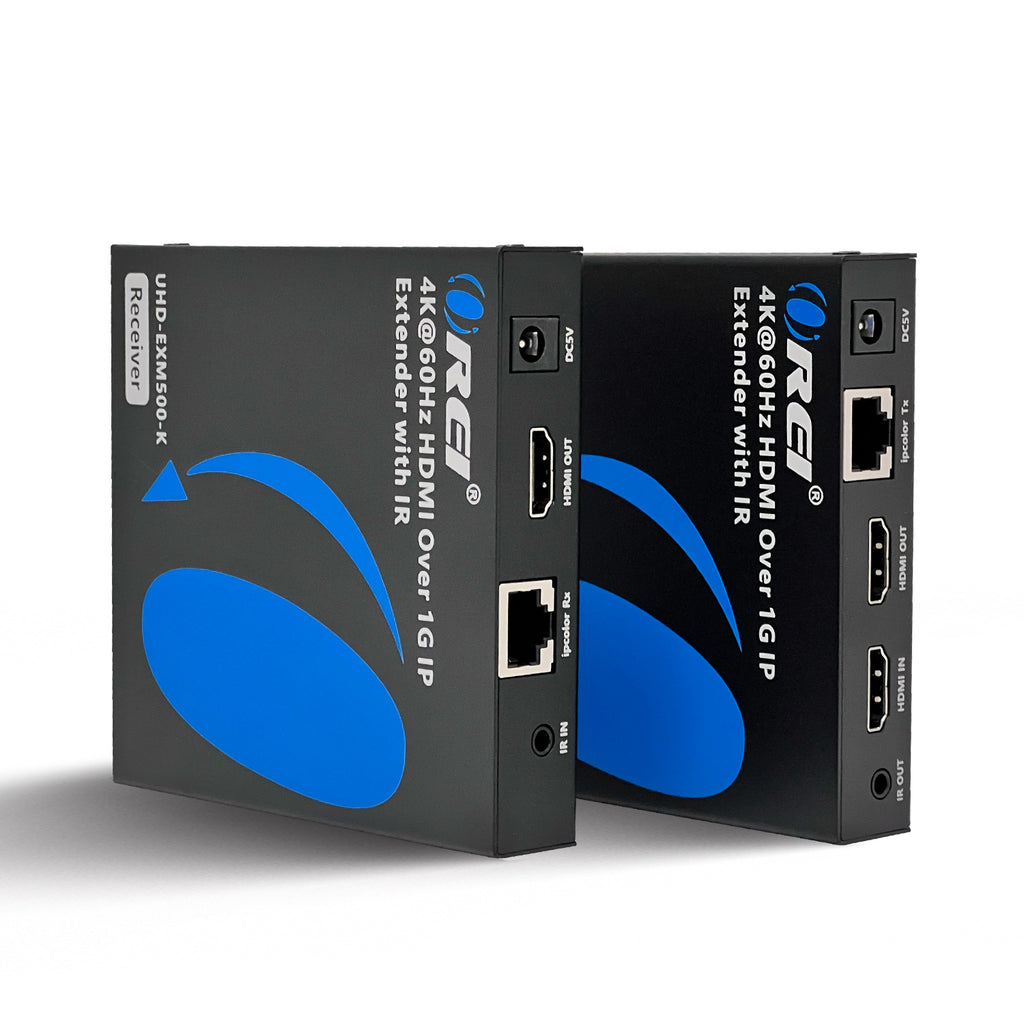

OREI UHD-EXM500-K: 4K HDMI EXTENDER UPTO 500 FT
The UHD-EXM500-K consists of a Transmitter and Receiver allowing you to extend HDMI audio/video signal to another location up to 500 Feet away using a CAT6/7 cable. The extender features ipcolor STREAM technology for high-definition and low-latency transmission.
The device supports video resolutions up to 4K@60Hz. It features an HDMI output on the Transmitter to connect a display at the source. The extender can be connected one-on-one through a CAT cable or one-to-many via a network switch.
It also works with multiple switch cascades. Features One-way IR transmission from Receiver to the Transmitter; enabling control of the source device from the Receiver end. The device also supports control through RS-232.
Key Features:
- Features ipcolor STREAM technology for high-definition audio/video transmission with low-latency.
- Video resolutions up to 4K@60Hz.
- Compatible with Cat5/5e/6 or above network cables. For extending signal up to 120M(500Feet) use CAT6 Round -Shielded cable.

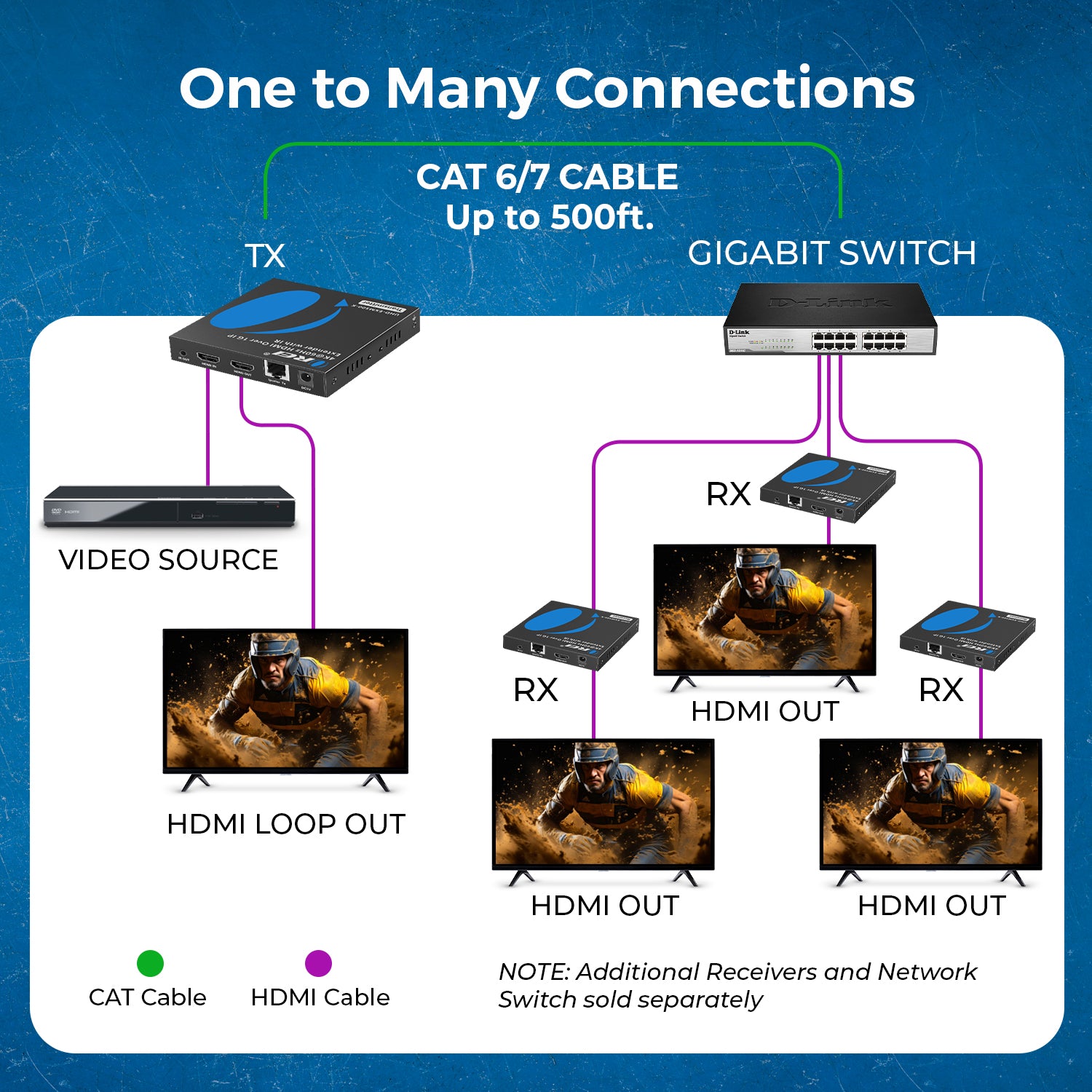

- Supports one-to-one or one-to-many connections through a network switch.
- Additional Receivers can be added to the setup via a network switch or through a network switch cascade as well.
- Features HDMI output on the Transmitter to connect a display at the source.
- One-way IR transmission (20~60kHz) from the Receiver to the Transmitter: enabling source device control from the Receiver end.
- The device also supports control through RS-232.
- Micro USB ports on the device can be used for Firmware upgrades.
- Lightning protection, surge protection, ESD protection
- HDMI Compliance: HDMI 2.0
- HDCP Compliance: HDCP 1.4/2.2
- Video Bandwidth: 18 Gbps
- Video Resolution: 4K@24/30/50/60Hz, 2560x1440@60Hz,2560x1600@60Hz, 1080p@50/60Hz, 720p@50/60Hz, 1920x1200@60Hz
- Color Space: RGB YUV 4:4:4 YUV 4:2:2 YUV 4:2:0
- Color Depth: 12 Bit
- HDR: Pass Through
- HDMI Audio Formats: PCM 2.0, LPCM 5.1/7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X
- Transmission Distance: 120M (500 Feet)
- Protection: Lightning, Surge and ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV)
- Implementation of the standard: IEC61000-4-2
- Transmitter: Inputs: 1 × HDMI [19-pin female]
- Transmitter: Outputs: 1 × HDMI [19-pin female]
- Transmitter: Outputs: 1 × CAT port [RJ45]
- Transmitter:Outputs: 1 × IR OUT [3.5mm Stereo Minijack]
- Transmitter: Controls: 1 × RS-232 [3-pin phoenix connector]
- Transmitter:Controls: 1 × SERVICE [Micro USB, Upgrade port]
- Receiver: Inputs: 1 × IR IN [3.5mm Stereo Minijack]
- Receiver:Inputs: 1 × CAT port [RJ45]
- Receiver: Output: 1 × HDMI [19-pin female]
- Receiver: Control: 1 × SERVICE [Micro USB, Update port]
- Housing: Iron
- Silkscreen Color: Black
- Dimensions: Transmitter & Receiver: 106mm (L) × 103mm (W) × 20.6mm (H)
- Weight: Transmitter: 254g, Receiver: 242g
- Power Consumption: Transmitter: ≤ 4.5W, Receiver: ≤ 2.5W
- Power Supply: Input: AC 100-240V 50/60Hz
- Power Supply: Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
- Operating Temperature: -4~140°F / -20~60°C
- Storage Temperature: -22~160°F / -30~70°C
- Relative Humidity: 0~90% RH (Non-condensing)
Includes:
- 1x Transmitter
- 1x Receiver
- 1x IR Blaster Cable
- 1x IR Receiver Cable
- 4x Mounting Ear
- 10x Screws
- 1x Grounding Screw
- 2x RS-232 Terminal Block
- 1x DC5V/1A Power Adapter
- 1x User Manual
Warranty:
- 1-Year Manufacturer's Warranty
