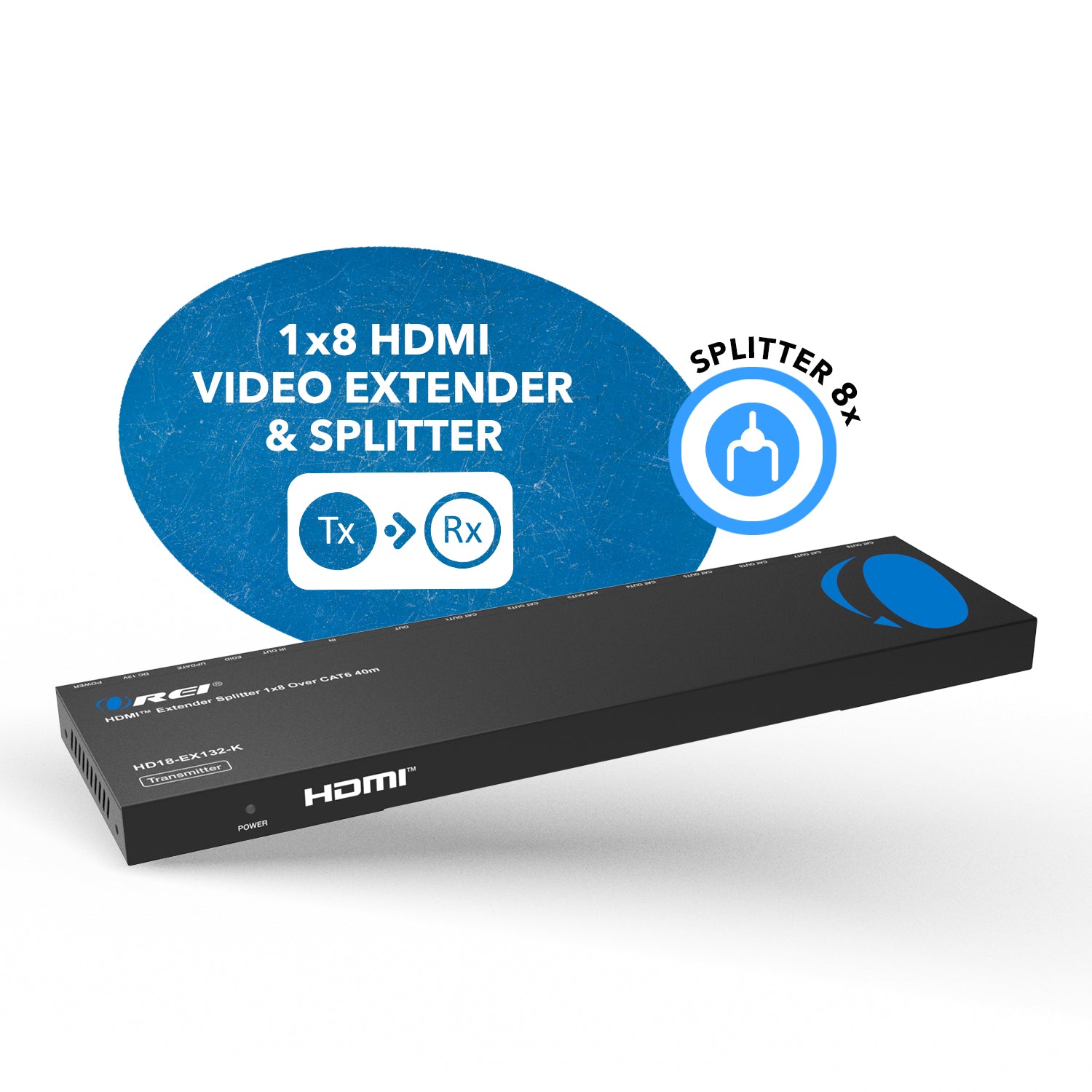

OREI HD18-EX132-K: 4K@30HZ 1X8 HDMI™ EXTENDER SPLITTER (LOOP) - 132FT (CAT6)

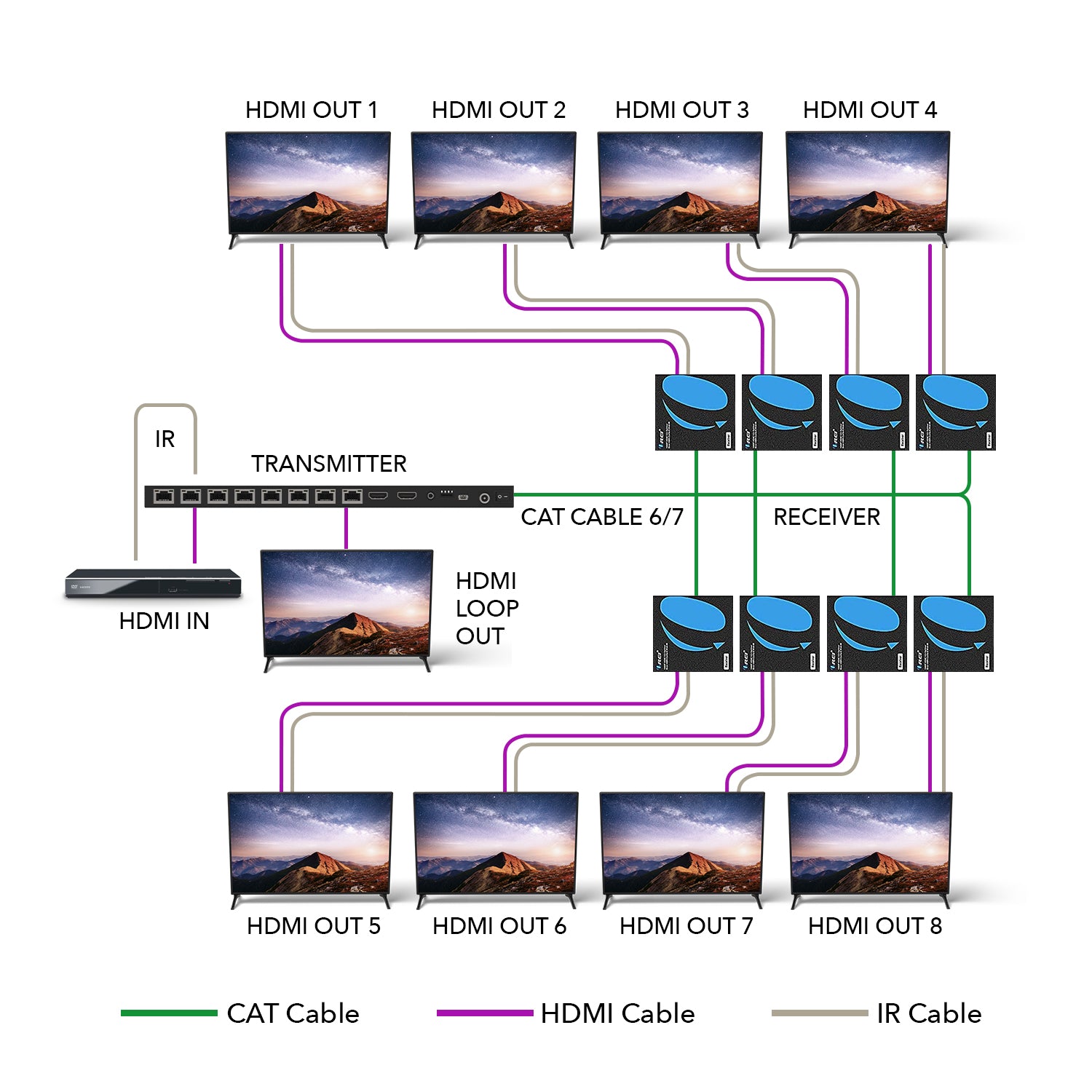

The HD18-EX132-K efficiently distributes one HDMI source signal to any eight display devices placed far away. It supports video resolutions up to 4K@30Hz at 132 feet and 1080p@60hz up to 230 feet over a CAT6/7 cable. The device is HDMI 1.4 and HDCP 1.4 compliant. It provides video bandwidth of 10.2Gbps while providing support for audio formats such as LPCM 7.1, Dolby True HD and DTS-HD Master Audio.
The Transmitter features an HDMI loop out to connect a display near the source. The device also comes with unidirectional IR control from Receiver to the Transmitter and also support PoC requiring only one power adapter. This Extender Splitter is perfect for video distribution to 8 displays placed far away in any residential or commercial setups given its robust metal build and plug and play setup.
Key Features:
- HDMI 1.4 and HDCP 1.4 compliant
- Video resolutions up to 4K@30Hz and 1080p@60Hz
- 10.2Gbps video bandwidth

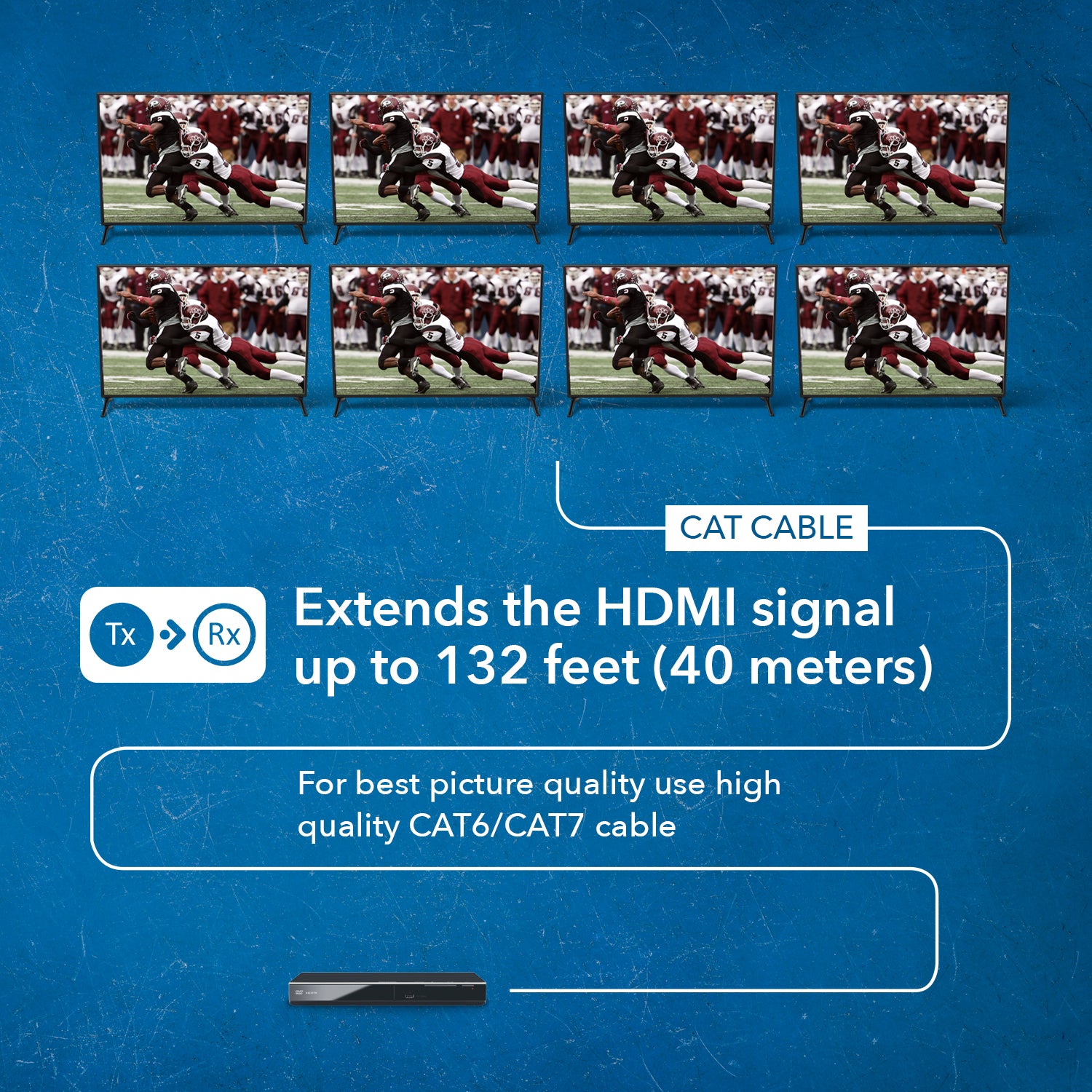

- Extend audio/video signals up to 132 feet at 4K@30Hz and up to 230 feet at 1080p@60Hz
- Audio formats: LPCM 7.1, Dolby True HD and DTS-HD Master Audio

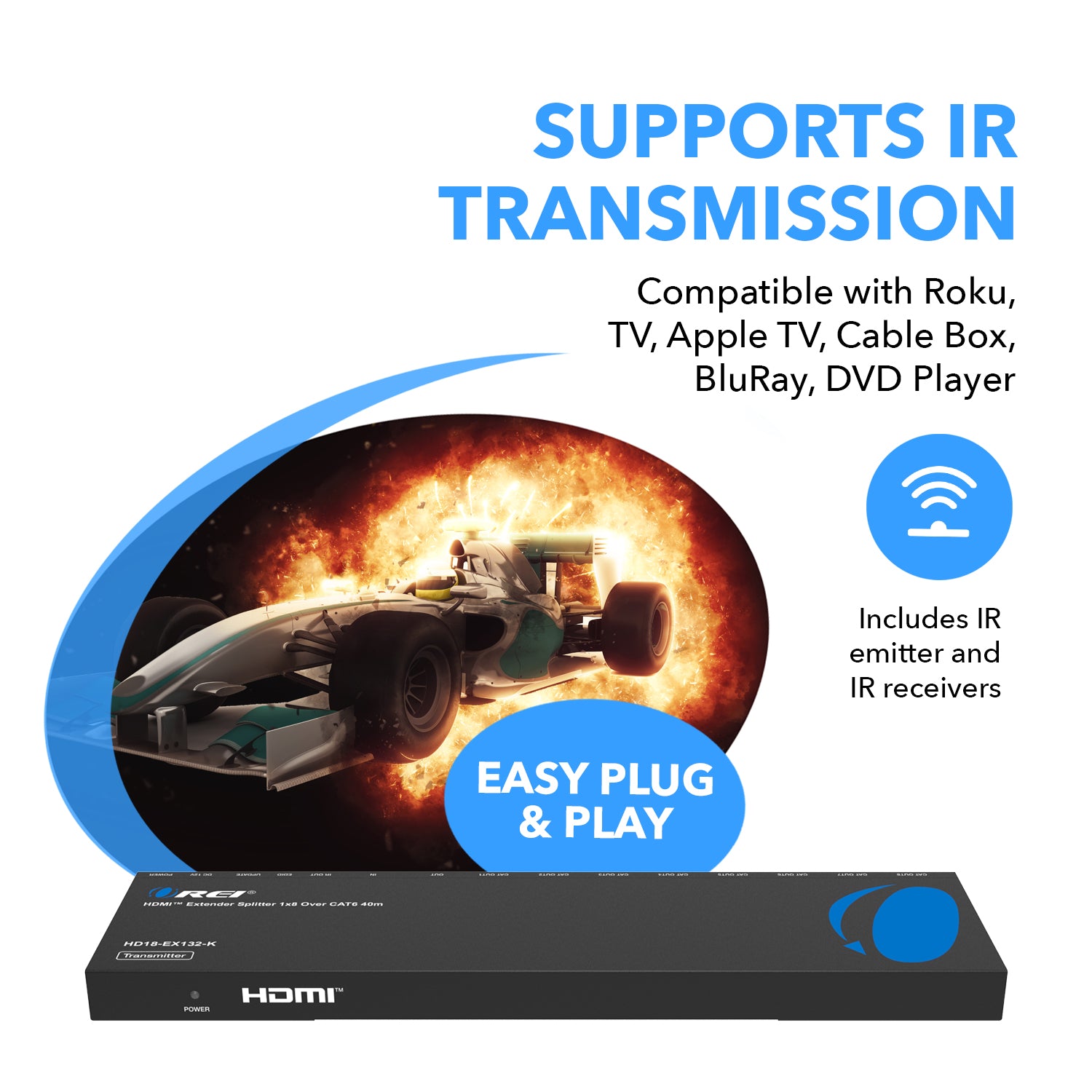

- Unidirectional IR control from the Receivers to the Transmitter

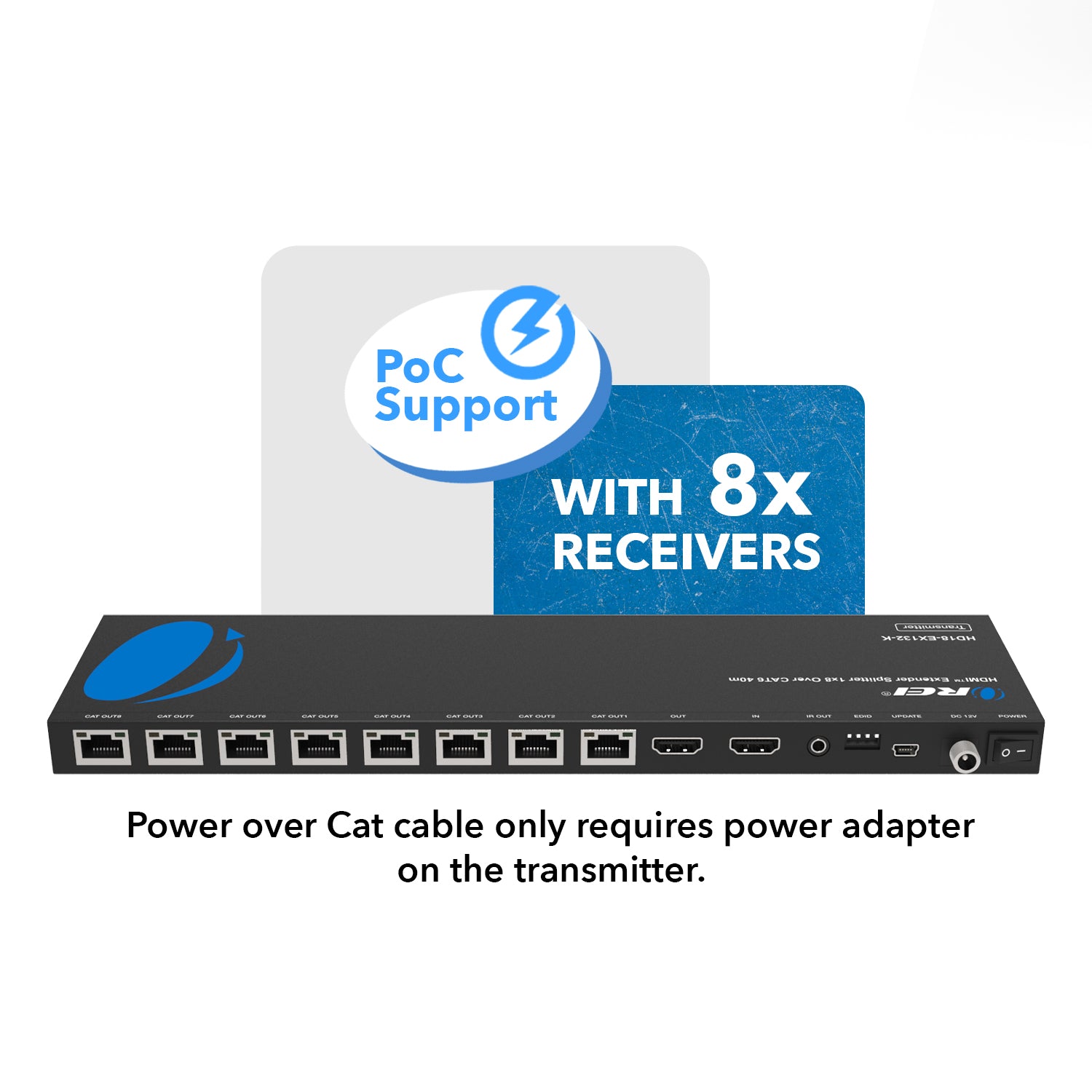

- Power over Cable support requiring only one power adapter
- HDMI loop out to connect a display near the source
- Advanced EDID management
- Robust metal build and plug and play setup
- CONNECTIVITY
- Transmitter: INPUT: 1 × HDMI [Type A, 19-pin female]
- OUTPUT: 1 × HDMI [Type A, 19-pin female]
- 8 x CAT [RJ45, 8-pin female]
- CONTROL: 1 × IR OUT [3.5mm Stereo Mini-jack]
- 1 x SERVICE [Micro USB, Update port]
- Receiver: INPUT: 1 x CAT [RJ45, 8-pin female]
- OUTPUT: 1 × HDMI [Type A, 19-pin female]
- CONTROL: 1 x IR IN [3.5mm Stereo Mini-jack]
- SUPPORTED CAT CABLES
- CAT6, CAT7: We recommend you use shielded CAT6 cables & High-Quality HDMI Cables for optimum performance
- EXTENDING DISTANCE
- 4K@30HZ: 132 Feet
- 1080P@60Hz: 230 Feet
- VIDEO OUTPUT
- Video Bandwidth: 10.2Gbps
- Video Resolutions: 480i ~1080p60Hz, 4K@30Hz
- ADDITIONAL FEATURES
- CEC: No
- ARC: No
- USB KVM: No
- PoC/PoE: Yes
- IR Control: Yes
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- LOOP-OUT/LOCAL PORT
- Has loop out port: Yes
- Number of Loop out ports: 1
- AUDIO SUPPORT
- HDMI Audio Formats: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Audio
- HDR: HDR, HDR10, Dolby Vision, HLG
- COMPLIANCES
- HDMI Compliance HDMI 1.4
- HDCP Compliance HDCP 1.4
- POWER
- Power Consumption: 19.2W (Max)
- Power Supply: Input: AC 100-240V 50/60Hz Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified)
- DIMENSIONS & WEIGHT

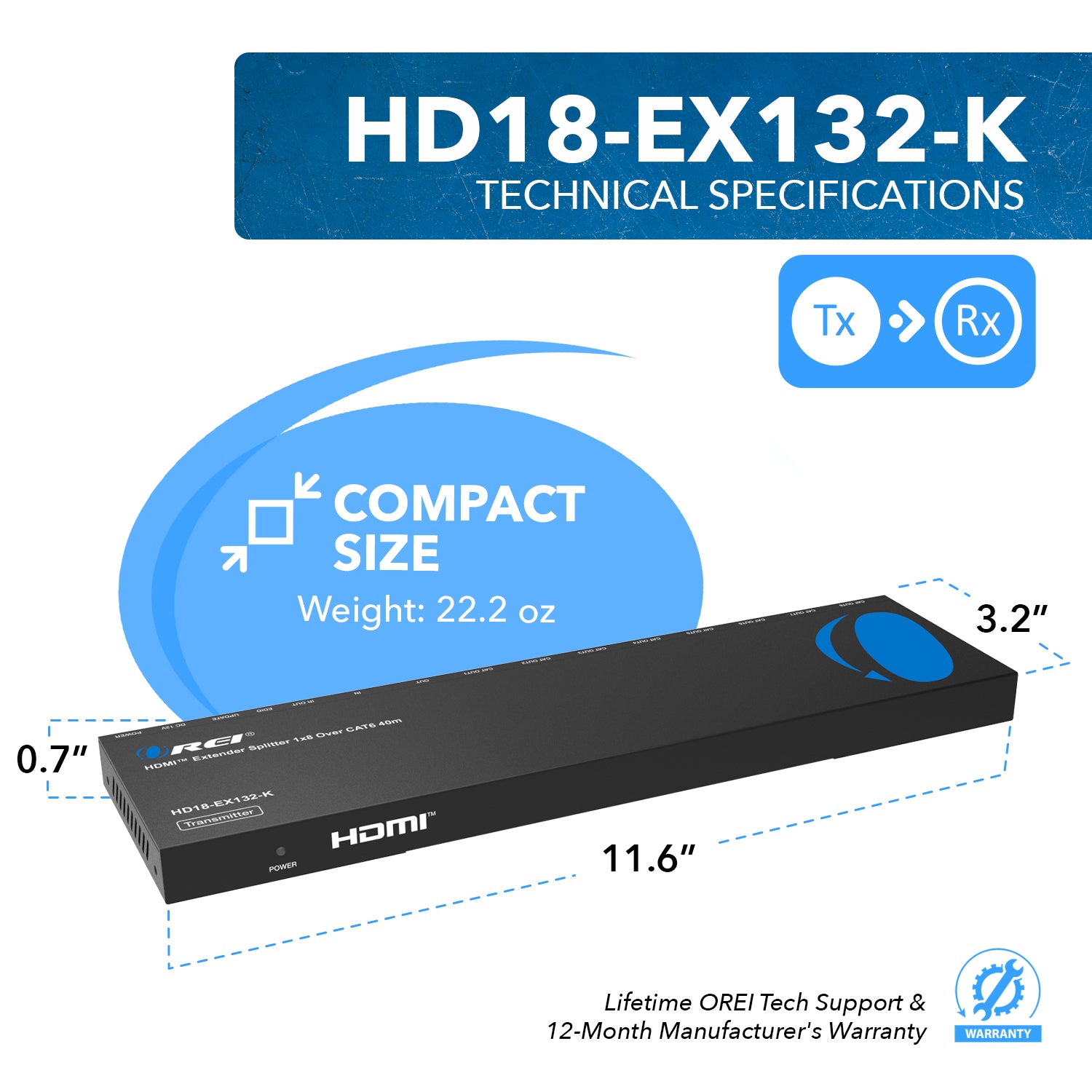

- Transmitter: Length: 295mm / 11.61in
- Width: 82mm / 3.23in
- Height: 18mm / 0.71in
- Weight: 628g / 1.39lbs
- Receiver: Length: 79.5mm / 3.12in
- Width: 69mm / 2.72in
- Height: 16.5mm / 0.65in
- Weight: 130g / 4.58oz
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 20~90% RH (non-condensing)

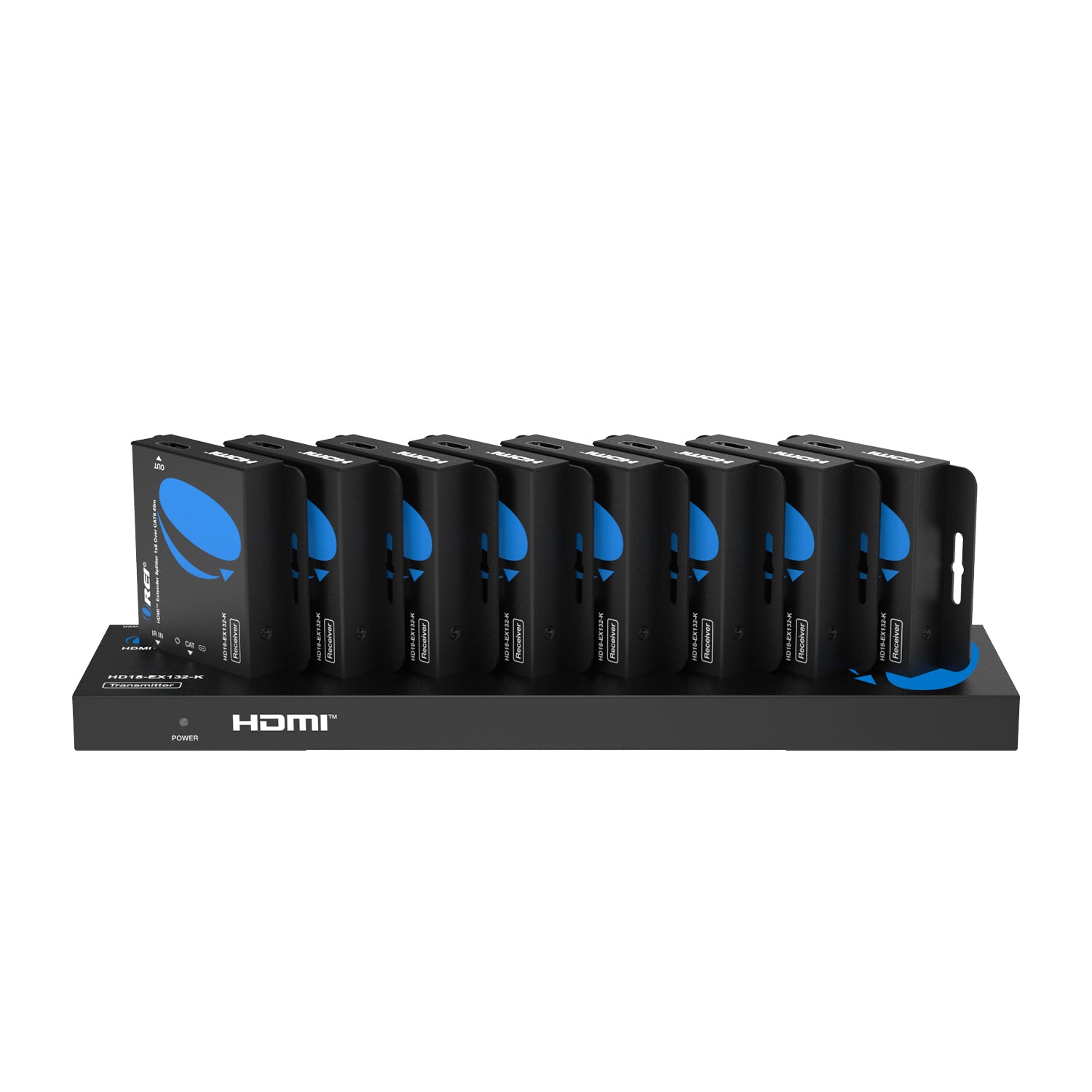

Includes:
- 1x Transmitter
- 8x Receivers
- 1x IR Blaster cable
- 8x IR Receiver cable
- 2x Mounting ear
- 8x Machine Screw (KM3*4)
- 1x Power Adapter
- User Manual
- 1-year manufacturer's warranty
