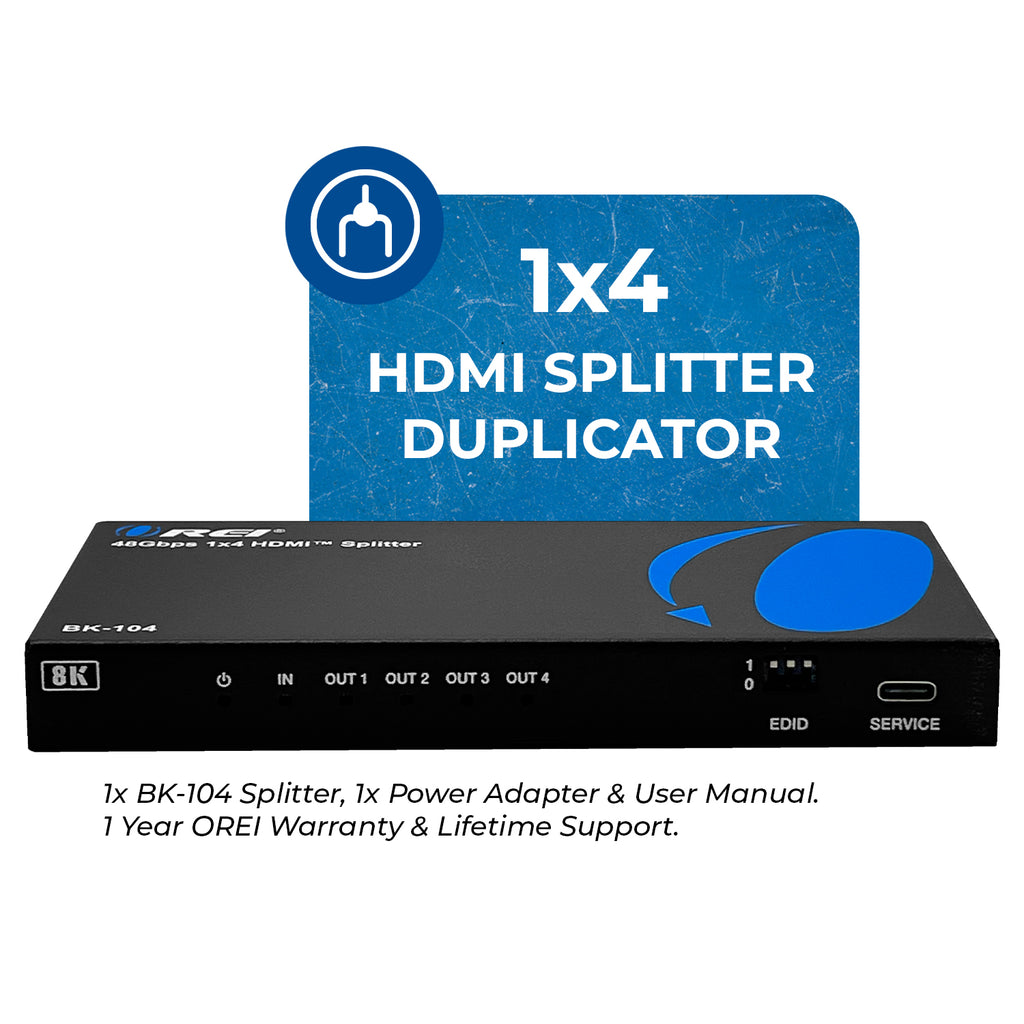

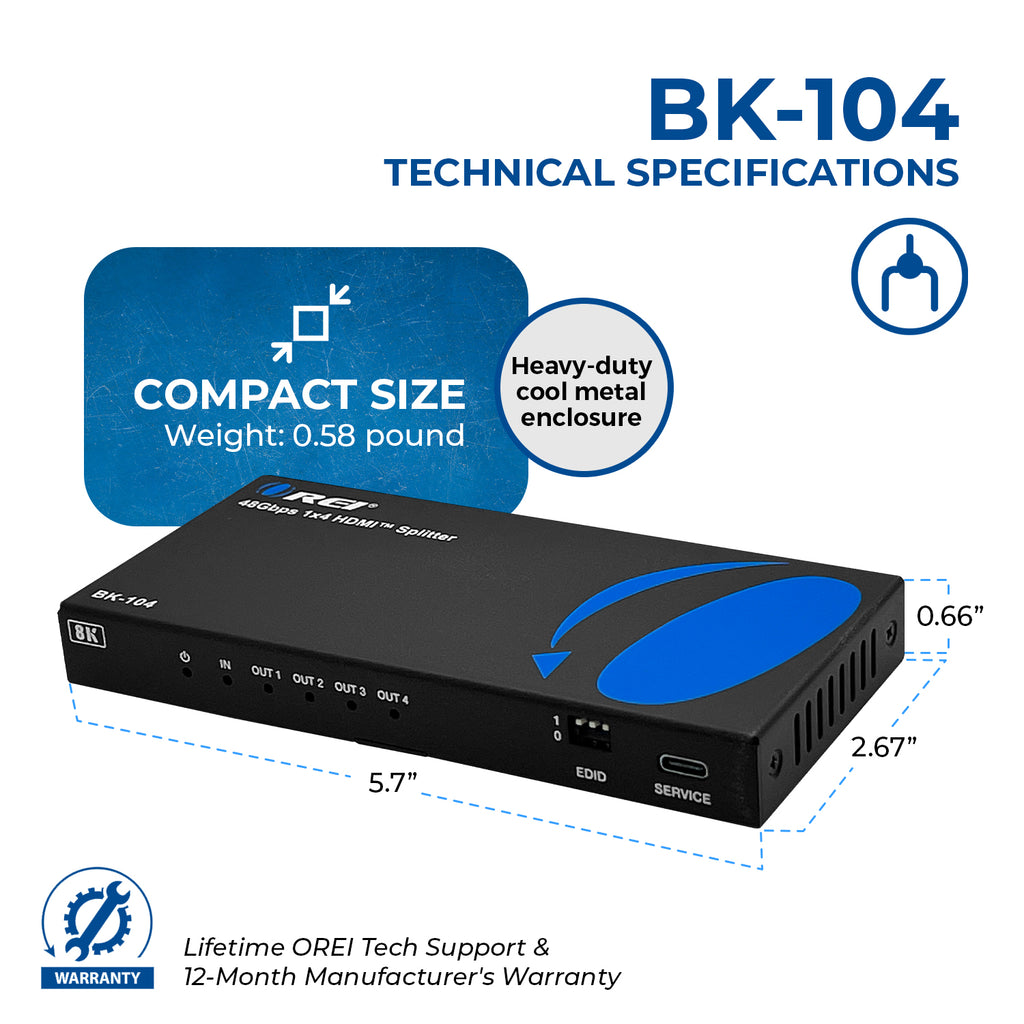

OREI BK-104: 1X4 8K HDMI SPLITTER WITH AUDIO OUT
The BK-104 Splitter is an advanced solution for splitting single HDMI signal to 4 HDMI outputs synchronously, with video resolution up to 8K@60Hz 4:2:0 12bit. It supports data rates up to 48Gbps to comply with HDMI 2.1 and HDCP 2.3 requirements. To transmit 4K@120Hz content, we recommend using cables under or equal to 10 feet.
It includes several features for ease of integration, including EDID management, cable equalization.
This multi-functional product can work well with xbox or PS5 to achieve 4K@120Hz on your TVs or relative monitors.
Key Features:
- HDMI 2.1 and HDCP 2.3 compliant
- Support 48Gbps FRL and 18Gbps TMDS video bandwidth
- Support video resolution up to 8K@60Hz 4:2:0 12bit, 4K@120Hz 4:4:4 12bit
- HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
- Support HDR, HDR 10, HDR 10+, Dolby Vision, HLG pass-through
- LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master, DTS:X Audio pass-through
- 8K to 4K or 8K/4K to 1080P auto downscaling on all outputs
- HDR to SDR auto converting on all outputs
- Advanced EDID management
- Compact design for easy and flexible installation
Includes:
- 1 × BK-104 HDMI Splitter
- 1 × 5V/1A Multinational Power Supply
- 1 × User Manual
- 1 - Year Manufacturer's Warranty
Request a Quote
OREI 1x4 HDMI Splitter W/ Audio Out: 1-In 4-Out, UltraHD 8K, EDID (BK-104)
