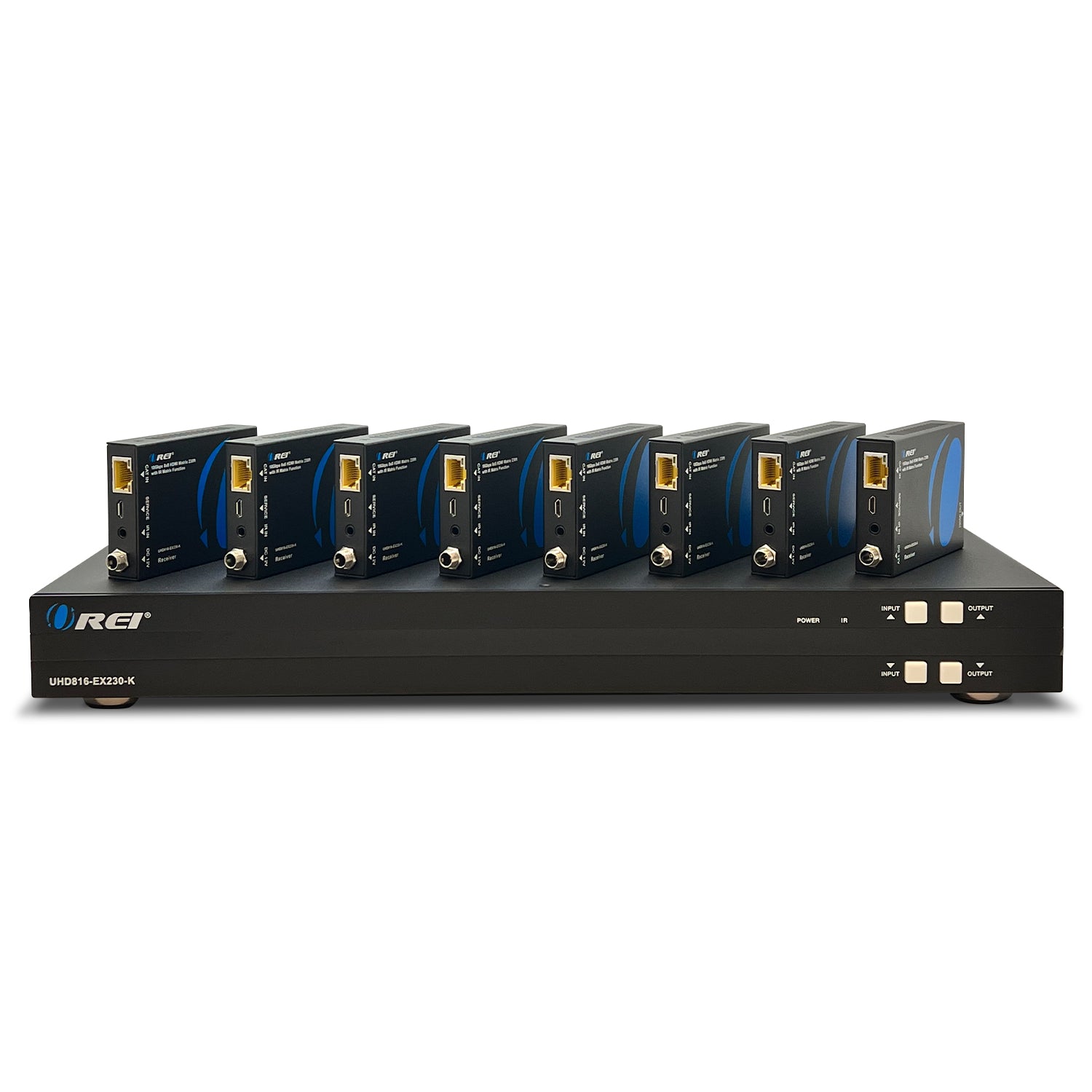

OREI UHD816-EX230-K: 8x8 HDMI MATRIX SWITCHER
The UHD816-EX230-K Matrix can connect up to 8 HDMI sources and output to 16 displays. It features eight HDMI outputs, and each HDMI output is mirrored to provide a CAT-Cable output that runs simultaneously.
It supports transmission of video with resolutions up to 4K@60Hz 4:4:4 and supports HD digital audio formats such as LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio.

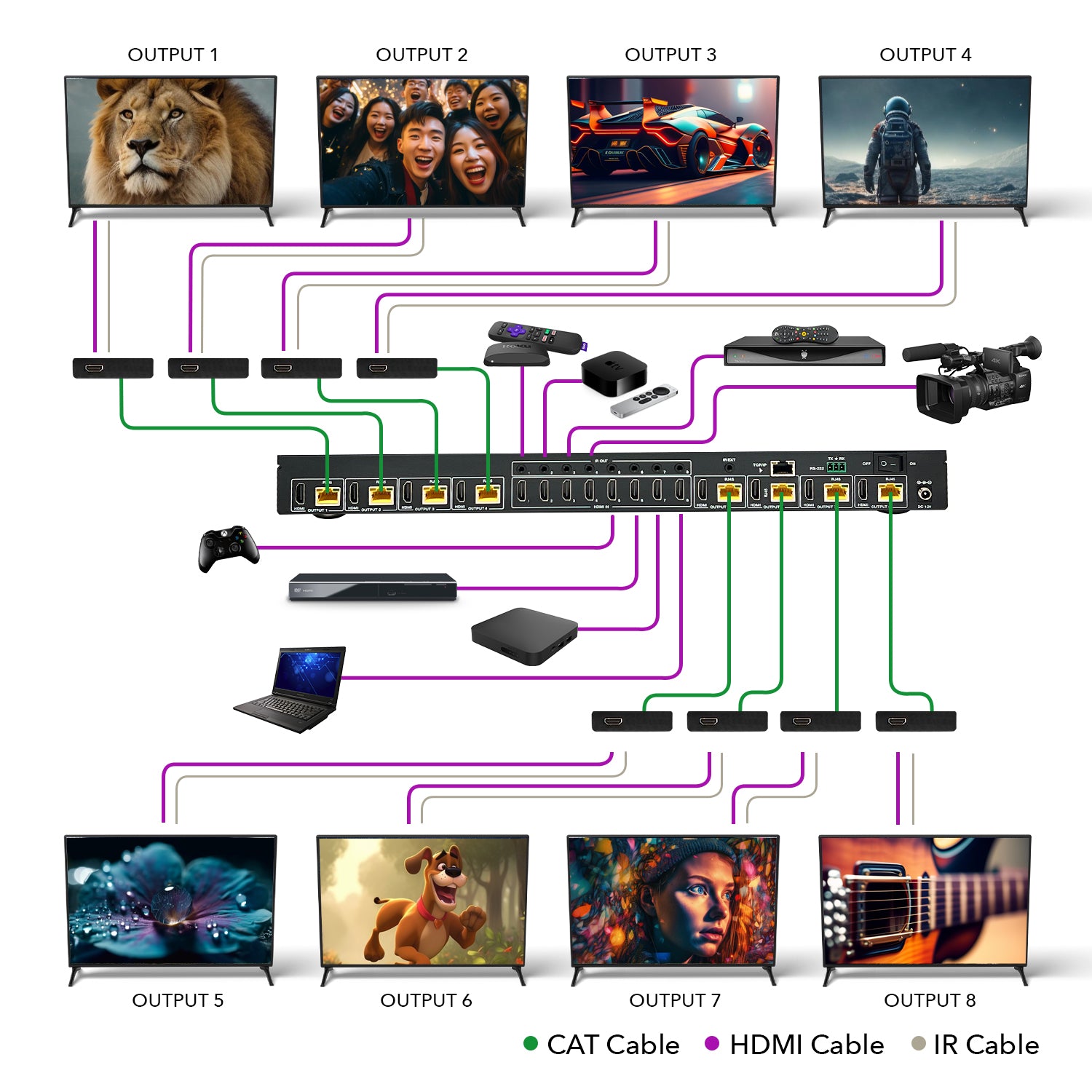

The Matrix can be used for multi-room connectivity, and the HDMI signals can be extended up to 230ft/70m via CAT-Cable outputs by connecting the included CAT Receivers.
The Matrix supports a one-way IR matrix function. It can be controlled via front panel buttons, IR remote, RS-232, LAN, and Web GUI.
Key Features:
- HDMI 2.0b and HDCP 2.2/1.x compliant
- Video resolution up to 4K@60Hz (YUV 4:4:4) on all HDMI & CAT ports
- 8 HDMI inputs, 8 HDMI & CAT mirrored outputs
- HDMI ports support 18Gbps lossless compressed video bandwidth
- HDR, HDR10, HDR10+, Dolby Vision, HLG are supported
- CAT output can extend the transmission distance up to 230ft/70m via a single CAT6 cable
- HDMI audio pass-through up to 7.1CH HD audio (LPCM, Dolby TrueHD and DTS-HD Master Audio)
- Advanced EDID management and CEC control are supported

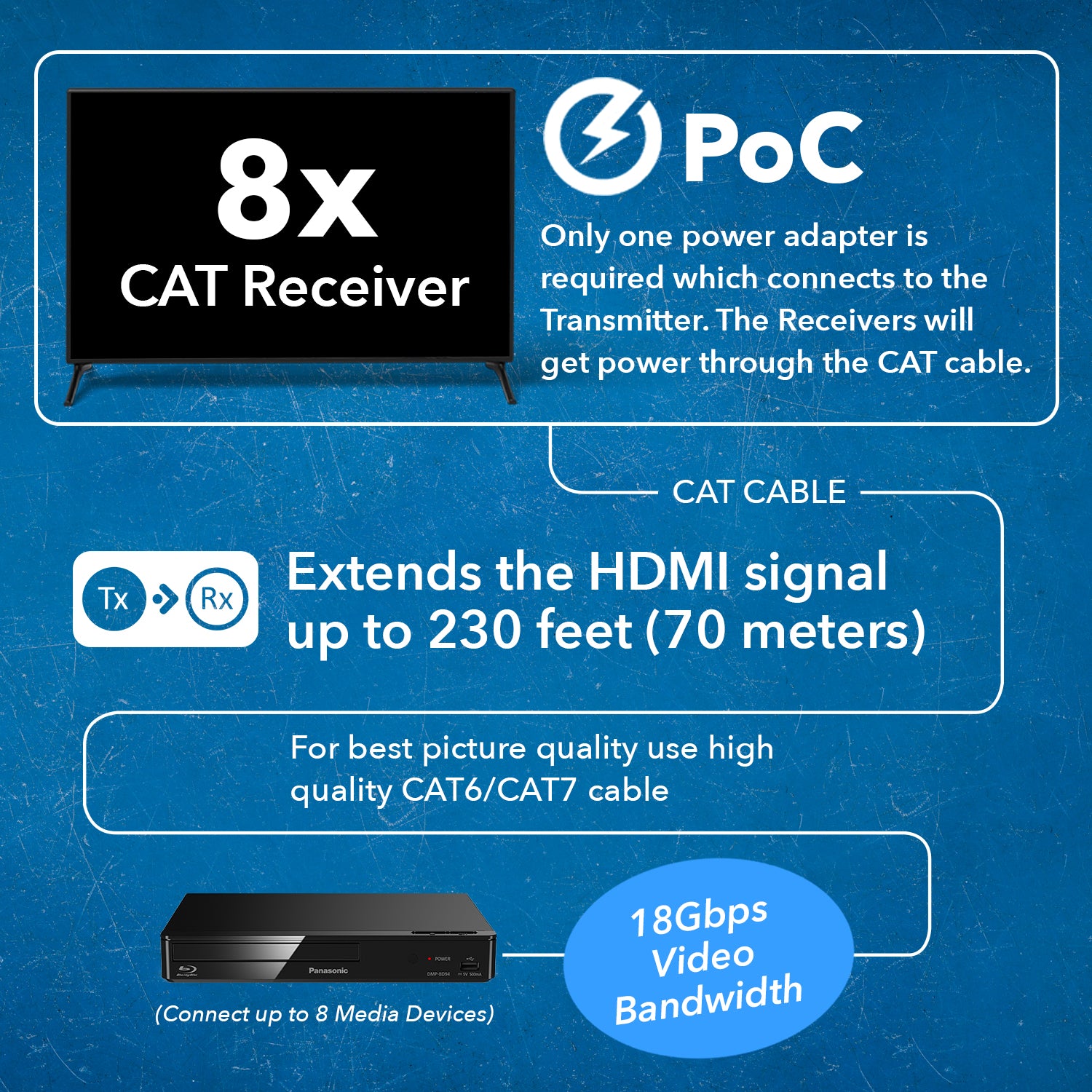

- 12V PoC on all CAT ports
- Supports one-way IR matrix function
- Control via front panel buttons, IR remote, RS-232, LAN and Web GUI
INPUT PORTS: 8 × HDMI Type A [19-pin female]
OUTPUT PORTS: 8 × HDMI Type A [19-pin female]
8 × CAT port [RJ45]
CONTROL PORTS: 1 × TCP/IP [RJ45]
1 × RS-232 [3-pin phoenix connector]
8 × IR OUT [3.5mm Stereo Mini-jack]
1 × IR EXT [3.5mm Stereo Mini-jack]
AUDIO AND VIDEO
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K@50/60Hz (4:4:4)
HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
COMPLIANCES
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2 and HDCP 1.x
POWER
Power Consumption: 50W (Max)
Power Supply: Input: AC 100-240V 50/60Hz; Output: DC 12V/5A (US/EU standards, CE/FCC/UL certified)
FUNCTIONS
CEC Function: Yes
ARC Function: No
IR Controller: Yes
Downscaler Function: No
Over Network/IP Function: Yes
RS-232 Function: Yes
Screen Flip Function: No
PROTECTION
Operation Temperature: 32~104°F / 0~40°C
Storage temperature: -4~140°F / -20~60°C
Relative Humidity: 20~90% RH (Non-condensing)
DIMENSIONS & WEIGHT
Height: 44.5mm
Width: 440mm
Depth: 250mm
Weight: 3.2kg
REGULATORY
REGULATORY: CE | FCC | UL

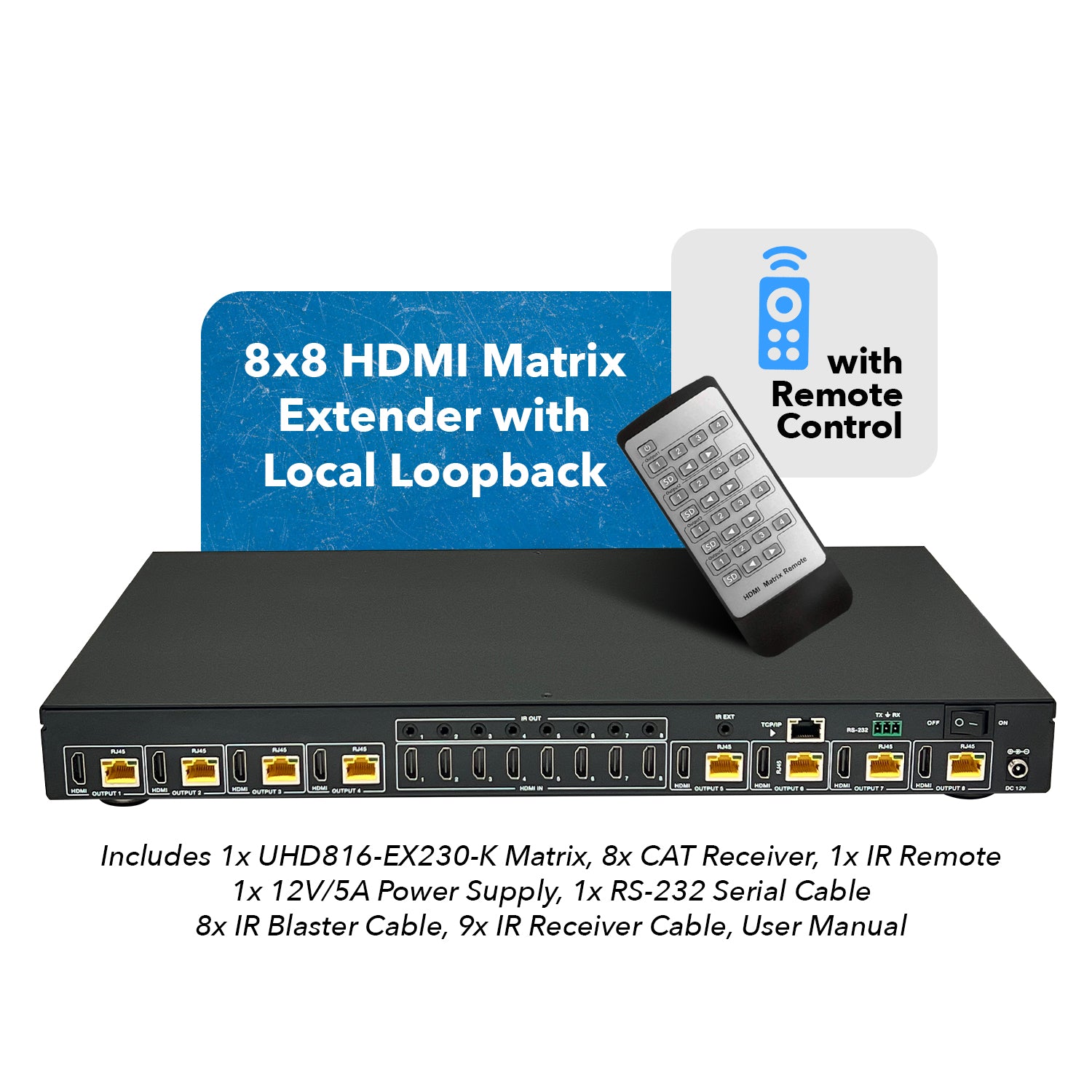

Includes:
- 1x UHD816-EX230-K Matrix

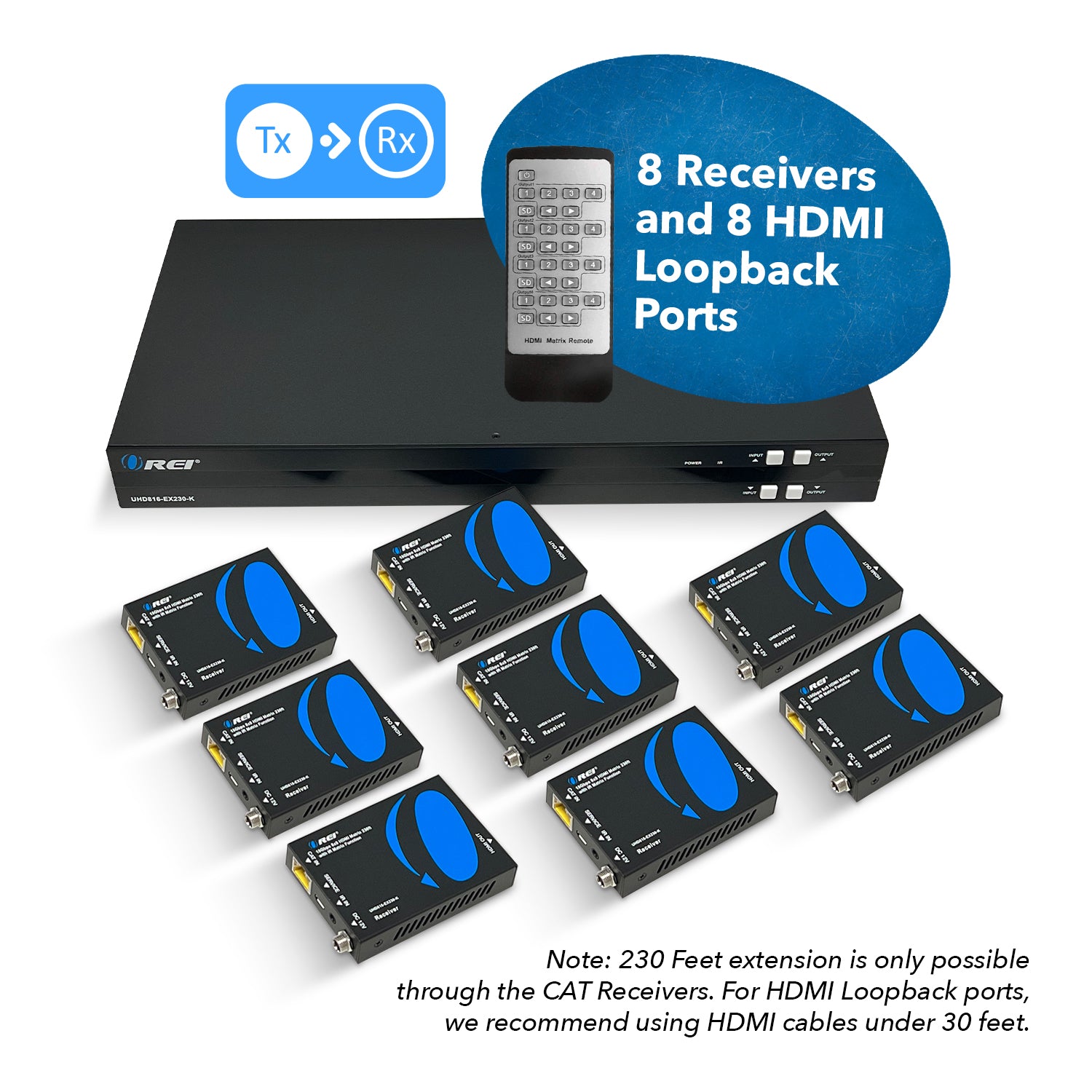

- 8x CAT Receiver
- 1x IR Remote
- 1x 12V/5A Power Supply
- 1x RS-232 Serial Cable (1.5m, DP9 female head to 3 pin Phoenx connector)
- 8x IR Blaster Cable (1.5m)
- 9x IR Receiver Cable (1.5m)
- 8x Machine Screw (KM3*6)
- 18x Mounting Ear (Matrix and Receiver)
- 1x User Manual
Warranty:
- 1-Year Manufacturer's Warranty
