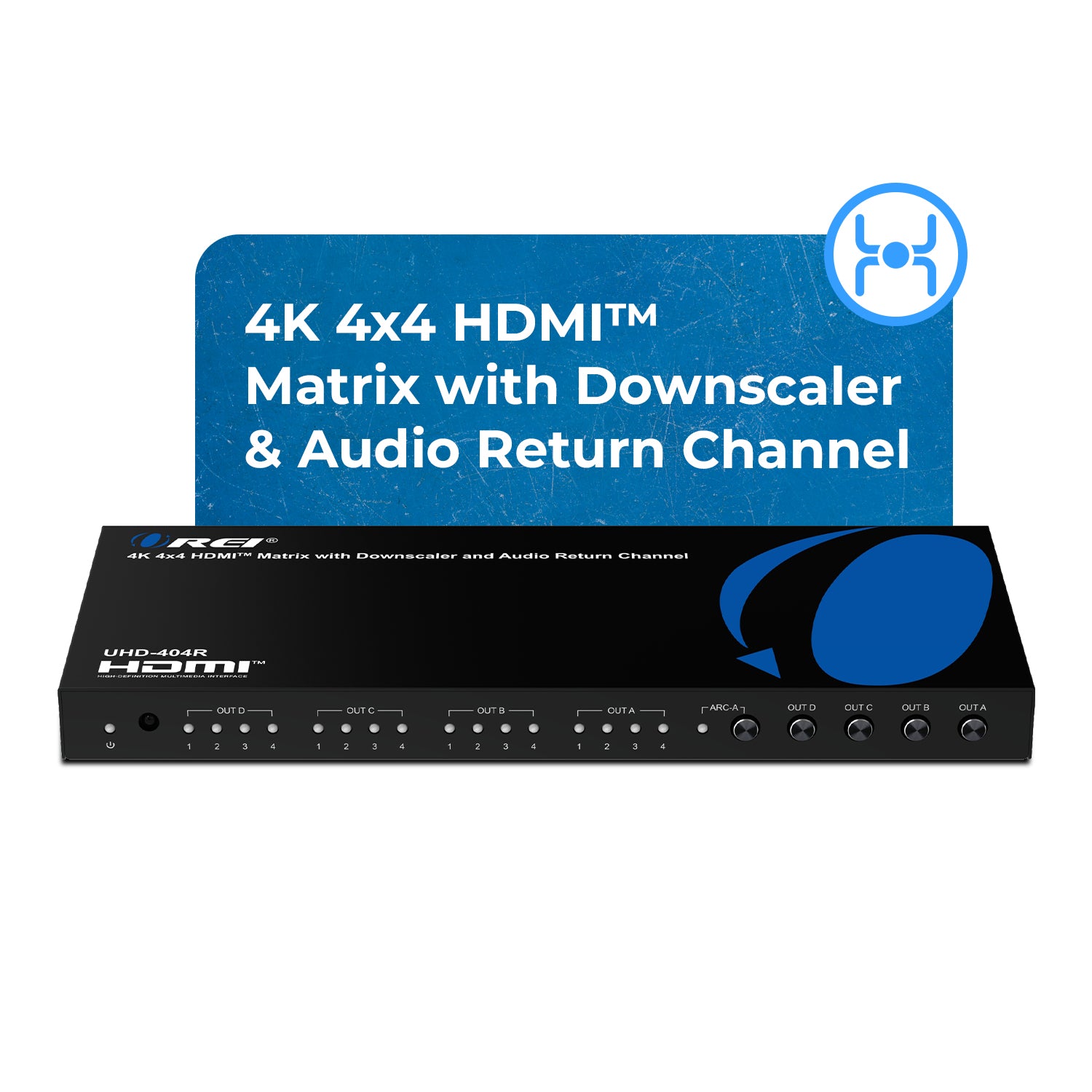

OREI UHD-404R: 4x4 HDMI Matrix Switch
Few sample applications:

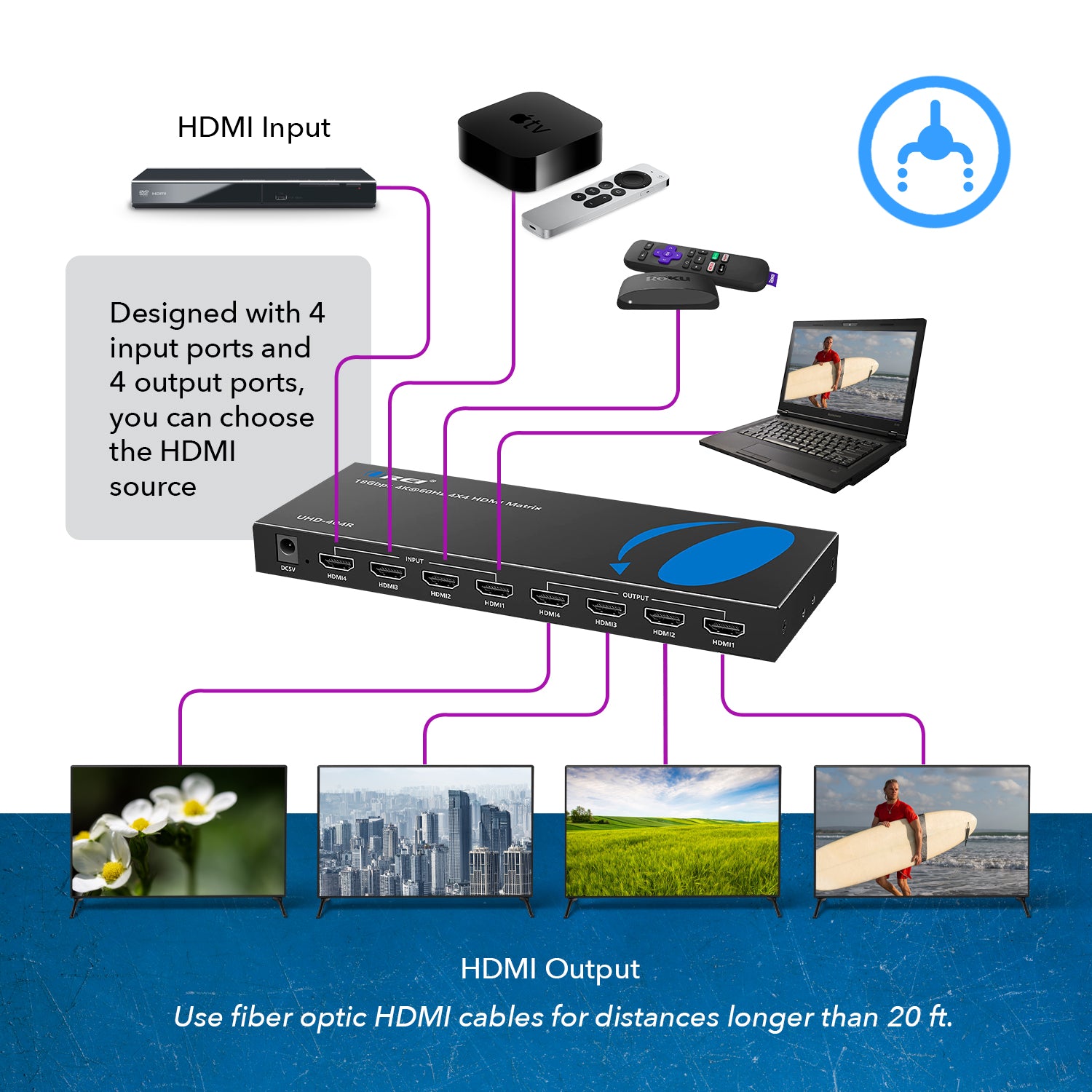

The OREI UHD-404R switcher is perfect for splitting and switching your HDMI signal to 4 different displays. The OREI UHD-404R matrix has four HDMI inputs and four HDMI outputs, so you can switch between four input source devices and send the signal simultaneously to four displays. No setup or special configuration is required, simply connect the input device(s) and output device(s) and start using it! The built-in auto-adjusting amplifier ensures no signal loss. The built-in amplifier will then regenerate the HDMI signal before sending it to the outputs. The UHD-404R supports full 3D/2D, Ultra HD resolutions up to 4K @ 60Hz 4:4:4, HD resolutions up to 1080p, Deep Color up to 48 bit, and all audio channels up to 7.1. Note that you don't have to have four inputs and four outputs to use this device. You can use just the switching function if you only have one display or just the splitter function if you have only one input. Convenient control via buttons on the front of the device, IR remote control, and RS-232. Any two of the four HDMI outputs support Auto-Downscaling. Extensive EDID management with 16 built-in EDID states.
Key Features:

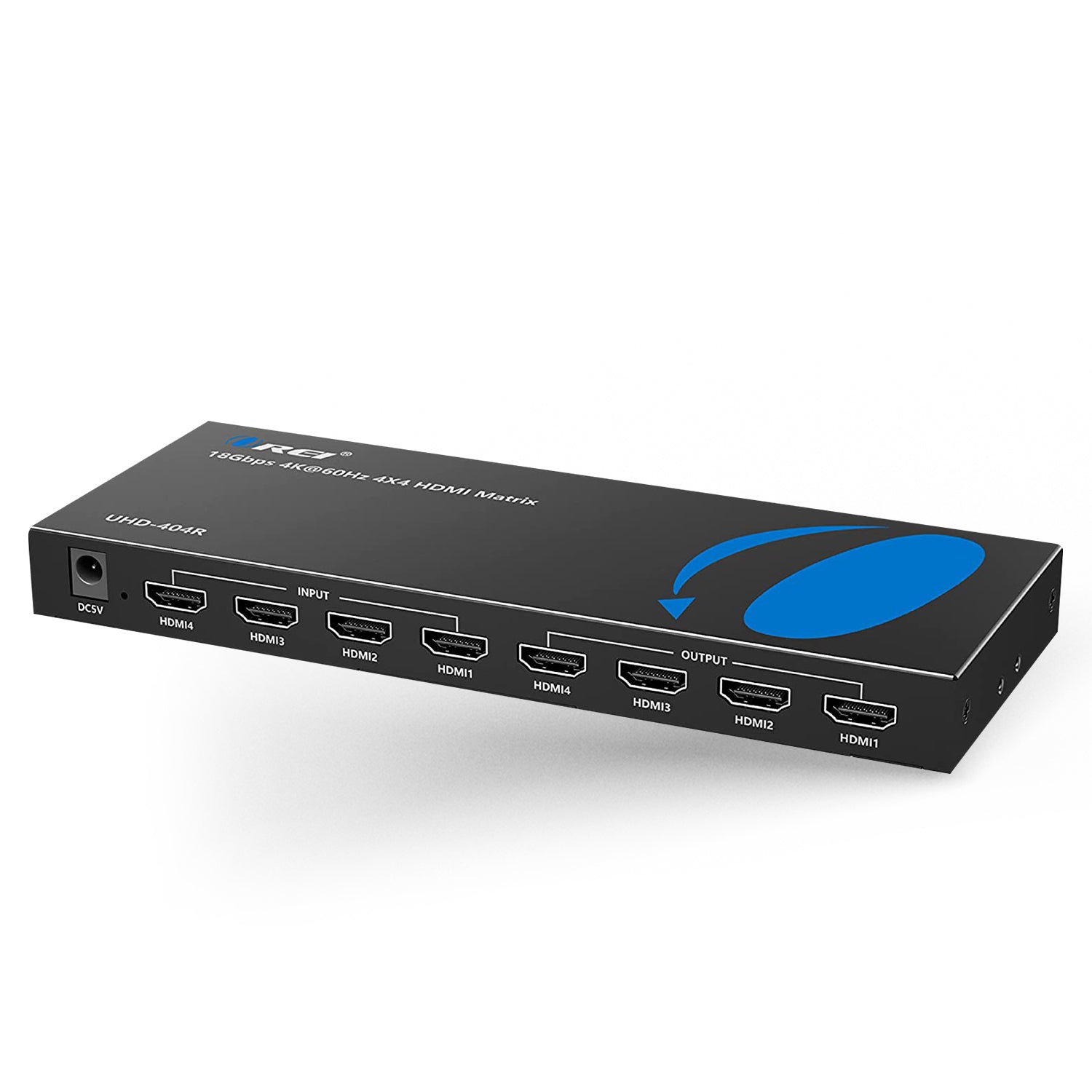

- 4x4 HDMI Matrix Switch 4-Input ports: 4 HDMI (female type), 4-Output ports: 4 HDMI (female type)
- Ability to display the same or 4 different screens on all 4 displays.
- This is HDCP 2.2 and HDMI 2.0 compliant
- 18Gbps transmission rate up to 600MHz Bandwidth
- Video Resolution up to 4K@60Hz 4:4:4 and HDR10 passthrough
- Supports full 3D/2D, Ultra HD resolutions up to 4K @ 60Hz, and HD resolutions up to 1080p
- 4 In 4 Out HDMI Matrix Switch - EDID management with 16 Built-In EDID States
- Audio output: LPCM7.1/DTS-HD/DTS-Audio/Dolby Digital Plus/Dolby TrueHD 7.1/Dolby Digital 7.1/Dolby Atmos

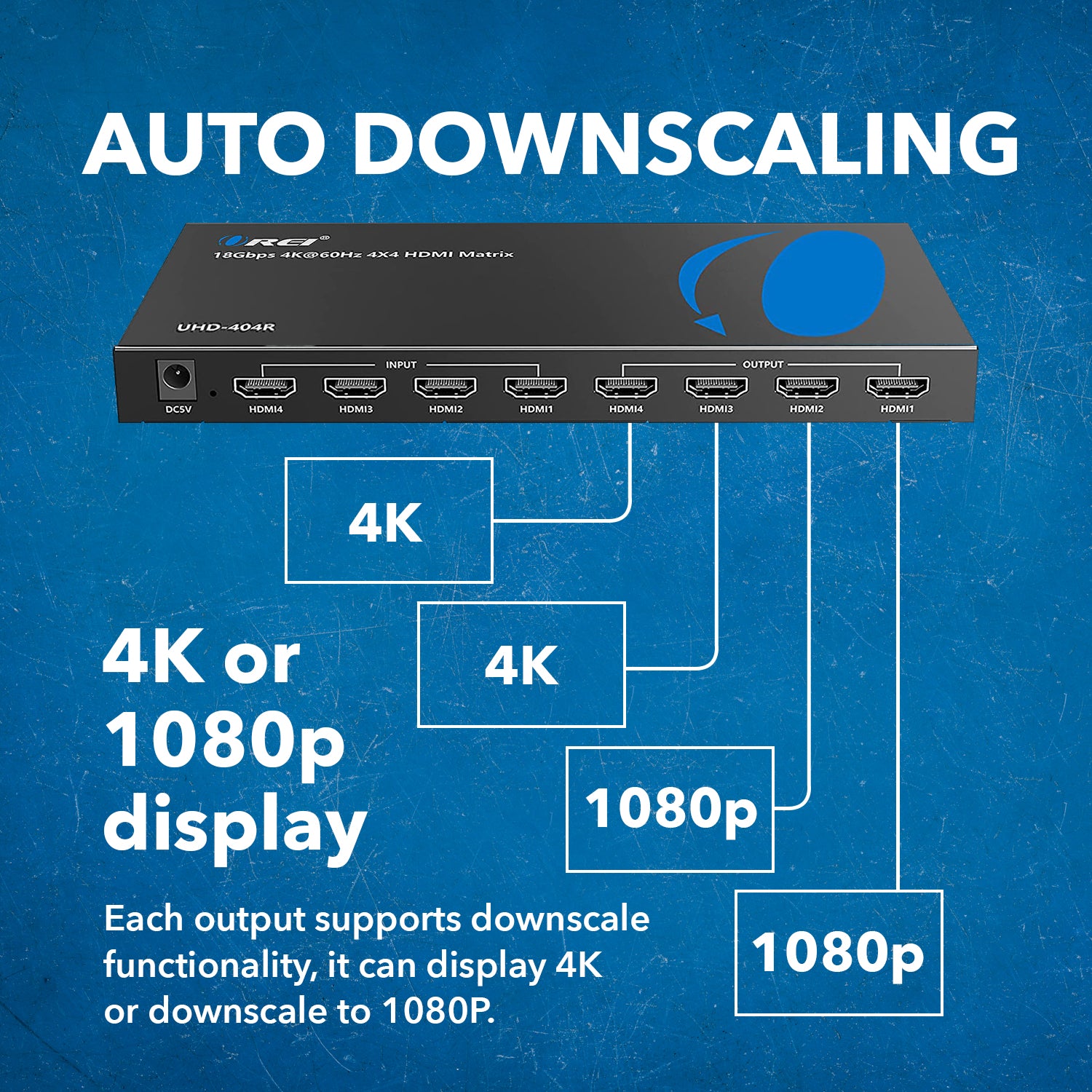

- Any two of the four HDMI outputs support Auto-Downscaling

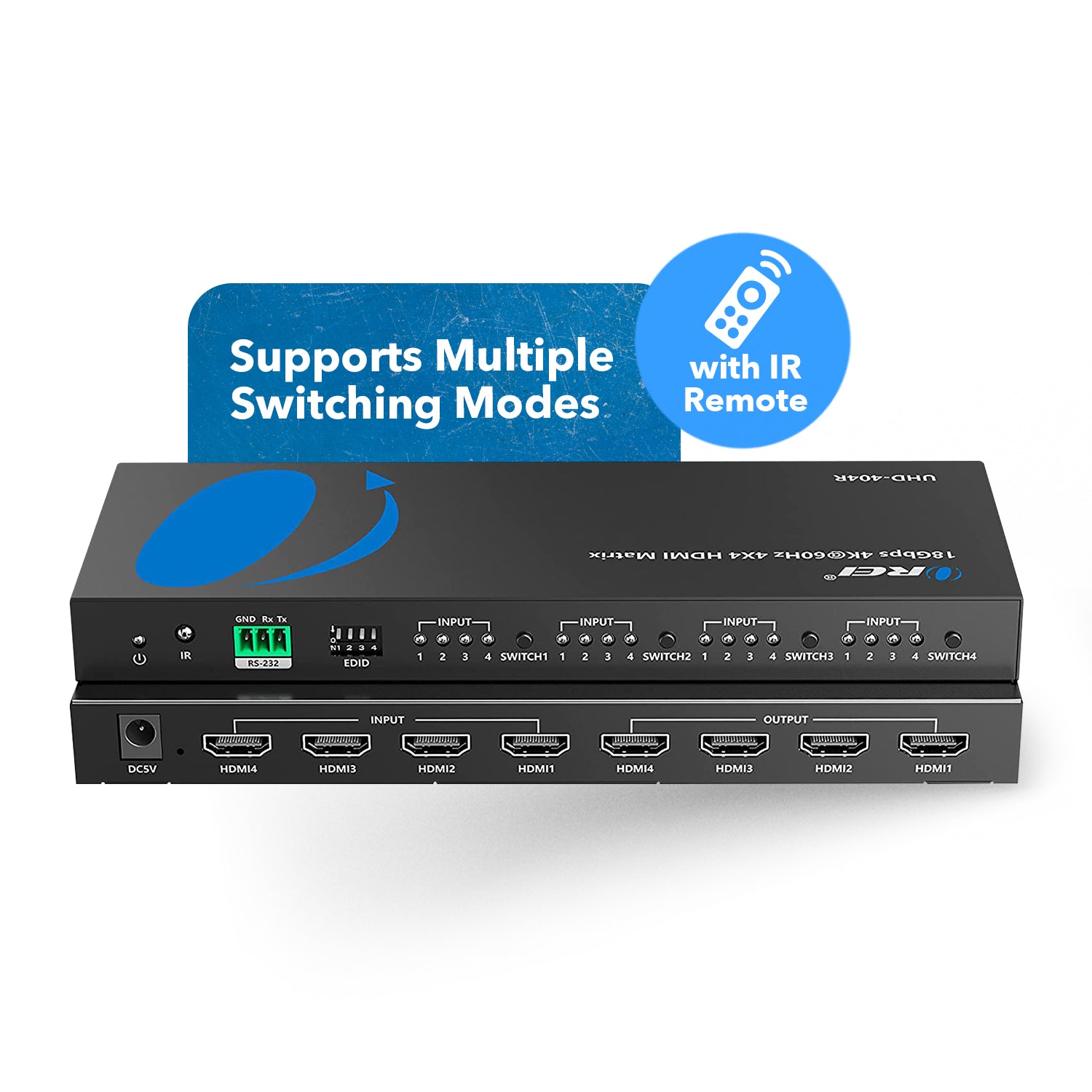

- Flexible control via buttons on the front of the device, IR remote control, and RS-232
- Lightning Protection, Surge Protection, ESD Protection
- Input Ports:
- 4×HDMI Type A [19-pin female]
- 1x RS-232 [Phoenix connector]
- Output Ports:
- 4×HDMI Type A [19-pin female]
- Transmission Rate: 18Gbps
- Video Bandwidth: 600MHz
- Video Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/60Hz, 4096x2160@24/25/30/60Hz
HDMI Audio Formats: LPCM 7.1/DTS-HD/DTS-Audio/Dolby Digital Plus/Dolby TrueHD 7.1/Dolby Digital 7.1CH/Dolby Atmos - HDMI Compliance: HDMI 2.0 (HDR, YUV 4:4:4)
- HDCP Compliance: HDCP 2.2, 1.4
- Voltage: DC5V/1A
- Power Consumption <4W
- RS-232: 3 Pin (GND/Rx/Tx), Baud Rate 9600
- EDID Management: 16 Built-In EDID States
- Downscale Function: Any two of the four HDMI outputs support Auto-Downscaling
- Operating Temperature: -20°C ~ 60°C
- Storage Temperature: -30°C ~ 70°C
- Relative Humidity 0% to 90% RH no-condensation
- ESD Protection: 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2
- Lightning Protection: Yes
- Surge Protection: Yes

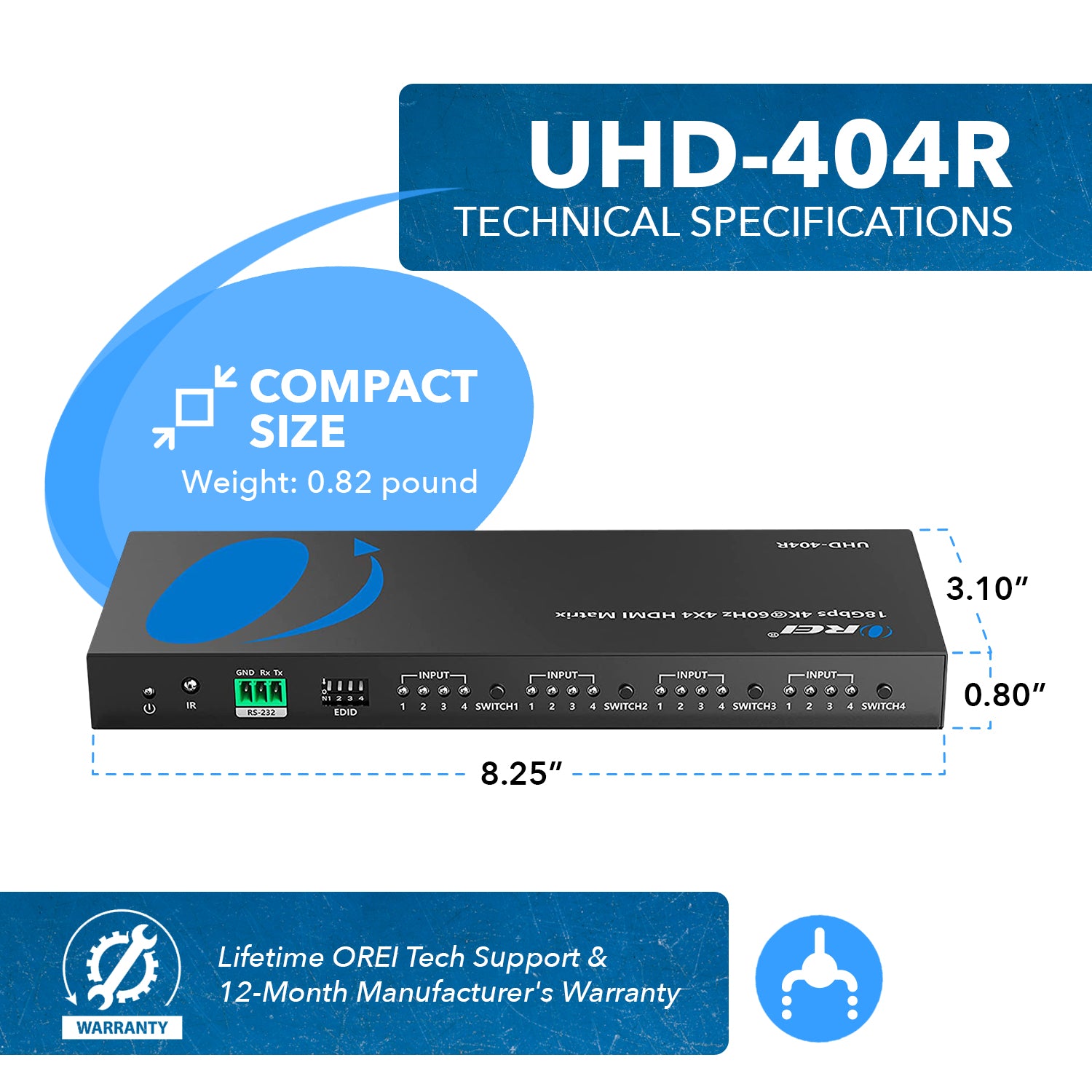

- Height: 21mm
- Width: 80mm
- Length: 210mm
- Weight: 375g
- Safety and Emission: CE | FCC | RoHS
- Color: Black
- Housing: Iron

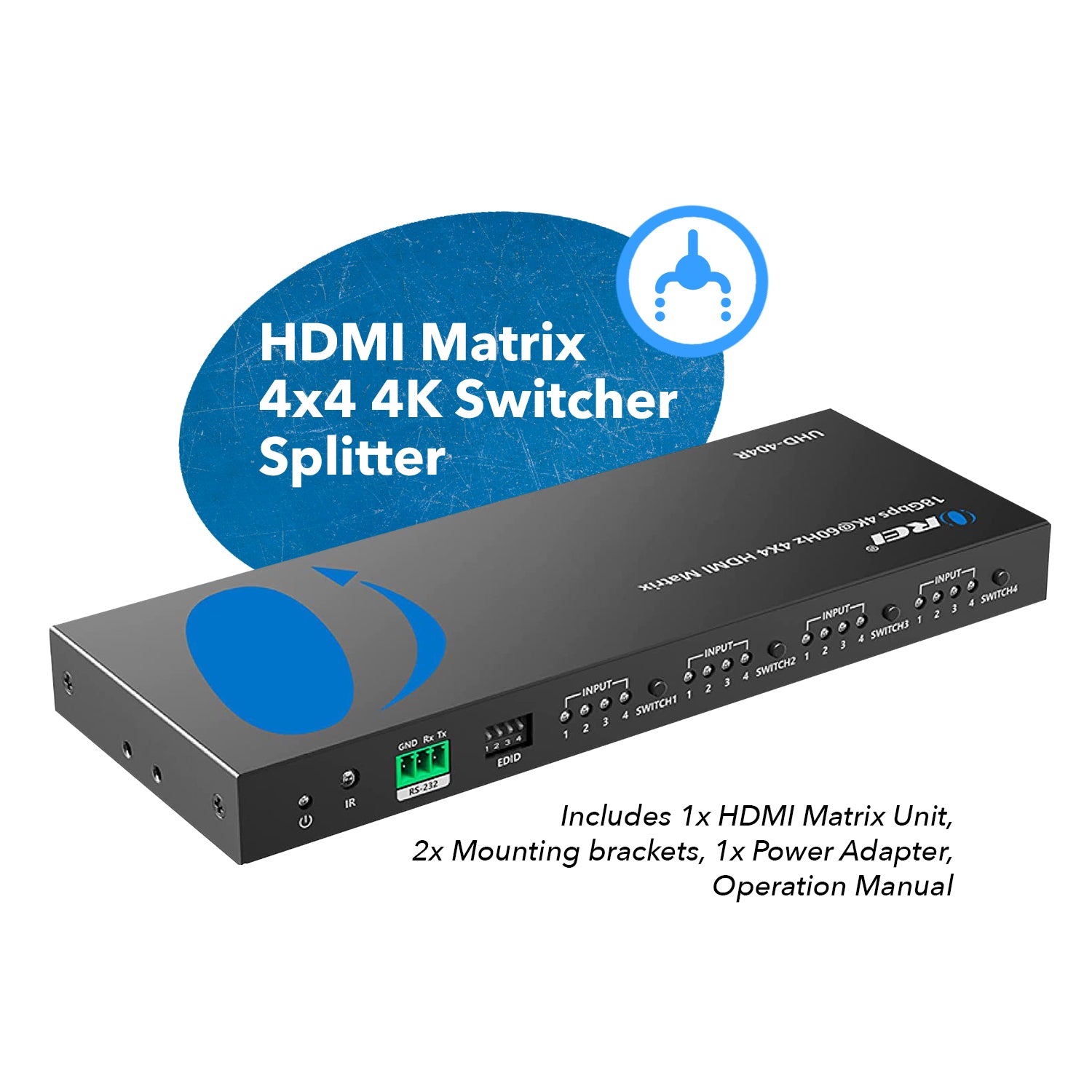

Includes:
-
1 × UHD-404R Matrix Switch
-
1 × Power Adapter 5V/1A
-
1 × Remote Control
-
1 × Mounting Ear
-
6 × Screws
-
2 × Grounding Screws
-
1 × Terminal Block
-
1 × User Manual
Warranty:
- 1 year manufacturer's warranty
