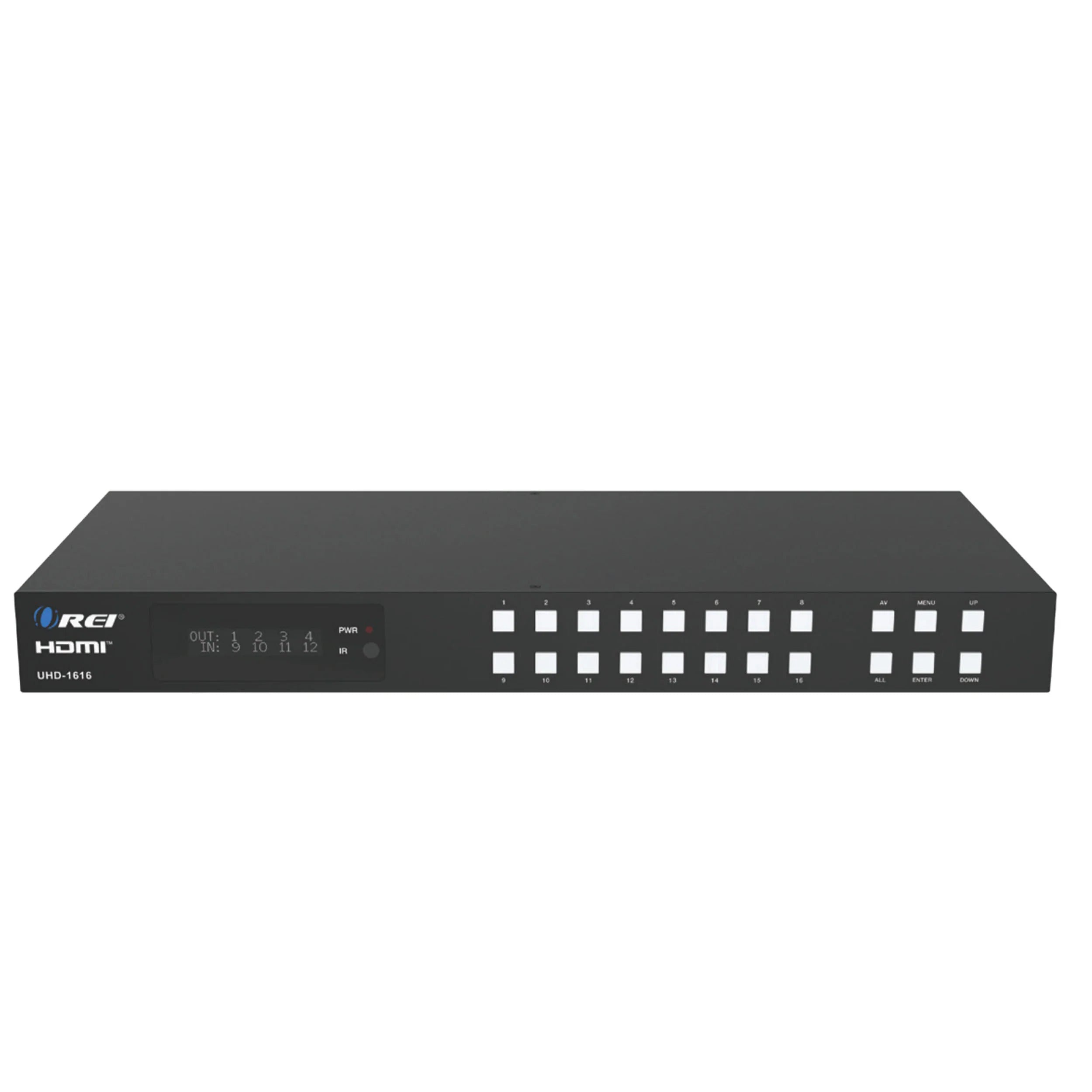

UHD-1616 is a professional-grade video distribution solution, designed to route ultra-high-definition video and digital audio from up to 16 HDMI™ sources to 16 HDMI™ displays simultaneously. Supporting resolutions up to 4K@60Hz (YUV 4:4:4) and featuring 18Gbps bandwidth, this matrix switch ensures uncompressed, high-performance signal delivery across all outputs. Each HDMI™ output supports independent downscaling from 4K to 1080p, allowing seamless integration with mixed-resolution displays. Built-in audio extraction provides a coaxial output for each HDMI™ output, and ARC (Audio Return Channel) functionality enables ARC audio extraction from compatible displays.
Ideal for control rooms, AV installations, and large-scale multimedia environments, the matrix offers flexible control options via front panel buttons, IR remote, RS-232, LAN, or intuitive Web GUI. Housed in a 1U rack-mountable chassis with an integrated OLED display, the system delivers enterprise-grade AV management in a compact form factor.
Key Features:
- HDMI™ 2.0b and HDCP 2.2 Compliant – Compatible with modern video and content protection standards.
- Video Resolutions up to 4K@60Hz – Delivers ultra-high-definition video on all HDMI™ ports.
- 18Gbps Video Bandwidth – Ensures smooth, uncompressed signal transmission with full color fidelity.
- HDR & Dolby Vision Support – Compatible with HDR10+, Dolby Vision, and HLG formats.
- 4K to 1080p Downscaling – Independent downscale on each HDMI™ output for flexible display compatibility.
- HD Audio Pass-through – Supports up to 7.1 channels of LPCM, Dolby TrueHD, and DTS-HD Master Audio.
- Audio Extraction – Extracts audio via 16 coaxial ports from HDMI™ outputs for external audio systems.
- ARC and CEC Support – Enables ARC return from HDMI™ displays and supports full CEC device control.
- Smart EDID Management – Ensures optimal resolution and audio negotiation across all connected devices.
- Flexible Control Options – Operate via front panel buttons, IR remote, RS232, LAN, or built-in Web GUI.
- 1U Rack-Mountable Design – Includes OLED front panel display for status and configuration visibility
- CONNECTIVITY
- INPUT: 16× HDMI™ [Type A, 19-pin female]
- OUTPUT: 16× HDMI™ [Type A, 19-pin female]
- 16× Coax [RCA]
- CONTROL: 1× TCP/IP [RJ45]
- 1× RS 232 [D-Sub 9]
- PACKAGE CONTENTS
- 1x UHD-1616
- 1x IR Remote
- 1x Power Adapter
- 2x Mounting Ear
- 1x RS-232 Serial Cable
- User Manual
- SUPPORTED HDMI CABLES
- HDMI 2.0/ 2.1 We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
- EXTENDING DISTANCE
- 4K@60Hz 16ft / 5m
- 4K@30Hz 32ft / 10m
- 1080P60 50ft / 15m
- VIDEO OUTPUT
- Video Bandwidth: 18Gbps
- Video Resolutions: Up to 4K@60Hz (4:4:4)
- AUDIO SUPPORT
- HDMI Audio Formats: LPCM 2.0/5.1/7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby
- Atmos, DTS:X
- COMPLIANCES
- HDMI™ Compliance HDMI™ 2.0b
- HDCP Compliance HDCP 2.2/1.x
- POWER
- Power Consumption: 76.8W (MAX)
- Power Supply: Input: AC 100~240V 50/60Hz
- Output: DC 24V/3.75A (US/EU standard, CE/FCC/UL certified)
- DIMENSIONS & WEIGHT
- Length: 440mm / 17.32in
- Width: 200mm / 7.87in
- Height: 44mm / 1.73in
- Weight: 3.1kg / 6.83lbs
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- WARRANTY
- 1-Year Manufacturer's Warranty
- 1x UHD-1616
- 1x IR Remote
- 1x Power Adapter
- 2x Mounting Ear
- 1x RS-232 Serial Cable
- User Manual
