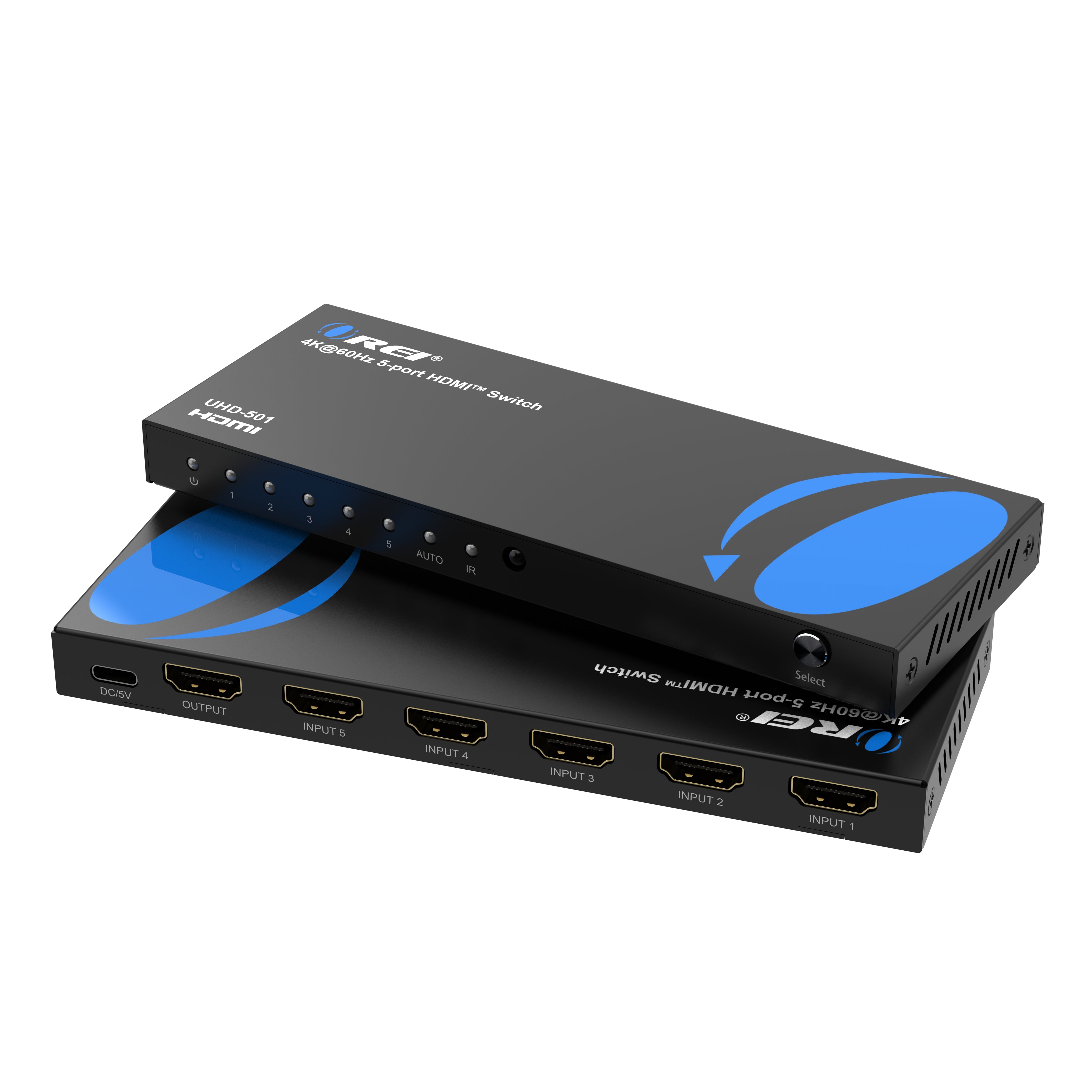

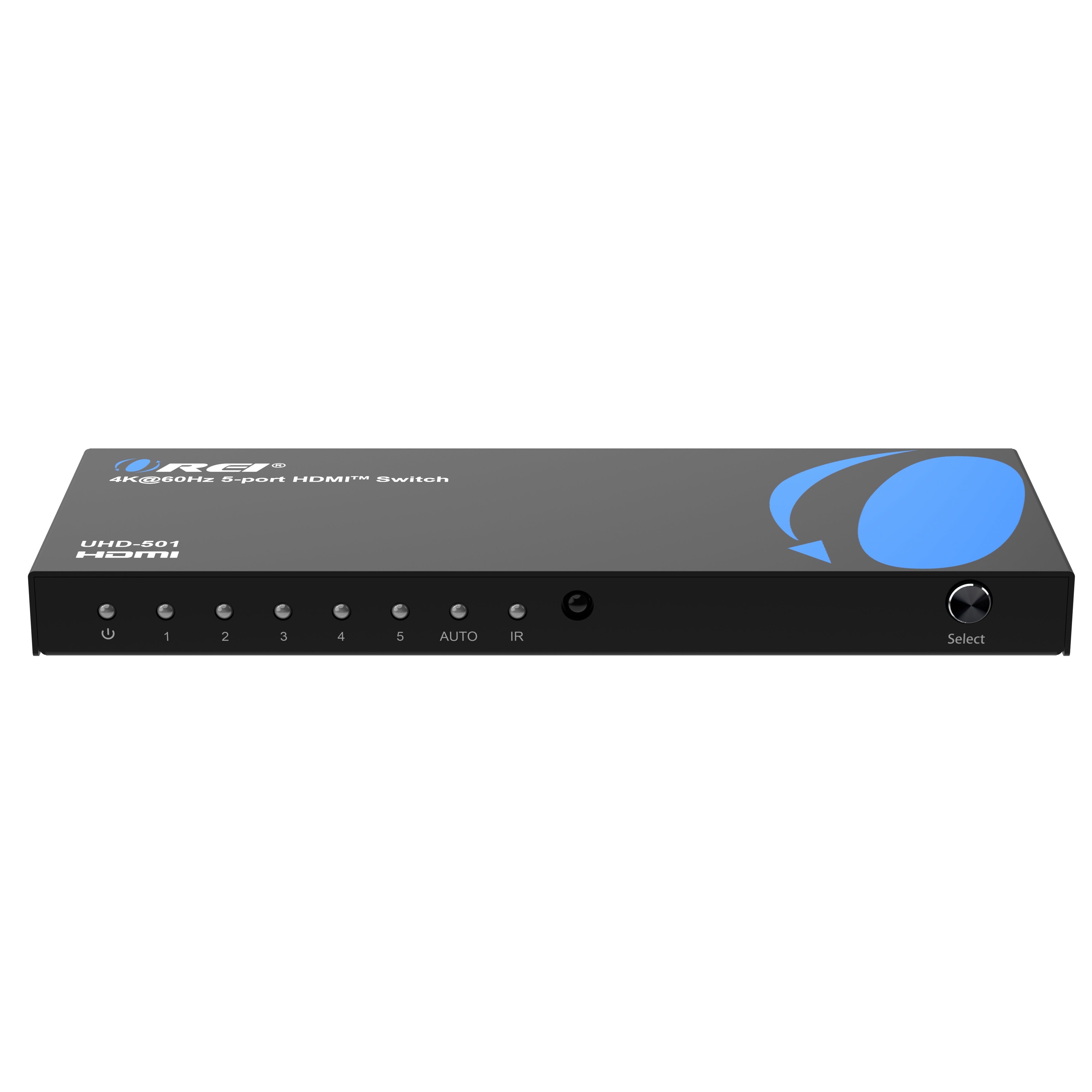

OREI UHD-501: 4K 5-PORT HDMI™ SWITCH
The UHD-501 HDMI Switch lets you connect and easily switch between 5 media sources on a single display. It is HDMI 2.0 and HDCP 2.2 compliant, supporting video resolutions up to 4K@60Hz with 18Gbps bandwidth and compatibility with HDR and 3D content. Switching can be done automatically or manually using the onboard button or the included remote control. It supports uncompressed LPCM and compressed audio formats including Dolby Digital, DTS-HD Master Audio, and Dolby TrueHD. It also features CEC control. Compact, plugand-play design make it an excellent choice for both home entertainment and professional AV setups.
Key Features:
- HDMI 2.0 & HDCP 2.2 compliant
- Video resolutions up to 4K@60Hz
- Video bandwidth up to 18Gbps

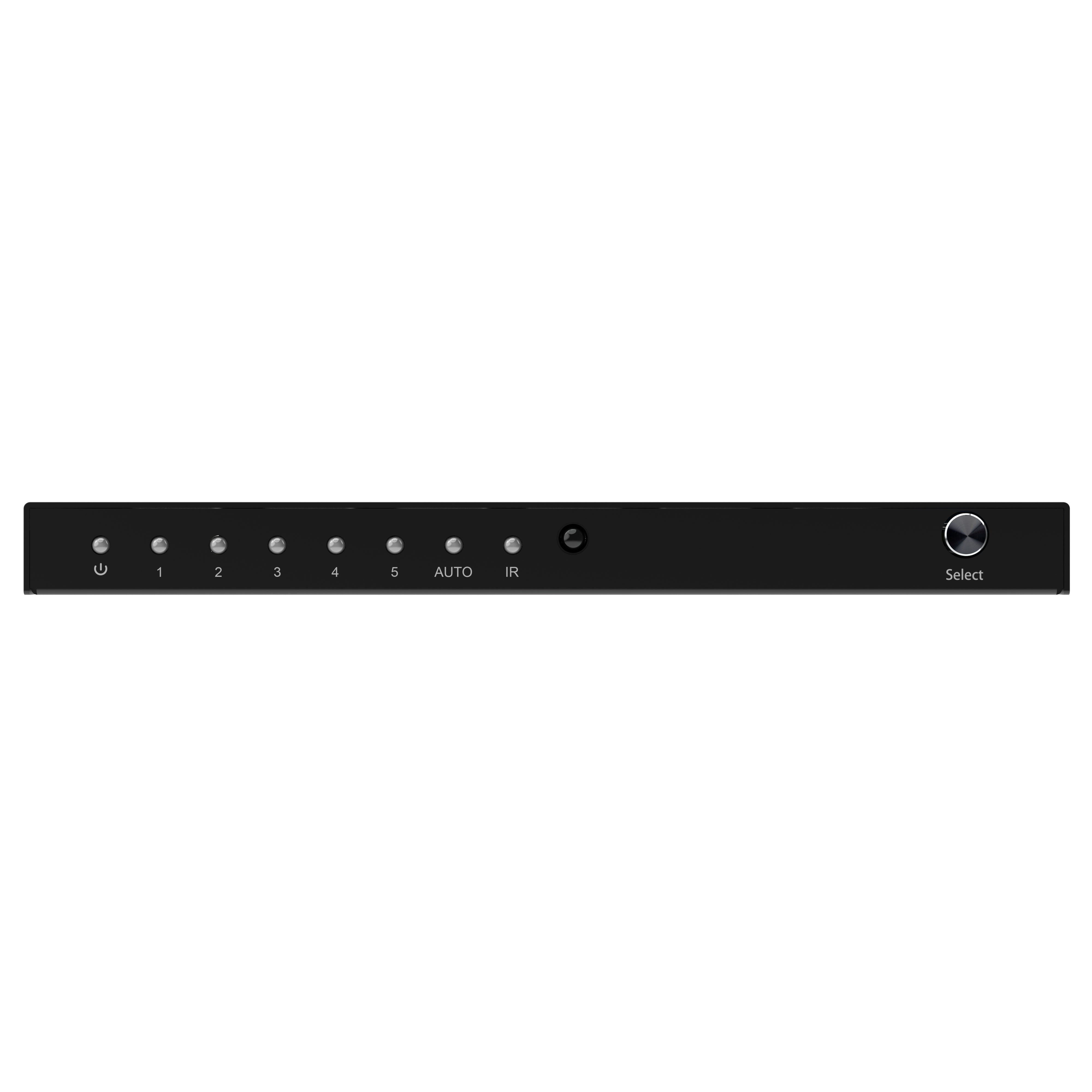

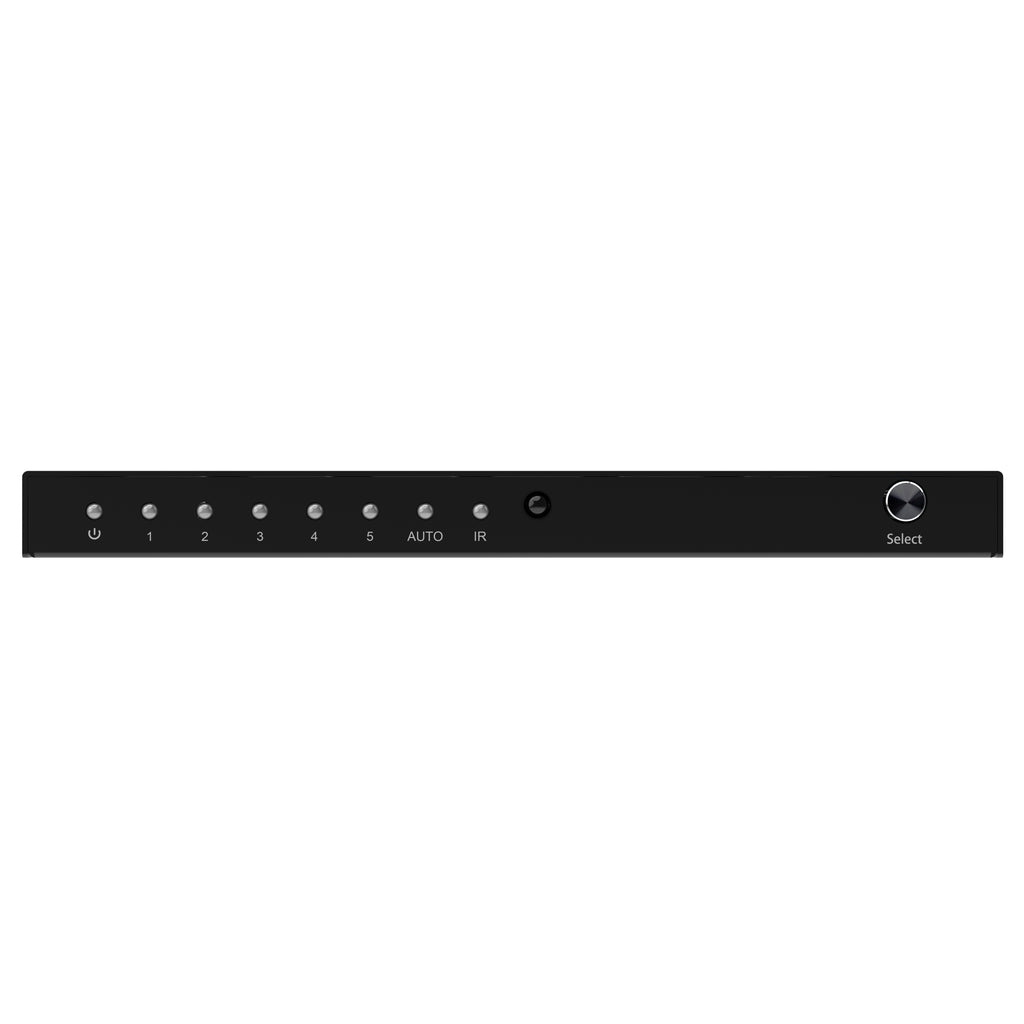

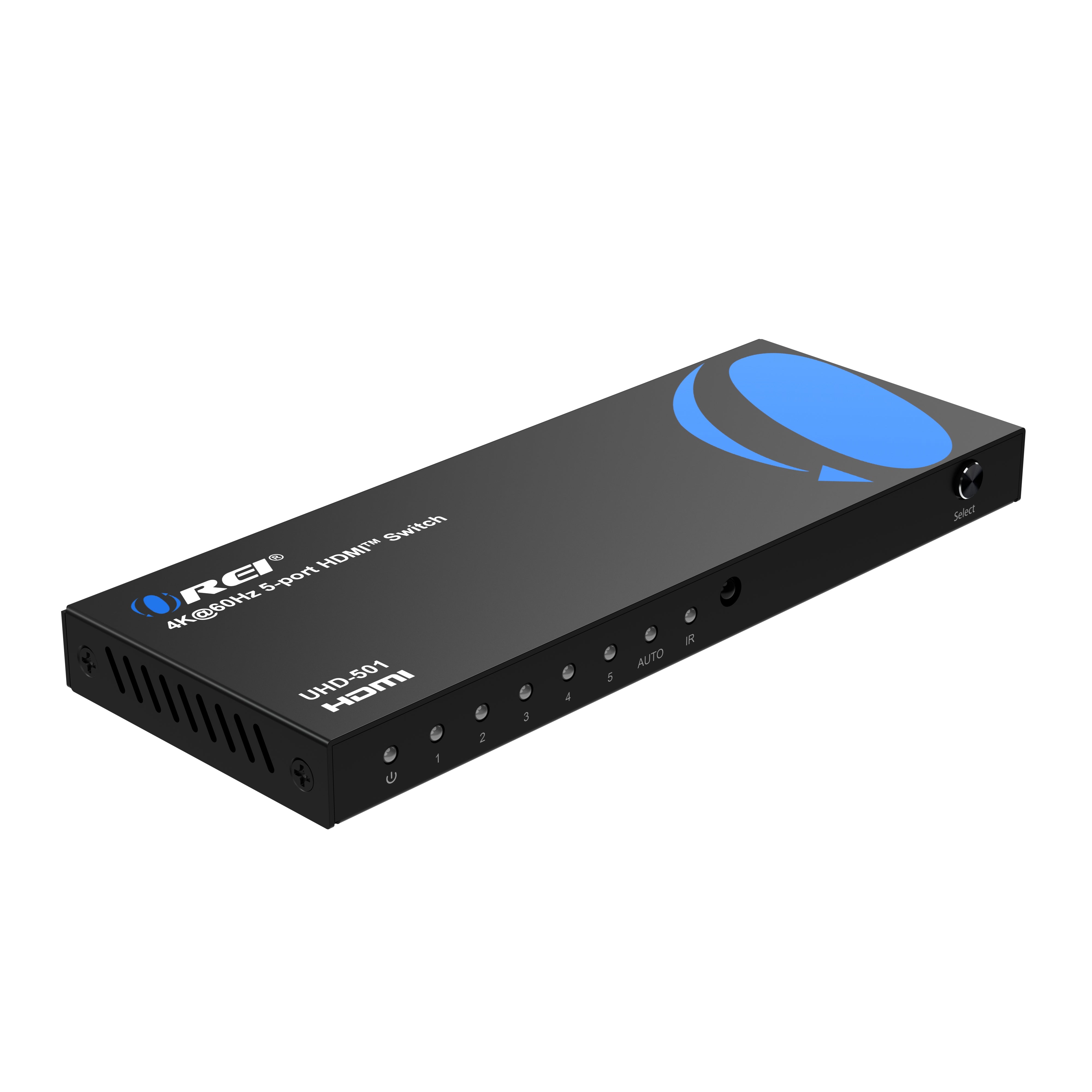

- Manual and Automatic switching
- Supports HDR & 3D
- Supports uncompressed LPCM and compressed Dolby Digital, DTS-HD Master Audio and Dolby TrueHD audio formats
- CEC support
- Compact design and Plug & Play setup
- CONNECTIVITY

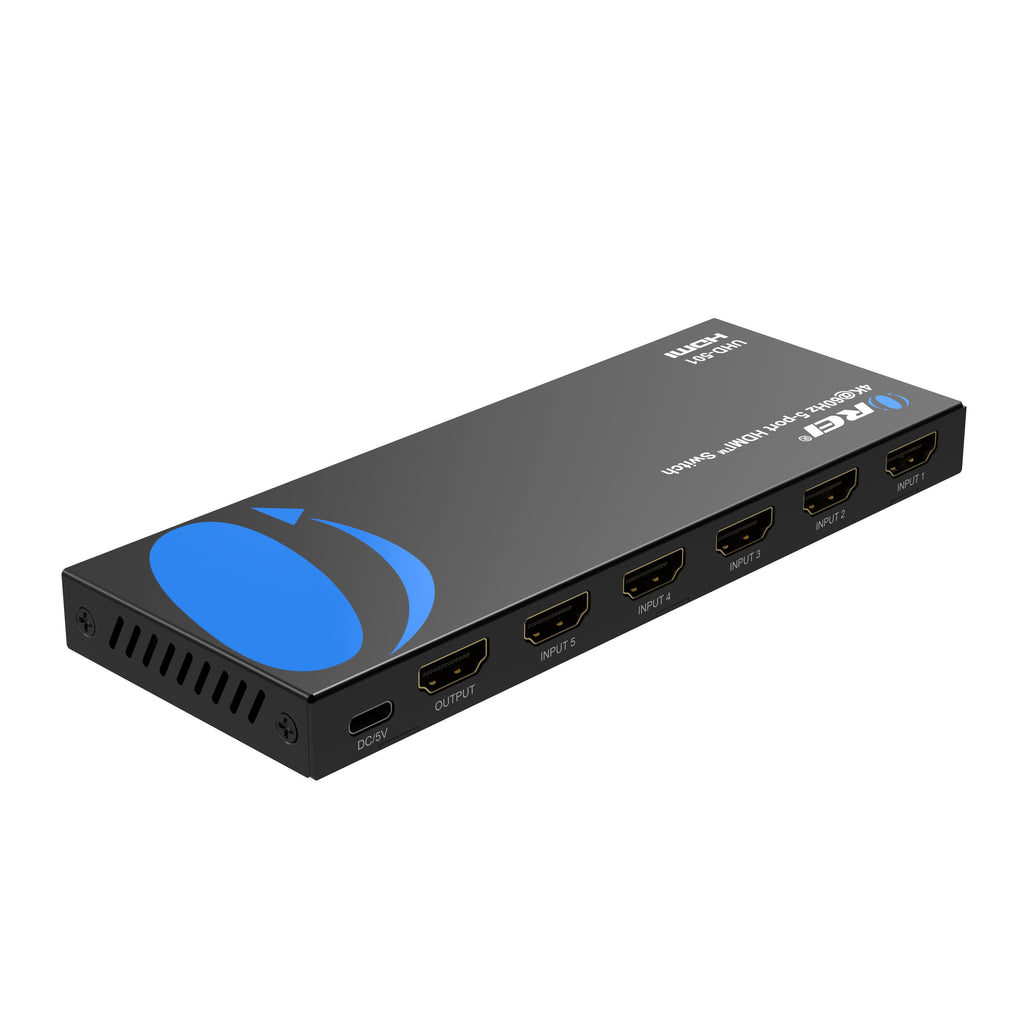

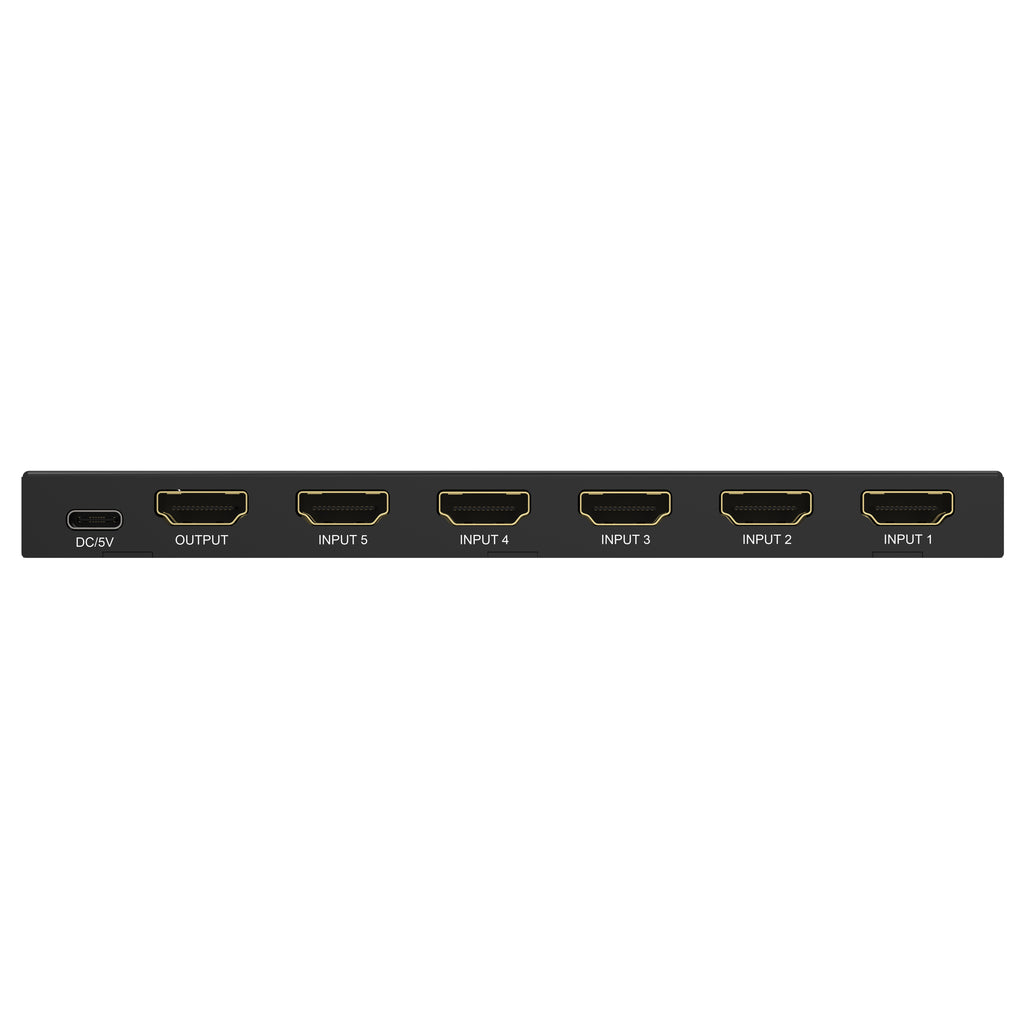

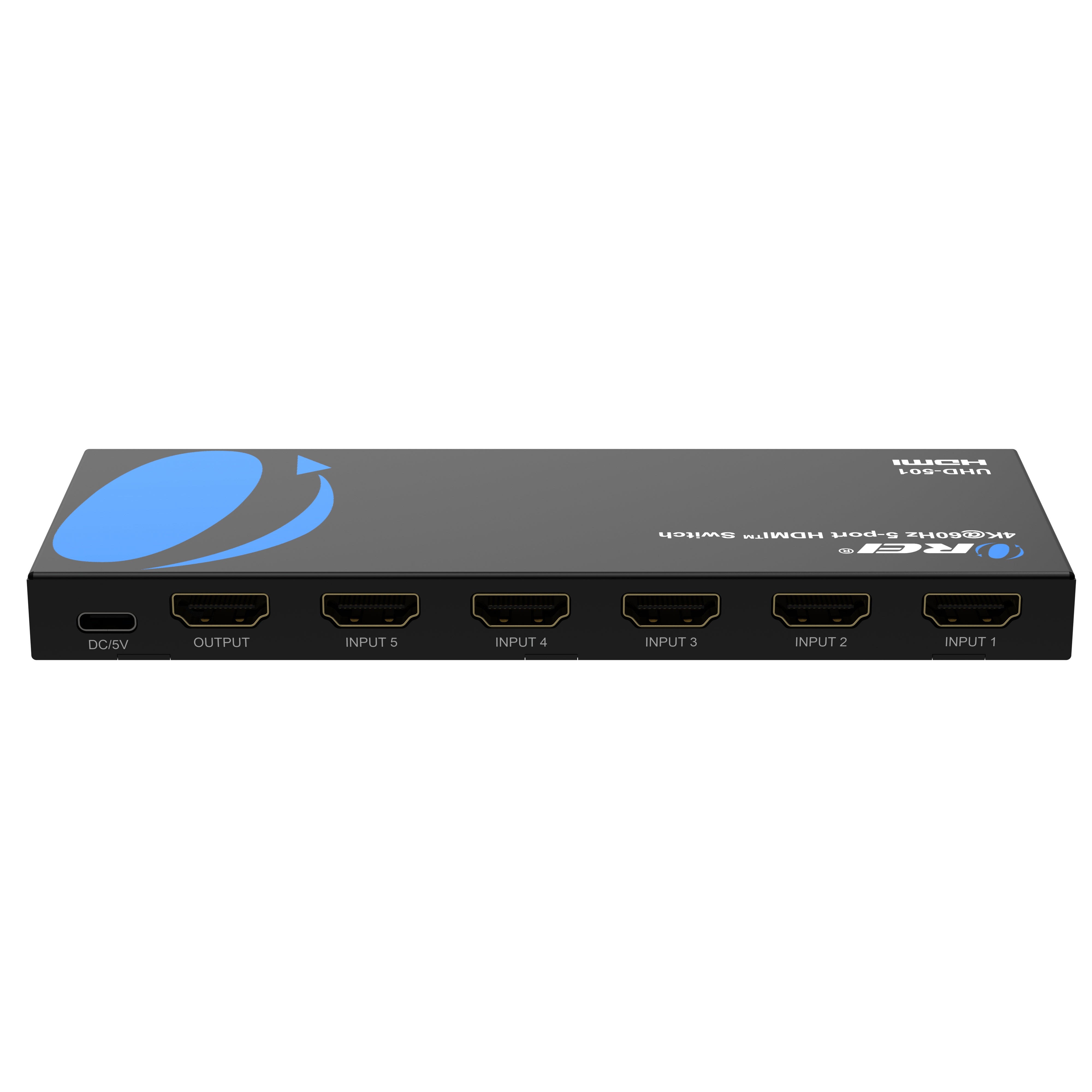

- Input: 5 × HDMI [Type A, 19-pin female]
- Input: 1 × USB-C
- Output: 1 × HDMI [Type A, 19-pin female]
- PACKAGE CONTENTS
- 1x UHD-501

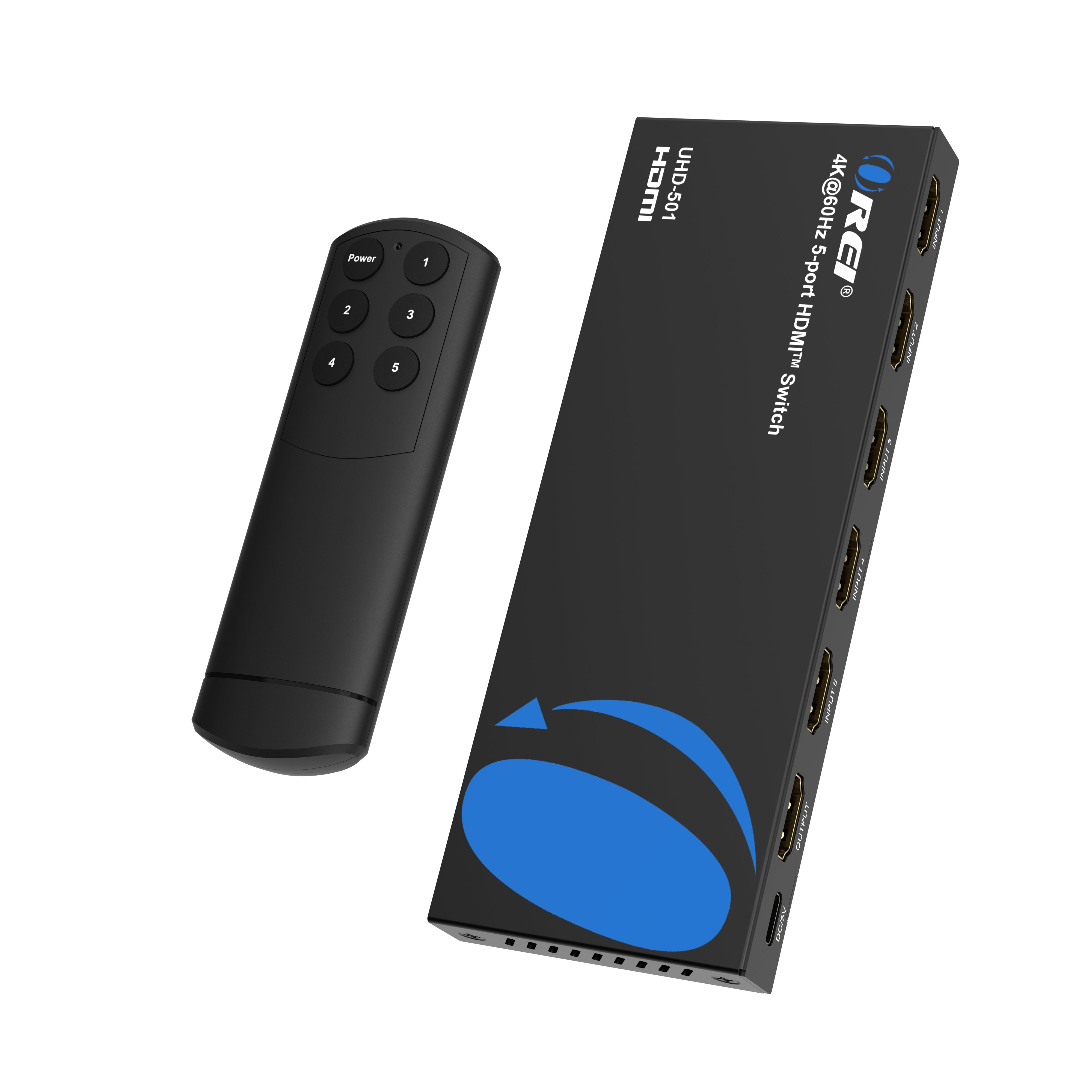

- 1x Remote
- 1x Power Adapter
- User Manual
- SUPPORTED HDMI CABLES
- HDMI 2.0/2.1: We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
- VIDEO OUTPUT
- Video Bandwidth: 6.0Gbps/600MHz per channel(18Gbps all channels)
- Video Resolutions: 480i,576i,1080i 480p,576p,720p,1080p,4K@24/30Hz,4k@50/60Hz
- Color Space: 4:4:4/4:2:2/4:2:0
- Color Depth: 8/10/12bit
- ADDITIONAL FEATURES
- CEC: Yes
- ARC: No
- USB KVM: No
- PoC/PoE: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- AUDIO SUPPORT
- Audio Formats: Uncompressed: LPCM Compressed: DTS/Dolby Digital (including DTS-HD Master Audio™ and Dolby TrueHD)
- HDR: Supported
- COMPLIANCES
- HDMI Compliance HDMI 2.0
- HDCP Compliance HDCP 2.2
- POWER
- Power Consumption: 5W (Max)
- Power Supply: Input: AC100 - 240V 50/60Hz
- Output: DC 5V/1A (US/EU standards, CE/FCC/UL certified)
- DIMENSIONS & WEIGHT
- Length: 160mm / 6.3in
- Width: 61mm / 2.4in
- Height: 14.2mm / 0.559in
- Weight: 200g / 7.05oz
- PROPERTIES
- Color: Black
- Housing: Metal
- Operation Temperature: 0°C ~ 70°C / 32°F ~ 158°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Relative Humidity: 5~90% RH (non-condensing)
Includes:
- 1x UHD-501
- 1x Remote
- 1x Power Adapter
- User Manual
Warranty:
- 1-Year Manufacturer's Warranty
