OREI UHDS-108 :1 in 8 Out HDMI Splitter
The OREI UHDS-108 is a reliable distribution powered splitter that will take HDMI 2.0 signal up to 4K@60Hz and 2K@60Hz and duplicate the signal to up to 8 HDMI displays simultaneously, creating an impressive lossless image or audio transmission via HDMI cable.
Compact, durable and easy to set up and operate. Ideal for trade show, conference room, lecture halls, bedroom, living room, kitchen room and backyard.
Please note that this HDMI 2.0 splitter will duplicate the source to the sixteen output displays. It can’t be used to extend a desktop for PC or a laptop. If the connected displays do not support the same resolution then the splitter will lower the output resolution to the next best resolution supported by both displays and same goes with the audio signal. We recommend using this HDMI 2.0 splitter with high quality HDMI cables 30 feet or less.
EDID management switch:
STD: When in 'STD' mode, the unit will use its own built-in EDID settings. In this mode, the video output will be set to 1080p@60Hz and the audio output at LPCM 2CH Stereo.
TV: When in 'TV' mode, the unit will read the EDID settings of the display device connected to HDMI OUT 1.
Key Features:

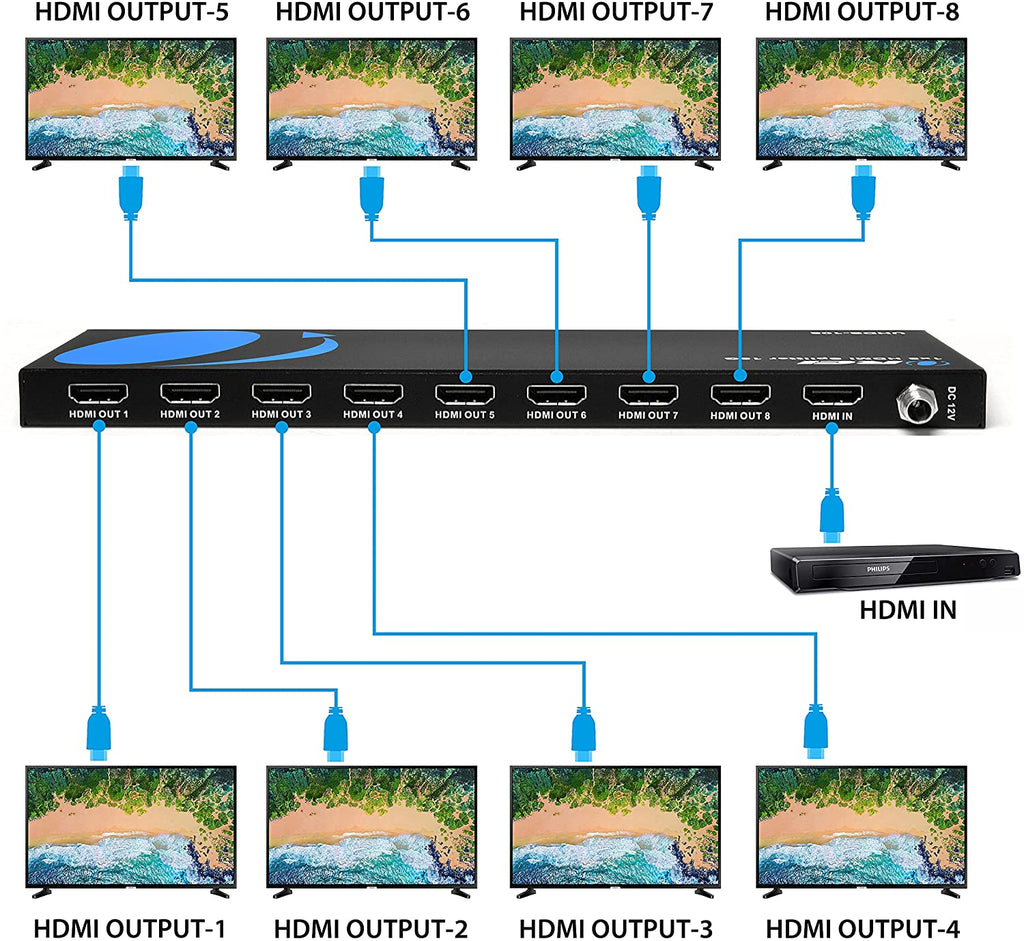

- Split one HDMI 2.0 input signal to eight HDMI output signals identical to the input signal
- 4K 18 Gbps Powered HDMI Splitter
- Input: 1x HDMI & Outputs: 8x HDMI
- Comes with EDID management
- Supported resolution: up to 4K/60Hz, 1080p, 720p, VGA to WUXGA
- Supported Audio: LPCM, Dolby-AC3, DTS7.1, DSD/Dolby /DTS-HD master audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, SACD, MPCM, Essentially all available audio options
- Heavy-duty cool metal enclosure protects the insides and keeps the unit cool by aiding in quick heat absorption and dissipation
- Compact in size
- Easy plug & play installation
- HDMI 2.0 - HDCP 2.2 Compliant
- Includes 100-240 50/60 Hz auto switching power supply for use anywhere in the world
- Lifetime OREI Tech Support & 12-Month Manufacturer's Warranty
OREI UHDS-108 HDMI Splitter
- Input Ports: 1 HDMI Type A (19-pin female) | 1 SERVICE (Micro USB, Update port)
- Output Ports: 8 HDMI Type A (19-pin female)
- HDMI Compliance: 2.0b
- HDCP Compliance: 2.2
- Video Resolutions: 480i ~1080p50/60Hz, 4Kx2K@24/30Hz, 4k2k@60Hz
- HDMI Audio Formats: PCM 2CH, LPCM 7.1/5.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos and DTS:X
- Operating Temperature: -10°C ~ 50°C / 14°F ~ 122°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- ESD Protection: Human body model: ±8kV (air-gap discharge) & ±4kV (contact discharge)
- Relative Humidity: 20~90% RH (non-condensing)
- Video Bandwidth: 594MHz/18Gbps
- Dimensions: 243mm (W) × 102mm (D) × 16mm (H)
- Weight: 572g
- Power Supply - Input: AC100 - 240V 50/60Hz, Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
- Power Consumption: 6.15W
- Housing: Metal Enclosure
- Color: Black
Includes:
- OREI UHDS-108 Splitter
- Power adapter Worldwide Voltage
- Instruction manual
Warranty:
- 1 year manufacturer's warranty
