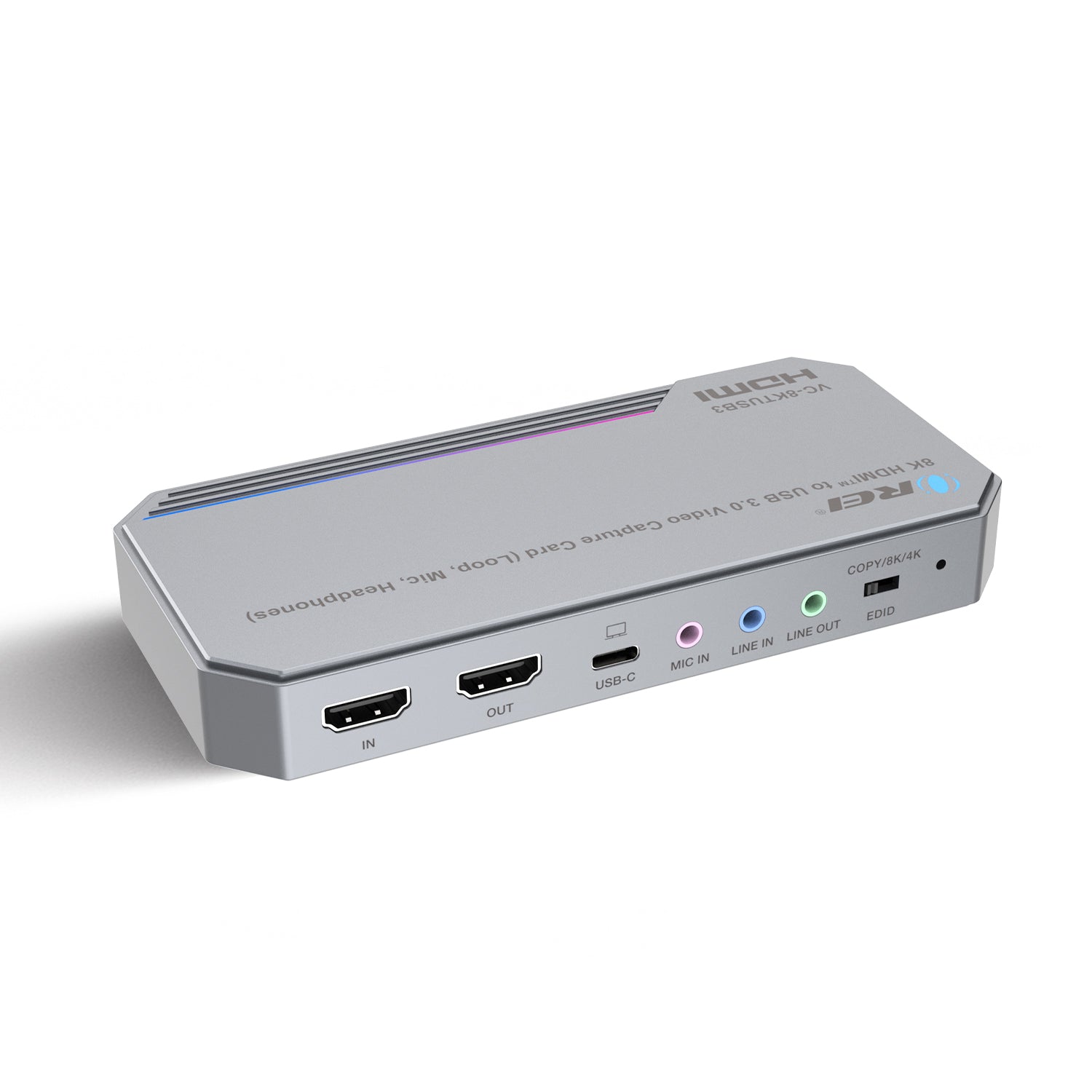

VC-8KTUSB3: 8K HDMI™ TO USB 3.0 VIDEO CAPTURE CARD (LOOP, MIC, HEADPHONES)

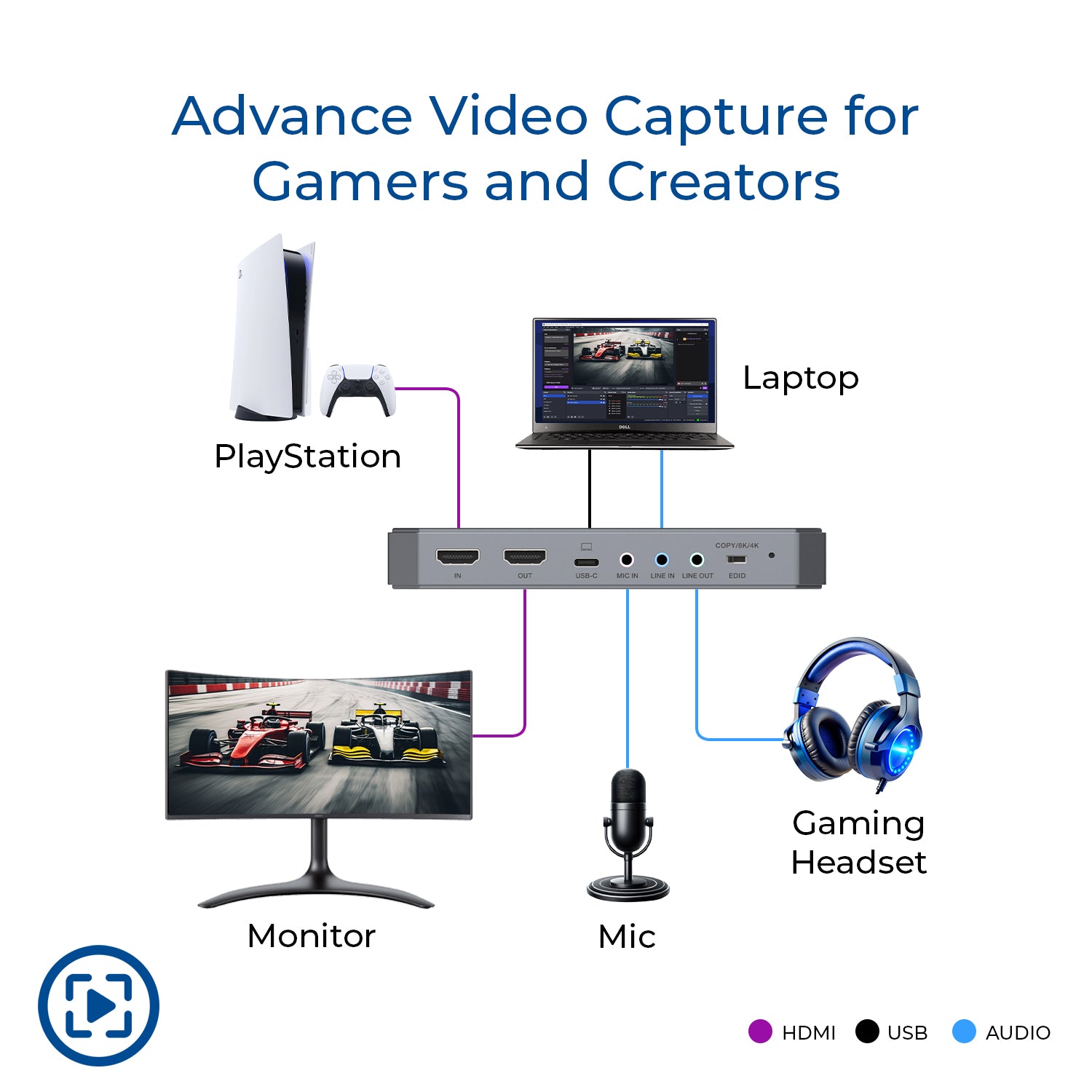

The VC-8KTUSB3 is a high-performance HDMI™ capture device designed for professional recording and streaming applications. It accepts HDMI™ input resolutions up to 8K@60Hz and 4K@144Hz, while delivering uncompressed capture resolutions up to 4K@60fps and 2560×1440@144fps. Featuring an HDMI™ loop-out, microphone input, and 3.5mm line-in and line-out ports, it offers flexible audio and video integration for advanced production setups.
Powered by USB 3.2 Gen 1 with up to 5Gbps bandwidth, the VC-8KTUSB3 ensures smooth, low-latency video transmission. It supports multiple capture formats including YUY2, NV12, I420, and MJPEG, making it suitable for a wide range of workflows. Fully compliant with UVC and UAC standards, the device requires no drivers and offers true plug-and-play operation. It is compatible with Windows 7/10/11, macOS, and Linux, and works seamlessly with popular software such as OBS, Streamlabs, vMix, Zoom, Microsoft Teams, and more.

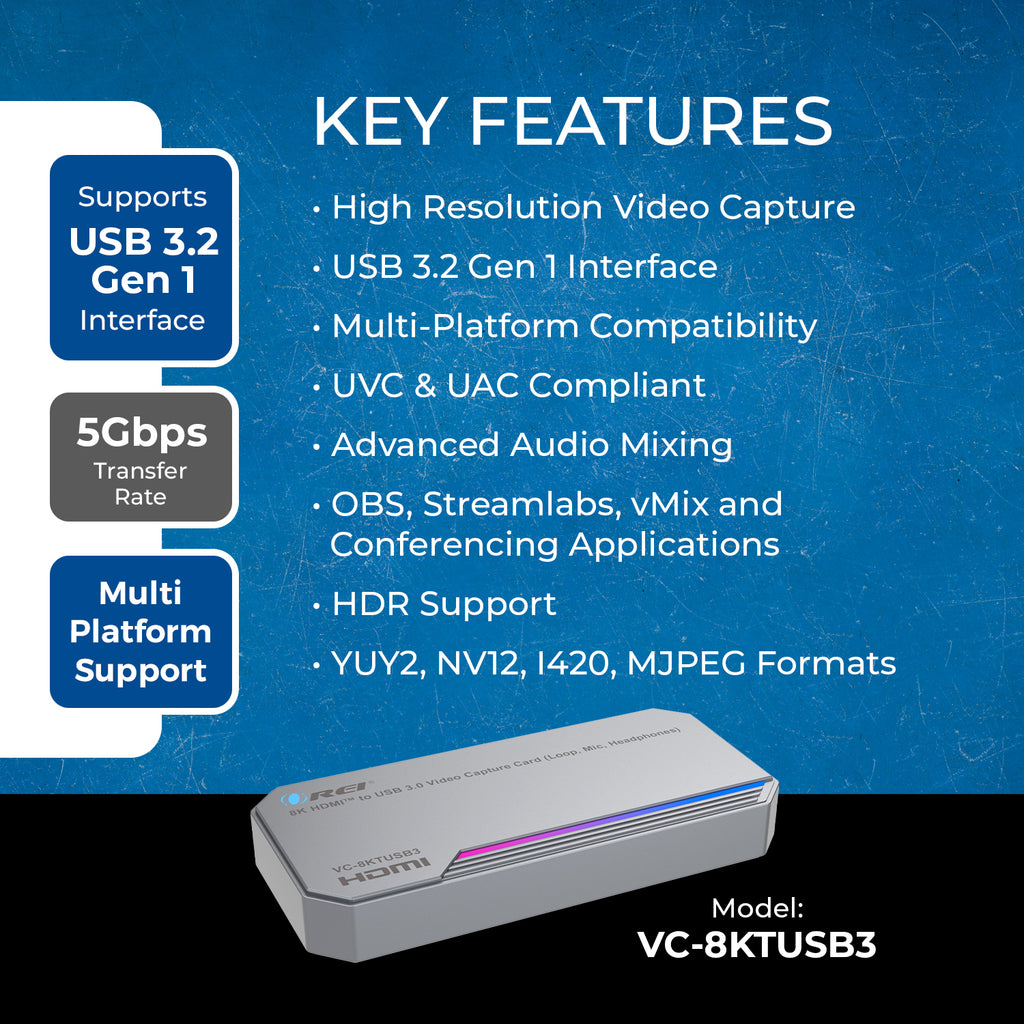

Key Features:
- High-Resolution Video Capture – Supports input up to 8K@60Hz and capture up to 4K@60fps.

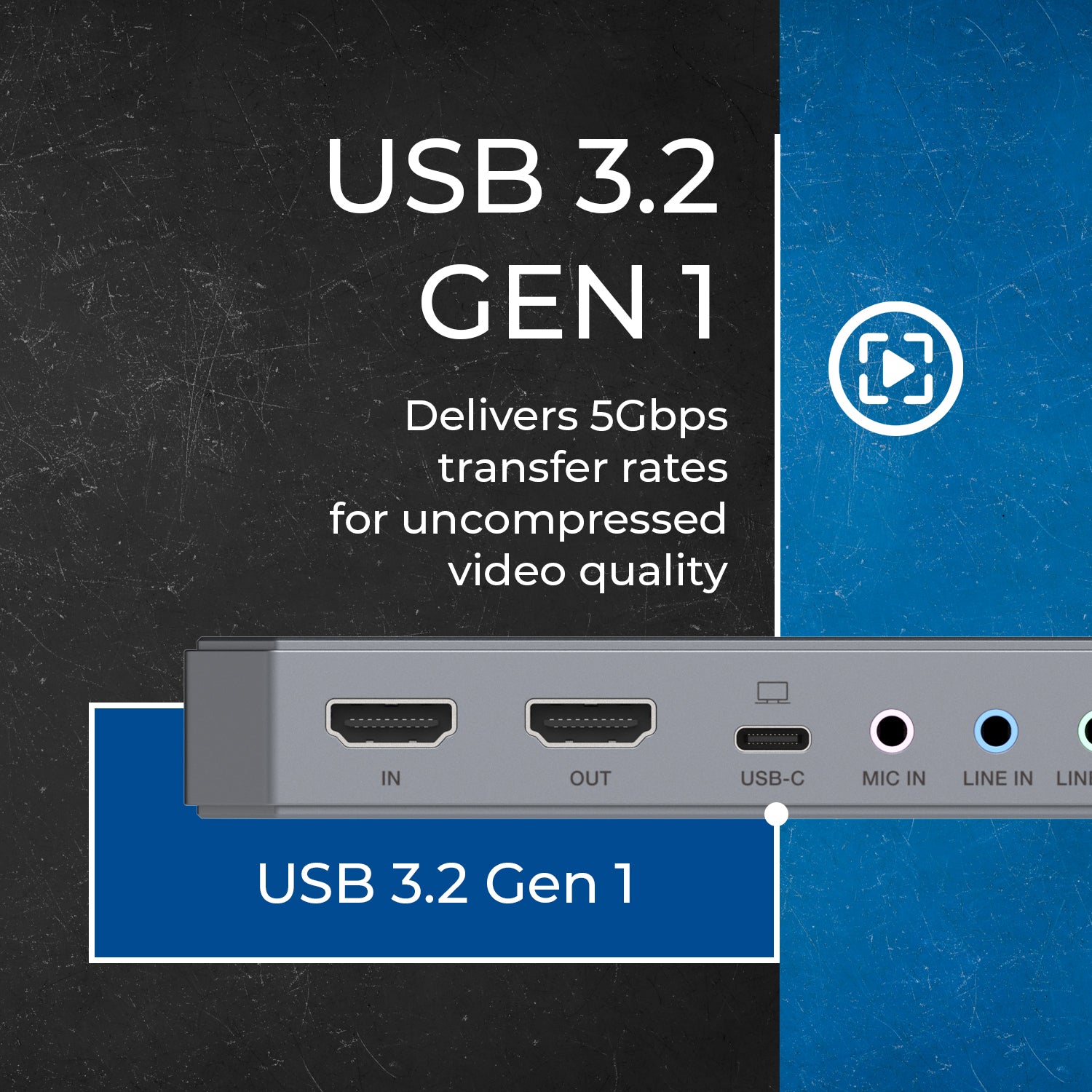

- USB 3.2 Gen 1 Interface – Delivers 5Gbps transfer rates for uncompressed video quality.
- Multi-Platform Compatibility – Works with Windows, Mac, and Linux operating systems.
- UVC/UAC Compliant – Plug-and-play operation without additional drivers.
- Advanced Audio Mixing – Combines HDMI™ digital audio with analog microphone/line-in inputs.
- Professional Software Support – Compatible with OBS, Streamlabs, vMix, and conferencing applications.
- HDR Support – Maintains high dynamic range video quality throughout the capture process.
- Multiple Format Support – YUY2, NV12, I420, and MJPEG capture formats.

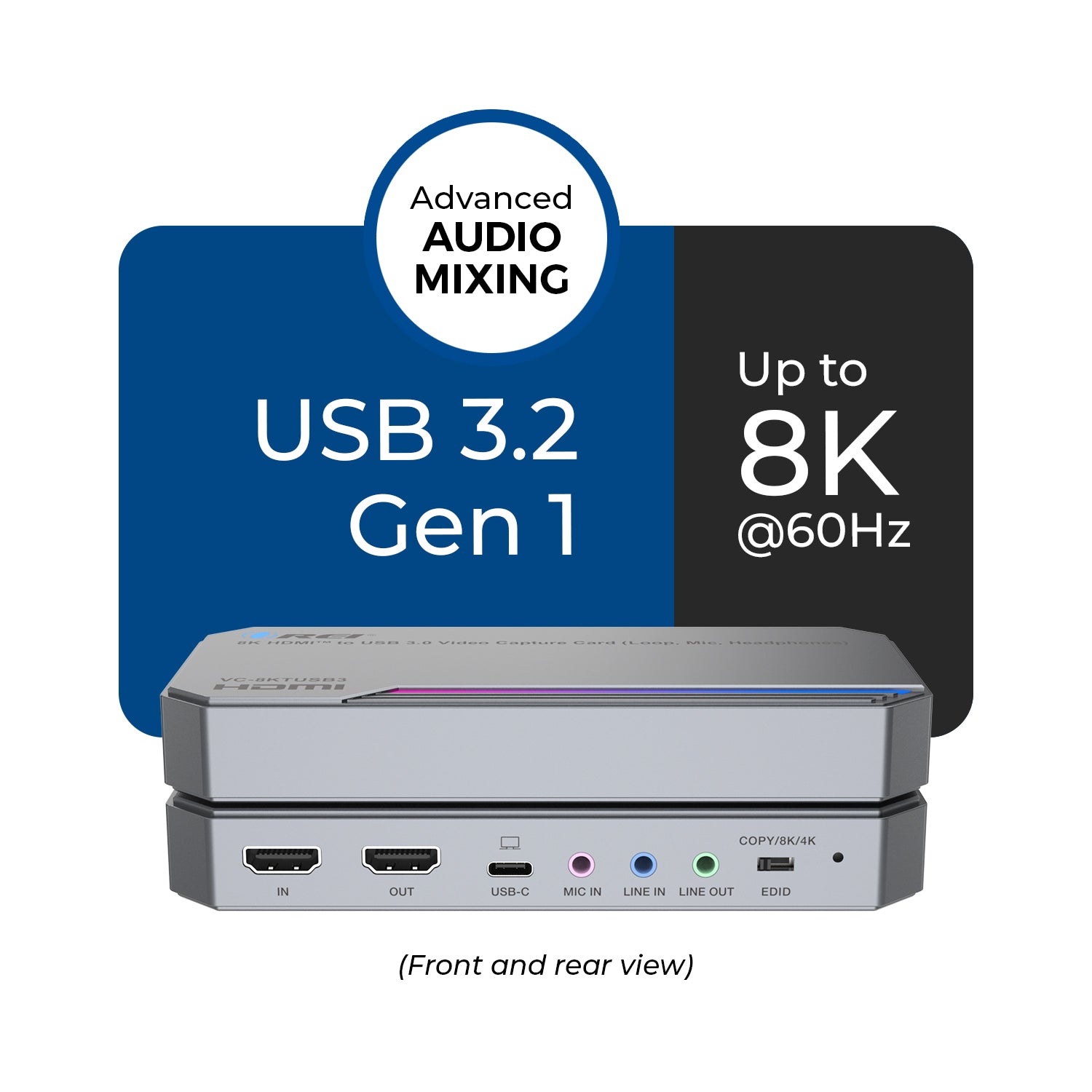

- CONNECTIVITY
- INPUT: 1 × IN [HDMI™ Type A, 19-pin female]
- 1 × MIC IN [3.5mm stereo audio jack]
- 1 × LINE IN [3.5mm stereo audio jack]
- OUTPUT: 1 × OUT [HDMI™ Type A, 19-pin female]
- 1 × LINE OUT [3.5mm stereo audio jack]
- 1 × USB-C [USB Type C, 12-pin female]
- ADDITIONAL FEATURES
- CEC: Yes
- ARC: No
- USB KVM: No
- PoC: No
- IR Control: No
- Downmix: No
- Downscale: No
- Over IP: No
- HDBaseT: No
- RS-232: No
- SUPPORTED HDMI CABLES
- HDMI 2.0/ 2.1 We recommend using high-quality HDMI 2.0/2.1 cables under 30 feet for optimum performance
- VIDEO OUTPUT
- Video Bandwidth: 48Gbps
- Video Resolutions: Up to 8K@60Hz, 4K@144Hzv LOOP-OUT / LOCAL PORTS
- Has loop out port: Yes
- Number of Loop out ports: 1
- AUDIO SUPPORT
- HDMI™ Audio Formats: Maximum Channels: 8 Channels Sampling Rate (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream: Standard & High-definition
- USB Audio Formats: Maximum Channels: 2 Channels Sampling Rate (kHz): 44.1, 48 Bitstream: None
- COMPLIANCES
- HDMI™ Compliance HDMI™ 2.1
- HDCP Compliance HDCP 2.3
- POWER
- Power Consumption: 7.8W (Max)
- Power Supply: USB Power Supply

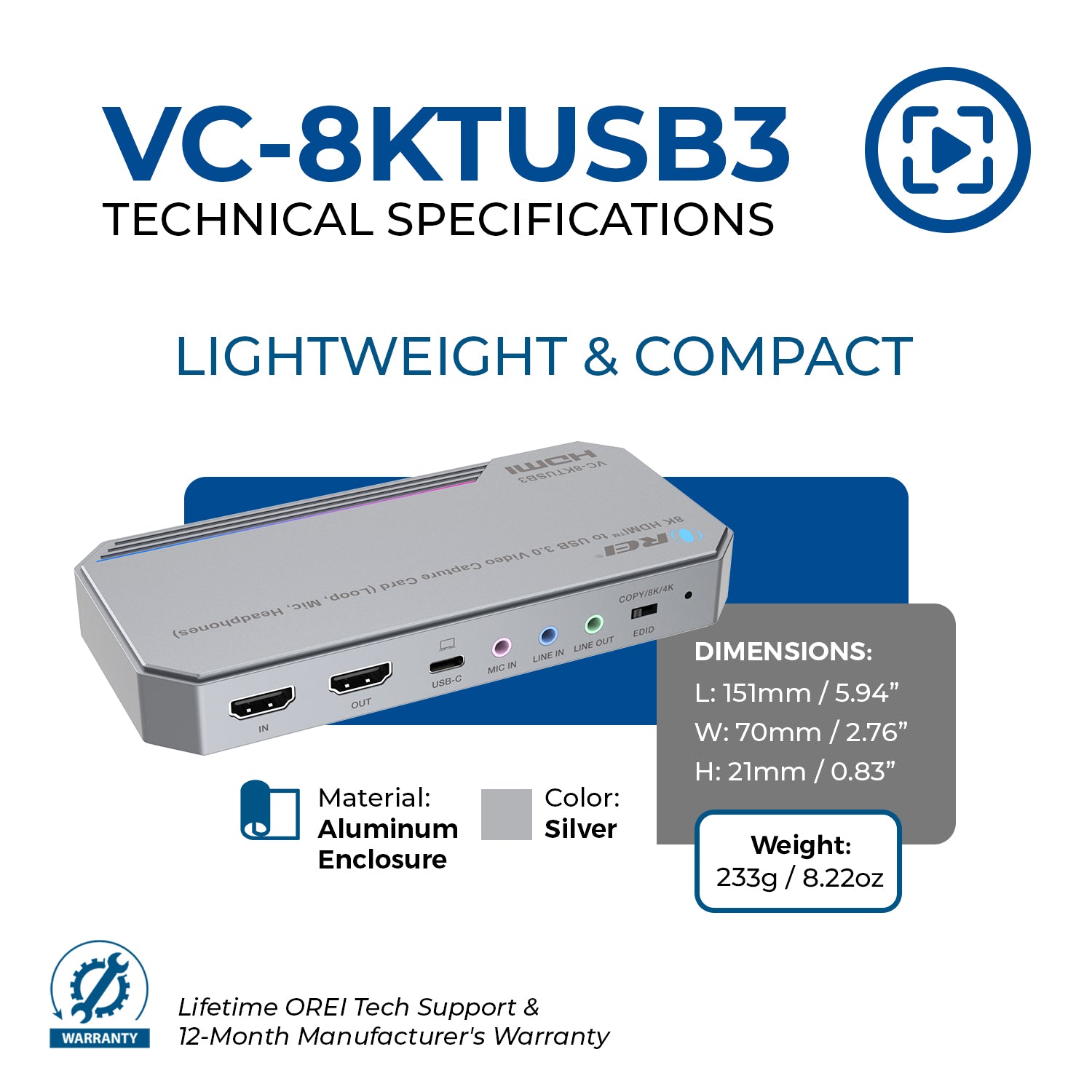

- DIMENSIONS & WEIGHT
- Length: 151mm / 5.94in
- Width: 70mm / 2.76 in
- Height: 21mm / 0.83in
- Weight: 233g / 8.22oz
- PROPERTIES
- Color: Silver
- Housing: Aluminium Enclosure
- Operation Temperature: 32°F ~ 104°F / 0°C ~ 40°C
- Storage Temperature: -4°F ~ 140°F / -20°C ~ 60°C
- Operating Humidity: 20% ~ 80% relative humidity, non-condensing
- Storage Humidity: 10% ~ 90% relative humidity, non-condensing

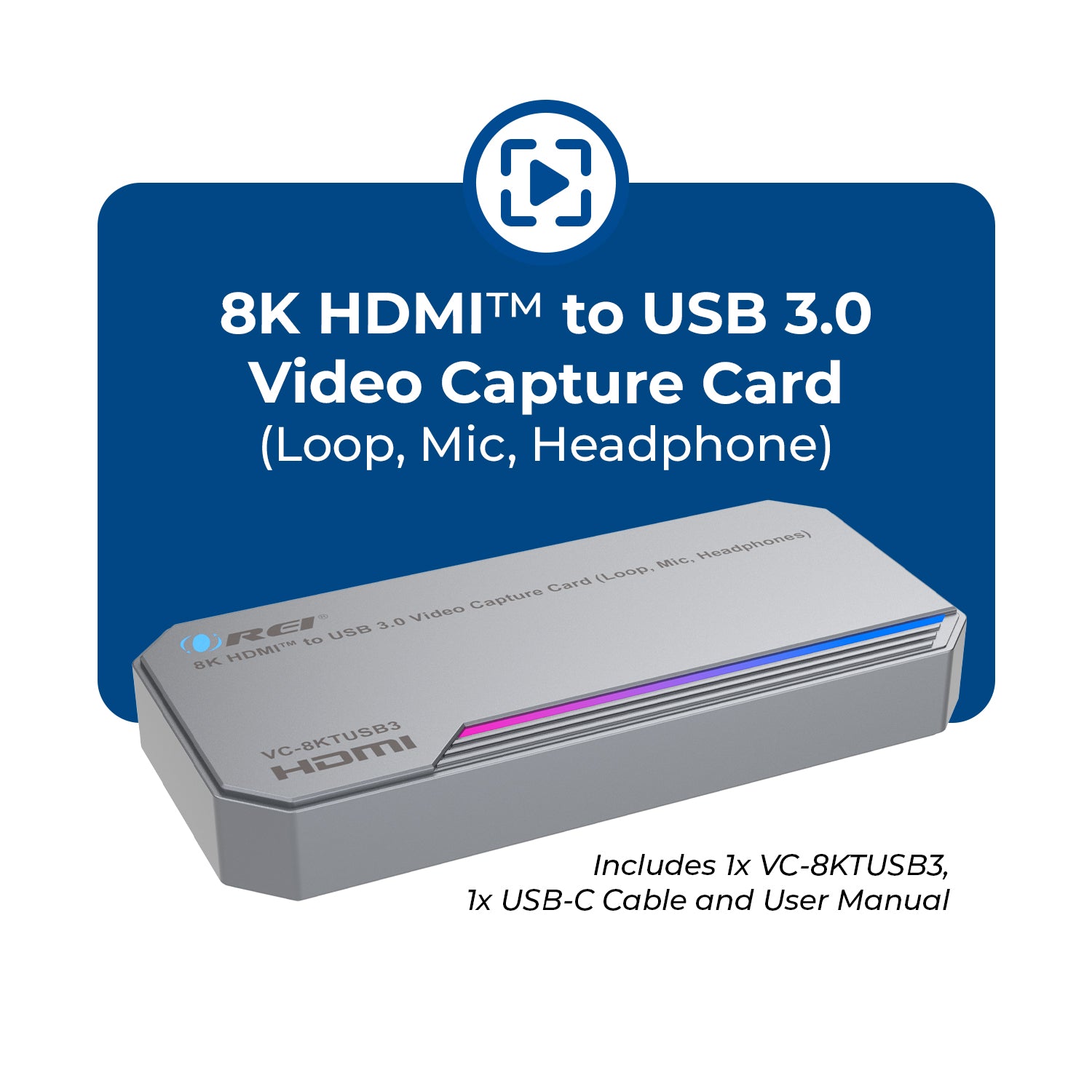

Package Content:
- 1x VC-8KTUSB3
- 1x USB Cable
- User Manual
Warranty:
- 1 Year Warranty
