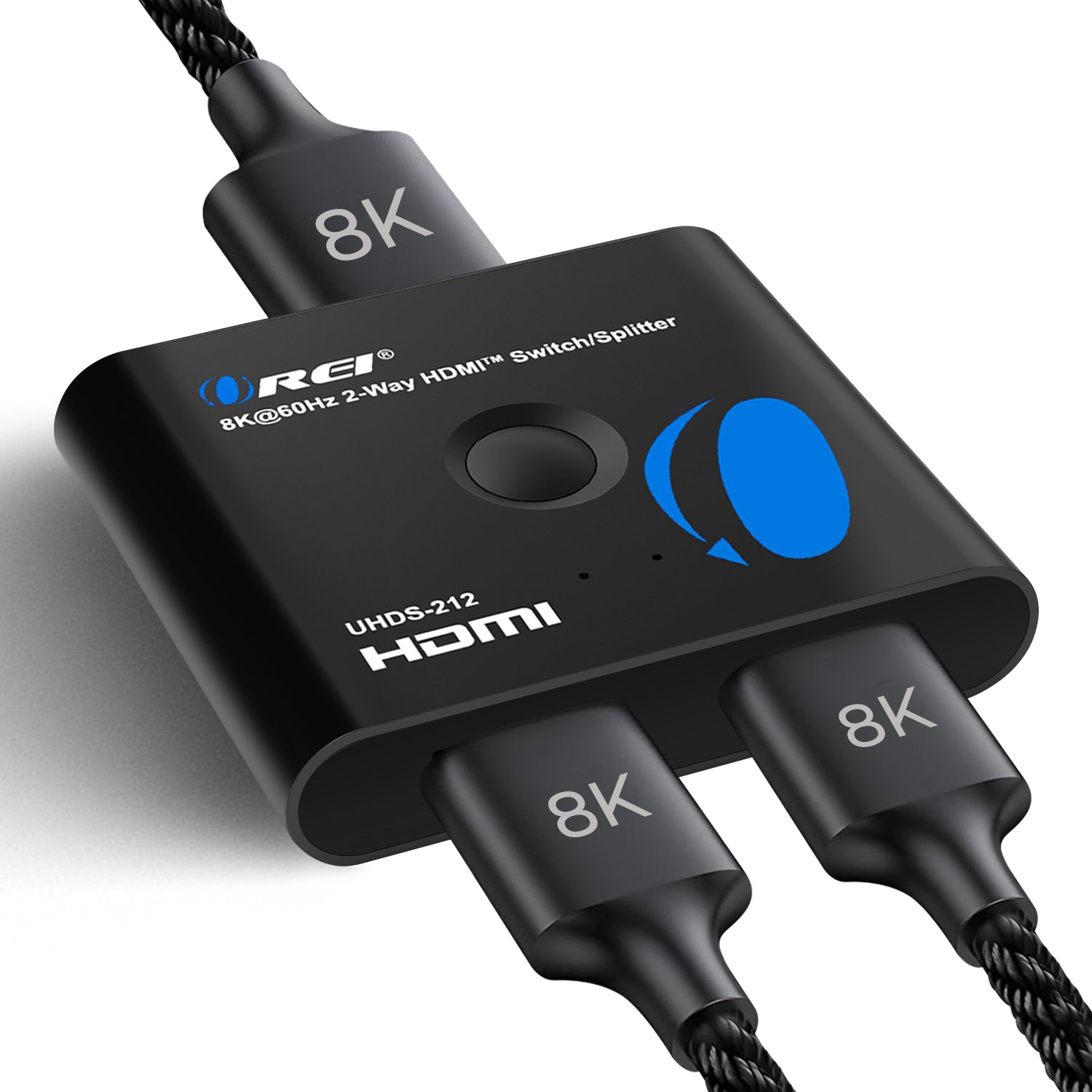

OREI 8K HDMI Bi-direction 1x2 Splitter, 2x1 Switch

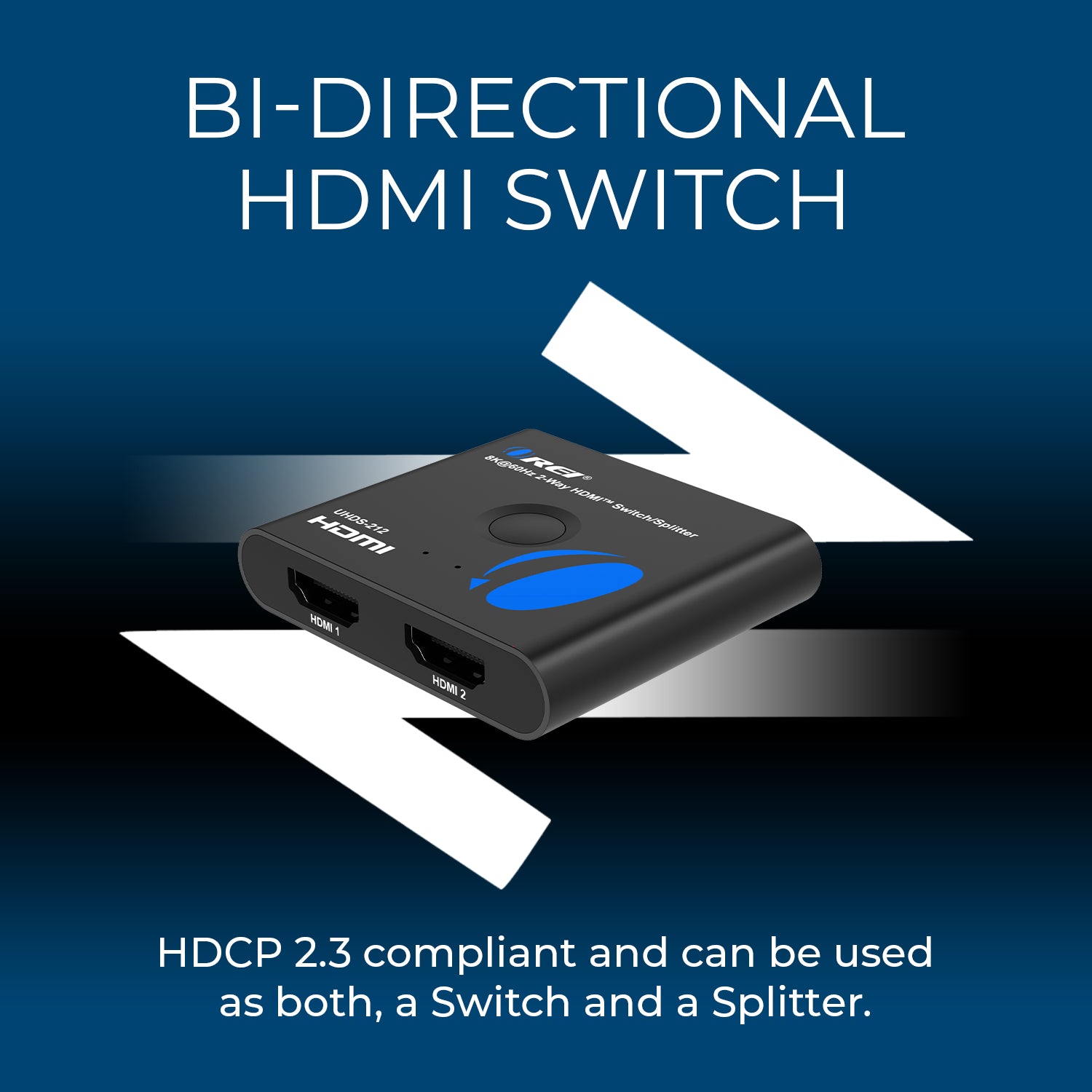

The UHDS-212 is a compact and flexible Bi-Directional HDMI switch and splitter, designed to deliver seamless 8K@60Hz signal management in both residential and commercial AV setups.

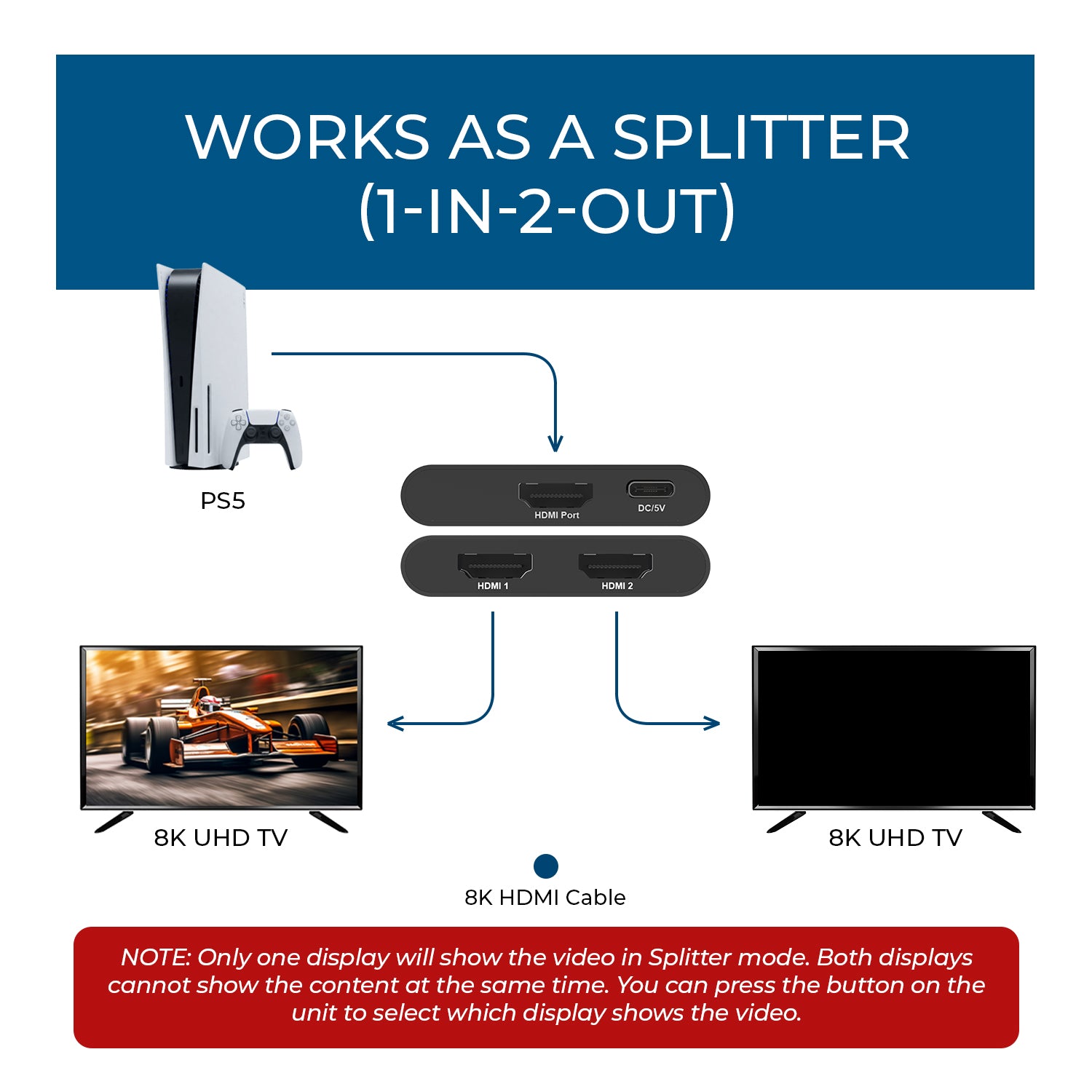

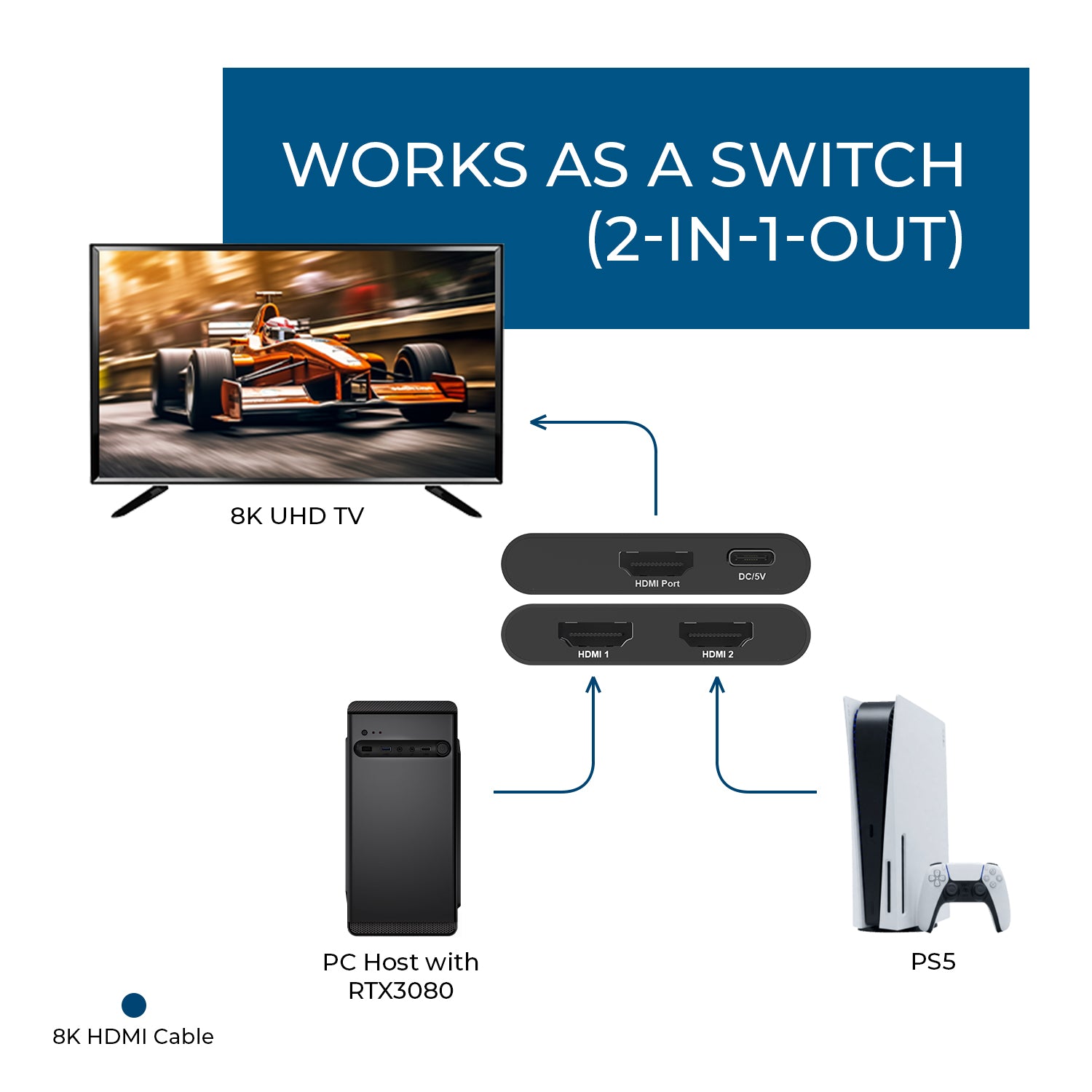

Compliant with HDMI 2.0 and HDCP 2.2 standards, this versatile device can function as a 2x1 switch—connecting two source devices to a single display—or as a 1x2 splitter—sending a single source to two displays (note: only one display will show content at a time in splitter mode).
With support for resolutions up to 8K@60Hz, 3D video formats, HDR, and CEC control, the UHDS-212 ensures compatibility with the latest video technologies.
Its high bandwidth of 18Gbps guarantees smooth signal transmission. The compact, plug-and-play design allows for fast setup and easy operation in any environment.

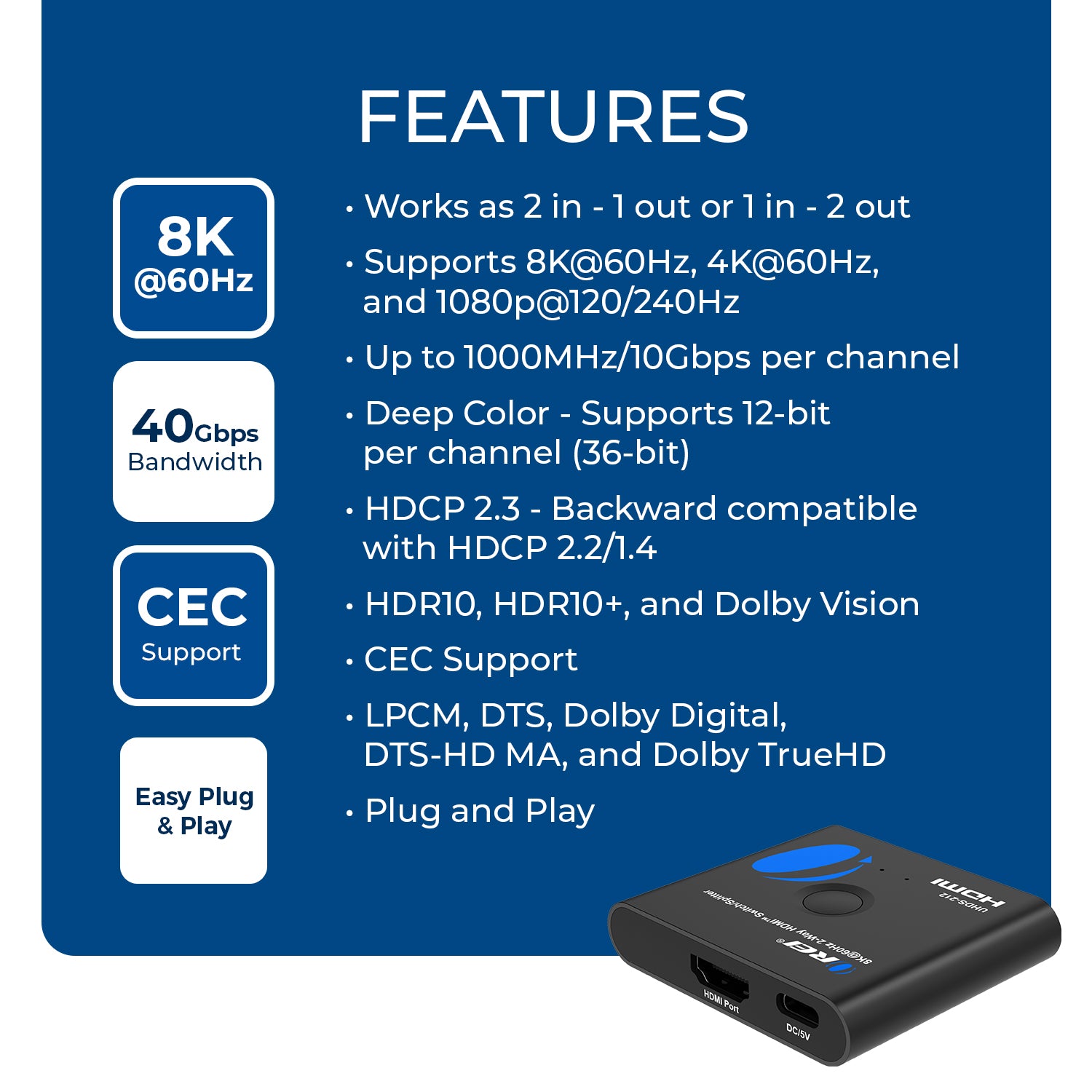

Key Features:
- 2 HDMI-Host to 1 HDMI monitor, 1 HDMI-Host to 2 HDMI monitors
- Backward compatible with the HDMI earlier versions
- Supports DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
- Supports high definition resolution up to 8Kx2K@60Hz YUV 4:4:4 and Full 3D
- Supports High Dynamic Range (HDR) video
- Supports CEC bypass on HDMI out
- Supports 600MHz/6.0 Gbps per channel bandwidth (18 Gbps all channels)
- Compatible with HDMI units such Roku 4, 8K TV, Amazon Fire TV, Ultra Projector, PS4 ,Xbox, Apple TV, HDMI LCD, Gaming, Cable box, Blu-ray player, DVD player, PC, STB and more
- Support HDMI signal retiming, no loss of quality
- Manual port selection: Enables you to manually select your HDMI source with easy-to-use panel buttons
OREI 2x1, 1x2 Bi-Direction HDMI Splitter and Switch

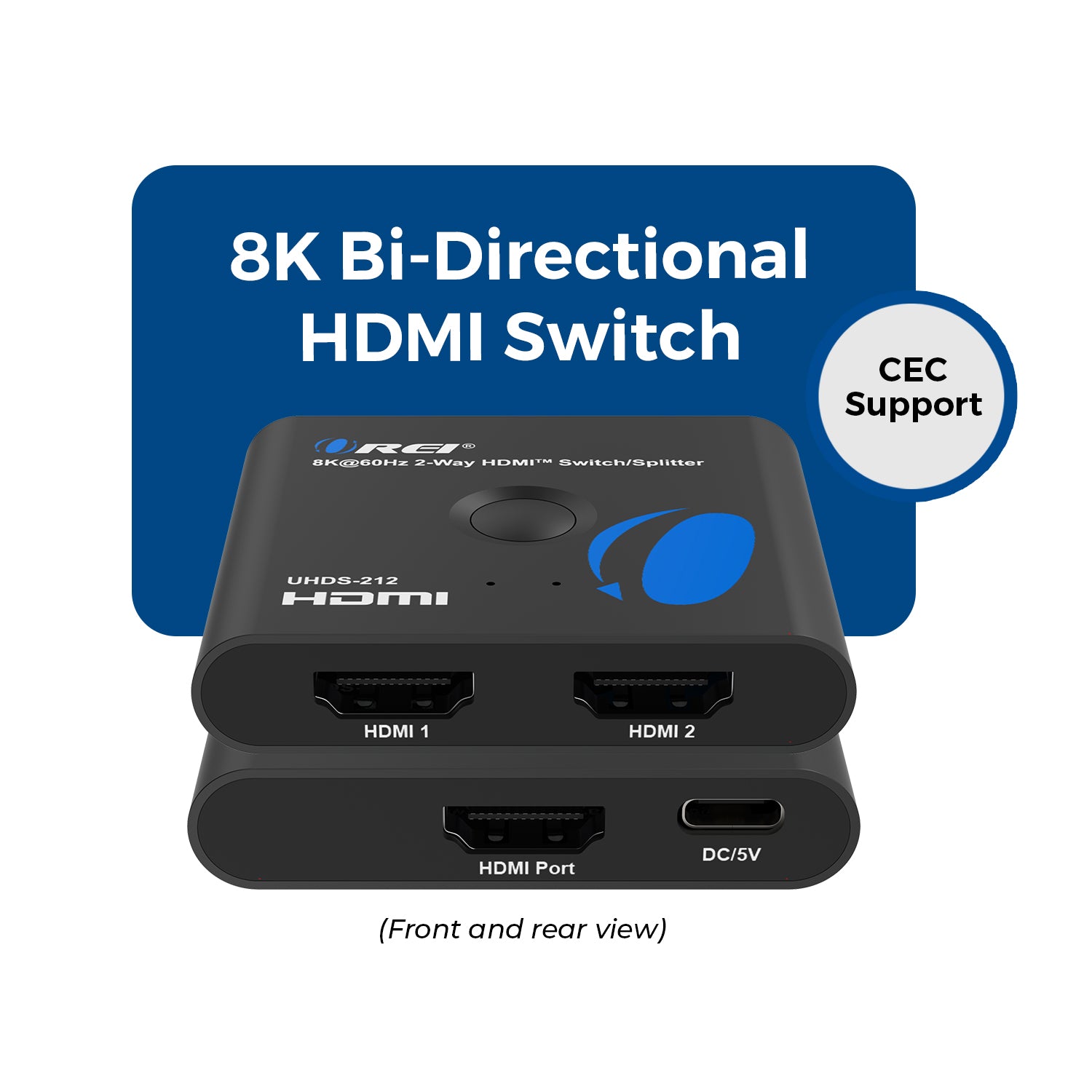

- Input Ports: HDMI x 1 (1 in 2 out) / HDMI x 2 (2 in 1 out)(Female type)
- Output Ports: HDMI x 2 (1 in 2 out)/ HDMI x 1 (2 in 1 out)(Female type)
- HDCP Compliance: HDCP 2.2/1.4
- Video Bandwidth: 6.0 Gbps/600MHz per channel (18Gbps all channels)
- Video Resolutions: Interlaced(50 & 60Hz): 480i, 576i, 1080i; Progressive(50 & 60Hz): 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz
- Digital Audio Formats:: DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
- Operating Temperature:0 °C to 70 °C
- Relative Humidity: 5% to 90% RH non-condensation
- Dimensions: 51.6 mm(W) x 52 mm(D) x 14 mm(H)
- Weight: 30g
- Material: ABS
- Color: Black
- Power Consumption: 5 W

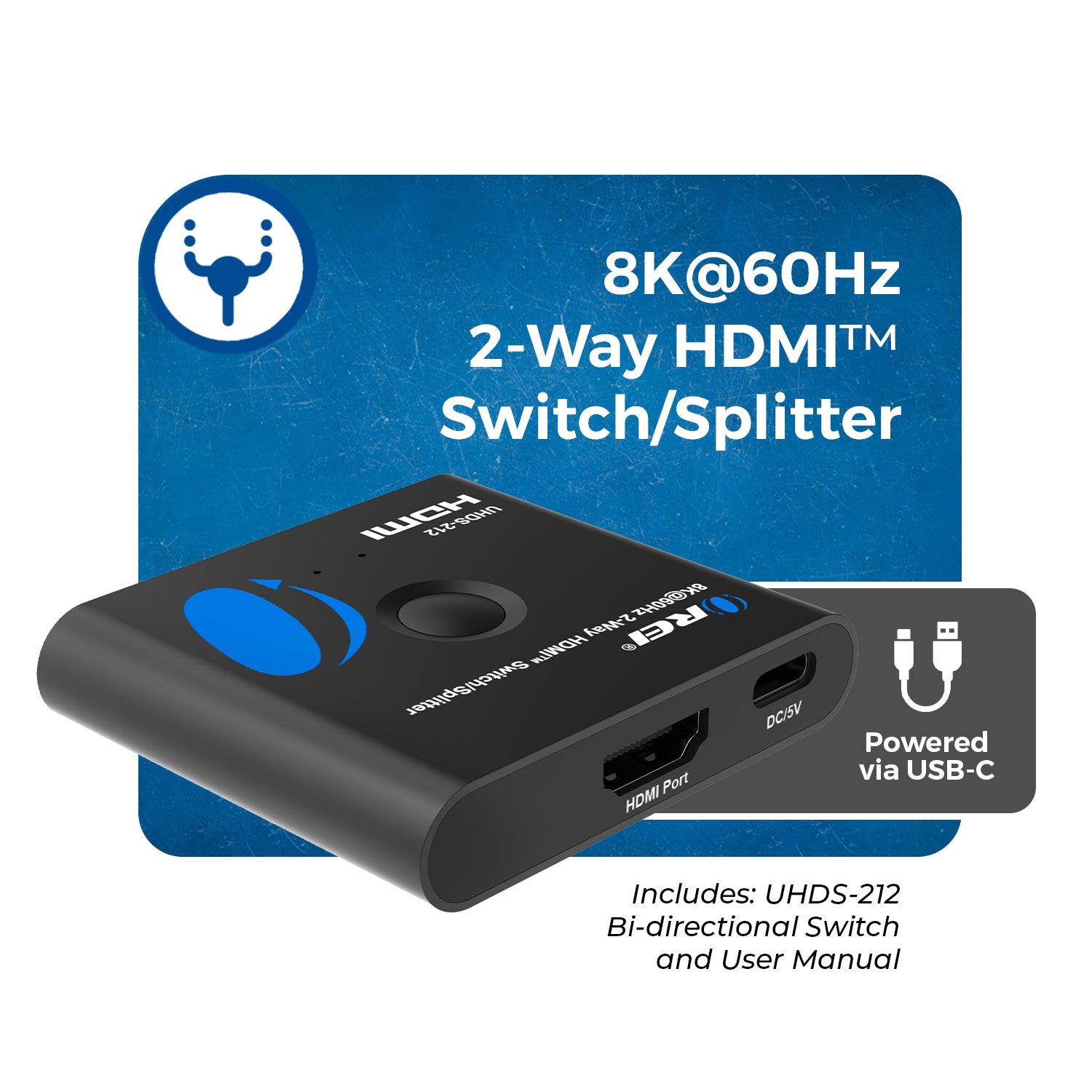

Includes:
- 1 × UHDS-212 Bi-directional switch
- 1 User Manual
