8K DP HDMI™ Audio Extractor (3.5mm, Optical) - DPHD-912
The DPHD-912 audio extractor features OREI’s latest DP|HD combo technology, allowing a single input port to accept either DisplayPort or HDMI™ signals for maximum fl exibility. It is designed to extract audio from HDMI™- or DP-compliant sources such as computers, media players, set-top boxes, and streaming devices, and output the audio simultaneously through optical (SPDIF) and 3.5mm stereo ports.
Compliant with HDMI™ 2.0b, DisplayPort 1.4 (ALT Mode), and HDCP 2.3, the DPHD-912 supports high-resolution video up to 8K@30Hz and 4K@120Hz via DisplayPort, and 4K@60Hz via HDMI™, with bandwidth support of 32.4Gbps (DP) and 18Gbps (HDMI™). It also passes through advanced video formats including HDR, HDR10, HDR10+, Dolby Vision, and HLG, along with CEC support for compatible devices.
For audio output, the optical port supports LPCM 2CH, Dolby Digital 2/5.1, and DTS 2/5.1, while the 3.5mm port delivers analog LPCM 2.0 audio. An EDID management switch ensures reliable compatibility across different source and audio device combinations. Housed in a compact and durable enclosure, the DPHD-912 is well suited for both home and professional AV installations.

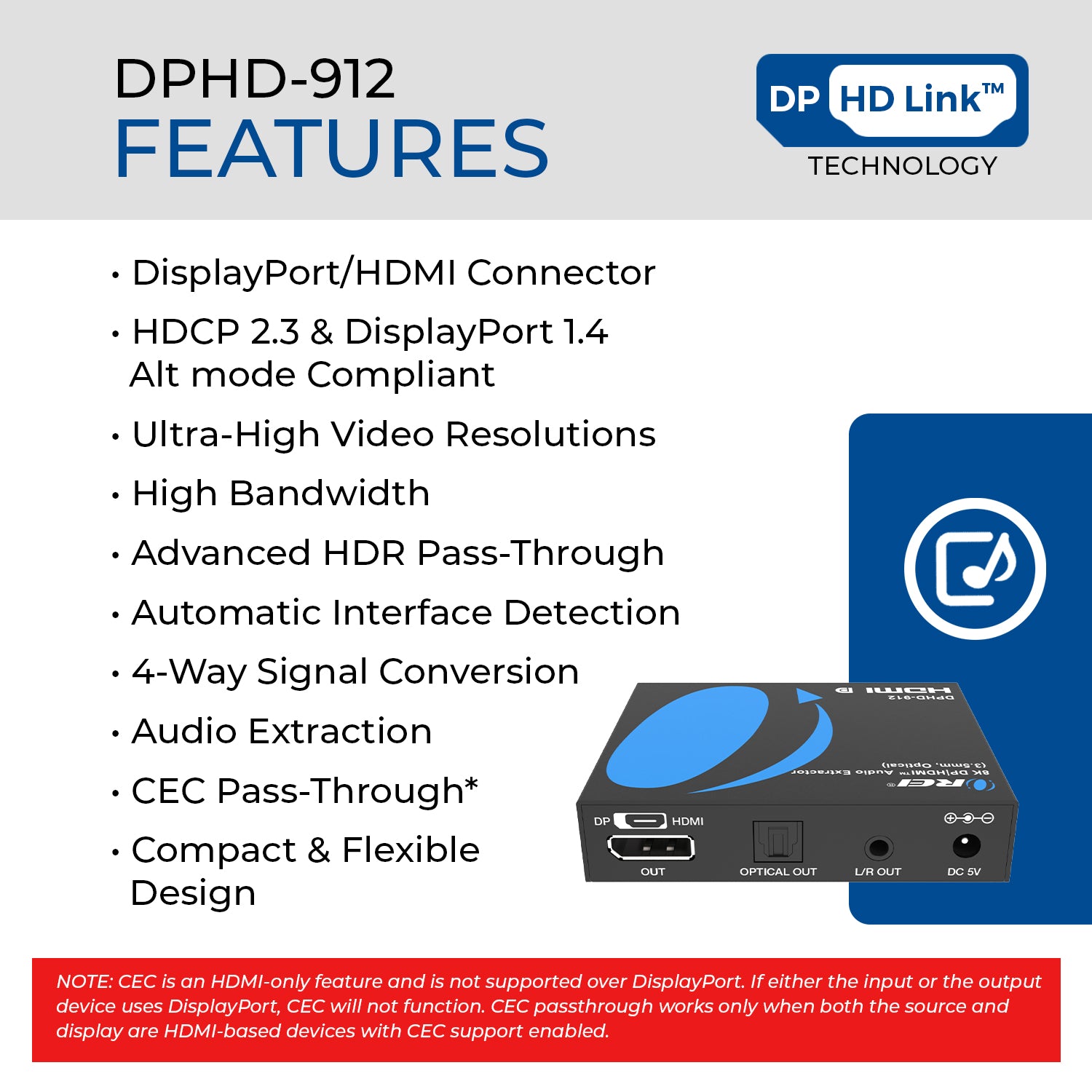

Key Features:

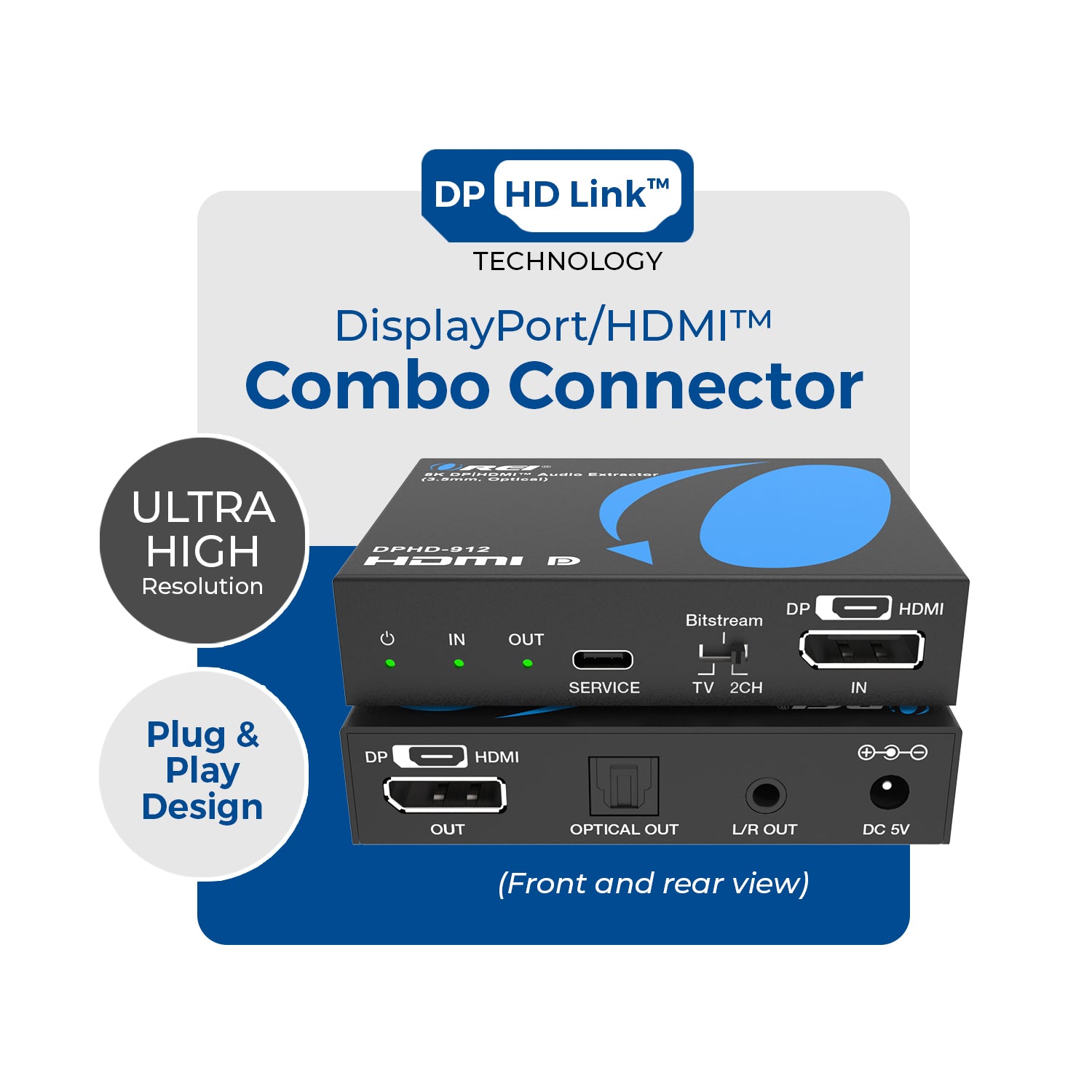

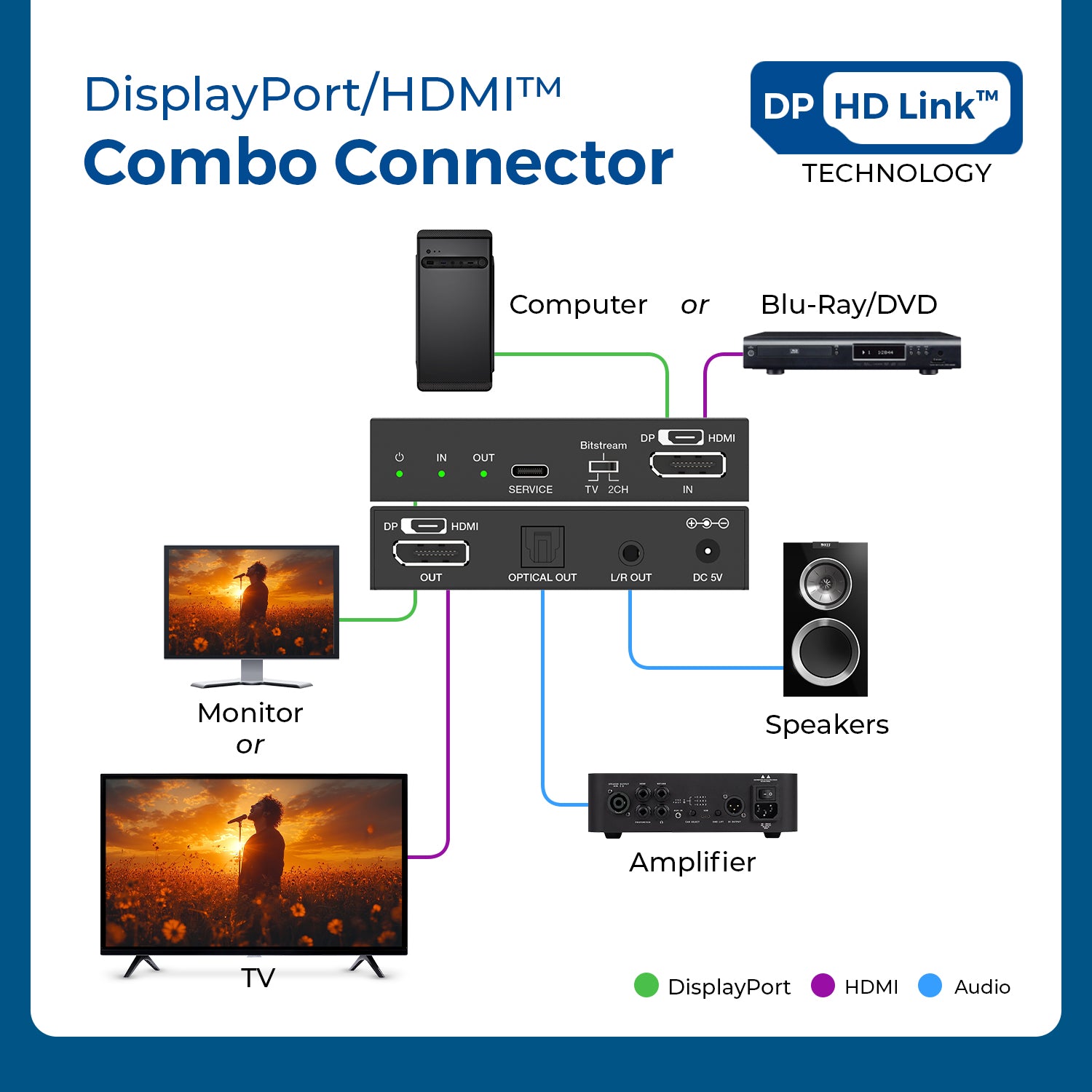

- DisplayPort/HDMI™ Combo Connector – Supports both DP and HDMI™ interfaces on input and output ports for maximum installation fl exibility.
- HDCP 2.3 & DisplayPort 1.4 Alt mode Compliant – Ensures compatibility with the latest media and content protection standards.
- Ultra-High Video Resolutions – Up to 8K@30Hz, 4K@120Hz for DP input and 4K@60Hz for HDMI™ input.
- High Bandwidth – Supports 32.4Gbps (DP) and 18Gbps (HDMI™) video bandwidth.
- Advanced HDR Pass-Through – Supports HDR10, HDR10+, Dolby Vision, and HLG formats.

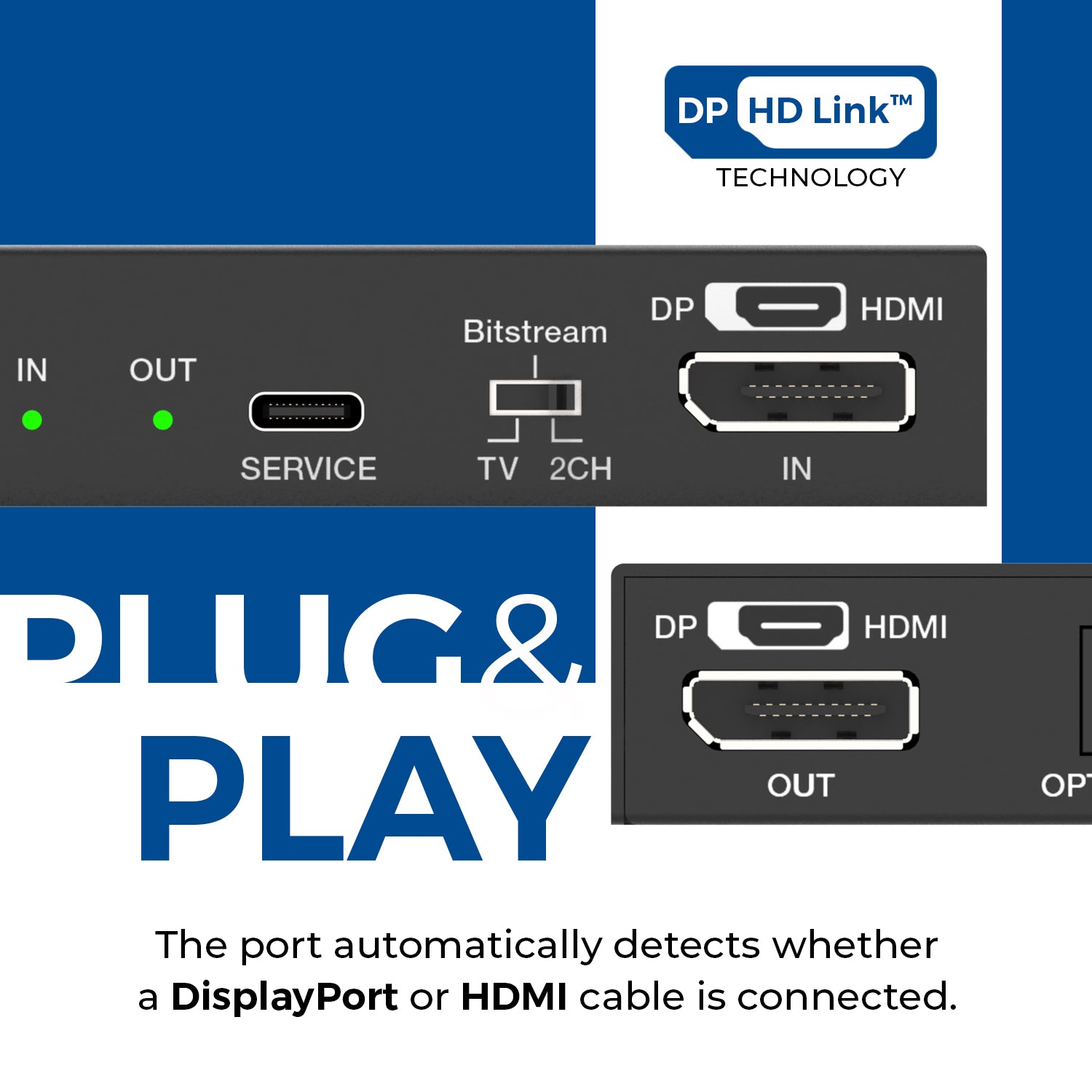

- Automatic Interface Detection– Automatically recognizes DP/ HDMI™ signals on both input and output ports.

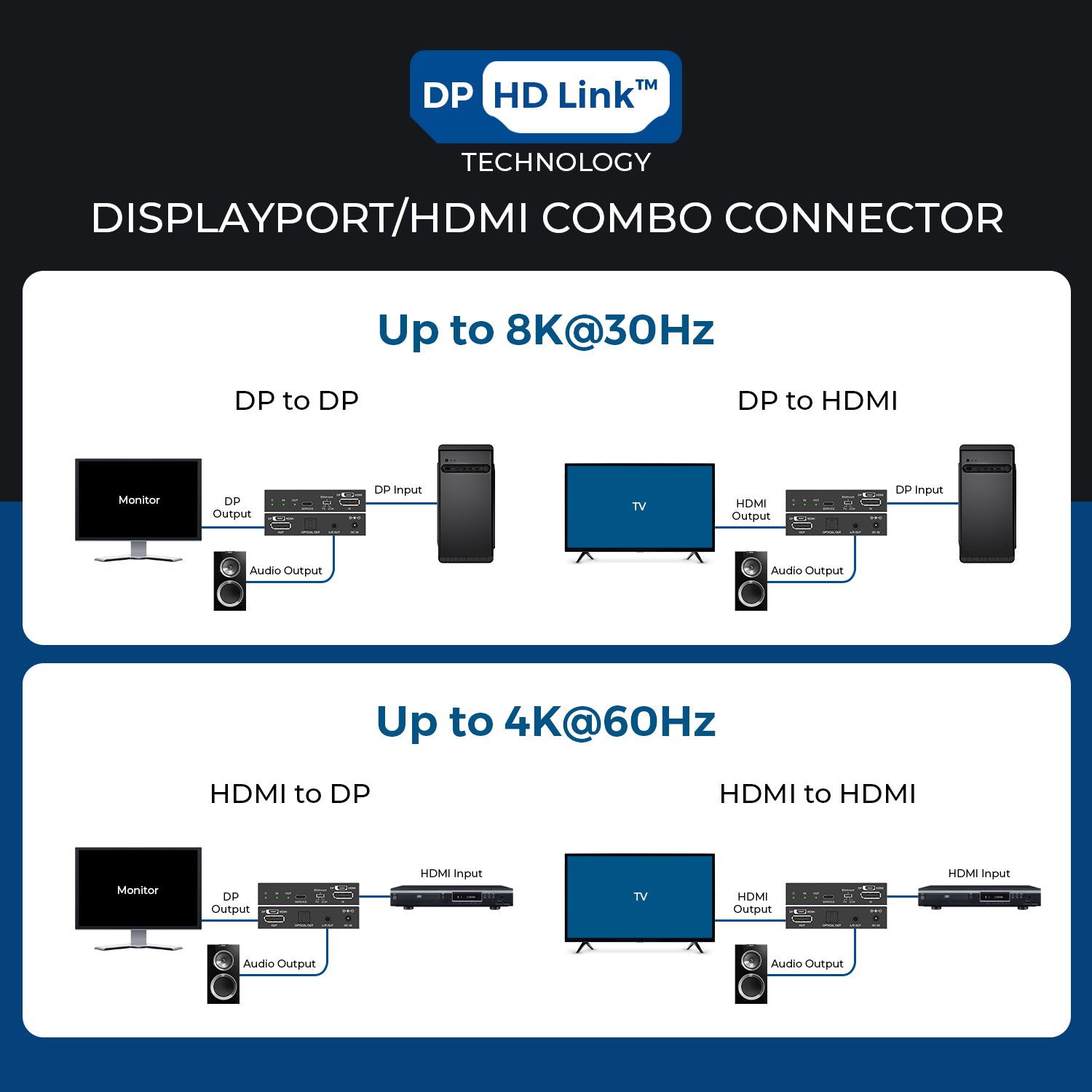

- 4-Way Signal Conversion – Fully supports DP->DP, DP->HDMI™, HDMI™->DP, and HDMI™->HDMI™ conversions.
- CEC Pass-Through – Maintains device control signals across the converter.
- Compact & Flexible Design – Space-saving form factor ideal for professional AV, home theater, and mixed-signal display setups.

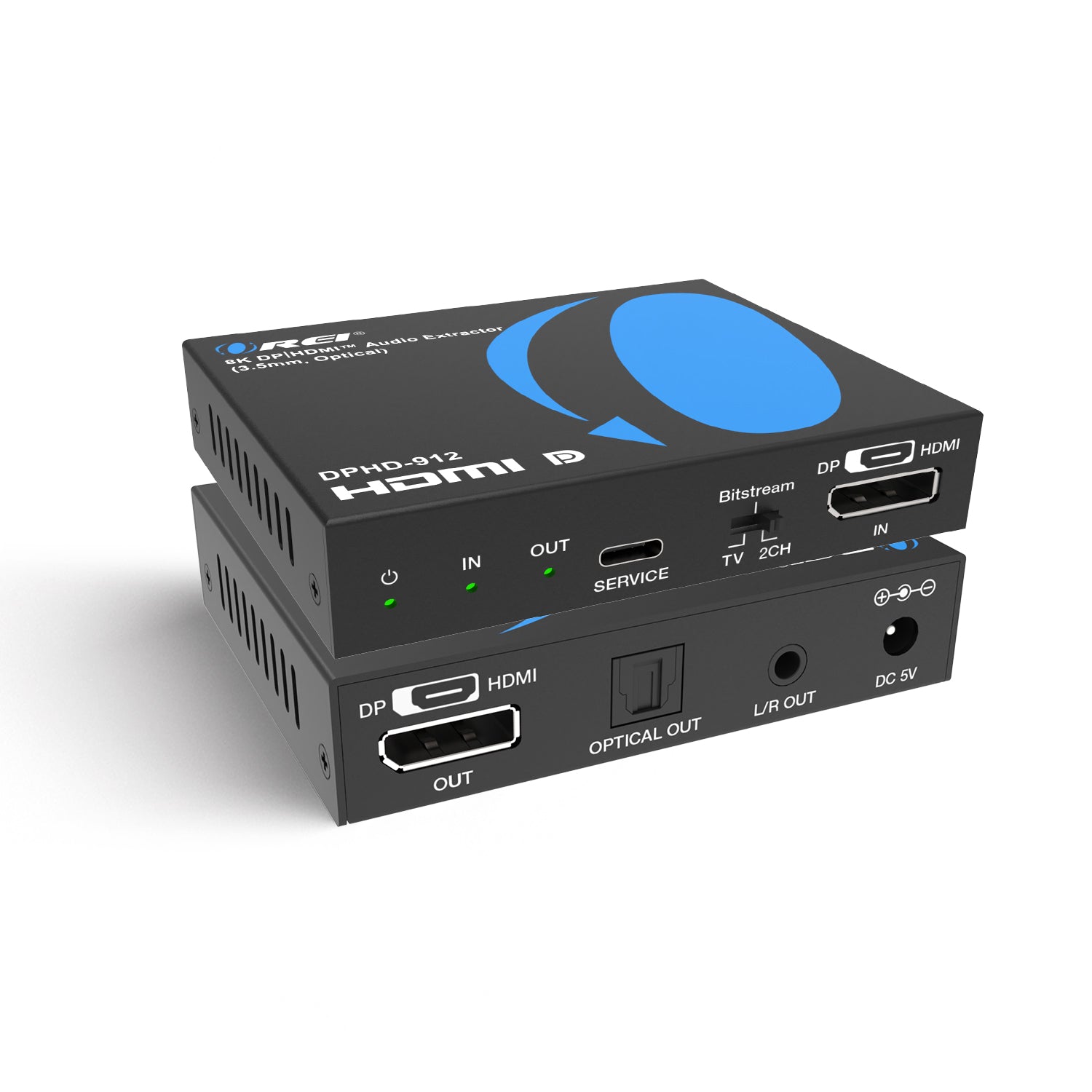

- CONNECTIVITY
- INPUT: 1× DP/HDMI™ [combo connector]
- OUTPUT: 1× DP/HDMI™ [combo connector]
- 1× L/R [3.5mm stereo mini-jack]
- 1× OPTICAL [S/PDIF]
- CONTROL: 1× SERVICE [USB-C, update port]
- PACKAGE CONTENTS
- 1x DPHD-912
- 1x Power Adapter
- 1x User Manual
- VIDEO OUTPUT
- Network Bandwidth: HDMI™ IN: 18Gbps
- HDMI™ OUT: 48Gbps
- DP: 32.4Gbps
- AUDIO AND VIDEO
- Video Bandwidth: 18Gbps
- Video Resolutions: Up to 4K2K@60 with 24-bit RGB/YCbCr 4:4:4
- Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Color Depth: 8-bit,10-bit,12-bit
- HDMI Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- POWER
- Power Consumption: 2.4W (Max)
- Power Supply: DC 5V/1A

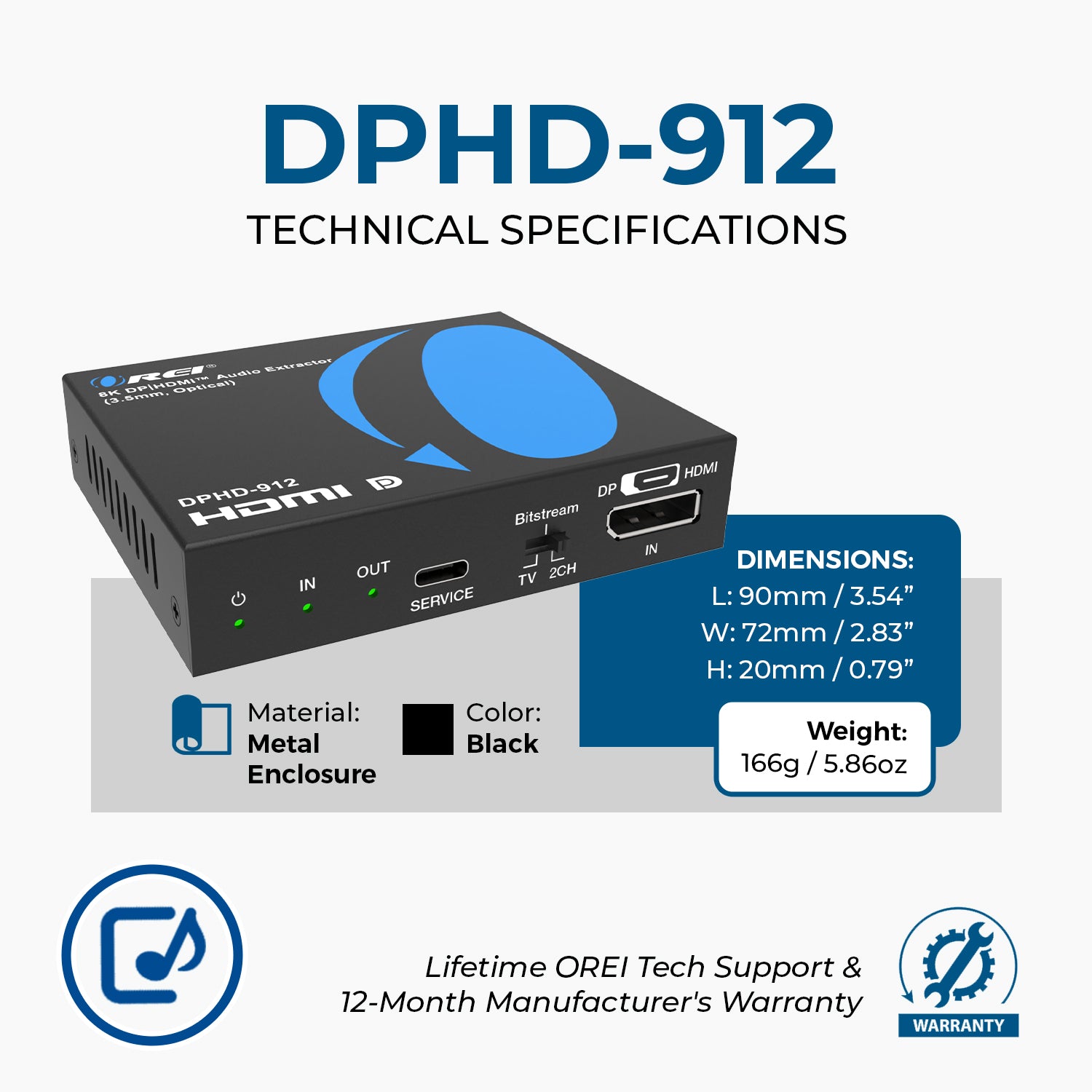

- DIMENSIONS & WEIGHT
- Length: 90mm / 3.54in
- Width: 72mm / 2.83in
- Height: 20mm / 0.79in
- Weight: 166g / 5.86oz
- PROPERTIES
- Color: Black
- Housing: Metal Enclosure
- Operation Temperature: 0°C ~ 40°C / 32°F ~ 104°F
- Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
- Operating Humidity: 20%~80% (relative humidity, non-condensing)
- Storage Humidity: 10%~90% (relative humidity, non-condensing)
- WARRANTY
- 1-Year Manufacturer's Warranty

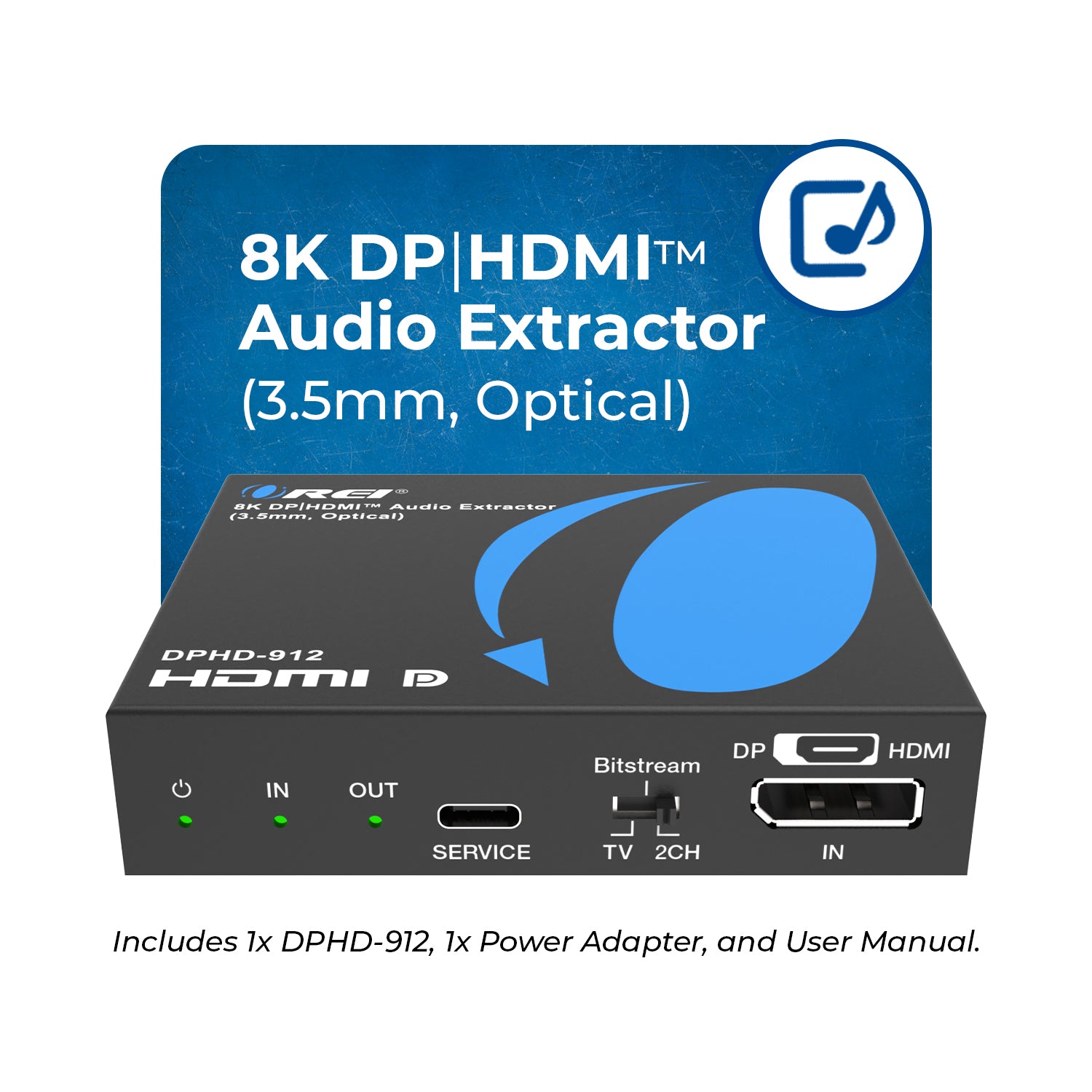

Includes:
- 1x DPHD-912
- 1x Power Adapter
- 1x User Manual
WARRANTY:
- 1-Year Manufacturer's Warranty
